Black+Decker Spacemaker Under-Counter Can Opener Instruction Manual

Prodotto finitoview

This Black+Decker Spacemaker Can Opener is designed to be mounted under cabinets, optimizing counter space. It features hands-free operation with automatic shutoff, a power-pierce cutting blade for efficient opening, and integrated tools including a knife sharpener and bottle opener. Its compact design accommodates both standard and tall cans.

Configurazione e installazione

The Spacemaker Can Opener is designed for easy under-cabinet mounting. Ensure you have appropriate screws and a drill for installation. The unit comes with mounting hardware to secure it firmly to the underside of your kitchen cabinet.

Figura 1: in alto view of the can opener showing the mounting points and screws.

1. Scegli la posizione: Select a suitable location under your kitchen cabinet, ensuring enough clearance for the can opener and any items below it. Consider the proximity to an electrical outlet.
2. Segna punti di montaggio: Hold the can opener in place and mark the screw locations on the underside of the cabinet. The unit is designed to align with standard cabinet depths.
3. Praticare i fori pilota: Praticare dei piccoli fori pilota nei punti contrassegnati per evitare che il legno si spacchi.
4. Unità sicura: Align the can opener with the pilot holes and secure it using the provided mounting screws. Ensure the unit is firmly attached and stable before use.

Istruzioni per l'uso

Usando l'apriscatole

This can opener operates hands-free for convenience.

1. Posizione Può: Lift the can opener lever and position the can so that the rim is securely seated against the cutting blade and the drive wheel.
2. Innestare la lama: Lower the lever firmly to pierce the can lid. The can opener will automatically start cutting.
3. Funzionamento a mani libere: The can will rotate automatically until the lid is fully cut. The unit will then shut off automatically.
4. Rimuovere la lattina: Once cutting is complete, lift the lever to release the can. The lid may remain attached to the magnet for easy disposal.

Using the Built-in Knife Sharpener

The can opener includes a convenient knife sharpener located on the side of the unit.

Figura 2: lato view highlighting the integrated knife sharpener.

1. Locate Sharpener: Identify the sharpening slot on the side of the can opener.
2. Inserire il coltello: Carefully insert the knife blade into the slot, ensuring the blade is centered.
3. Affilare: Pull the knife gently through the sharpener several times, applying light, even pressure. Repeat until desired sharpness is achieved.

Usando l'apribottiglie

A bottle opener is also integrated into the design for added utility.

1. Locate Bottle Opener: Find the bottle opener hook, typically located near the bottom or side of the unit.
2. Open Bottle: Place the bottle cap under the hook and lever the bottle downwards to remove the cap.

Manutenzione e pulizia

Una pulizia regolare garantisce prestazioni ottimali e longevità del vostro apriscatole.

• Pulizia della lama: The power-pierce cutting blades are designed to release for easy cleaning. Refer to the "Blade Release" switch on the unit. Carefully remove the blade assembly and wash it with warm, soapy water. Rinse thoroughly and dry completely before reattaching.
• Pulizia dell'unità: Pulisci l'esterno dell'apriscatole con l'annuncioamp stoffa. Non immergere l'unità in acqua.
• Affilacoltelli: Periodically clean any metal shavings from the knife sharpener slot using a small brush.

CAUTION: DO NOT IMMERSE IN WATER. HOUSEHOLD USE ONLY.

Risoluzione dei problemi

If you encounter issues with your can opener, try the following common solutions:

• Can Not Opening:
  • Ensure the can is properly seated and the lever is fully lowered.
  • Check if the blade is clean and free of debris.
  • Verify the unit is plugged into a working electrical outlet.
• Lid Not Releasing:
  • The magnet may be dirty or obstructed. Clean the magnet area.
  • Ensure the can is fully cut before attempting to remove it.
• Rumore insolito:
  • Check for any foreign objects obstructing the cutting mechanism.
  • Ensure the can is properly aligned.

If problems persist, please contact Black+Decker customer support.

Specifiche

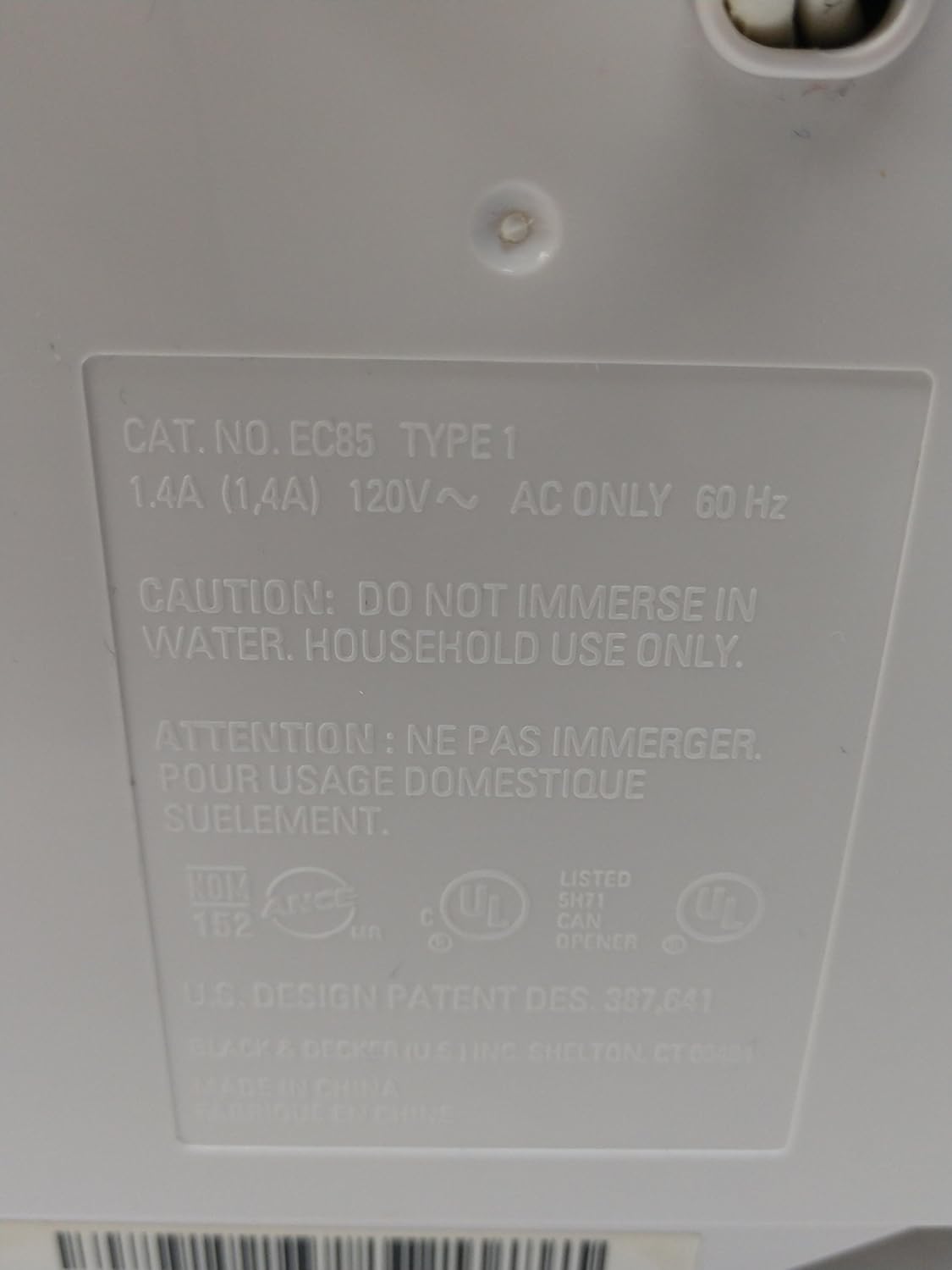

Figure 3: Product label with model and electrical specifications.

Garanzia e supporto

For warranty information or technical support, please visit the official BLACK+DECKER webo contattare il servizio clienti. Conservare la ricevuta d'acquisto per eventuali reclami in garanzia.

Supporto online: www.blackanddecker.com/support
