Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your Infinity INF RA 6006 6-Channel Power Amplifier. Please read this manual thoroughly before attempting to install or operate your amplifier to ensure proper use and to prevent damage to the unit or your vehicle's audio system. Keep this manual for future reference.
Informazioni sulla sicurezza
Osservare sempre le seguenti precauzioni di sicurezza:
- Prima di iniziare qualsiasi installazione, scollegare il terminale negativo della batteria del veicolo.
- Assicurarsi che tutti i cavi siano correttamente instradati e fissati per evitare schiacciamenti o danni.
- Utilizzare cavi di calibro appropriato per i collegamenti di alimentazione e di terra, come specificato nella sezione di installazione.
- Evitare di installare il amplificatore in luoghi esposti alla luce solare diretta, a calore eccessivo, umidità o polvere.
- Non azionare il amplificatore se danneggiato o malfunzionante. Fare riferimento alla sezione risoluzione dei problemi o contattare personale di assistenza qualificato.
- Always use fuses of the specified rating. Never replace a fuse with one of a higher rating.
Configurazione e installazione
Una corretta installazione è fondamentale per prestazioni ottimali e longevità del tuo amplifier. If you are unsure about any part of the installation process, consult a professional installer.
1. Disimballaggio
Rimuovere con attenzione il file amplifier and all accessories from the packaging. Inspect for any signs of damage. If damage is found, contact your dealer immediately.
2. Posizione di montaggio
Choose a mounting location that is dry, well-ventilated, and away from direct heat sources. Ensure there is sufficient space around the amplifier for proper air circulation. Common locations include under a seat, in the trunk, or behind a panel. Secure the amplifier firmly to a solid surface using the provided mounting hardware.

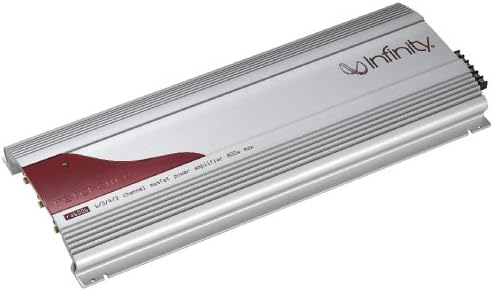

Image: The Infinity INF RA 6006 6-Channel Power Amplificatore, showcasing its silver chassis with a red accent panel and the Infinity logo. This view highlights the heat sink fins designed for thermal dissipation.
3. Collegamenti elettrici
All wiring should be performed with the vehicle's battery disconnected.
- Power (B+) Wire: Connect a heavy-gauge power wire (e.g., 4-gauge or 8-gauge depending on system power) directly from the positive terminal of the vehicle's battery to the B+ terminal on the amplifier. Install an in-line fuse holder with an appropriate fuse (not supplied) within 18 inches (45 cm) of the battery.
- Ground (GND) Wire: Connect a heavy-gauge ground wire of the same size as the power wire from the GND terminal on the amplifier to a clean, unpainted metal surface of the vehicle's chassis. Ensure a good electrical connection.
- Remote (REM) Turn-On Wire: Connect a smaller gauge wire (e.g., 18-gauge) from the REM terminal on the amplifier to the remote turn-on output of your head unit. This wire turns the amplifier acceso e spento con l'unità principale.
- RCA Input Cables: Collegare i cavi di uscita RCA dall'unità principale ai corrispondenti jack di ingresso RCA sul amplifier. Ensure correct channel matching (Front, Rear, Subwoofer).
- Cavi dell'altoparlante: Connect the speaker wires from your speakers to the appropriate speaker output terminals on the amplifier. Pay close attention to polarity (+ and -) for each speaker. The INF RA 6006 supports 6 channels, allowing for various configurations (e.g., 3-way stereo, 2-way stereo + subwoofer, or bridged configurations). Refer to your speaker impedance and amplifier specifications for safe operation.
4. Impostazioni iniziali
Before reconnecting the battery, ensure all connections are secure. After reconnecting the battery:
- Controllo di guadagno: Start with the gain controls set to minimum. Turn on your head unit and slowly increase the volume until distortion is audible. Then, slowly increase the amplifier's gain control until the desired volume is reached without distortion.
- Impostazioni crossover: IL amplifier features built-in crossovers. Adjust the High-Pass Filter (HPF) for full-range speakers and the Low-Pass Filter (LPF) for subwoofers to optimize sound quality and protect your speakers. Refer to your speaker manufacturer's recommendations for crossover frequencies.
- Aumento dei bassi: Use the bass boost feature sparingly and with caution to avoid speaker damage. Start with it off and only apply a small amount if desired.
Operare il Amppiù vivace
Once installed and initially configured, the amplifier operates automatically with your head unit. The primary adjustments will be made through your head unit's volume and tone controls.
- Accensione/spegnimento: IL amplifier will turn on when your head unit is powered on (via the remote turn-on wire) and turn off when the head unit is off.
- Controllo del volume: Adjust the overall system volume using your head unit. The amplifier's gain control should be set once during initial setup and generally not adjusted during normal operation.
- Personalizzazione del suono: Fine-tune your audio experience using the crossover settings and bass boost on the amplifier, or through your head unit's equalizer and sound processing features.
Manutenzione
The Infinity INF RA 6006 amplifier è progettato per un funzionamento affidabile con una manutenzione minima.
- Pulizia: Periodically wipe the exterior of the amplifier with a soft, dry cloth to remove dust. Do not use harsh chemicals or abrasive cleaners.
- Ispezione: Annually inspect all wiring connections for tightness and corrosion. Ensure the amplifier's mounting remains secure. Check for any obstructions to airflow around the heat sink fins.
- Sostituzione fusibile: Se il amplifier stops working, check the in-line fuse near the battery and the fuses on the amplifier itself (if applicable). Always replace a blown fuse with one of the exact same type and rating.
Risoluzione dei problemi
Se riscontri problemi con il tuo amplifier, refer to the following common problems and solutions before contacting service.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessun potere / Amplifier non si accende |
|
|
| Nessuna uscita audio |
|
|
| Suono distorto |
|
|
| AmpSurriscaldamento del lifier |
|
|
Specifiche
The following are key specifications for the Infinity INF RA 6006 6-Channel Power Amplificatore:
- Numero modello: INF RA 6006
- Marca: Infinito
- Numero di canali: 6
- Tipo di montaggio: Stand Mount (Implied from "Staandmontage")
- Peso dell'articolo: 10 g (Note: This seems unusually low for a power amplifier and might be a data entry error, but it's taken directly from the source. Users should verify actual product weight.)
- Codice GTIN: 00506670332798
- Codice UPC: 506670332798
- Prima data disponibile: 15 gennaio 2020
Garanzia e supporto
Infinity products are designed for durability and performance. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Infinity website. For technical support, service, or replacement parts, please contact your authorized Infinity dealer or customer service department.
Conservare la prova d'acquisto per eventuali richieste di garanzia.
