1. Introduzione
The Panasonic FV-08WQ1 WhisperWall Bathroom Fan is a high-quality, through-the-wall ventilation solution designed to improve air quality and reduce humidity in rooms where ceiling-mounted fans are not feasible. This fan features a durable, permanently lubricated motor and a double-suction blower wheel for quiet and efficient operation. It is Energy Star qualified, ensuring energy efficiency and compliance with modern standards.
2. Informazioni sulla sicurezza
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Always disconnect power at the service panel before installing or servicing the fan.
- Tutti i cablaggi devono essere conformi alle normative elettriche locali e nazionali.
- Questa unità è progettata esclusivamente per l'uso di ventilazione generale. Non utilizzarla per aspirare materiali e vapori pericolosi o esplosivi.
- To reduce the risk of fire or electrical shock, do not expose this fan to water or rain.
- Garantire una corretta messa a terra.
- Non installare in un'area di cottura.
3. Contenuto della confezione
Verificare che tutti i componenti siano presenti prima di iniziare l'installazione:
- Fan Unit (Motor & Blower Assembly)
- Grille / Vent Cover
- Exterior Hood with Back-Draft Damper
- Installation Hardware (screws, etc.)
Figura 3.1: Esploso view showing the main components: Motor & Fan assembly, Vent Cover, and the exterior housing.
4. Configurazione e installazione
The FV-08WQ1 is designed for through-the-wall mounting and requires an 8-inch duct opening. Ensure the installation location allows for proper air exhaust to the outside.
4.1 Preparazione del sito
- Choose a wall location that is free from obstructions and allows for direct exhaust to the exterior.
- Cut an 8-inch diameter hole through the wall, ensuring it is level and plumb.
- Ensure adequate space for electrical wiring connections.
4.2 Montaggio dell'unità ventola
- Insert the fan housing into the prepared wall opening.
- Secure the housing to the wall studs or blocking using appropriate fasteners.
- Install the exterior hood on the outside wall, ensuring the back-draft dampehm opera liberamente.
Figura 4.1: The Panasonic FV-08WQ1 fan unit, showing the grille and duct connection for through-the-wall installation.
4.3 Collegamento elettrico
- Connect the fan's wiring to the household electrical supply according to the wiring diagram provided in the full installation guide (not included here) and local electrical codes.
- Assicurarsi che tutti i collegamenti siano sicuri e adeguatamente isolati.
- This fan operates on 120V AC.

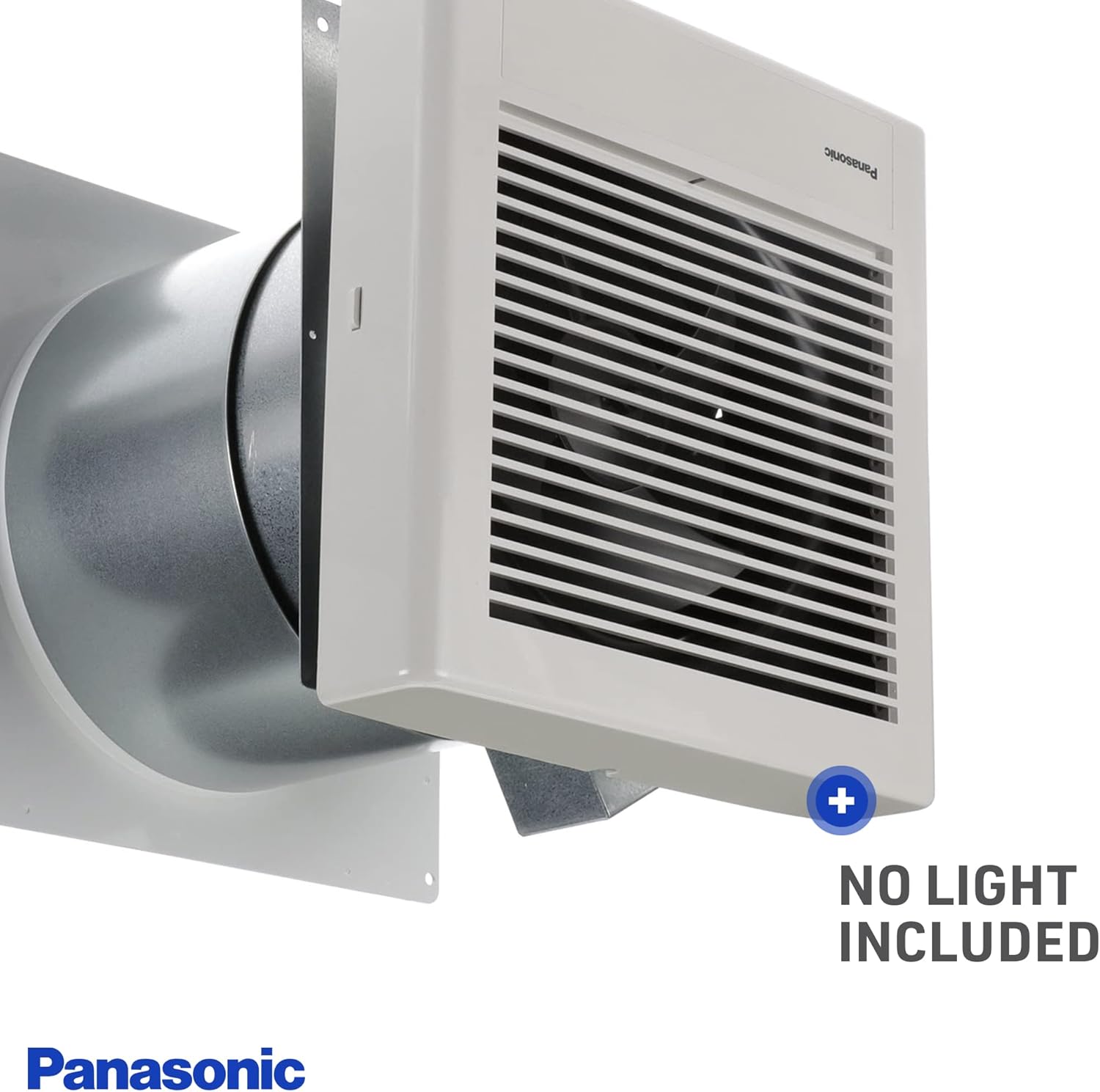

Figura 4.2: The fan unit, confirming it is a ventilation-only model without an integrated light.
4.4 Installazione della griglia
- Once the fan unit is secured and wired, attach the grille to the fan housing.
- Ensure the grille is flush with the wall surface for optimal appearance and performance.
5. Istruzioni per l'uso
The Panasonic FV-08WQ1 fan is designed for simple operation.
- Accensione/spegnimento: Operate the fan using a standard wall switch connected to the fan's electrical supply.
- Funzionamento continuo: This fan is designed for continuous, trouble-free operation, providing consistent ventilation.
- Prestazioni silenziose: The WhisperWall fan operates at a low sone level, ensuring quiet air movement.
6. Manutenzione
Regular cleaning will ensure optimal performance and extend the life of your fan.
6.1 Pulizia della griglia
- Disconnect power to the fan at the service panel.
- Carefully detach the grille from the fan unit.
- Wash the grille with a mild detergent and water. Rinse thoroughly and dry completely before reattaching.
6.2 Fan Blade and Housing Cleaning
- With the grille removed and power disconnected, gently wipe the fan blades and interior of the housing with a damp stoffa.
- Non far entrare acqua nel motore.
- Il motore è permanentemente lubrificato e non necessita di ulteriore lubrificazione.
7. Risoluzione Dei Problemi
If your fan is not operating correctly, refer to the following common issues and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La ventola non funziona | No power supply; Loose wiring; Motor malfunction | Check circuit breaker/fuse; Verify wiring connections; Contact qualified electrician or service center |
| Rumore eccessivo | Loose mounting; Debris in fan blades; Damaged motor/bearings | Ensure fan is securely mounted; Clean fan blades and housing; Contact service center if noise persists |
| Flusso d'aria ridotto | Blocked grille/duct; Back-draft damper stuck; Fan motor issue | Clean grille and check duct for obstructions; Ensure damper moves freely; Contact service center |
8. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | FV-08WQ1 |
| Capacità del flusso d'aria | 70 piedi cubi al minuto (CFM) |
| Livello di rumore | 1.1 Sones |
| Voltage | 120.00 Volt |
| Cosatage | 18.00 L |
| Tipo di installazione | Attraverso il muro |
| Caratteristica speciale | Permanently Lubricated Motor |
| Tipo di finitura | Dipinto |
| Colore | Bianco |
| Specifica Met | Stella energetica |
| Peso dell'articolo | 12.1 libbre |
9. Informazioni sulla garanzia
Panasonic provides the following warranty for the FV-08WQ1 WhisperWall Bathroom Fan:
- Tutte le parti: For a period of 3 years (36 months) from the date of original purchase.
- Motore a corrente continua: For a period of 6 years (72 months) from the date of original purchase.
Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or visit the Panasonic websito.
10. Assistenza clienti
For technical assistance, replacement parts, or warranty service, please contact Panasonic customer support. You can find contact information on the official Panasonic websito o tramite il rivenditore presso cui hai acquistato il prodotto.
Risorse online: www.panasonic.com
