HellermannTyton 300-30120 Non-Adhesive Heat Shrink Tubing Instruction Manual

1. Introduzione

This manual provides comprehensive instructions for the proper use and application of the HellermannTyton 300-30120 Non-Adhesive Heat Shrink Tubing. This product is designed for electrical insulation, mechanical protection, and cable identification in various applications. Please read this manual thoroughly before use to ensure safe and effective application.

1.1 Informazioni sulla sicurezza

• Always wear appropriate personal protective equipment (PPE), including heat-resistant gloves and eye protection, when working with heat guns or other heat sources.
• Ensure adequate ventilation in the work area to prevent the inhalation of fumes.
• Keep flammable materials away from the heat source.
• Do not touch the heated tubing immediately after shrinking, as it will be hot. Allow it to cool completely.
• Use a heat gun specifically designed for heat shrink tubing. Avoid open flames where possible, as they can cause uneven shrinking or damage to the material.

2. Descrizione del prodotto

The HellermannTyton 300-30120 is a high-quality, non-adhesive heat shrink tubing. It is supplied in black, with a nominal diameter of 1.20 mm and a shrink ratio of 2:1. This means the tubing will shrink to half of its original diameter when heat is applied. It is ideal for insulating and protecting electrical connections, bundling wires, and providing strain relief.

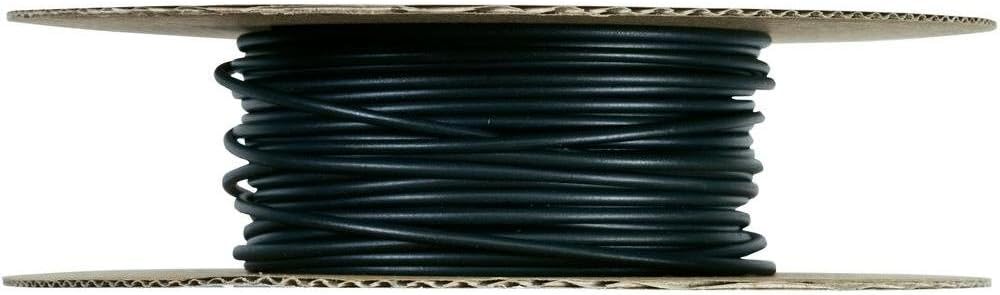

Figura 1: A roll of HellermannTyton 300-30120 non-adhesive heat shrink tubing, black in color, ready for use.

Figura 2: Example packaging for HellermannTyton heat shrink tubing products, illustrating general product presentation.

3. Specifiche

The 2:1 shrink ratio indicates that the tubing will shrink to half of its original diameter when fully recovered. This allows for a snug fit over various cable and connector sizes within its specified range.

Figura 3: An illustration demonstrating the concept of shrink ratios and how different tubing sizes (including conventional 2:1 types) cover a range of diameters. The 2:1 ratio means the tubing shrinks to half its original diameter.

4. Configurazione e installazione

1. Preparazione: Ensure the surface of the wire or component to be covered is clean, dry, and free from sharp edges or burrs that could damage the tubing.
2. Dimensioni: Select the correct diameter of heat shrink tubing. The tubing should be large enough to easily slide over the component or splice, but small enough to shrink down to a tight fit. For the 300-30120, the tubing will shrink from 1.2 mm down to 0.6 mm.
3. Taglio: Cut the desired length of tubing using a sharp knife or scissors. For optimal results, cut the tubing slightly longer than the area to be covered to account for minor longitudinal shrinkage.
4. Posizionamento: Slide the cut piece of heat shrink tubing over the wire, splice, or component, ensuring it is centered over the area requiring insulation or protection.

5. Istruzioni per l'uso

1. Applicazione del calore: Using a heat gun, apply heat evenly to the tubing. Start from one end and work your way to the other, or start from the middle and work outwards.
2. Shrinking Process: Move the heat gun continuously to avoid overheating any single spot. The tubing will begin to shrink, conforming tightly to the shape of the underlying component. Look for a smooth, uniform appearance without wrinkles or bubbles.
3. Full Recovery: Continue applying heat until the tubing has fully recovered and appears taut and smooth. For non-adhesive tubing, ensure the ends are securely shrunk around the component.
4. Raffreddamento: Allow the shrunk tubing to cool completely before handling or subjecting it to any stress.

Nota: The optimal shrinking temperature for this type of tubing is typically around 90-120°C (194-248°F), but always refer to the specific heat gun's instructions and test on a scrap piece if unsure.

6. Manutenzione

• Magazzinaggio: Store unused heat shrink tubing in its original packaging in a cool, dry place, away from direct sunlight and extreme temperatures, to maintain its properties.
• Ispezione: Periodically inspect installed heat shrink tubing for any signs of damage, cracking, or degradation, especially in harsh environments.

7. Risoluzione Dei Problemi

• Uneven Shrinking: If the tubing shrinks unevenly, it may be due to inconsistent heat application. Ensure the heat gun is moved continuously and evenly across the entire surface of the tubing.
• Incomplete Shrinkage: If the tubing does not shrink fully, more heat or a longer application time may be required. Ensure the heat gun is at the correct temperature setting.
• Tubing Damage: Overheating can cause the tubing to become brittle, discolored, or melt. Use a lower temperature setting or move the heat gun more quickly.
• Tubing Too Loose: If the tubing remains loose after shrinking, the initial size selected was too large for the application. Ensure the tubing's recovered diameter is smaller than the component it is covering.

8. Garanzia e supporto

HellermannTyton products are manufactured to high-quality standards. For information regarding product warranty, technical support, or specific application advice, please refer to the official HellermannTyton webo contattare direttamente il servizio clienti. Conservare la ricevuta d'acquisto per eventuali reclami in garanzia.

Produttore: HellermannTyton

Websito: www.hellermanntyton.com (This is a general link, specific regional sites may apply)
