1. Prodotto finitoview
The Finder 12.22.8.230.0000 is an electronic time switch designed for daily and weekly programming within modular distribution boards. This device offers precise control over electrical circuits, making it ideal for various applications requiring automated switching.
It features 30 programmable memory locations, allowing for flexible scheduling. The minimum switching time is 1 minute, providing granular control. With a robust design, it handles significant loads, including incandescent, halogen, and fluorescent lamps.
2. Informazioni sulla sicurezza
Please read and understand all safety instructions before installing or operating this device. Failure to comply with these instructions may result in electric shock, fire, or serious injury.
- L'installazione deve essere eseguita da un elettricista qualificato, nel rispetto di tutti i codici elettrici locali e nazionali.
- Assicurarsi che l'alimentazione sia scollegata prima di qualsiasi intervento di installazione, cablaggio o manutenzione.
- Non esporre il dispositivo a umidità, temperature estreme o ambienti corrosivi.
- Verificare che il volumetage and current ratings of the device match your application requirements.
- Non tentare di aprire o riparare il dispositivo. Per qualsiasi intervento di assistenza, rivolgersi a personale qualificato.
3. Caratteristiche del prodotto
- Electronic time switch with daily and weekly programming.
- 30 programmable memory locations.
- Minimum switching time: 1 minute.
- Power reserve: 6 years (approximately 52,596 hours).
- Passaggio automatico dall'ora legale a quella solare.
- Two independent changeover contacts (channels).
- Nominal switching current at 250 V AC: 16 A.
- Suitable for DIN rail mounting.
- Grado di protezione IP20.
4. Componenti e controlli
The Finder 12.22.8.230.0000 time switch features a clear display and intuitive control buttons for easy programming.
Figura 4.1: Fronte View of the Time Switch. This image shows the front of the Finder 12.22.8.230.0000 electronic time switch, highlighting its digital display and control buttons (M, A, B, OK) at the bottom. Terminal connections are visible at the top and bottom for power input and output.
- Display: Shows current time, date, and programming information.
- Pulsante M (Menu): Accede al menu principale per le impostazioni e la programmazione.
- A (-) Button: Decreases values or navigates backward in menus.
- B (+) Button: Increases values or navigates forward in menus.
- Pulsante OK: Conferma le selezioni e salva le impostazioni.
- terminali: Connections for power supply and load circuits.
5. Configurazione e installazione
5.1. Montaggio
The time switch is designed for mounting on a standard DIN rail (35mm). Ensure sufficient space for ventilation and wiring connections.
5.2. Schema elettrico
Refer to the following diagram for correct wiring connections. Always ensure power is disconnected before wiring.

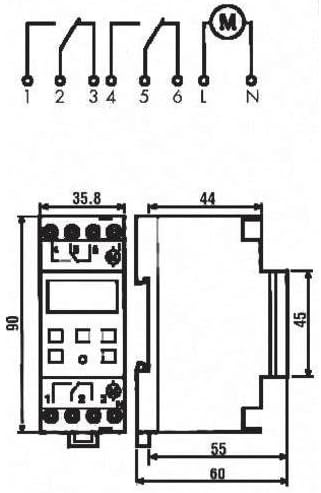

Figura 5.1: Schema elettrico e dimensioni. This diagram illustrates the electrical connections for the Finder 12.22.8.230.0000 time switch, showing input (L, N) and output terminals (1, 2, 3, 4, 5, 6). It also provides detailed dimensions of the device in millimeters, crucial for installation planning.
Potenza in ingresso: Connect the main power supply (230V AC, 50-60 Hz) to the designated input terminals (L and N).
Canali di uscita: The device has two independent changeover contacts. Connect your loads to terminals 1, 2, 3 (for Channel 1) and 4, 5, 6 (for Channel 2) as per your application's requirements. Refer to the diagram for common (C), normally open (NO), and normally closed (NC) connections.
6. Istruzioni per l'uso
6.1. Configurazione iniziale (ora e data)
- Alla prima accensione o dopo un lungo spegnimentotage, the display may prompt for time and date settings.
- Utilizzare il UN (-) E La (+) buttons to adjust the values (year, month, day, hour, minute).
- Premere OK per confermare ogni impostazione e passare a quella successiva.
- The device supports automatic summer/winter time changeover, which can be enabled or disabled in the settings menu.
6.2. Programmazione dei tempi di commutazione
The time switch allows for daily and weekly programming with up to 30 memory locations.
- Premere il tasto M (Menù) pulsante per entrare nella modalità di programmazione.
- Navigate through the menu options using UN (-) E La (+). Look for "PROGRAM" or "SCHED".
- Premere OK to select. You will typically be prompted to select a program number (e.g., P01, P02).
- Set the desired ON time (hour and minute) for the program using UN (-) E La (+), Poi OK.
- Set the desired OFF time (hour and minute) for the program using UN (-) E La (+), Poi OK.
- Select the days of the week for which this program should be active (e.g., Mon-Fri, Sat-Sun, or individual days). Use UN (-) E La (+) to toggle days, and OK per confermare.
- Ripetere l'operazione per altri programmi, se necessario.
- Uscire dal menu di programmazione premendo M repeatedly until the main display is shown.
6.3. Azionamento manuale
The device typically allows for a temporary or permanent manual override of the programmed schedule. Consult the on-screen prompts or a quick press of a specific button (often OK or M in standby mode) to cycle through ON/OFF/AUTO modes.
7. Manutenzione
The Finder 12.22.8.230.0000 time switch requires minimal maintenance. Keep the device clean and free from dust. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents. Ensure proper ventilation around the device to prevent overheating.
8. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il display è vuoto. | Nessuna alimentazione elettrica. | Check power connections and circuit breaker. Ensure 230V AC is supplied. |
| Device not switching at programmed times. | Incorrect programming; Manual override active; Incorrect time/date. | Verify programming steps. Check if manual override is engaged. Correct time and date settings. |
| Il tempo è impreciso. | Internal clock drift (minimal); Power reserve depleted. | The device has a 6-year power reserve. If power has been off for extended periods, reset the time. Accuracy is 1.5 seconds per day. |
| I pulsanti non rispondono. | Problema temporaneo del software. | Disconnect power for a few minutes, then reconnect. If problem persists, contact support. |
9. Specifiche
| Parametro | Valore |
|---|---|
| Numero di modello | 12.22.8.230.0000 |
| Marca | Cercatore |
| Tipo di montaggio | Guida DIN |
| Numero di canali | 2 |
| Volume di fornituratage | 230 V CA |
| Frequenza di fornitura | Frequenza |
| Riserva di carica | 6 years (approx. 52,596 hours) |
| Accuracy per day | 1.5 secondi |
| Tempo minimo di commutazione | 1 minuto |
| Number of Memory Locations | 30 |
| Automatic Summer/Winter Time Changeover | SÌ |
| Switching Contact Type | Changeover contact (potential-free) |
| Nominal Switching Current (250V AC) | 16 A |
| Breaking Capacity (AC1) | 4000VA |
| Breaking Capacity (AC15, 230V) | 750VA |
| Incandescente/alogeno Lamp Carico | 2000 L |
| Compensated Fluorescent Lamp Carico | 420 L |
| Uncompensated Fluorescent Lamp Carico | 1000 L |
| Grado di protezione | Grado di protezione IP20 |
| Width (in division units) | 2 |
| Dimensioni (L x P x A) | 1 x 1 x 1 cm (Product); 35.8 mm (W) x 90 mm (H) x 63 mm (D) (Device) |
| Peso | 7 chilogrammi |
| Materiale | Poliestere |
10. Garanzia e supporto
For warranty information and technical support, please contact your local Finder distributor or visit the official Finder websito. Conserva la ricevuta d'acquisto come prova d'acquisto.
Information regarding spare parts availability is currently unavailable. For any issues not covered in this manual, please seek assistance from qualified technical personnel.
