VuPoint FS-C1-VP-BX2 USB 2.0 Negative Film and Slide Digital Converter User Manual

1. Introduzione

The VuPoint FS-C1-VP-BX2 USB 2.0 Negative Film and Slide Digital Converter is designed to digitize your 35mm negative film and mounted slides into high-resolution digital images. This device connects to your computer via a USB interface, allowing you to preserve your memories in a digital format for easy viewing, sharing, and archiving. This manual provides detailed instructions for setting up, operating, and maintaining your digital converter.

2. Contenuto della confezione

Si prega di selezionare la casella per i seguenti elementi:

• VuPoint FS-C1-VP-BX2 Digital Converter Unit
• Cavo USB
• Slide Holder (for up to 3 mounted slides)
• Negative Film Holder (for up to 6 frames of 35mm film)
• Spazzola per la pulizia
• Software CD (containing drivers and ArcSoft PhotoImpression6)
• Manuale dell'utente (questo documento)

3. Dispositivo suview

Familiarize yourself with the main components of your digital converter.

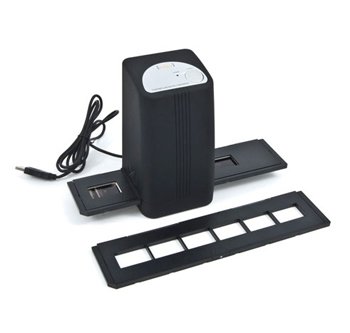

Figura 1: Fronte view of the VuPoint FS-C1-VP-BX2 Digital Converter. This image shows the main unit with its input slot for film/slide holders and the USB port.

The device features a slot for inserting the film or slide holders, a USB port for connecting to your computer, and a power/capture button. The button's functionality is primarily controlled through the software.

Figure 2: The slide holder, designed to accommodate up to three mounted slides for scanning.

Figure 3: The negative film holder, designed to hold a strip of 35mm film with up to six frames.

4. Requisiti di sistema

To ensure proper operation, your computer must meet the following minimum requirements:

• Sistema operativo: Windows 7 (or later, check manufacturer's website for updated driver compatibility)
• Connettività: Porta USB 2.0
• Processore: Pentium III or equivalent
• Memoria RAM: 512 MB o superiore
• Spazio su disco rigido: 500 MB di spazio libero
• Unità ottica: Unità CD-ROM (per l'installazione del software)

5. Configurazione e installazione del software

Proper installation of drivers and software is crucial for the functionality of your digital converter.

1. Do NOT connect the device to your computer yet.
2. Installa driver e software:
   • Insert the provided Software CD into your computer's CD-ROM drive.
   • Follow the on-screen instructions to install the device drivers and the ArcSoft PhotoImpression6 software.
   • Important Note for 64-bit Operating Systems: The drivers on the included CD may primarily support 32-bit systems. If you are using a 64-bit version of Windows (e.g., Windows 7 x64), it is highly recommended to visit the official VuPoint Solutions webposto (www.vupointsolutions.com) to download the latest drivers for your specific operating system. Some users have reported success with Windows Vista x64 drivers on Windows 7 x64.
   • Se richiesto, riavviare il computer dopo l'installazione.
3. Collegare il dispositivo:
   • Once the software and drivers are installed, connect the smaller end of the USB cable to the USB port on the digital converter.
   • Connect the larger end of the USB cable to an available USB 2.0 port on your computer.
   • Your computer should detect the new hardware. Allow it to complete any automatic driver installation processes.

6. Istruzioni per l'uso

Follow these steps to digitize your film and slides:

1. Prepare Film or Slides:
   • Per le diapositive: Open the slide holder. Carefully place up to three mounted slides into the designated slots, ensuring they are oriented correctly (emulsion side facing down, or as indicated by the software preview). Close the holder securely.
   • For Negative Film: Open the negative film holder. Carefully insert a strip of 35mm negative film into the guide, ensuring the frames align with the openings. The holder can typically accommodate up to six frames. Close the holder securely.
   • Use the included cleaning brush to gently remove any dust or debris from your film or slides before loading to prevent artifacts in your scans.
2. Insert Holder into Converter:
   • Slide the loaded film or slide holder into the input slot on the front of the digital converter until it clicks into place or is fully inserted.
3. Avviare il software di scansione:
   • Open the ArcSoft PhotoImpression6 software (or other compatible scanning software) from your computer's Start Menu or desktop shortcut.
   • Within the software, locate the option to "Acquire from Film Scanner" or similar. This will open the scanning interface.
   • Note: The physical button on the device may not initiate a scan directly; scanning is typically controlled via the software interface.
4. Preview e regola le impostazioni:
   • The software should display a live preview of the film/slide in the holder.
   • Adjust settings such as resolution (DPI), color depth (e.g., 48-bit color), and image type (Negative Film or Positive Slide).
   • Use the holder's sliding mechanism to advance to the next frame or slide if scanning multiple items.
5. Cattura immagini:
   • Click the "Capture" or "Scan" button within the software to take a digital image of the current frame.
   • The software will process the image.
6. Salva immagini:
   • After capturing, the image will appear in the software's workspace. You can perform basic edits if desired.
   • Save the image to your desired location on your computer. The software may use a default naming convention (e.g., MM-DD-YYYY_sequence_number.TIF or .JPG). Be aware that sequence numbers may reset if the software is closed or if files are moved.
   • Repeat steps 5-6 for each frame or slide.

7. Manutenzione

To ensure the longevity and optimal performance of your digital converter:

• Pulizia della lente: Use the provided cleaning brush or a soft, lint-free cloth to gently clean the optical lens inside the converter if you notice dust or smudges affecting image quality. Do not use liquid cleaners directly on the lens.
• Supporti per la pulizia: Keep the film and slide holders clean and free of dust and debris.
• Magazzinaggio: Store the converter and its accessories in a clean, dry place away from direct sunlight and extreme temperatures.
• Gestione: Handle the device and its components with care to avoid damage.

8. Risoluzione Dei Problemi

If you encounter issues with your VuPoint FS-C1-VP-BX2, refer to the following common problems and solutions:

Problem: Device is not recognized by the computer.

• Ensure the USB cable is securely connected to both the converter and the computer.
• Prova a connetterti a un'altra porta USB del tuo computer.
• Verify that the device drivers are correctly installed. Reinstall them if necessary, especially if you have recently updated your operating system.
• Controllare il produttore website for updated drivers, particularly for 64-bit operating systems.

Problem: Software does not launch or crashes.

• Assicurati che il tuo computer soddisfi i requisiti minimi di sistema.
• Reinstall the ArcSoft PhotoImpression6 software.
• Check for software updates on the ArcSoft or VuPoint Solutions websito.
• Close other demanding applications that might be consuming system resources.

Problem: Slides or negatives do not fit into the holders.

• Ensure you are using the correct holder for your media type (slide holder for mounted slides, negative holder for film strips).
• For slides, ensure they are standard 35mm mounted slides. Some thicker or non-standard mounts may not fit.
• For negatives, ensure the film strip is properly aligned with the guides and not bent or damaged.

Problem: Scanned images are poor quality (blurry, color issues, dust).

• Polvere: Use the cleaning brush to remove dust from the film/slides and the converter's lens.
• Focus/Clarity: Ensure the film/slide is correctly seated in the holder and the holder is fully inserted into the converter.
• Colore: Adjust color correction settings within the scanning software. The age and condition of the original film/slides can significantly impact color accuracy.
• Risoluzione: Ensure you have selected a high enough DPI setting in the software for your desired output quality.

Problem: The device's capture button does not work.

• The physical button on the device is often not functional for initiating a scan. All scanning operations, including capture, are typically performed through the software interface.

9. Specifiche

10. Garanzia e supporto

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official VuPoint Solutions websito. Le risorse di supporto in genere includono FAQ, download di driver e informazioni di contatto per l'assistenza clienti.

Websito: www.vupointsolutions.com
