Bosch D3511 Distance Plus High Performance Oil Filter User Manual

Introduzione

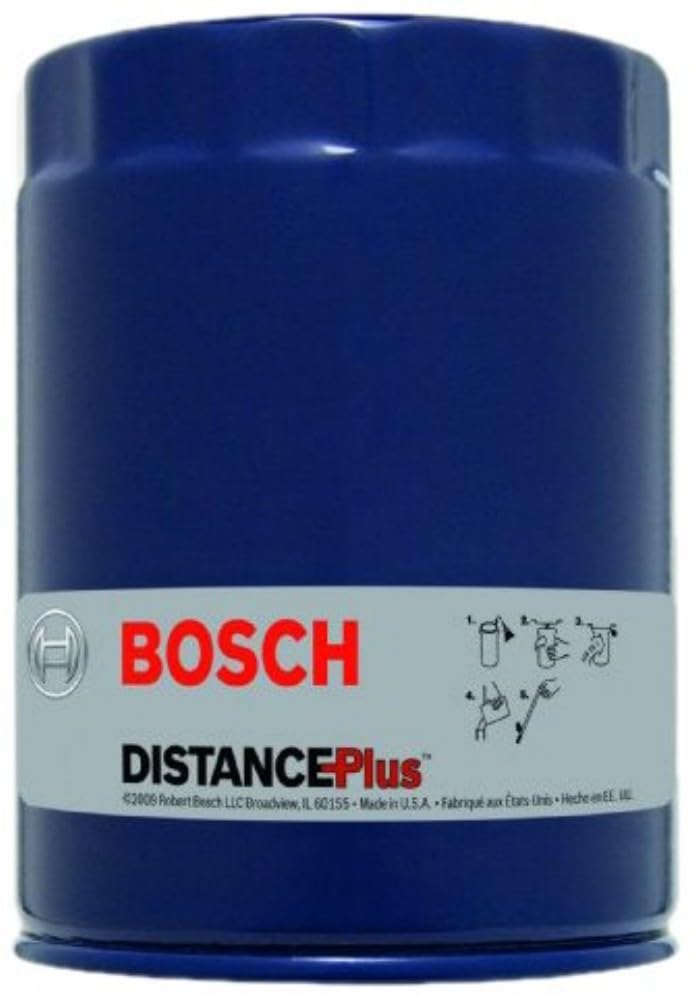

The Bosch D3511 Distance Plus High Performance Oil Filter is engineered to provide exceptional engine protection and extended oil cleanliness. Utilizing advanced synthetic fiber media, this filter is designed to hold significantly more contaminants than standard filters, ensuring your engine oil remains cleaner for longer periods. It is compatible with both synthetic and conventional motor oils and features robust construction for superior burst resistance.

This image shows the Bosch D3511 Distance Plus High Performance Oil Filter enclosed in its clear retail packaging. The packaging highlights key features such as 'Holds more DIRT', 'Keeps oil clean - longer', '99.9% efficiency', '300% greater capacity', and '2X's greater burst resistance strength'.

Informazioni sulla sicurezza

Always prioritize safety when performing automotive maintenance. Failure to follow proper safety procedures can result in injury or damage to your vehicle.

• Prima di iniziare qualsiasi lavoro, assicurarsi che il veicolo sia parcheggiato su una superficie piana e che il motore sia freddo.
• Utilizzare dispositivi di protezione individuale adeguati, tra cui occhiali e guanti di sicurezza.
• Refer to your vehicle's owner's manual for specific instructions and torque specifications related to oil filter replacement.
• Smaltire l'olio e i filtri usati in modo responsabile, nel rispetto delle normative locali.
• Avoid contact with hot engine components and fluids.

Configurazione e installazione

The following are general steps for replacing an oil filter. Always consult your vehicle's service manual for precise, model-specific instructions.

1. Preparare il veicolo: Park the vehicle on a level surface, engage the parking brake, and allow the engine to cool completely. Raise the vehicle safely using a jack and jack stands if necessary to access the oil pan and filter.
2. Svuotare l'olio motore: Place a suitable drain pan under the oil pan. Locate and remove the oil drain plug to allow the old engine oil to drain completely.
3. Rimuovere il vecchio filtro dell'olio: Position the drain pan under the oil filter. Use an oil filter wrench to loosen and remove the old oil filter. Be prepared for residual oil to drain from the filter and engine block.
4. Prepara nuovo filtro: Apply a thin film of new engine oil to the rubber gasket of the Bosch D3511 filter. This ensures a proper seal and prevents the gasket from sticking during installation.
5. Installare un nuovo filtro dell'olio: Hand-tighten the new Bosch D3511 filter onto the engine block until the gasket makes contact. Then, tighten an additional 3/4 to 1 full turn, or as specified in your vehicle's service manual. Non stringere eccessivamente.
6. Rabbocco dell'olio motore: Reinstall the oil drain plug with a new washer (if required) and tighten to the manufacturer's specifications. Refill the engine with the recommended type and quantity of new engine oil.
7. Controllare eventuali perdite: Start the engine and let it run for a few minutes. Check for any oil leaks around the new filter and drain plug. Turn off the engine, wait a few minutes, and check the oil level, adding more if necessary.

Principi operativi

The Bosch D3511 Distance Plus oil filter operates by continuously filtering engine oil as it circulates through the engine. Its advanced synthetic fiber media is designed to capture and hold contaminants such as dirt, metal particles, and sludge, preventing them from circulating and causing wear to engine components. Key operational benefits include:

• Alta efficienza: Achieves 99.9% efficiency in removing harmful particles, significantly reducing engine wear.
• Capacità estesa: Features 300% greater dirt-holding capacity compared to standard filters, allowing for longer service intervals.
• Durata superiore: Constructed with a heavy gauge case and steel base plate, providing up to 2 times greater burst resistance strength.
• Anti-Drainback Valve: A silicone anti-drainback valve prevents oil from draining out of the filter when the engine is off, protecting against dry starts.

Manutenzione

Regular oil and filter changes are crucial for maintaining engine health and longevity. While the Bosch D3511 filter offers extended performance, it is essential to adhere to your vehicle manufacturer's recommended service intervals.

• Intervalli di cambio dell'olio: Consult your vehicle's owner's manual for the recommended oil and filter change intervals. These intervals can vary based on driving conditions, vehicle age, and the type of oil used (conventional vs. synthetic).
• Sostituzione del filtro: Always replace the oil filter every time you change your engine oil. The Bosch D3511 is designed to last for extended oil change intervals, but it should still be replaced concurrently with the oil.
• Controllare il livello dell'olio: Regularly check your engine oil level between changes and top off as needed.

Risoluzione dei problemi

If you encounter issues after installing your Bosch D3511 oil filter, consider the following common problems and solutions:

• Oil Leak Around Filter:
  • Causa: Improperly tightened filter, damaged gasket, or old gasket residue.
  • Soluzione: Ensure the filter is tightened correctly (hand-tight plus 3/4 to 1 turn). Check for any old gasket material left on the engine block and remove it. Inspect the new filter's gasket for damage before installation.
• Spia di bassa pressione dell'olio:
  • Causa: Insufficient oil level, clogged filter (unlikely with new Bosch filter), or incorrect filter.
  • Soluzione: Immediately check the engine oil level and add oil if low. Ensure the correct filter model (D3511) was installed. If the light persists, consult a qualified mechanic.
• Difficoltà nella rimozione del filtro:
  • Causa: Overtightened during previous installation or gasket adhesion.
  • Soluzione: Use an appropriate oil filter wrench. Ensure the gasket is lightly oiled before installation to prevent sticking.

For persistent or complex issues, it is recommended to seek assistance from a certified automotive technician.

Specifiche

Informazioni sulla garanzia

Bosch products are manufactured to high-quality standards. For specific warranty details regarding your Bosch D3511 Distance Plus High Performance Oil Filter, please refer to the official Bosch website or contact Bosch customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

Supporto

For further assistance, technical support, or product inquiries, please visit the official Bosch websito:

www.bosch.com

You may also find additional resources and contact information on the Bosch Automotive websito.
