Leviton 10032-200 Base per candelabro a incandescenza Lamptitolare

1. Introduzione

This manual provides detailed instructions for the safe installation, operation, and maintenance of the Leviton 10032-200 Candelabra Base, 75W-125V Incandescent Lampholder. Please read all instructions carefully before beginning installation or use to ensure proper function and safety.

2. Informazioni sulla sicurezza

AVVERTIMENTO: Risk of electric shock. Improper installation or use can result in serious injury or death. Always turn off power at the circuit breaker or fuse box before installing or servicing this product. If you are unsure about any part of these instructions, consult a qualified electrician.

• Ensure the power supply is disconnected before any work is performed.
• Verificare che il volumetage e cosatage ratings of the lampholder match your application.
• Non superare il limite massimo di wattage potenza nominale di 75 W.
• Use only incandescent bulbs with a candelabra base.
• Tenere lontano dall'acqua e dall'umidità.

3. Contenuto della confezione

The Leviton 10032-200 Candelabra Base Incandescent Lampholder package typically includes:

• 1 x Leviton 10032-200 Candelabra Base Lamptitolare
• Two 18 AWG Leads (pre-stripped 1/2 inch)

4. Prodotto finitoview

The Leviton 10032-200 is a keyless candelabra base lampholder designed for incandescent bulbs up to 75 watts at 125 volts. It features a durable phenolic body and comes with two 18 AWG leads for electrical connection. This lampholder is suitable for various lighting applications where a compact, reliable candelabra base socket is required.

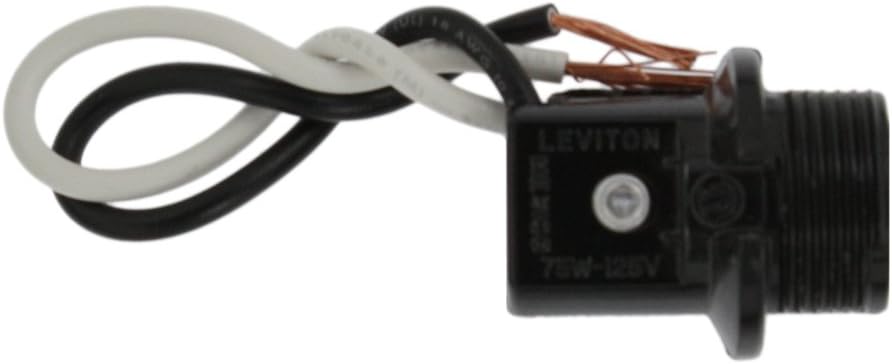

Image: The Leviton 10032-200 Candelabra Base Incandescent Lampholder, showing its phenolic body and pre-stripped black and white wiring leads.

5. Configurazione e installazione

Per un'installazione corretta e sicura, seguire questi passaggi:

1. Spegnimento dell'alimentazione: Locate the circuit breaker or fuse that controls the power to the installation area and turn it OFF. Verify power is off using a voltagetester.
2. Preparare il cablaggio: Il lampholder comes with two 18 AWG leads. Typically, one lead is black (hot) and one is white (neutral). If your leads are not color-coded, consult the fixture's wiring diagram or a qualified electrician. The leads are pre-stripped for convenience.
3. Collegare i fili:
   • Connect the black lead from the lampholder to the hot (usually black) wire from the power supply using a suitable wire connector (e.g., wire nut).
   • Connect the white lead from the lampholder to the neutral (usually white) wire from the power supply using a suitable wire connector.
   • Assicurarsi che tutti i collegamenti siano sicuri e isolati.
4. Monta la Lamptitolare: Metti in sicurezza lampholder in the desired fixture or location. The lampholder typically has a threaded base for mounting into a compatible fixture. Ensure it is firmly seated and stable.
5. Installa la lampadina: Carefully screw an incandescent candelabra base bulb (E12) into the lampholder. Do not overtighten. Ensure the bulb's wattage non supera i 75W.
6. Ripristina alimentazione: Once all connections are secure and the lampholder is mounted, turn the power back ON at the circuit breaker or fuse box.

6. Istruzioni per l'uso

Once installed and a compatible bulb is inserted, the lampholder operates by simply supplying power to the circuit it is connected to. If connected to a switch, toggle the switch to turn the light on or off.

7. Manutenzione

The Leviton 10032-200 lampholder requires minimal maintenance.

• Sostituzione della lampadina: Always turn off power at the circuit breaker before replacing a bulb. Allow the old bulb to cool completely before unscrewing it. Screw in a new candelabra base incandescent bulb, ensuring it does not exceed 75W.
• Pulizia: Ensure power is off before cleaning. Wipe the lampholder with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Ispezione: Ispezionare periodicamente il lampholder and wiring for any signs of damage, wear, or loose connections. If damage is found, replace the lampholder immediately.

8. Risoluzione Dei Problemi

If the light does not turn on after installation or bulb replacement, consider the following:

• Nessun potere: Check the circuit breaker or fuse to ensure power is on. Test the circuit with a voltagetester.
• Faulty Bulb: Test the bulb in another working fixture or try a new bulb.
• Collegamenti allentati: Turn off power and carefully re-check all wire connections to ensure they are secure.
• Cablaggio errato: Verify that the hot and neutral wires are connected correctly according to electrical codes.
• Sopra-acquatage Lampadina: Assicurarsi che la lampadina sia caldatage non supera la lampholder's maximum rating of 75W.

Se il problema persiste, consultare un elettricista qualificato.

9. Specifiche

10. Informazioni sulla garanzia

This Leviton product is covered by a 1-year limited warranty. For specific terms and conditions, please refer to the warranty documentation provided with your purchase or visit the official Leviton websito.

11. Supporto e informazioni di contatto

For technical assistance, product inquiries, or warranty claims, please contact Leviton customer support. You can find contact information on the official Leviton websito o tramite il rivenditore del prodotto.

Levitone Websito: www.leviton.com
