Fantech FB 6 In-line Filter Box User Manual

1. Prodotto finitoview

The Fantech FB 6 In-line Filter Box is designed to enhance indoor air quality by providing additional filtration within your HVAC ductwork. It is typically installed after an HRV (Heat Recovery Ventilator) or an inline fan to filter incoming air. This unit includes a MERV 13 filter for efficient particle removal.

Figura 1: Esterno view of the Fantech FB 6 In-line Filter Box, showing the duct connection on the left and the access knob on the right.

2. Informazioni sulla sicurezza

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, injury, or death.

• Ensure power to the HVAC system is disconnected before installation or maintenance.
• Indossare adeguati dispositivi di protezione individuale (DPI) durante l'installazione e la manutenzione.
• Consult a qualified HVAC professional for complex installations or if you are unsure about any steps.
• Non utilizzare l'unità se qualche parte risulta danneggiata o mancante.
• Dispose of old filters according to local regulations.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti prima di iniziare l'installazione.

• Fantech FB 6 In-line Filter Box
• MERV 13 Filter (pre-installed or separate)
• Guida all'installazione (questo manuale)

4. Installazione e configurazione

4.1 Lista di controllo pre-installazione

• Confirm duct size compatibility (6-inch duct).
• Ensure adequate space for installation and future filter replacement.
• Gather necessary tools (e.g., duct cutters, sealant, screwdriver).

4.2 Passaggi di installazione

1. Seleziona Località: Install the filter box in the ductwork after your HRV or inline fan, ensuring it is accessible for maintenance.
2. Preparare i condotti: Cut a section of the existing 6-inch ductwork to accommodate the filter box. Ensure clean, straight cuts.
3. Connect to Ductwork: Slide the filter box onto the prepared duct ends. Secure connections using appropriate duct clamps or screws and seal with HVAC-approved tape or mastic to prevent air leaks.
4. Verify Filter Installation: Open the access panel (refer to Figure 2) and ensure the MERV 13 filter is correctly seated.
5. Pannello di accesso sicuro: Close and secure the access panel using the provided knobs/screws.

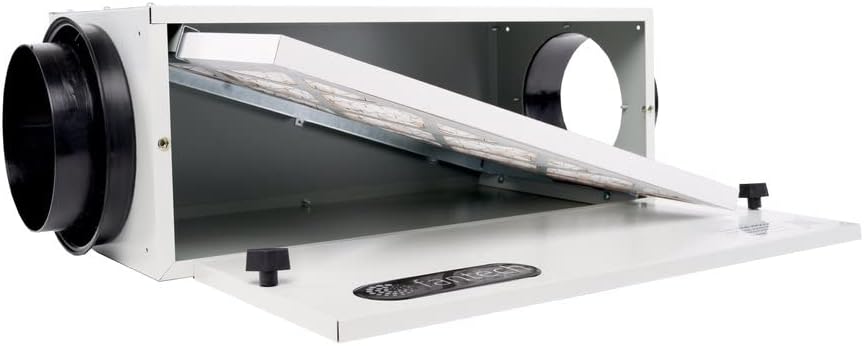

Figura 2: Interno view of the Fantech FB 6 In-line Filter Box with the access panel open, revealing the MERV 13 filter angled inside.

5. Funzionamento

The Fantech FB 6 In-line Filter Box operates passively as part of your ventilation system. Once installed, it continuously filters the air passing through it. No user interaction is required for its daily operation.

6. Manutenzione

6.1 Sostituzione del filtro

Regular filter replacement is crucial for maintaining optimal air quality and system performance. The frequency of replacement depends on usage and environmental conditions, but it is generally recommended every 3-6 months.

1. Scollegare l'alimentazione: Ensure the HVAC system connected to the filter box is powered off at the circuit breaker.
2. Open Access Panel: Loosen the knobs/screws on the access panel and carefully open it.
3. Rimuovi il vecchio filtro: Gently slide out the old MERV 13 filter. Note its orientation for correct installation of the new filter.
4. Inserisci nuovo filtro: Slide a new MERV 13 filter into the filter box, ensuring it is properly seated and oriented.
5. Chiudi pannello di accesso: Close the access panel and tighten the knobs/screws securely.
6. Ripristina alimentazione: Turn the power back on to the HVAC system.

7. Risoluzione Dei Problemi

8. Specifiche

9. Garanzia e supporto

For warranty information and technical support, please refer to the official Fantech websito o contattare il loro servizio clienti.

You can visit the official Fantech store on Amazon for more products and information: FANTECH Store.
