Introduzione
This manual provides essential information for the installation, operation, and maintenance of your Planet Audio AC5000.1D Anarchy Series Class D Monoblock Car Amplifier. The AC5000.1D is designed to deliver high-output audio performance with features such as 1-ohm stability, a MOSFET power supply, and various sound customization options. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

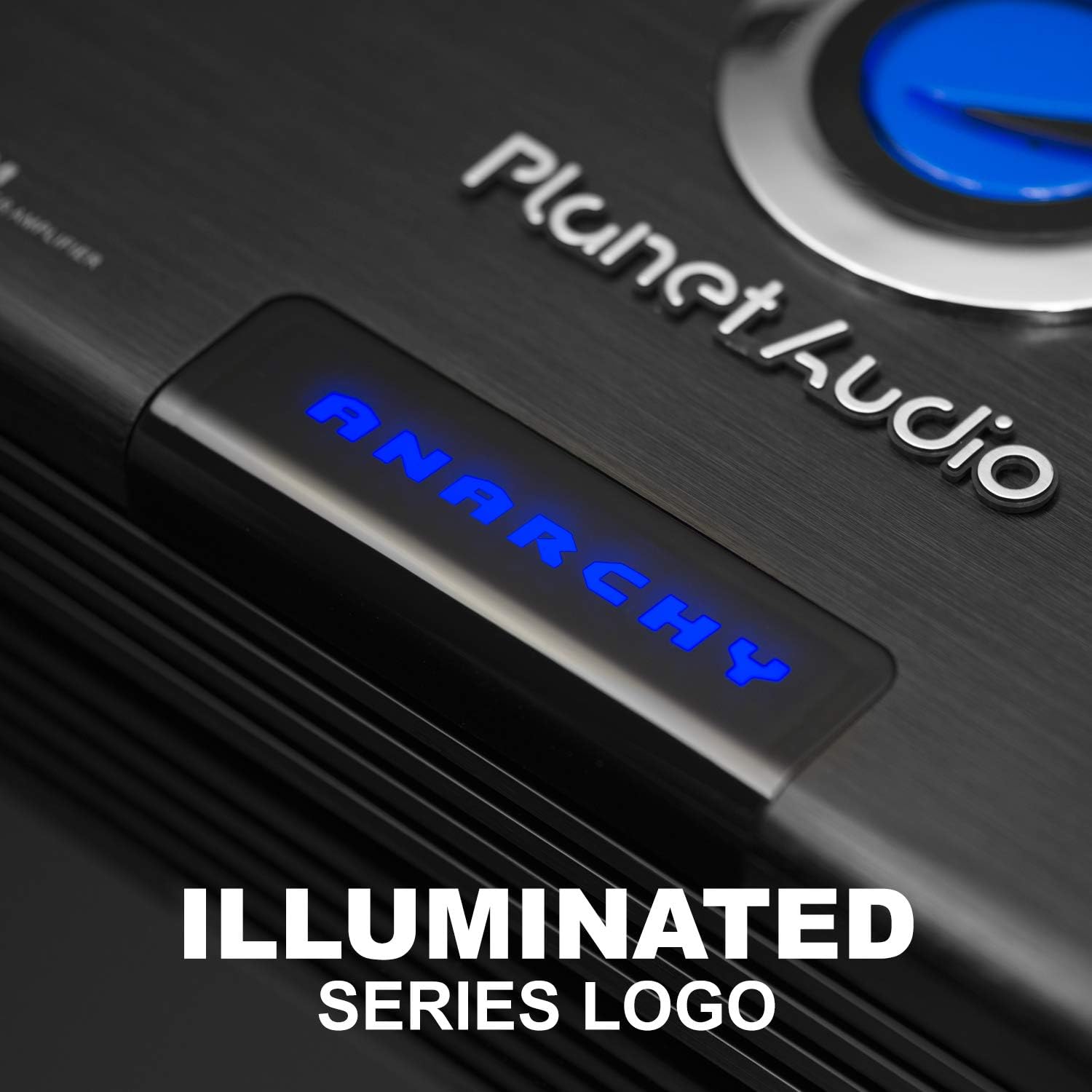

Immagine: Frontale view of the Planet Audio AC5000.1D Anarchy Series Car Amplificatore, showcasing its sleek black design and illuminated "Anarchy" logo.
Configurazione e installazione
Un'installazione corretta è fondamentale per prestazioni e sicurezza ottimali. Si consiglia vivamente di far installare questo prodotto da un professionista.
Cosa c'è nella scatola:
- AC5000.1D Amppiù vivace
- Remote Subwoofer Control & Cable
- Datalink Cable
- Hardware di montaggio
Image: The Planet Audio AC5000.1D amplifier, its packaging, remote subwoofer control, cables, and mounting hardware.
Dimensioni fisiche:
Considera il amplifier's dimensions for proper placement and ventilation. The unit measures approximately 17.95 inches (456 mm) in length, 10 inches (254 mm) in width, and 2.55 inches (65 mm) in height. It features deep heat sink ribs for enhanced cooling.
Immagine: parte superiore e laterale views of the Planet Audio AC5000.1D amplifier with measurements indicating its length, width, and height, along with a close-up of the deep heat sink ribs.
Connessioni:
IL amplifier features clearly labeled connection terminals for power, ground, remote turn-on, RCA inputs/outputs, and speaker outputs. A dedicated port is available for the wired remote subwoofer control.
Immagine: dettagliata view del amplifier's rear panel, showing the power input terminals (+12V, Remote, Ground), RCA inputs and outputs, speaker output terminals, and the remote subwoofer control port. Also shown are the filter and input controls.
Image: An installed Planet Audio AC5000.1D amplifier in a car trunk, highlighting the power connections, speaker terminals, and the remote subwoofer control for easy setup.
Istruzioni per l'uso
The AC5000.1D amplifier offre diversi controlli per ottimizzare la tua esperienza audio.
- Crossover passa-basso variabile: Adjusts the frequency range for subwoofer reproduction, allowing you to set precise bass frequency specifications.
- Potenziamento dei bassi variabile: Allows adjustment of low bass frequencies within the boost range to suit your preference.
- Filtro subsonico variabile: Filters out frequencies below the subwoofer's specified low-frequency limits, preventing bottoming out and ensuring safe driver excursion.
- Controllo del livello di ingresso (guadagno): Corrisponde al amplifier's input sensitivity to the output of your head unit.
- Controllo di fase: A switchable phase control (0°/180°) helps optimize bass response by aligning the subwoofer's output with other speakers.
- Controllo remoto del subwoofer: Use the included wired remote to conveniently adjust the subwoofer level from your listening position.
Caratteristiche principali:
- Topologia di classe D: Reduces power loss, making the amplifier highly efficient. Excess energy is stored rather than converted to heat, leading to a smaller size, reduced power waste, and a compact design.
- 1 Ohm stabile: Capable of continuously powering loads of 1 Ohm without overheating, ideal for subwoofers requiring heavy power loads.
- Alimentazione MOSFET: Provides efficient and stable power delivery.
- Strapping Capable: Allows two AC5000.1D amplifiers to be linked together, doubling the power output to your subwoofer(s) for increased performance.
Manutenzione
Per garantire la longevità e le prestazioni ottimali del tuo amplifier, seguire queste linee guida per la manutenzione:
- Pulizia: Pulire periodicamente il ampl'esterno del filtro con un panno morbido e asciutto. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi.
- Ventilazione: Assicurarsi che il amplifier's heat sink ribs are free from obstructions to allow for proper airflow and cooling.
- Connessioni: Regularly check all power, ground, and speaker connections to ensure they are secure and free from corrosion. Loose connections can lead to performance issues or damage.
- Ambiente: Evitare di esporre il ampresistente alle temperature estreme, alla luce solare diretta o all'umidità eccessiva.
Risoluzione dei problemi
Se riscontri problemi con il tuo amplifier, fare riferimento ai seguenti passaggi comuni per la risoluzione dei problemi:
- Nessun potere:
- Check the main power fuse and the in-line fuse near the battery.
- Verify that the ground connection is secure and making good contact with a clean metal surface.
- Ensure the remote turn-on wire is connected and receiving +12V when the head unit is on.
- Nessun suono:
- Check all RCA input and output cables for secure connections.
- Verify speaker wire connections at both the amplifier and the subwoofer(s).
- Ensure the head unit is powered on and sending an audio signal.
- Adjust the input level (gain) control.
- Suono distorto:
- Reduce the input level (gain) control.
- Check for proper impedance matching between the amplifier and subwoofers.
- Ensure speaker wires are not shorted or touching each other or the vehicle chassis.
- Adjust crossover and bass boost settings.
- AmpSurriscaldamento del lifier:
- Assicurare una ventilazione adeguata attorno all' amppiù vivace.
- Check for proper impedance of connected subwoofers; operating below the recommended impedance can cause overheating.
- Ridurre le impostazioni del volume o del guadagno.
If problems persist after attempting these steps, contact customer support or a qualified professional.
Specifiche
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | AC5000.1D |
| Marca | Pianeta Audio |
| Ampclasse lifier | Classe D |
| Canali | 1 (Monoblocco) |
| Max Power Output (1 Ohm) | 5000 Watt x 1 |
| Potenza massima in uscita (2 Ohm) | 2500 Watt x 1 |
| Potenza massima in uscita (4 Ohm) | 1250 Watt x 1 |
| Max Bridged Power (2 Ohms) | 10,000 Watts x 1 (when strapping two units) |
| Stabilità dell'impedenza | Stabile a 1 Ohm |
| Alimentazione elettrica | Mosfet-mo ... |
| Crossover passa basso | Variabile |
| Aumento dei bassi | Variabile |
| Filtro subsonico | Variabile |
| Controllo di fase | Switchable (0°/180°) |
| Controllo remoto del subwoofer | Sì (cablato) |
| Dimensioni (L x P x A) | 17.95" x 10" x 2.55" (456 x 254 x 65 mm) |
| Peso | 12.5 libbre (5.67 kg) |
| Voltage | 8 Volt |
| Certificazione | Commissione federale delle comunicazioni |
Garanzia e supporto
Planet Audio provides a 6-year Platinum Online Dealer Warranty for this product when purchased through Amazon.com. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or further support, please refer to the official Planet Audio website or contact their customer service department. Professional installation is strongly encouraged to ensure proper and safe functionality, and may be required for warranty validation.
Avvertenza sulla Proposta 65: Questo prodotto può contenere sostanze chimiche note allo Stato della California come causa di cancro e difetti alla nascita o altri danni riproduttivi.
