1. Introduzione
The Hawkins Contura Hard Anodised Pressure Cooker is designed for efficient and safe cooking. Its unique Contura shape and hard anodised body ensure fast and even heating, making it ideal for a variety of dishes. This manual provides essential information for the safe and effective use and maintenance of your pressure cooker.
1.1. Informazioni sulla sicurezza
Always read and understand all instructions before using your pressure cooker. Failure to follow these instructions can result in serious injury or damage to the appliance.
- Pressure-Locked Safety Lid: The lid is designed to lock securely and cannot be opened while there is pressure inside the cooker. Do not attempt to force the lid open.
- Valvola di sicurezza: A safety valve is located under the lid handle bar for greater safety. This valve will release excess pressure if the primary pressure regulator fails.
- Peso dello sfiato: Ensure the vent weight is clean and properly seated before each use to allow for proper pressure regulation.
- Filling Capacity: Never fill the cooker more than two-thirds full. For foods that expand (e.g., rice, dried vegetables), do not fill more than half full.
- Fonte di calore: Use on appropriate heat sources as specified.
Image: Key features and benefits of the Hawkins Contura Black Pressure Cooker, including the improved pressure regulator, operating pressure, pressure-locked safety lid, safety valve, hard anodised body, and non-toxic properties.
2. Components (What's Inside the Carton)
Your Hawkins Contura Pressure Cooker package includes the following items:
- Coperchio per pentola a pressione
- Guarnizione in gomma
- Peso dello sfiato
- Carta di garanzia
- Libro di cucina
- Elenco dei centri di assistenza
- Corpo della cucina

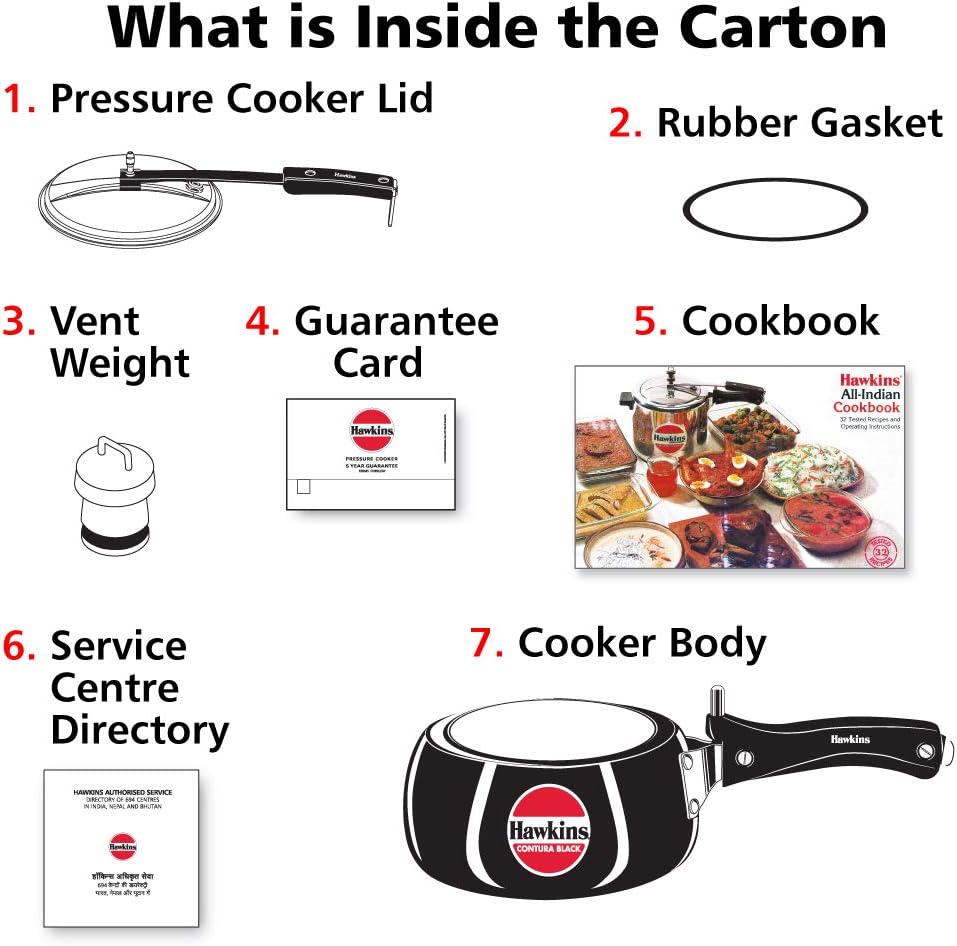

Image: Visual representation of all items found inside the product carton, including the cooker body, lid, gasket, vent weight, guarantee card, cookbook, and service center directory.
3. Configurazione e utilizzo iniziale
3.1. Prima del primo utilizzo
- Wash the cooker body, lid, gasket, and vent weight thoroughly with warm soapy water. Rinse well and dry completely.
- Inspect the rubber gasket for any cracks or damage. Ensure it is flexible and fits snugly into the lid groove.
- Familiarize yourself with the pressure regulator and safety valve mechanisms.
3.2. Assembling the Cooker
- Place the rubber gasket securely into the inner rim of the lid.
- Ensure the vent tube on the lid is clear and free of any obstructions.
- Place the vent weight onto the vent tube once the lid is securely closed and cooking is about to begin.
4. Istruzioni per l'uso
4.1. Processo di cottura
- Add food and liquid to the cooker. Remember the filling limits: never more than two-thirds full, and half full for foods that expand.
- Place the lid onto the cooker body, ensuring the gasket is properly seated. The Hawkins Contura features an inner lid design.
- Align the lid handle with the body handle and close the lid by rotating it until it locks securely.
- Place the cooker on a heat source (gas, electric, ceramic, halogen). Use a medium to high flame/setting.
- Once steam begins to escape steadily from the vent tube, place the vent weight onto the tube.
- Pressure will build inside the cooker. The vent weight will begin to whistle, indicating that full pressure has been reached. Reduce heat to maintain a steady whistle or as per your recipe.
- Cuocere per il tempo consigliato.
4.2. Rilascioasing Pressione e apertura della pentola
Esistono due metodi principali per la rileasinpressione g:
- Rilascio naturale: Remove the cooker from the heat source and allow it to cool down naturally. The pressure will gradually decrease. Do not attempt to open the lid until all pressure has been released and the lid can be opened easily without force.
- Quick Release (for certain recipes): Under a running cold water tap, direct a stream of water over the lid, avoiding the vent weight. This will rapidly cool the cooker and release pressure. Only use this method if the recipe specifically calls for it and with caution.
Once pressure is fully released, remove the vent weight and carefully open the lid by rotating it in the opposite direction of closing. Always open the lid away from your face to avoid residual steam.
Refer to the included cookbook for specific recipes and cooking times.
5. Manutenzione e pulizia
Proper care and cleaning will extend the life of your Hawkins Contura Pressure Cooker.
- Pulizia giornaliera: After each use, wash the cooker body, lid, gasket, and vent weight with warm soapy water. Use a soft sponge or cloth. Rinse thoroughly and dry immediately to prevent water spots.
- Hard Anodised Finish: The hard anodised surface is durable and non-staining. Avoid using abrasive cleaners, steel wool, or harsh scouring pads, as these can damage the finish.
- Cura della guarnizione: Periodically check the rubber gasket for signs of wear, cracking, or hardening. Replace the gasket if it appears damaged or if steam leaks during cooking. Store the gasket flat or hanging to prevent distortion.
- Tubo di sfiato e valvola di sicurezza: Ensure the vent tube and safety valve are clear of food particles or blockages. Use a small brush or pipe cleaner if necessary.
- Sicurezza della lavastoviglie: Questa pentola a pressione è non Lavabile in lavastoviglie. Si consiglia il lavaggio a mano.
6. Risoluzione Dei Problemi
Se riscontri problemi con la tua pentola a pressione, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Perdita di vapore dal bordo del coperchio | Gasket not seated correctly, worn gasket, or lid not closed properly. | Re-seat gasket, replace gasket if worn, ensure lid is fully locked. |
| La pressione non aumenta | Insufficient liquid, vent weight not placed, vent tube blocked, or gasket issue. | Add more liquid, place vent weight, clear vent tube, check/replace gasket. |
| Cibo attaccato al fondo | Too little liquid, heat too high. | Increase liquid, reduce heat once pressure is reached. |
| Il fischio non suona | Vent weight not placed, insufficient pressure, or vent tube blocked. | Place vent weight, ensure sufficient heat, clear vent tube. |
If problems persist, consult the Service Centre Directory included in your package or contact Hawkins customer support.
7. Specifiche
| Marca | Hawkins |
| Numero di modello | M26 (Product Code CB20) |
| Capacità | 2 Liters (Ideal for 2 or 3 persons) |
| Materiale | Alluminio anodizzato duro |
| Colore | Nero |
| Tipo di finitura | Opaco |
| Dimensioni del prodotto (L x P x A) | 13.39 x 7.87 x 5.51 pollici (34.2 x 19.7 x 14.9 cm) |
| Peso dell'articolo | 1.99 libbre (0.9 kg) |
| Modalità di funzionamento | Manuale |
| Tipo di chiusura | Coperchio interno |
| Lavabile in lavastoviglie | NO |
| Pressione di esercizio | 1 kg/cm² (15 Pounds/Square Inch) |
| Codice UPC | 062654996047, 778295098544 |
Image: Diagram showing the Hawkins Contura Black Pressure Cooker and its dimensions, along with a table detailing specifications for various capacities, including the 2-liter model.
8. Garanzia e supporto
Your Hawkins Contura Hard Anodised Pressure Cooker comes with a 5 anno di garanzia.
Please refer to the 'Guarantee Card' included in your product package for detailed terms and conditions of the warranty.
For service, repairs, or any product-related inquiries, consult the 'Service Centre Directory' provided with your cooker. This directory lists authorized service centers and contact information.
Image: The Hawkins Contura Black Pressure Cooker, highlighting the '5 Years Guarantee' and 'UL Listed' certifications.
