1. Introduzione
This manual provides essential information for the proper installation, operation, and maintenance of the Trane BRG01578 Bearing. Please read this manual thoroughly before using the product to ensure safe and efficient performance. This bearing is an OEM Trane BRG1578 3/4" Bore Ball Bearing, designed to replace BRG0654.
2. Prodotto finitoview
The Trane BRG01578 is a high-quality OEM ball bearing designed for specific HVAC applications. It features a 3/4-inch bore and is constructed from stainless steel, ensuring durability and resistance to corrosion. This component is critical for the smooth operation of various Trane systems.

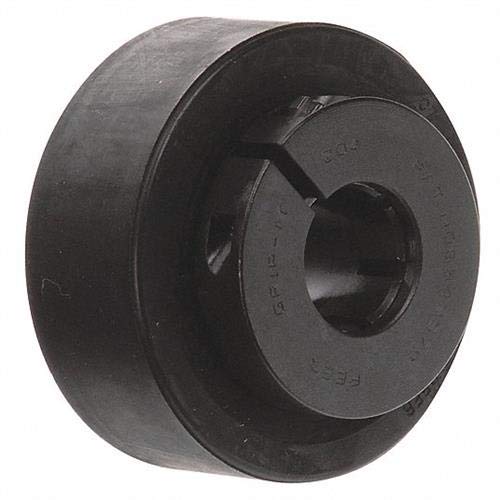

Figura 2.1: Davanti view of the Trane BRG01578 Bearing. This image shows the bearing's main body and the central bore.

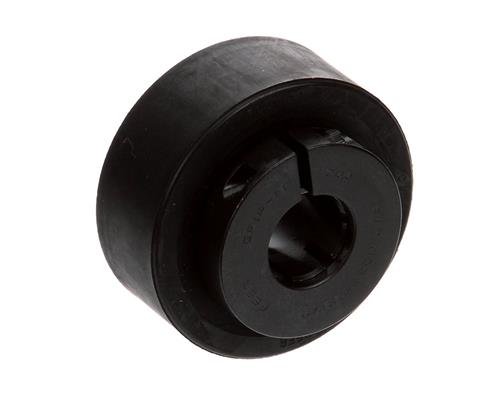

Figura 2.2: Angolato view of the Trane BRG01578 Bearing, highlighting its cylindrical shape and the bore opening.
Figura 2.3: Official Trane OEM Component stamp, indicating the authenticity and quality of the part.
3. Informazioni sulla sicurezza
Always prioritize safety when handling and installing mechanical components. Failure to follow safety guidelines can result in injury or damage to equipment.
- Ensure power is disconnected from the equipment before beginning any installation or maintenance.
- Indossare adeguati dispositivi di protezione individuale (DPI), tra cui occhiali e guanti di sicurezza.
- Handle the bearing carefully to avoid damage to its precision surfaces.
- In caso di dubbi su una qualsiasi fase dell'installazione, consultare un tecnico qualificato.
- Tenere le parti di piccole dimensioni lontano dalla portata dei bambini.
4. Configurazione e installazione
The Trane BRG01578 bearing is designed as a direct replacement for BRG0654. Proper installation is crucial for optimal performance and longevity.
- Preparazione: Ensure the mounting surface is clean, dry, and free from debris or old lubricant.
- Allineamento: Carefully align the bearing with the shaft. Avoid forcing the bearing onto the shaft, as this can damage the internal components.
- Montaggio: Use appropriate tools to gently press the bearing into place. Ensure it is seated squarely and fully.
- Protezione: If applicable, secure the bearing using retaining clips, set screws, or other fastening mechanisms as per the equipment's original design.
- Lubrificazione: Apply a suitable lubricant if required by the equipment manufacturer's specifications.
Nota: Refer to your specific equipment's service manual for detailed installation instructions related to the bearing replacement.
5. Considerazioni operative
Once installed, the bearing operates as an integral part of the HVAC system. No direct user operation of the bearing itself is required.
- Ensure the equipment operates within its specified temperature and load limits.
- Listen for unusual noises (e.g., grinding, squealing) that may indicate bearing wear or failure.
- Monitor for excessive vibration, which can also be a sign of bearing issues.
6. Manutenzione
Regular maintenance helps extend the life of the bearing and the equipment it supports.
- Ispezione: Periodically inspect the bearing for signs of wear, corrosion, or damage. Check for proper seating and alignment.
- Lubrificazione: If the application requires periodic lubrication, follow the equipment manufacturer's guidelines regarding lubricant type and frequency. Over-lubrication or under-lubrication can both lead to premature failure.
- Pulizia: Keep the area around the bearing clean and free from dust, dirt, and contaminants that can ingress into the bearing and cause wear.
7. Risoluzione Dei Problemi
Common issues related to bearings and potential causes:
| Sintomo | Possibile causa | Azione |
|---|---|---|
| Excessive Noise (Grinding/Squealing) | Lack of lubrication, contamination, wear, improper installation. | Check lubrication, inspect for contamination, consider replacement if worn. Re-install if alignment is off. |
| Vibrazione eccessiva | Bearing damage, misalignment, unbalanced rotating components. | Inspect bearing for damage, check alignment, balance rotating parts. |
| Surriscaldamento | Insufficient lubrication, excessive load, improper fit. | Verify lubrication, reduce load if possible, check fit on shaft/housing. |
Se le procedure di risoluzione dei problemi non risolvono il problema, contattare un tecnico HVAC qualificato.
8. Specifiche
| Attributo | Valore |
|---|---|
| Marca | Trane |
| Numero di modello | BRG01578 |
| ASIN | B004GIY1O8 |
| Tipo di cuscinetto | Cuscinetto a sfere |
| Dimensioni del foro | 3/4 pollici |
| Materiale | Acciaio inossidabile |
| Sostituisce il numero di parte | BRG0654 |
| Specifica Met | OEM |
| Produttore | Trane |
| Data prima disponibilità | 11 dicembre 2014 |
9. Supporto
For technical assistance or further inquiries regarding the Trane BRG01578 Bearing, please contact Trane customer support or your authorized Trane dealer.
Note: Specific warranty information for this component should be obtained from the point of purchase or Trane directly.
