Introduzione
The Safariland Model 6004-19-2 Quick Locking System (QLS) is designed to provide a secure and efficient method for attaching and detaching holsters and accessories. This system allows for rapid interchangeability of gear, enhancing operational flexibility. The QLS19 is the locking fork component, which mounts directly to the back of the holster or accessory. It can also be used with MOLLE loops when attached to an MLS 16 (sold separately). This system maintains Level I Retention on Duty Holsters.
Prodotto finitoview
The QLS19 Quick Duty Holster Locking Fork System is constructed from durable materials, ensuring reliability in various conditions. Its design facilitates quick attachment and detachment, making it ideal for users who need to frequently change their holster setup.
Figura 1: Fronte view of the Safariland QLS19 Locking Fork.
Figure 2: Dimensions of the QLS19 Locking Fork, showing approximate measurements of 3-1/8 inches width and 4-3/4 inches height.

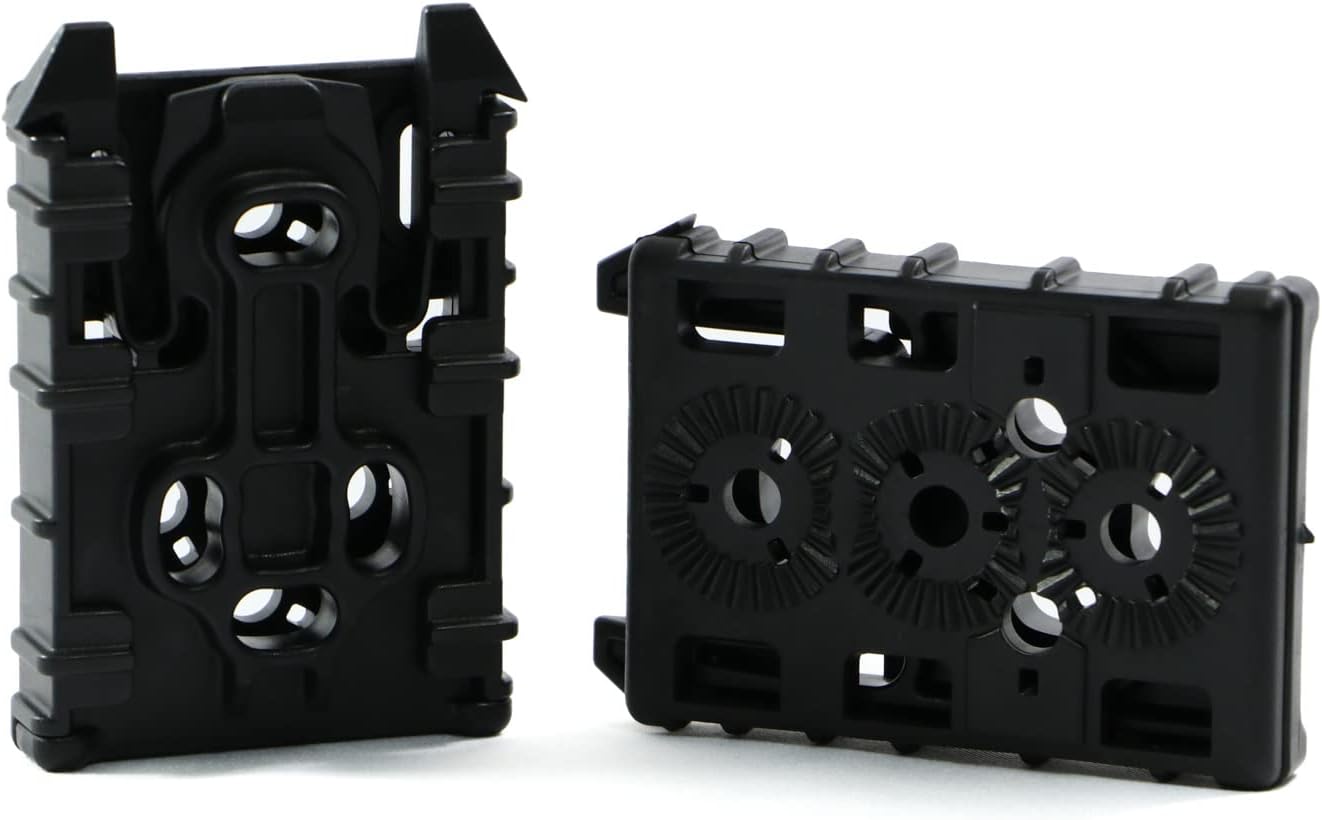

Figure 3: The QLS19 Locking Fork (right) and the QLS22 Receiver Plate (left), demonstrating the two components of the Quick Locking System.
Configurazione e installazione
The QLS19 Locking Fork is designed to be mounted to a holster, which then connects to a QLS22 Receiver Plate (sold separately) attached to a belt, thigh rig, or other mounting platform.
Attaching the QLS19 to a Holster
- Ensure your holster has a compatible three-hole pattern for mounting. Most Safariland duty holsters are compatible.
- Align the QLS19 Locking Fork with the mounting holes on the back of your holster.
- Insert the provided button-head screws through the QLS19 and into the holster's mounting points.
- Using the included Allen wrench, turn the screws clockwise until they are approximately 10 PSI tight, then hand-tighten for a secure fit. Do not overtighten.
Figure 4: The QLS19 Locking Fork securely attached to the back of a holster.
Figure 5: Various Safariland QLS components, including the QLS19 forks and QLS22 receivers, demonstrating system versatility.
Attaching Holster to a QLS22 Receiver Plate
Once the QLS19 is attached to your holster, it can be quickly connected to any QLS22 Receiver Plate.
- Ensure the QLS22 Receiver Plate is securely mounted to your desired platform (e.g., duty belt, thigh rig).
- Align the QLS19 on your holster with the slots on the QLS22 Receiver Plate.
- Slide the QLS19 downwards into the QLS22 until it clicks securely into place. A distinct click indicates proper engagement.
- To remove, press the two flexible tabs on the QLS19 inwards and slide the holster upwards.
Figure 6: A holster equipped with the QLS19, ready to be attached to a QLS22 receiver on a belt.
Operating the QLS System
The Safariland QLS system is designed for intuitive and rapid operation, allowing users to quickly swap holsters and accessories as needed for different scenarios or activities.
Quick Attachment and Detachment
The primary function of the QLS system is to enable fast and secure attachment and detachment of holsters. The flexible design of the QLS19 fork allows for smooth engagement and disengagement with the QLS22 receiver.
Video 1: Official Safariland demonstration of the Quick Attachment Access system, showing how to rapidly attach and detach holsters using the QLS components.
This quick-release capability is particularly useful for:
- Swapping holsters for different firearms.
- Transitioning between duty belts, range belts, or other gear setups.
- Adjusting holster position or cant by re-mounting.
Manutenzione
The Safariland QLS19 is designed for durability and requires minimal maintenance. To ensure optimal performance and longevity:
- Pulizia: Periodically wipe down the QLS19 and QLS22 components with a damp cloth to remove dirt, dust, or debris. Avoid harsh chemicals that may degrade the plastic.
- Ispezione: Regularly inspect the locking fork and receiver for any signs of wear, cracks, or damage. Ensure all screws remain securely tightened.
- Lubrificazione: No lubrication is typically required for the QLS system. If movement becomes stiff, ensure components are clean and free of obstructions.
Risoluzione dei problemi
Most issues with the QLS system can be resolved with simple checks:
- Difficoltà di attacco/stacco:
- Ensure both the QLS19 and QLS22 are clean and free of debris that might obstruct the locking mechanism.
- Verify that the QLS19 is correctly aligned with the QLS22 before attempting to slide it into place.
- Check for any physical damage to the flexible tabs on the QLS19 or the slots on the QLS22.
- Loose Holster:
- Re-tighten the screws attaching the QLS19 to the holster.
- Ensure the QLS22 Receiver Plate is securely mounted to its platform (e.g., belt).
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del modello | Bianchi 6004-19-2: Qls Locking Fork, 0, Black |
| Marca | Safariland |
| Colore | Nero |
| Materiale | Acciaio inossidabile |
| Stile | Holster Fork |
| Orientamento della mano | Ambidestro |
| Tipo di chiusura | Serratura |
| Peso dell'articolo | 1.6 once |
| Dimensioni articolo (LxPxA) | 0.5 x 6 x 10 pollici |
| Codice UPC | 781602440042 |
Garanzia e supporto
For warranty information and customer support, please refer to the manufacturer's official documentation or website. The product's warranty description states "See Manufacturer".
Per ulteriore assistenza, visitare il sito Safariland Store on Amazon.
