Chief TS325TU Medium THINSTALL Dual Swing Arm Wall Display Mount

Introduzione

The Chief TS325TU Medium THINSTALL Dual Swing Arm Wall Display Mount is designed to provide a secure and versatile mounting solution for flat panel displays ranging from 30 to 52 inches. This mount offers an ultra-low profile when collapsed and extends up to 25 inches, allowing for optimal viewing angles with its Centris low-profile tilt and Centerless lateral shift capabilities. It features integrated cable management for a clean installation.

Informazioni sulla sicurezza

AVVERTIMENTO: Failure to read, understand, and follow all instructions can result in serious personal injury, property damage, or voiding of product warranty. If you have any questions, contact Chief customer service or a qualified installer.

• Non superare la capacità di carico massima di 75.00 libbre (34 kg).
• Assicurarsi che la superficie di montaggio possa sostenere in modo sicuro il peso combinato del supporto e del display.
• Always mount to structural studs or appropriate wall anchors. Note that this mount is designed for studs approximately 16 inches apart.
• Use appropriate tools and follow all local building codes.
• Tenere lontani bambini e animali domestici durante l'installazione.

Contenuto della confezione

Verificare che tutti i componenti siano presenti prima di iniziare l'installazione:

• 1 x gruppo principale
• 1 x Wall Rail
• 1 x Right Upright
• 1 x Left Upright
• 1 x Top Interface Support
• 1 x Bottom Interface Support
• 2 x Wall Rail Cover
• 1 x Lag Screw Cover
• 1 x Bumper
• 1 x Latch Spacer
• 2 x Long Adhesive
• 4 x Short Adhesive
• Mounting Hardware (various screws, washers, spacers)

Configurazione e installazione

Proper installation is critical for the safety and performance of your display mount. It is recommended to have at least two people for installation due to the weight and size of the mount.

Strumenti necessari (non inclusi):

• Trova stud
• Forare con punte adeguate
• Livello
• Nastro di misurazione
• Socket Wrench / Ratchet
• Cacciavite con testa Phillips
• Matita

Installazione passo dopo passo:

1. Prepara il muro:

   Locate and mark the center of two adjacent wall studs. This mount is designed for standard 16-inch stud spacing. Ensure there are no electrical wires or plumbing in the drilling path. It is highly recommended to plan your entire layout, including TV, speakers, and wiring, before drilling.

2. Attach Wall Rail:

   Position the Wall Rail on the marked studs, ensuring it is level. Mark the pilot hole locations. Drill pilot holes into the studs. Secure the Wall Rail to the wall using the provided lag screws. Ensure the screws are tightened securely but do not overtighten to avoid stripping.

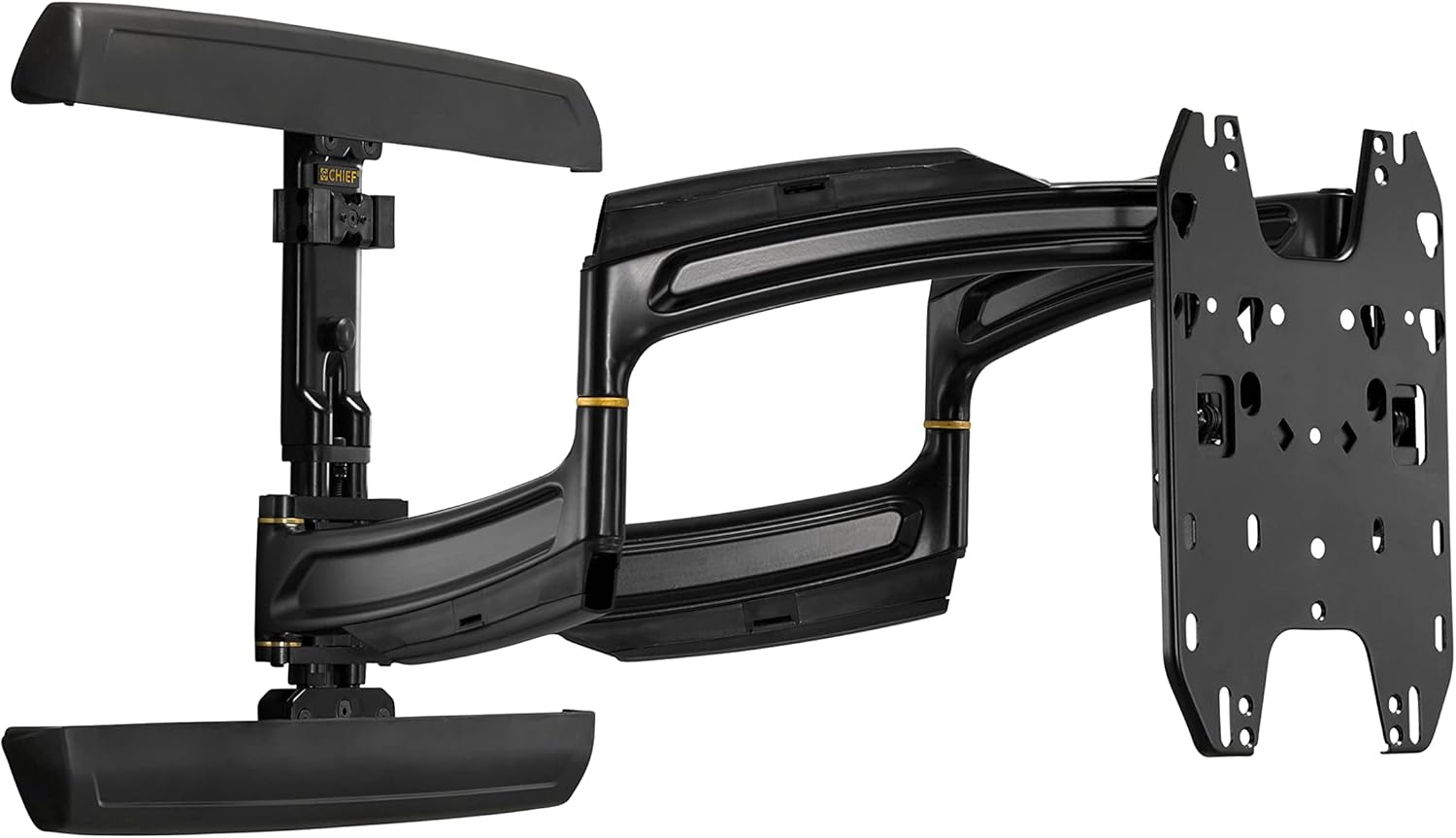

   Image: Main assembly of the Chief TS325TU mount, showing the wall plate, articulating arms, and display interface.

3. Assemble Display Interface:

   Attach the Right and Left Uprights to the back of your display using the appropriate screws, washers, and spacers from the mounting hardware kit. Ensure the uprights are centered and level on the display. Then, attach the Top and Bottom Interface Supports to the uprights.

4. Mount Display to Wall Rail:

   Carefully lift the display with the attached interface and hook it onto the Wall Rail. The design allows for post-installation lateral shift of up to 16 inches (406 mm) for limitless centering capability. Secure the display to the mount according to the specific instructions in the detailed manual (refer to manufacturer's full manual for precise steps).

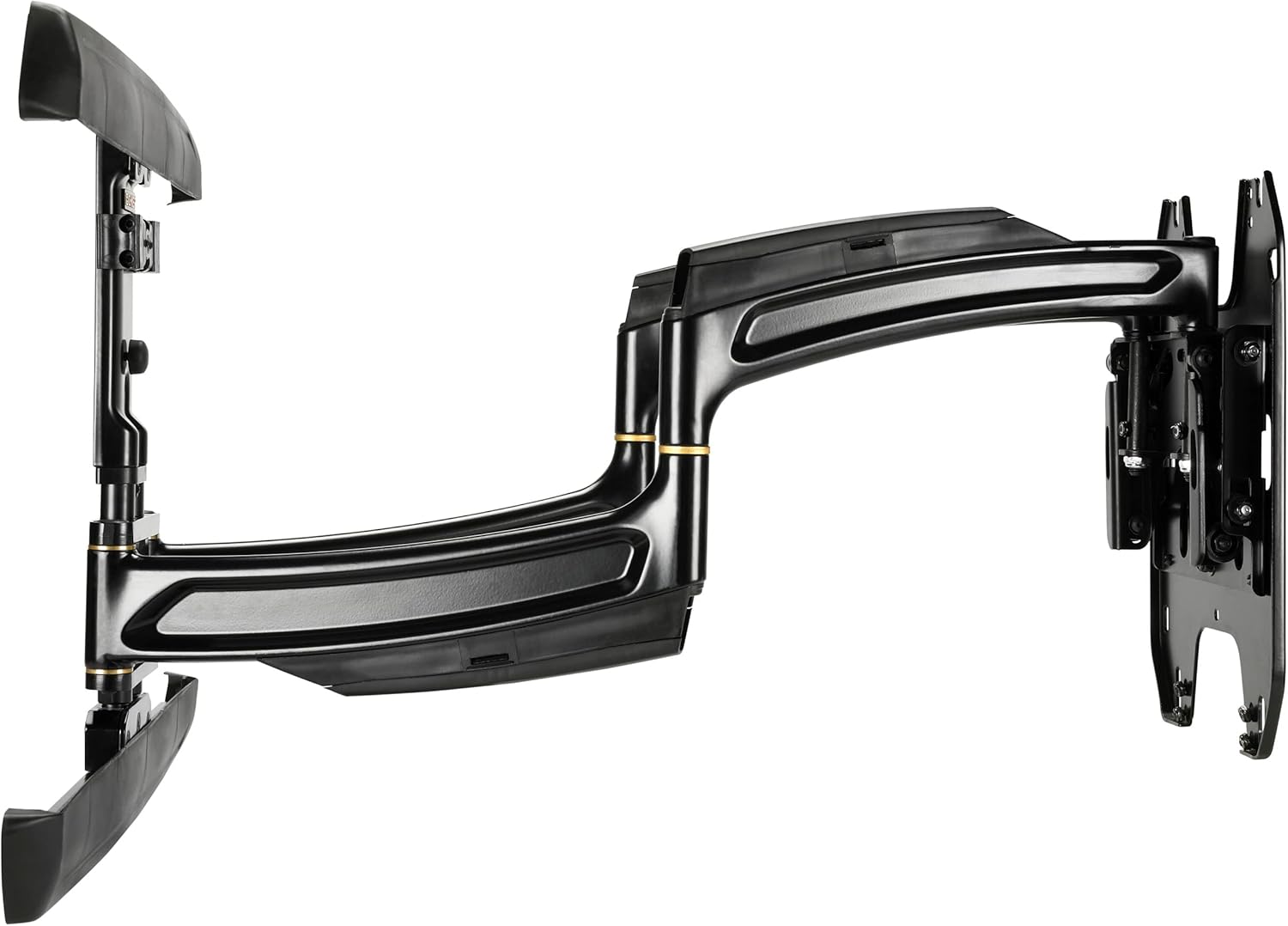

   Immagine: Lato view of the Chief TS325TU mount, illustrating its compact profile when retracted and the extension capability.

5. Gestione dei cavi:

   Utilize the enclosed, tool-free cable covers and the wide open wall plate to route power and signal cables. This helps maintain a clean and organized appearance.

Funzionamento del supporto

The Chief TS325TU mount offers flexible positioning for your display:

• Estensione: The mount extends up to 25 inches (635 mm) from the wall, maximizing viewing potential from various positions in the room.
• Inclinazione: The Centris low-profile tilt mechanism allows for up to 15 degrees of effortless fingertip tilt. This enables you to achieve optimal viewing angles and reduce glare.
• Swivel/Pan: The dual swing arms allow for significant swivel capabilities, enabling you to turn the display left or right to suit your viewesigenze.
• Lateral Shift: After installation, the display can be shifted laterally along the wall plate by up to 16 inches (406 mm) to fine-tune its horizontal position without re-drilling.

Immagine: Angolata view of the Chief TS325TU mount, highlighting its robust construction and articulating design.

Manutenzione

Regular maintenance ensures the longevity and safe operation of your mount:

• Pulizia: Dust the mount regularly with a soft, dry cloth. For stubborn marks, use a slightly damp cloth with mild soap, then wipe dry. Avoid abrasive cleaners or solvents.
• Controllare le connessioni: Periodically check all screws and bolts to ensure they remain tight. Do not overtighten.
• Controllo del movimento: Occasionally extend, retract, tilt, and swivel the mount to ensure smooth operation. If movement becomes stiff, consult the troubleshooting section or contact support.

Risoluzione dei problemi

For complex issues or if you are unsure about any step, please contact Chief customer support or a certified installer.

Specifiche

Garanzia e supporto

For detailed warranty information, please refer to the official Chief Manufacturing website or the documentation included with your product. Chief provides support for their products to ensure customer satisfaction.

If you require technical assistance, have questions about installation, or need to report a missing part, please visit the official Chief Manufacturing support page or contact their customer service directly. Contact information can typically be found on their websito:
