Introduzione
This manual provides essential information for the proper installation, maintenance, and safe use of the Craftsman 532851084 Blade Bolt. This component is a genuine OEM replacement part designed for various lawn mower models, ensuring proper blade attachment and safe operation.
Informazioni sulla sicurezza
- Prima di effettuare qualsiasi operazione di manutenzione o installazione sul tosaerba, scollegare sempre il cavo della candela o rimuovere la batteria per evitare avviamenti accidentali.
- Wear appropriate personal protective equipment (PPE), including gloves and eye protection, when handling mower blades and components.
- Ensure the mower blade is properly balanced and sharpened before reinstallation.
- Refer to your lawn mower's specific owner's manual for additional safety guidelines and torque specifications.
Installazione (configurazione)
Follow these steps to correctly install the Craftsman 532851084 Blade Bolt:
- Preparare il tosaerba: Ensure the lawn mower is turned off, the spark plug wire is disconnected, and the mower is stable. Tilt the mower onto its side with the carburetor facing up to prevent fuel leakage.
- Remove Old Blade Bolt (if applicable): If replacing an existing bolt, use a wrench to loosen and remove the old blade bolt. Carefully remove the blade and any washers.
- Ispezionare i componenti: Examine the blade, blade adapter, and mower shaft for any damage, wear, or debris. Clean any accumulated grass or dirt.
- Posizionare la lama: Place the lawn mower blade onto the blade adapter, ensuring it is correctly seated and aligned with any alignment pins or grooves. The cutting edge should face the direction of rotation.
- Install the New Blade Bolt: Insert the Craftsman 532851084 Blade Bolt through the center hole of the blade and into the threaded shaft.
- Stringere il bullone: Hand-tighten the bolt initially, then use a torque wrench to tighten it to the manufacturer's specified torque setting for your specific lawn mower model. Improper torque can lead to blade detachment or damage.
- Verifica installazione: Double-check that the blade is securely fastened and does not wobble. Reconnect the spark plug wire before starting the mower.

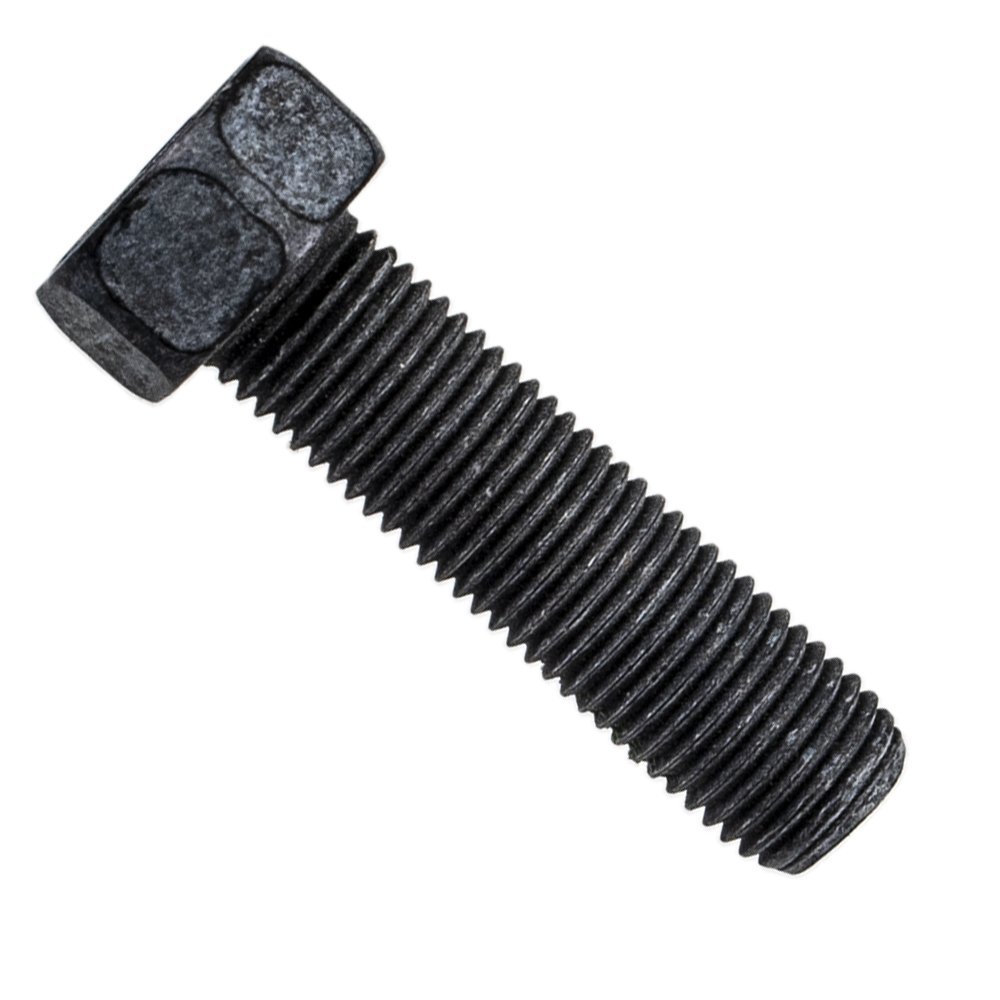

Image: The Craftsman 532851084 Blade Bolt, a hex head screw designed for securing lawn mower blades.
Considerazioni operative
While the blade bolt itself does not have operational controls, its correct installation is crucial for the safe and effective operation of your lawn mower. A properly secured blade ensures efficient cutting and prevents dangerous blade detachment during use.
Manutenzione
- Ispezione regolare: Before each mowing season or after any impact, inspect the blade bolt for signs of wear, bending, stripping, or corrosion.
- Controllo di tenuta: Periodically check the tightness of the blade bolt. If it feels loose, re-tighten it to the manufacturer's specified torque.
- Sostituzione: Replace the blade bolt if it shows any signs of damage, wear, or if the threads are stripped. It is good practice to replace the blade bolt whenever replacing the blade itself.
Immagine: Un primo piano laterale view of the Craftsman blade bolt, showing the hex head and threaded shaft.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La lama oscilla dopo l'installazione | Blade bolt not tightened sufficiently; blade not seated correctly; damaged blade adapter. | Re-tighten blade bolt to specified torque. Ensure blade is properly aligned. Inspect and replace blade adapter if damaged. |
| Blade bolt shears or breaks | Over-tightening; impact with an object; faulty bolt. | Replace the blade bolt. Ensure correct torque is applied during installation. Inspect blade and shaft for damage. |
| Blade bolt does not thread properly | Cross-threading; damaged threads on bolt or shaft. | Ensure bolt is aligned correctly before threading. If threads are damaged, replace the bolt or consult a professional for shaft repair. |
| Vibrazioni eccessive durante il funzionamento | Loose blade bolt; unbalanced blade; bent shaft. | Check and tighten blade bolt. Inspect blade for balance and damage. Consult a professional if shaft is bent. |
Specifiche
- Numero parte: 532851084
- Sostituisce: 851084, 532435345
- Marca: Craftsman (Genuine OEM AYP Part)
- Tipo di fissaggio: Bullone esagonale
- Stile della testa: Esagono
- Dimensioni filettatura: 3/8/24
- Diametro dell'articolo: 0.38 pollici
- Thread Style: Unified National Coarse (UNC)
- Manufacturer Grade: Grado 2
- Peso dell'articolo: Circa 0.634 once
Garanzia e supporto
This Craftsman 532851084 Blade Bolt is a genuine OEM part. For specific warranty information or technical support, please refer to the documentation provided with your original lawn mower or contact Craftsman customer service directly. Always ensure you are using genuine replacement parts to maintain product integrity and warranty.
