1. Introduzione
This manual provides comprehensive instructions for the safe and effective setup, operation, maintenance, and storage of your Caravan TitanShade Light-Duty Steel Commercial Instant Canopy Kit. Please read this manual thoroughly before initial use and retain it for future reference.
Figure 1.1: The Caravan TitanShade 10x10 Instant Canopy Kit, including the frame, canopy top, roller bag, and stake kit.
Video 1.1: General information about Caravan Canopies, highlighting various product lines and features.
2. Informazioni sulla sicurezza
Per garantire un funzionamento sicuro ed evitare lesioni o danni, attenersi alle seguenti linee guida di sicurezza:
- Always secure the canopy with the provided stake kit and ropes, especially in windy conditions.
- Do not use the canopy in severe weather conditions, including heavy rain, strong winds, or lightning. Disassemble and store the canopy immediately.
- Tenere tutte le fiamme e le fonti di calore lontane dal tessuto della capottina. Il tessuto non è ignifugo.
- Assicurarsi che tutti i meccanismi di bloccaggio siano completamente inseriti durante l'installazione e prima dell'uso.
- Avoid setting up the canopy on uneven ground, which can compromise stability.
- Supervise children and pets around the canopy to prevent accidents.
- Do not hang heavy objects from the canopy frame.
- Always use at least two people for setup and takedown to prevent injury and damage to the frame.
3. Contenuto della confezione
Verificare che tutti i componenti siano presenti prima di iniziare il montaggio:
- 1 x Instant Canopy Frame (Pre-assembled)
- 1 x Heavy-Duty Polyester Canopy Top
- 1 x 600D Polyester Roller Bag
- 1 x Stake Kit (Includes stakes and ropes)
Figure 3.1: The included 600D polyester roller bag for convenient transport and storage.
4. Istruzioni per l'installazione
Follow these steps for quick and easy assembly. It is recommended that two people perform the setup process.
- Disimballare il telaio: Remove the folded frame from the roller bag and place it in the center of your desired setup area.
- Aprire parzialmente il telaio: With a person at opposite corners, gently pull the frame outwards until it is partially open. Do not fully extend yet.
- Fissare la parte superiore del baldacchino: Drape the canopy top over the partially opened frame. Secure the corners of the canopy top to the frame's corner legs using the hook-and-loop fasteners.
- Estendi completamente il telaio: Continue pulling the frame outwards until it is fully extended. Ensure the truss bars are straight and the frame is stable.
- Blocca la cornice: Locate the pull-pin mechanisms on each leg. Push the pull-pin in and slide the leg upwards until the pin locks into the desired height adjustment hole. Repeat for all four legs.
Figure 4.1: Detail of the patented pull-pin system for easy height adjustment and locking.
Figure 4.2: The pull-pin mechanism securely locks the leg at the desired height.
- Fissare la tettoia: Use the provided stake kit to anchor the canopy to the ground. Insert stakes through the footplates at the base of each leg and into the ground. Attach ropes to the canopy's D-rings and secure them to additional stakes further out from the canopy for added stability.

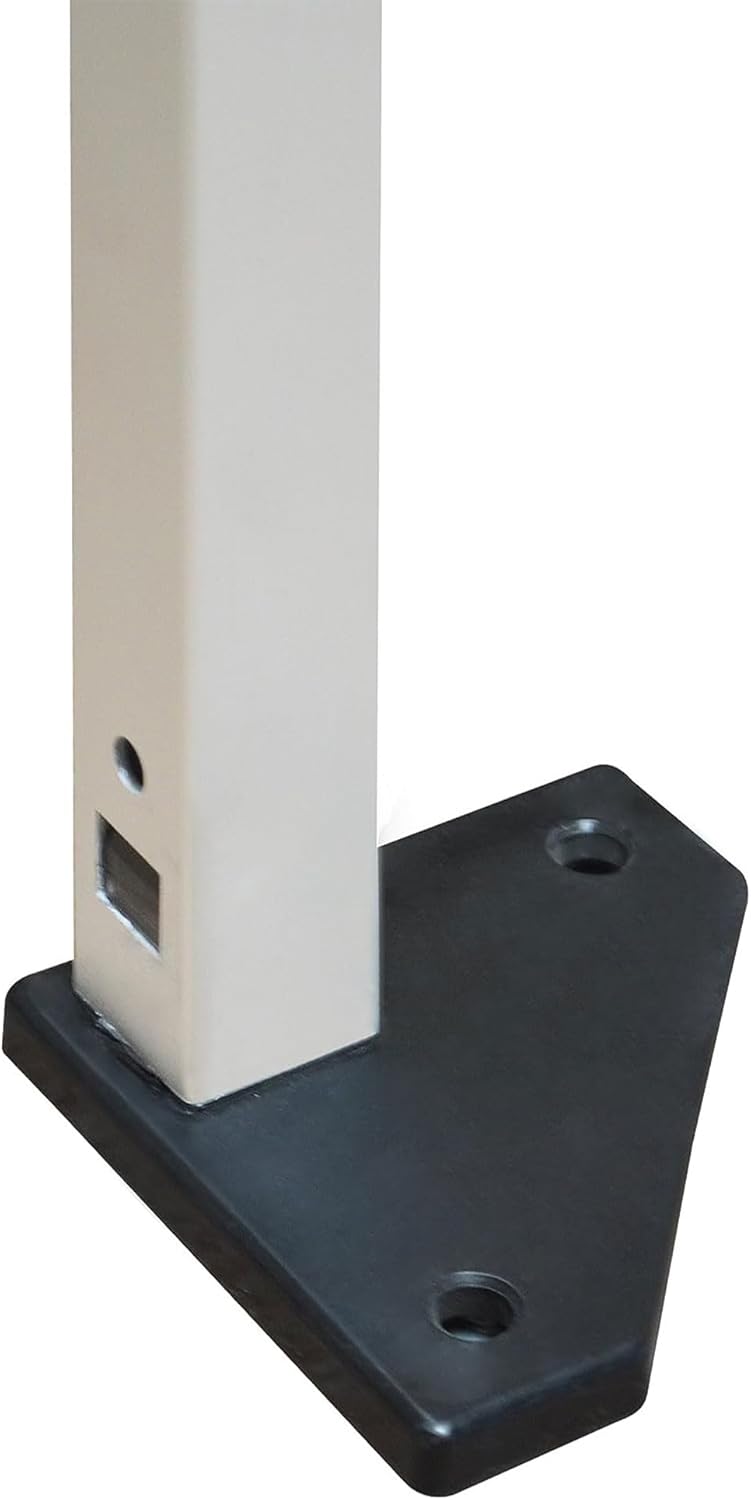

Figure 4.3: The leg base features pre-drilled holes for easy staking and securing the canopy.
5. Funzionamento del tettuccio
The Caravan TitanShade canopy is designed for temporary outdoor use, providing shade and protection from light elements. Its straight leg design maximizes the shaded area.
- Regolazione dell'altezza: To adjust the height, press the pull-pin on each leg and slide the leg to the desired position. Ensure the pin locks securely into place at the new height.
- Protezione solare: The heavy-duty polyester top offers excellent UV protection, making it ideal for sunny conditions.
- Stabilità del vento: While designed with a full truss system for stability, always use the stake kit and ropes in windy conditions. For strong gusts, lower the canopy to its lowest setting or disassemble it.
6. Manutenzione e cura
Proper maintenance will extend the life of your canopy:
- Cleaning the Canopy Top: Clean the polyester top with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow the fabric to air dry completely before folding and storing.
- Manutenzione del telaio: Periodically inspect the steel frame for any signs of damage, rust, or loose connections. Clean any dirt or debris from the frame. Lubricate moving parts (e.g., joints, pull-pins) with a silicone-based spray if they become stiff.
- Borsa portaoggetti: Keep the roller bag clean and dry.
7. Conservazione
Proper storage is crucial for preserving your canopy:
- Smontaggio: Reverse the setup steps. Ensure all pull-pins are disengaged before collapsing the frame.
- Essiccazione: Always ensure the canopy top and frame are completely dry before folding and storing. Storing while damp can lead to mildew and rust.
- Pieghevole: Fold the canopy top neatly to prevent creases and damage. Collapse the frame completely.
- Luogo di stoccaggio: Store the canopy in its roller bag in a cool, dry place, away from direct sunlight and extreme temperatures.
8. Risoluzione Dei Problemi
Per i problemi più comuni e le relative soluzioni, fare riferimento alla tabella sottostante:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Canopy difficult to open/close | I giunti del telaio sono rigidi o sporchi. | Clean joints and apply a silicone lubricant. Ensure pull-pins are fully disengaged. |
| Canopy unstable or wobbly | Not properly staked or on uneven ground. | Ensure all legs are at the same height and fully locked. Use all stakes and ropes. Move to level ground. |
| Acqua che si accumula sulla sommità della chioma | Canopy not taut enough or heavy rain. | Ensure canopy top is stretched tightly over the frame. Disassemble in heavy rain to prevent damage. |
| Strappo o sfilacciamento del tessuto | Improper folding or prolonged exposure to elements. | Ensure proper folding techniques. Avoid leaving canopy exposed to harsh weather for extended periods. |
9. Specifiche
- Marca: Caravan
- Modello: 21006906011
- Dimensions (Set Up): 120"L x 120"W x 132"H (10'L x 10'W x 11'H)
- Area di copertura: 100 piedi quadrati
- Materiale: Alloy Steel (Frame), Heavy-Duty Polyester (Canopy Top)
- Colore: Bianco
- Peso dell'articolo: 54 libbre
- Livello di resistenza all'acqua: Resistente all'acqua
- Protezione UV: SÌ
- Assemblaggio richiesto: SÌ
Figure 9.1: Visual representation of the canopy's key dimensions and weight.
Figure 9.2: The robust frame construction ensures durability and strength.
10. Garanzia e supporto
Caravan Canopies are built to last, and some models are covered by a limited warranty. For specific warranty details pertaining to your TitanShade canopy, please refer to the warranty card included with your purchase or visit the official Caravan Canopy websito.
For technical support, replacement parts, or any inquiries, please contact Caravan customer service:
- Websito: www.caravancanopy.com
- Assistenza clienti: Fare riferimento al websito per numeri di contatto o supporto via e-mail.
Conservare la prova d'acquisto per eventuali richieste di garanzia.
