Introduzione
The SFA Sanibroyeur Pro Up is a high-performance macerating pump designed for efficient wastewater evacuation from a toilet and a washbasin. This unit allows for the installation of sanitary facilities in locations where traditional gravity drainage is not feasible. Its compact design and silent operation make it an ideal solution for discreet integration into various environments. This manual provides essential information for the safe and correct installation, operation, and maintenance of your Sanibroyeur Pro Up.

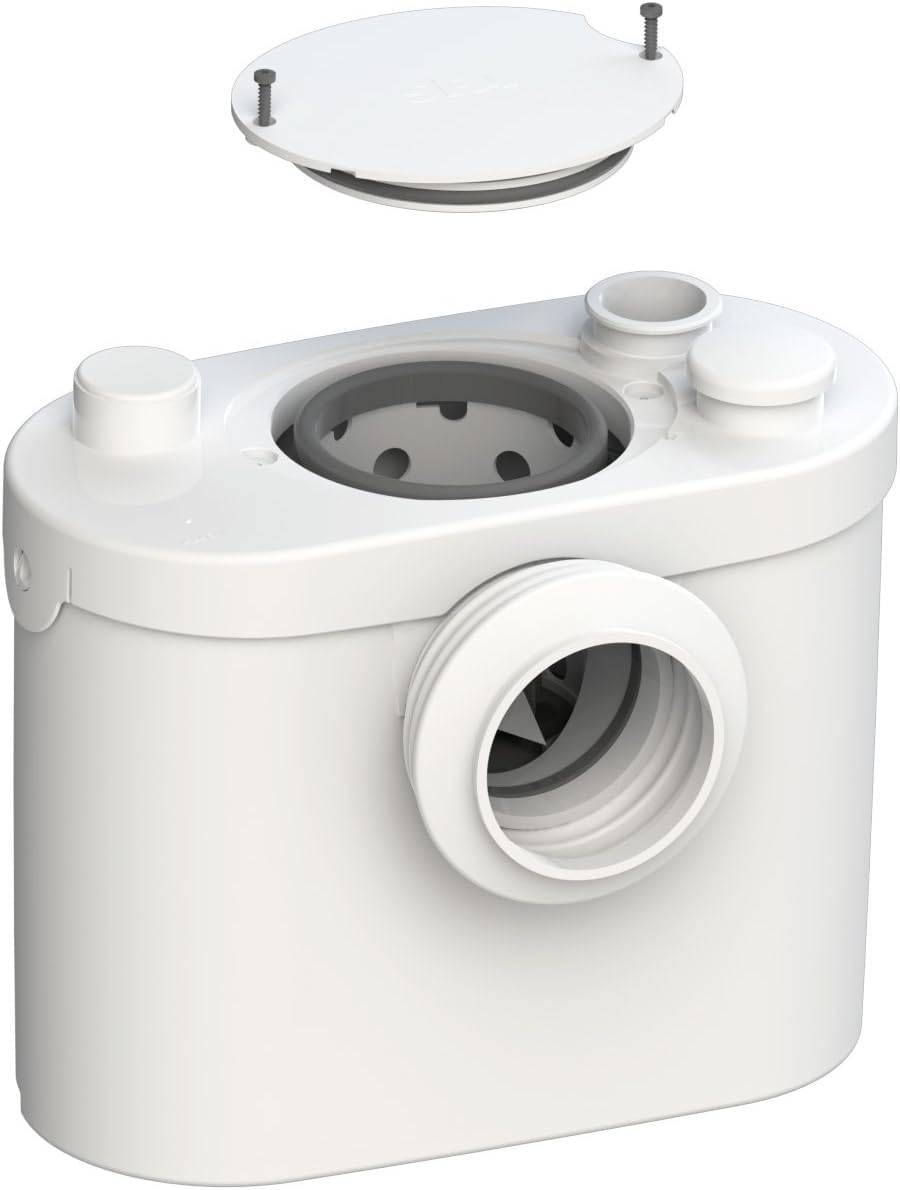

Image: SFA Sanibroyeur Pro Up Macerating Pump, showing its compact white casing e punti di connessione.
Istruzioni di sicurezza
- Always disconnect the power supply before any installation, maintenance, or repair work.
- Ensure the electrical installation complies with local standards and regulations.
- L'apparecchio deve essere dotato di messa a terra.
- Do not dispose of foreign objects (cotton, wipes, sanitary products, etc.) into the toilet connected to the macerator, as this can cause blockages and damage the unit.
- Questo apparecchio non è destinato all'uso da parte di persone (bambini compresi) con ridotte capacità fisiche, sensoriali o mentali, o prive di esperienza e conoscenza, a meno che non siano supervisionate o abbiano ricevuto istruzioni riguardanti l'uso dell'apparecchio da una persona responsabile della loro sicurezza.
Configurazione e installazione
The Sanibroyeur Pro Up is designed for installation behind a WC with a horizontal outlet, and can also connect to a washbasin.
- Posizionamento: Position the macerator directly behind the toilet. Ensure sufficient space for connections and future maintenance.
- Wastewater Connections: Connect the toilet outlet to the macerator's inlet. The unit is designed to handle wastewater from a toilet and one washbasin. Ensure all connections are sealed properly to prevent leaks. The evacuation pipe diameter should be between 22 mm and 32 mm.
- Tubo di scarico: Connect the macerator's discharge outlet to the main drainage system. The unit can pump wastewater up to 5 meters vertically and 100 meters horizontally. Ensure the discharge pipe has a continuous slope to prevent standing water.
- Collegamento elettrico: Connect the 400W motor to a dedicated 220/240V electrical supply. Ensure the circuit is protected by a residual current device (RCD) and complies with all local electrical codes.
- Prova: After installation, perform a test run by flushing the toilet and running water in the washbasin to check for proper operation and absence of leaks.

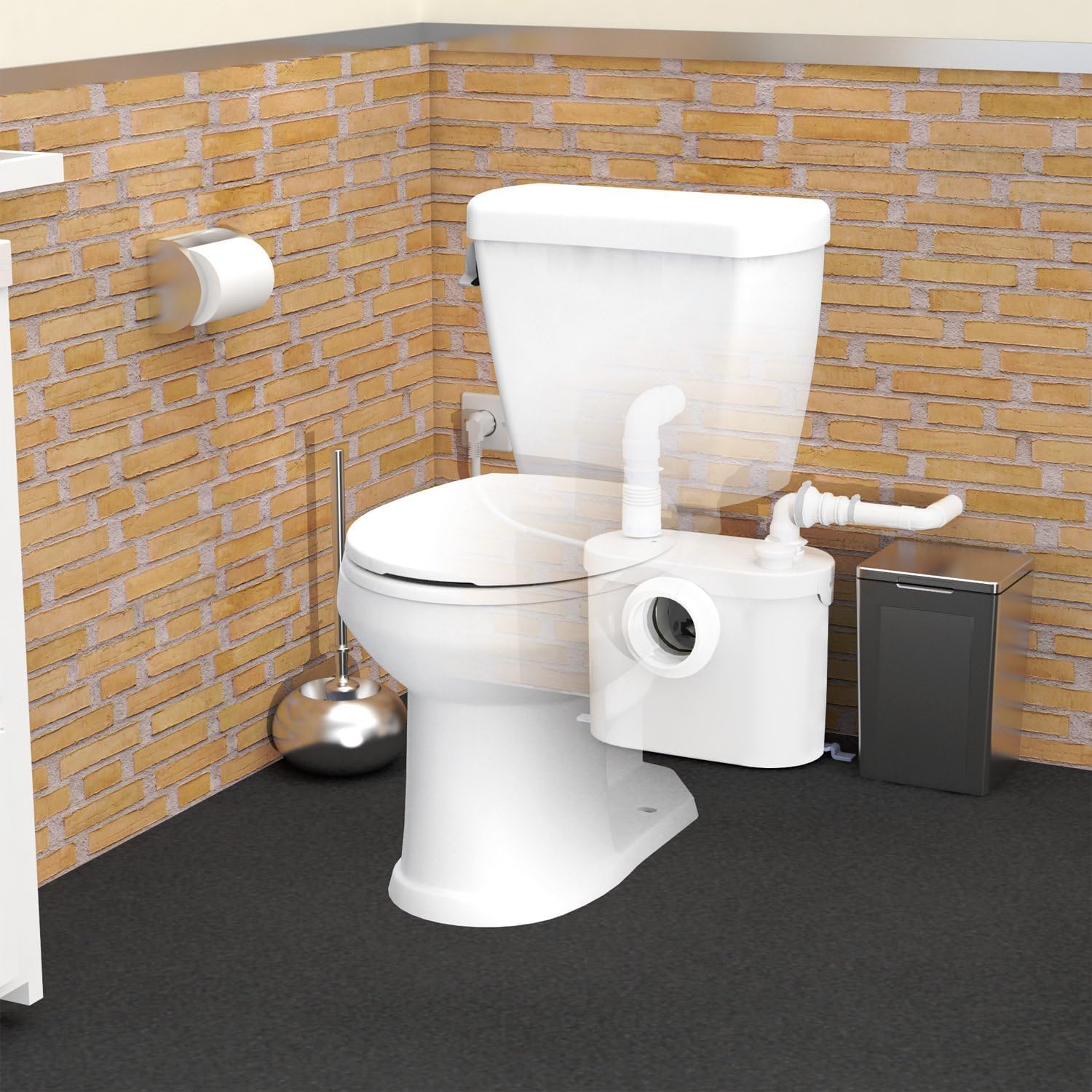

Image: Illustration of the SFA Sanibroyeur Pro Up discreetly installed behind a toilet, showing its integration into a bathroom setting.
Istruzioni per l'uso
The SFA Sanibroyeur Pro Up operates automatically. When wastewater enters the unit, a pressure switch activates the motor, which then macerates the waste and pumps it through the discharge pipe.
- Attivazione automatica: The unit will automatically start when the water level inside rises, indicating waste entry.
- Funzionamento silenzioso: The Sanibroyeur Pro Up is designed for quiet operation, with a maximum noise level of 46 dB.
- Energia: The 400W motor ensures efficient maceration and powerful discharge of wastewater.
- Utilizzo: Use the connected toilet and washbasin as normal. Avoid flushing anything other than human waste and toilet paper.
Manutenzione
Regular maintenance ensures the longevity and optimal performance of your Sanibroyeur Pro Up.
- Pulizia: Periodically clean the unit using a non-corrosive, macerator-safe cleaning product. Follow the cleaner's instructions.
- Accesso al carrello: The Sanibroyeur Pro Up features direct access to the macerating basket, allowing for easy maintenance without requiring complete disassembly of the unit.
- Ispezione: Regularly inspect connections for any signs of leaks or wear.
- Servizio professionale: For any complex issues or internal repairs, contact a qualified technician or SFA customer service.
Risoluzione dei problemi
If you encounter issues with your Sanibroyeur Pro Up, consider the following common troubleshooting steps:
- Unità non avviata:
- Check if the unit is properly plugged into a live electrical outlet.
- Verificare che l'interruttore automatico non sia scattato.
- Ensure no foreign objects are blocking the macerator blades. Disconnect power before checking.
- Unità in funzione continua:
- This often indicates a foreign object is lodged in the macerator, preventing the pressure switch from resetting. Disconnect power and inspect the basket.
- Check for leaks in the toilet or washbasin that might be continuously filling the unit.
- Rumore o vibrazione insoliti:
- Disconnect power immediately. A foreign object may be caught in the macerator blades.
- Ensure the unit is securely installed and not vibrating against walls or pipes.
- Perdite:
- Controllare la tenuta di tutti i collegamenti idraulici.
- Inspect seals and gaskets for damage.
If these steps do not resolve the issue, please contact SFA customer support or a qualified plumber.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del modello | Sanibroyeur Pro Up |
| Numero modello articolo | ST3STD |
| Produttore | SFA |
| Dimensioni del prodotto (L x P x A) | 33.9 x 22.2 x 32.3 cm (13.35 x 8.74 x 12.72 pollici) |
| Peso dell'articolo | 5.5 chilogrammi (12.13 libbre) |
| Colore | Bianco |
| Materiale | Acciaio inossidabile |
| Fonte di alimentazione | Elettrico con cavo |
| Voltage | 220 Volt |
| Energia | 400 Watt |
| Altezza di sollevamento massima | 5 metri (16.4 piedi) |
| Maximum Horizontal Discharge | 100 metri (328 piedi) |
| Livello di rumore | 46 dB massimo |
| Pipe Diameter for Evacuation | da 22 a 32 mm |
| Componenti inclusi | Connection accessories, Instruction manual, Sanibroyeur Pro |
| Paese di origine | Francia |

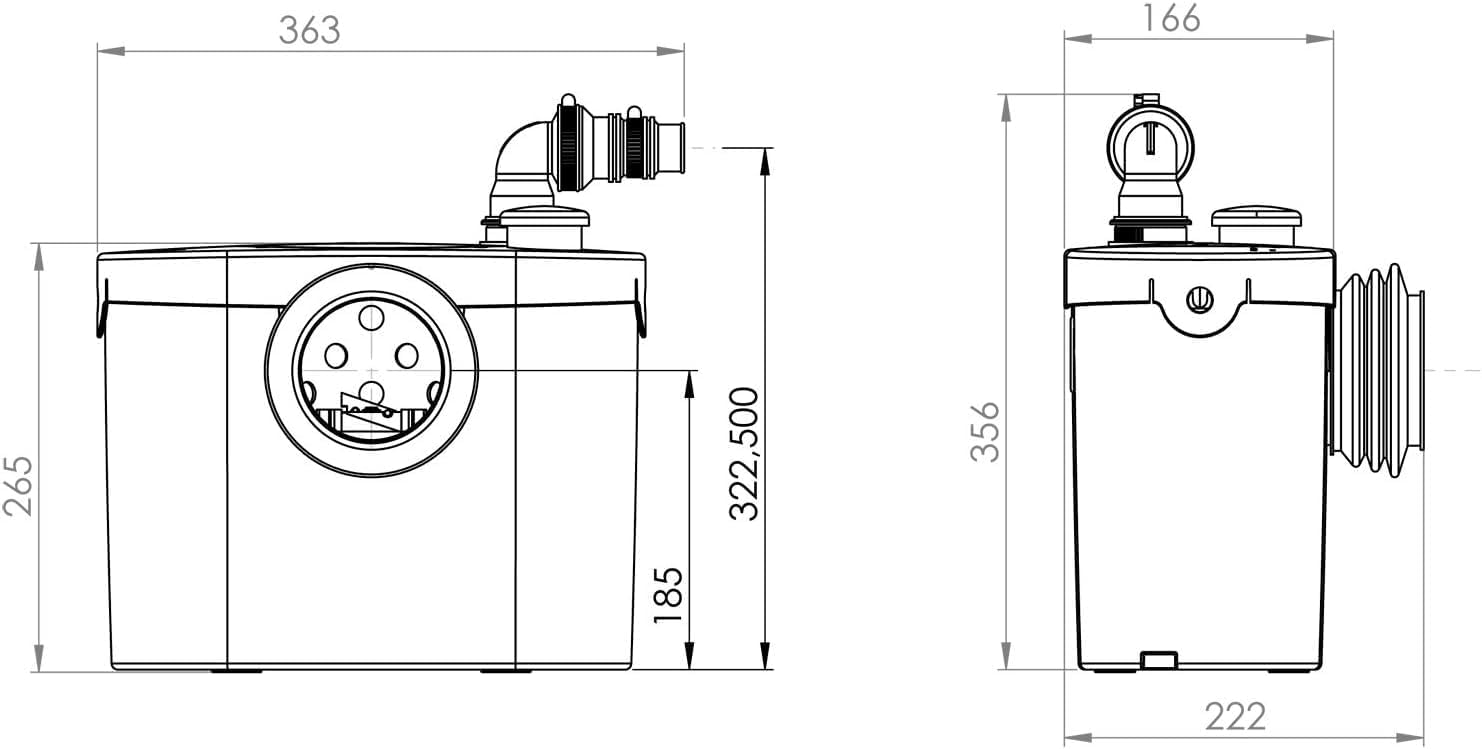

Image: Technical drawing illustrating the dimensions and connection points of the SFA Sanibroyeur Pro Up.
Garanzia e supporto
The SFA Sanibroyeur Pro Up is manufactured with high-quality materials and benefits from the "Origine France Garantie" label, ensuring its French origin and quality craftsmanship.
- Garanzia: Questo prodotto viene fornito con un Garanzia di 5 anno dalla data di acquisto. Conservare la prova d'acquisto per eventuali reclami in garanzia.
- Supporto: For technical assistance, spare parts, or warranty service, please contact SFA customer support. Refer to the contact information provided with your product packaging or visit the official SFA websito.
