1. Introduzione
This manual provides essential information for the proper installation, operation, and maintenance of your MTD 925-3161A Head Lamp Bulb. This is a genuine MTD product, designed to meet the high standards of MTD equipment. Please read this manual thoroughly before attempting any installation or service.
2. Informazioni sulla sicurezza
Always prioritize safety when working with electrical components. Failure to follow these safety guidelines may result in injury or damage to property.
- Scollegare l'alimentazione: Before attempting to replace the bulb, ensure the equipment's power source is completely disconnected (e.g., turn off the engine, remove the battery cable, or unplug from power outlet).
- Consenti raffreddamento: If replacing a recently used bulb, allow sufficient time for the old bulb to cool down to prevent burns.
- Maneggiare con cura: Avoid touching the glass portion of the new bulb directly with bare hands. Oils from your skin can create hot spots and significantly reduce bulb life. Use a clean cloth or gloves.
- Smaltimento corretto: Smaltire le vecchie lampadine secondo le normative locali.
- Utilizzare la sostituzione corretta: Always use the specified replacement bulb (MTD 925-3161A or equivalent OEM part) to ensure proper fit and electrical compatibility.
3. Prodotto finitoview
The MTD 925-3161A is a genuine OEM headlamp bulb designed for various MTD equipment models. It provides reliable illumination for safe operation, particularly in low-light conditions. This bulb is a direct replacement for part numbers 759-3693, 725-3161A, and 725-3161.

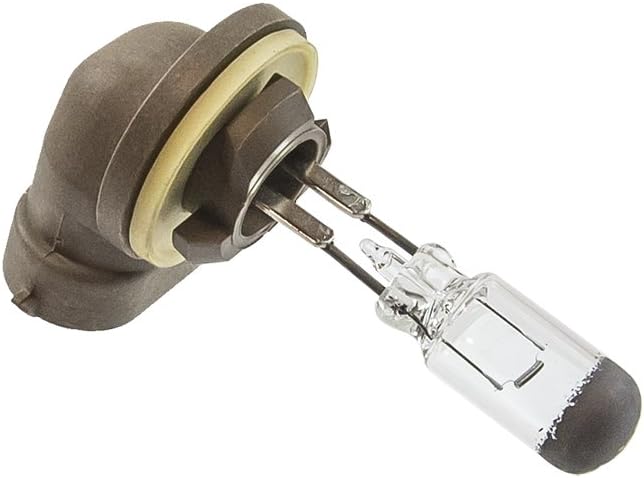

Figura 3.1: Fronte view of the MTD 925-3161A Head Lamp Bulb, showing the bulb and its connector base.
Figura 3.2: lato view of the MTD 925-3161A Head Lamp Bulb, illustrating the connector and bulb filament.
4. Installazione (configurazione)
Follow these general steps for replacing your headlamp bulb. Refer to your specific equipment's owner's manual for detailed instructions and location of the headlamp assemblaggio.
- Prepararsi per l'installazione:
- Ensure the equipment is turned off and the ignition key is removed.
- Disconnect the battery or unplug the equipment from its power source to prevent accidental electrical shock.
- Allow the old bulb to cool down completely if it was recently in use.
- Access the Headlamp Montaggio:
- Locate the headlamp assembly on your MTD equipment. This may require removing a cover, grille, or other components. Consult your equipment's manual for exact access procedures.
- Rimuovere la vecchia lampadina:
- Scollegare con cautela il connettore elettrico dal retro della vecchia lampadina.
- Unclip or twist the bulb from its housing, depending on the design. Remove the old bulb.
- Installare la nuova lampadina:
- Holding the new MTD 925-3161A bulb by its plastic base (avoid touching the glass), align it with the headlamp alloggiamento.
- Insert the bulb and secure it by twisting or clipping it into place until it is firmly seated.
- Reconnect the electrical connector to the back of the new bulb, ensuring a snug fit.
- Riassemblare e testare:
- Reattach any covers or components that were removed to access the headlamp.
- Reconnect the equipment's power source (e.g., battery cable, plug in).
- Turn on the equipment and test the headlamp to ensure the new bulb is functioning correctly.
5. Funzionamento
Once properly installed, the MTD 925-3161A Head Lamp Bulb operates as an integral part of your equipment's lighting system. Its function is to provide illumination when the headlamps are activated according to your equipment's operational controls.
- Attivare la testaamps using the designated switch or control on your MTD equipment.
- Verify that the bulb illuminates properly.
6. Manutenzione
The MTD 925-3161A Head Lamp Bulb is a sealed unit and requires no internal maintenance. Its lifespan is primarily determined by operating conditions and hours of use. To ensure optimal performance and longevity:
- Mantenere le lenti pulite: Periodically clean the exterior of the headlamp lens to ensure maximum light output. Use a soft cloth and a mild cleaning solution.
- Ispezionare il cablaggio: Occasionally check the wiring and connector leading to the bulb for any signs of wear, corrosion, or loose connections.
- Evitare vibrazioni eccessive: While designed for equipment use, excessive or prolonged vibration can reduce bulb life. Ensure all equipment components are securely fastened.
7. Risoluzione Dei Problemi
Se la tua testaamp bulb is not functioning as expected, consider the following common issues and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La lampadina non si accende |
|
|
| La lampadina tremola o è fioca |
|
|
| La lampadina si brucia rapidamente |
|
|
8. Specifiche
Key specifications for the MTD 925-3161A Head Lamp Lampadina:
| Attributo | Dettaglio |
|---|---|
| Numero di modello | 925-3161A |
| Numero di parte OEM | 925-3161A |
| Sostituisce i numeri di parte | 759-3693, 725-3161A, 725-3161 |
| Cosatage | 26 watt |
| Usi specifici per il prodotto | Lamp (Headlamp) |
| Quantità del pacchetto dell'articolo | 1 |
| Colore | Gray (referring to the base/connector) |
| Peso dell'articolo | 1.6 once |
| Dimensioni del prodotto | 1.4 x 2.4 x 1 pollici |
9. Informazioni sulla garanzia
As a genuine MTD product, this headlamp bulb is covered by MTD Genuine Parts' standard warranty policy. For specific details regarding warranty coverage, terms, and conditions, please refer to the official warranty documentation provided with your MTD equipment or visit the official MTD Genuine Parts websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
10. Assistenza clienti
If you require further assistance, have questions not covered in this manual, or need to order replacement parts, please contact MTD Genuine Parts customer support. You can typically find contact information on the official MTD website or within your equipment's owner's manual.
