Introduzione
Questo manuale fornisce informazioni essenziali per il montaggio, il funzionamento e la manutenzione sicuri del vostro Weber Industries 213513 Tino Combined Bed. This versatile furniture piece features a 90x190cm bed, an integrated retractable desk, a two-door wardrobe, and additional shelving for optimal space utilization.
Please read these instructions thoroughly before beginning assembly or use to ensure proper function and longevity of your product.
Informazioni sulla sicurezza
WARNING: Failure to follow these safety instructions could result in serious injury or damage to the product.
- Assemble with caution due to potentially dangerous parts.
- Do not overload shelves to prevent tipping. Ensure items are distributed evenly.
- Keep all small parts and assembly hardware out of reach of children during assembly.
- Controllare regolarmente tutti i dispositivi di fissaggio per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
- Non permettere ai bambini di giocare sopra o sotto il letto senza supervisione.
- Assicurarsi che il letto sia posizionato su una superficie piana e stabile.
Contenuto della confezione
Before starting assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- Bed frame components
- Desk unit components
- Wardrobe unit components
- Scaffalature
- Scala
- Hardware pack (screws, dowels, connectors, etc.)
- Istruzioni di montaggio (documento separato, se applicabile)
Note: Mattress, linen, and decorative items are not included.
Installazione e assemblaggio
Assembly of the Tino Combined Bed requires two adults. Please follow the detailed step-by-step instructions provided in the separate assembly guide included with your product. The general steps are outlined below:
- Preparare l'area: Preparare un'area spaziosa per l'assemblaggio. Disporre tutti i componenti e la ferramenta.
- Montare la struttura del letto: Begin by constructing the main bed frame according to the instructions. Ensure all connections are secure.
- Fissare la scala: Securely attach the ladder to the designated side of the bed frame.
- Assemble Storage Units: Construct the wardrobe and shelving units.
- Integrate Desk and Storage: Position and secure the desk and storage units under the bed frame. The desk can be installed to retract as shown in the images.
- Controlli finali: Once assembled, ensure all screws and fasteners are tightened. Check for stability and proper alignment of all parts.

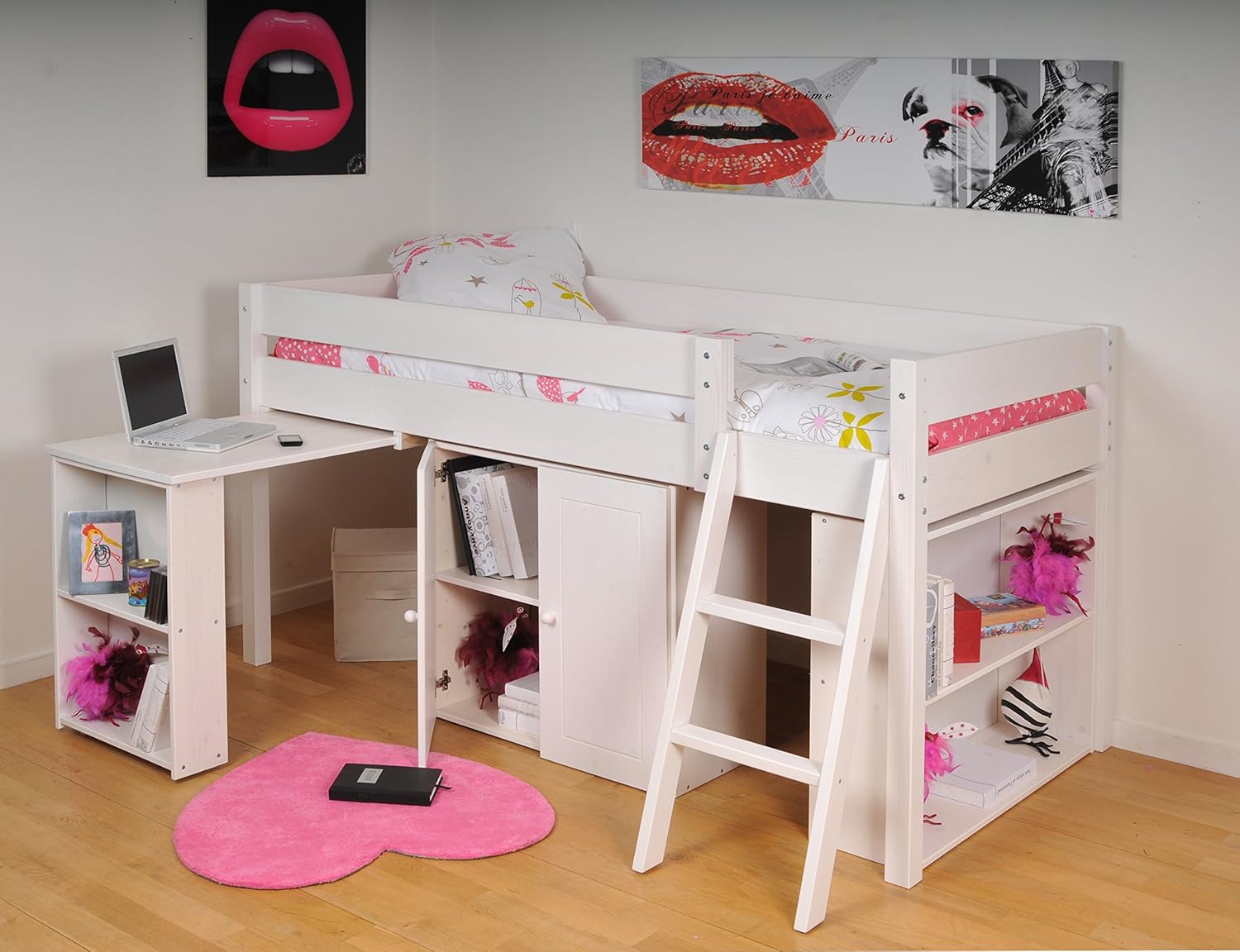

Figure 1: Fully assembled Tino Combined Bed with the retractable desk extended, showing integrated shelving and wardrobe.
Figure 2: Tino Combined Bed with the retractable desk stored underneath, maximizing floor space.
Istruzioni per l'uso
Retractable Desk
The Tino Combined Bed features a retractable desk designed to save space. To use the desk, gently pull it out from its stored position under the bed. To retract, push the desk back into its compartment until it is fully nested.
- Ensure the area around the desk is clear before extending or retracting.
- Do not place excessive weight on the extended desk.
Unità di stoccaggio
The integrated wardrobe and shelving units provide ample storage. Open the two-door wardrobe to access the internal space. Use the open shelves for books, decorative items, or other personal belongings.
- Distribuire il peso in modo uniforme sui ripiani per mantenere la stabilità.
- Avoid placing heavy objects on the very top of the shelving units.

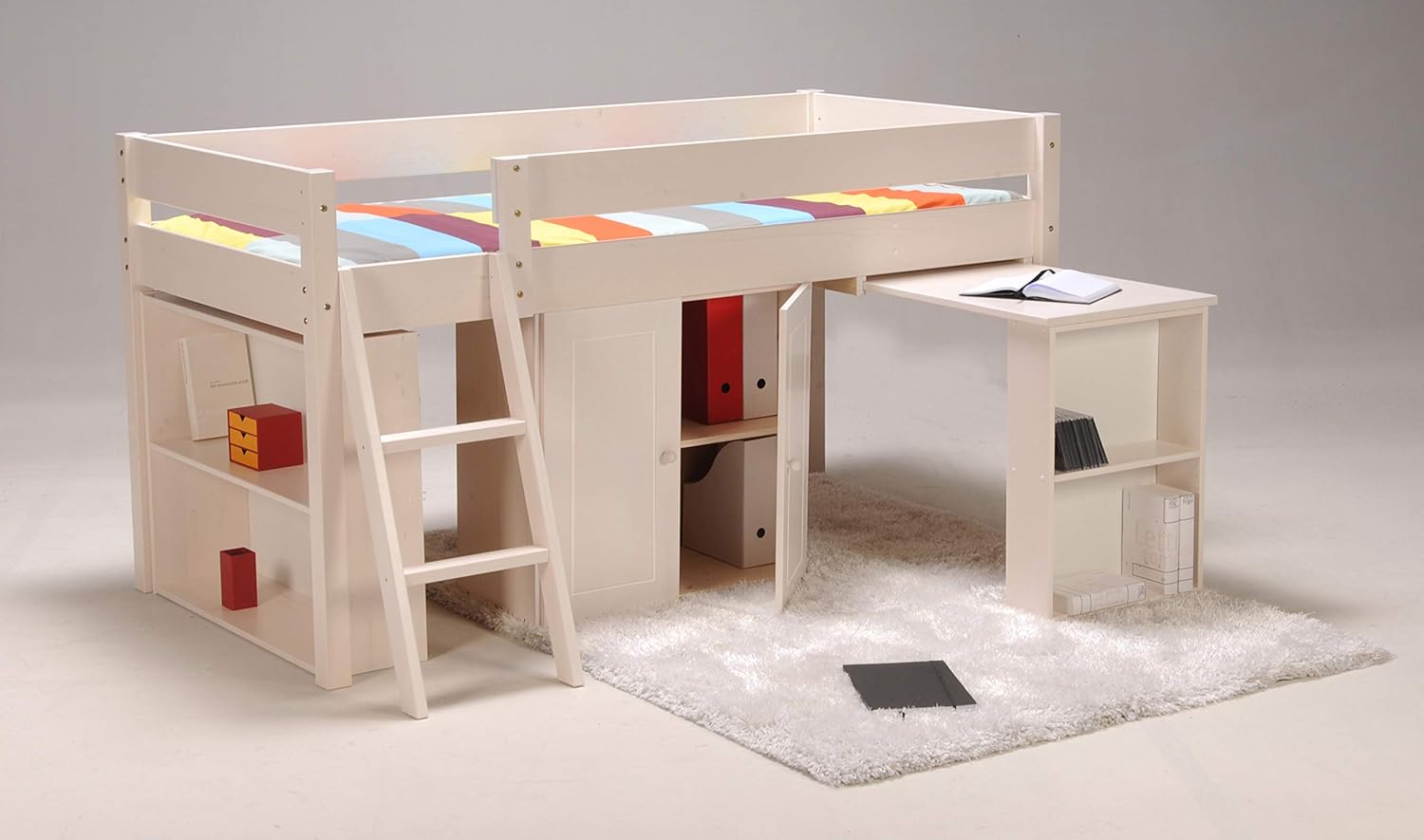

Figura 3: View of the Tino Combined Bed highlighting the internal storage compartments and the desk in use.
Manutenzione
Proper maintenance will extend the life and appearance of your Tino Combined Bed.
- Pulizia: Pulisci le superfici con la pubblicitàamp stoffa. Evitare detergenti abrasivi o prodotti chimici aggressivi che potrebbero danneggiare la finitura.
- Hardware: Periodically check all screws, bolts, and fasteners. Tighten any loose connections to ensure structural integrity.
- Ispezione: Regularly inspect the bed for any signs of wear, damage, or instability. Address any issues promptly.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il letto sembra instabile o traballante. | Elementi di fissaggio allentati; pavimento irregolare. | Stringere tutte le viti e i bulloni. Assicurarsi che il letto sia posizionato su una superficie piana; utilizzare spessori se necessario. |
| Desk is difficult to extend or retract. | Obstruction; dirty runners; misaligned. | Check for objects blocking the desk path. Clean desk runners. Verify desk alignment during assembly. |
| Doors on wardrobe do not close properly. | Misaligned hinges; overloaded compartment. | Adjust hinges as per assembly guide. Reduce items in the compartment. |
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | 213513 |
| Marca | WEBER INDUSTRIES |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 200.5 x 100.5 x 108.5 cm |
| Dimensioni del letto | Dimensioni: 90 x 190 cm |
| Peso dell'articolo | 67.5 chilogrammi |
| Materiale | Legna |
| Colore | Bianco |
| Stile | Moderno |
| Caratteristica speciale | Storage space, Retractable desk |
| Assemblea | User assembly required |
Informazioni sulla garanzia
Warranty information for the Weber Industries 213513 Tino Combined Bed is not explicitly provided in the product details. Please refer to your purchase documentation or contact the retailer/manufacturer directly for specific warranty terms and conditions.
Assistenza clienti
For further assistance, missing parts, or technical inquiries regarding your Weber Industries 213513 Tino Combined Bed, please contact Weber Industries customer service or your point of purchase.
Puoi visitare il sito ufficiale Weber Industries store for more information: Weber Industries Store
