1. Introduzione
This manual provides essential information for the safe and efficient operation of your Indesit FIMB 53 K.A IX electric oven. Please read these instructions carefully before using the appliance and retain them for future reference. Proper use and maintenance will ensure optimal performance and longevity of your oven.
2. Informazioni sulla sicurezza
Per evitare lesioni o danni all'apparecchio, attenersi sempre alle seguenti linee guida di sicurezza:
- Sicurezza elettrica: Ensure the oven is correctly installed by a qualified technician and connected to a grounded power outlet. Do not use adapters or extension cords. Disconnect power before cleaning or maintenance.
- Superfici calde: Il forno e i suoi accessori diventano molto caldi durante il funzionamento. Utilizzare sempre guanti da forno quando si maneggiano oggetti caldi. Tenere bambini e animali domestici lontani dall'apparecchio.
- Rischio di incendio: Do not store flammable materials in or near the oven. Never leave the oven unattended during cooking, especially when using high temperatures or grilling.
- Pulizia: Use only recommended cleaning agents. Ensure the oven is cool before cleaning.
- Ventilazione: Ensure adequate ventilation around the oven as specified in the installation instructions.
3. Prodotto finitoview
The Indesit FIMB 53 K.A IX is a built-in electric oven designed for conventional cooking. It features a stainless steel finish, a built-in digital display, and an internal light for visibility during cooking. The oven is supplied with grids for various cooking needs.

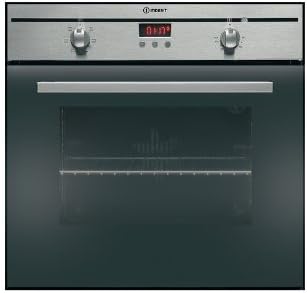

Figura 1: Davanti view of the Indesit FIMB 53 K.A IX electric oven. The control panel features two rotary knobs for function and temperature selection, centered around a digital display for time and settings. The oven door is made of dark glass, allowing visibility into the cooking cavity.
Componenti del pannello di controllo:
- Manopola di selezione delle funzioni: Used to select the desired cooking mode (e.g., conventional, grill).
- Manopola di selezione della temperatura: Used to set the cooking temperature in degrees Celsius.
- Display digitale: Shows the current time, cooking duration, and other settings.
- Pulsanti di controllo: Typically used for setting the timer, adjusting the clock, or confirming selections.
4. Impostazione
4.1 Installazione
The Indesit FIMB 53 K.A IX is a built-in appliance. Installation should only be performed by a qualified electrician or authorized service technician in accordance with local safety regulations and the provided installation template. Ensure the appliance is properly secured and connected to the electrical supply.
4.2 Primo utilizzo
- Remove all packaging materials, protective films, and accessories from the oven cavity.
- Pulire l'interno del forno con adamp panno e detergente delicato, quindi asciugare accuratamente.
- Before cooking food, heat the empty oven at its maximum temperature for approximately 60 minutes to burn off any manufacturing residues. Ensure the room is well-ventilated during this process. A slight odor may be present; this is normal.
- Lasciare raffreddare completamente il forno prima di utilizzarlo per la prima volta con gli alimenti.
5. Istruzioni per l'uso
5.1 Impostazione dell'orologio
All'accensione iniziale o dopo uno spegnimentotage, the digital display will flash. Use the control buttons (refer to your specific model's button layout) to set the current time. Confirm the setting to stop the flashing.
5.2 Selezione di una funzione di cottura
- Turn the Function Selector Knob to the desired cooking mode. For general baking and roasting, select the conventional cooking symbol (usually two horizontal lines).
- The oven light will illuminate, and the heating elements will begin to operate.
5.3 Impostazione della temperatura
- After selecting a function, turn the Temperature Selector Knob to the desired temperature in degrees Celsius.
- The oven will begin to preheat. An indicator light (if present) will turn off once the set temperature is reached.
5.4 Utilizzo del timer
Your oven's digital display allows you to set a cooking duration or a delayed start. Consult the specific button functions for your model to:
- Set Cooking Duration: Program the oven to switch off automatically after a set time.
- Imposta ora di fine: Program the oven to start and finish cooking at a specific time.
- Contaminuti: Use as a simple kitchen timer without affecting oven operation.
6. Manutenzione e pulizia
Regular cleaning and maintenance ensure the hygiene and efficiency of your oven.
6.1 Pulizia generale
- Esterno: Pulisci l'esterno in acciaio inossidabile con un panno morbido e un detergente non abrasivo specifico per l'acciaio inossidabile. Evita prodotti chimici aggressivi o spugne abrasive.
- Interno: After each use, wipe the oven interior with a damp cloth once it has cooled. For stubborn stains, use a specialized oven cleaner, following the product instructions carefully. Ensure all cleaner residue is removed.
- Porta del forno: Clean the glass door with a glass cleaner. Do not immerse the door in water.
- Accessori: Wash grids and trays in warm soapy water or in a dishwasher.
6.2 Sostituzione Lampada Forno
Ensure the oven is disconnected from the power supply before attempting to replace the light bulb. Unscrew the protective glass cover, replace the old bulb with a new high-temperature resistant bulb (check specifications for wattage), and then reattach the cover.
7. Risoluzione Dei Problemi
If you encounter issues with your oven, consult the following table before contacting service.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il forno non riscalda | No power supply; Function/temperature not set; Fuse tripped. | Check power connection; Ensure function and temperature knobs are set; Check household fuse box. |
| La luce del forno non funziona | La lampadina è difettosa o allentata. | Replace the oven light bulb (see Section 6.2). |
| Il cibo non cuoce in modo uniforme | Incorrect temperature/shelf position; Overcrowding the oven. | Adjust temperature; Use recommended shelf position; Avoid placing too many items in the oven at once. |
| Digital display flashing | Power interruption; Clock not set. | Set the clock (see Section 5.1). |
8. Specifiche
- Modello: Indesit FIMB 53 K.A IX
- Numero di modello interno: 40027540
- Tipo: Forno elettrico
- Tipo di installazione: Incorporato
- Energia: 2250 Watt
- Classe energetica: A
- Dimensioni (A x L x P): Dimensioni: 60 x 54.5 x 60 cm
- Peso: 32 kg (70.55 libbre)
- Caratteristiche: Conventional cooking, Built-in display, Grids, Internal light
9. Garanzia e supporto
Your Indesit FIMB 53 K.A IX electric oven is covered by a manufacturer's warranty. Please refer to the warranty card provided with your purchase for specific terms, conditions, and duration. For technical assistance, spare parts, or to schedule a service appointment, please contact Indesit Customer Service. Contact details can typically be found on the Indesit official websito o nella documentazione di acquisto.
