Introduzione
This manual provides essential information for the safe and effective use of the Fasco D9886202 Furnace Draft Inducer Exhaust Motor. This motor is designed as an upgraded replacement component for furnace systems. Its primary function is to expel exhaust gases from the furnace, ensuring proper combustion and safe operation of the heating unit.

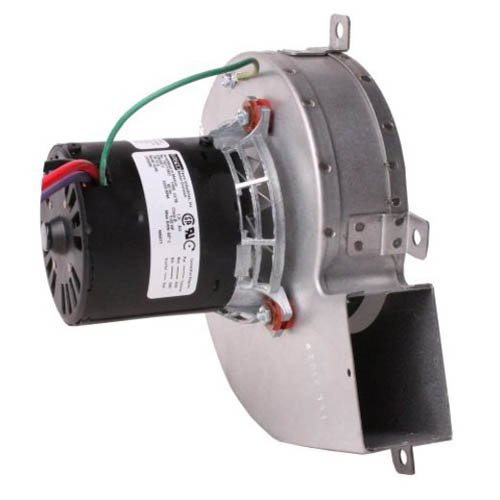

Image: Fasco D9886202 Furnace Draft Inducer Exhaust Motor. This image displays the complete motor unit, including the housing and fan assembly, ready for installation.
Configurazione e installazione
WARNING: Installation of this furnace component involves working with electrical connections and gas lines. Improper installation can result in serious injury, property damage, or death. It is strongly recommended that installation be performed by a qualified HVAC professional.
Before attempting any installation, ensure the main power supply to the furnace is completely disconnected at the circuit breaker or fuse box. Turn off the gas supply to the furnace.
- Disconnessione dell'alimentazione: Locate the furnace's circuit breaker and switch it to the 'OFF' position. Verify power is off using a voltagetester.
- Interruzione del gas: Turn off the gas supply valve to the furnace.
- Accesso: Carefully open the furnace access panels to expose the existing draft inducer motor.
- Scollegare il cablaggio: Label and disconnect all electrical wires connected to the old motor. Take photos for reference if needed.
- Rimuovere il vecchio motore: Unbolt and carefully remove the old draft inducer motor from its mounting. Note the orientation and any gaskets or seals.
- Installare il nuovo motore: Position the Fasco D9886202 motor in the same orientation as the old unit. Secure it with the appropriate bolts and ensure any gaskets or seals are properly seated to prevent leaks.
- Ricollegare il cablaggio: Reconnect the electrical wires to the new motor, matching them to the labels or photos taken earlier. Ensure all connections are secure.
- Accesso ravvicinato: Replace all furnace access panels securely.
- Ripristinare energia e gas: Turn the gas supply back on. Restore power to the furnace at the circuit breaker.
- Operazione di prova: Initiate a heating cycle on the thermostat to test the furnace and the new inducer motor's operation. Observe for proper exhaust expulsion and listen for unusual noises.
Istruzioni per l'uso
The Fasco D9886202 Furnace Draft Inducer Exhaust Motor operates automatically as an integral part of your furnace's heating cycle. There are no direct user controls for this component.
- When the thermostat calls for heat, the furnace control board initiates the draft inducer motor.
- The motor creates a negative pressure (draft) within the combustion chamber, drawing in fresh air for combustion and expelling combustion byproducts through the exhaust vent.
- Once sufficient draft is established and verified by pressure switches, the igniter activates, followed by the main burner.
- The inducer motor continues to operate throughout the heating cycle to ensure proper ventilation of exhaust gases.
- Upon completion of the heating cycle, the inducer motor will typically run for a short post-purge period before shutting off.
Ensure that the furnace's exhaust vent is clear of obstructions to allow the inducer motor to function correctly.
Linee guida per la manutenzione
The Fasco D9886202 Draft Inducer Exhaust Motor is designed for reliable operation with minimal user maintenance. However, periodic inspection is recommended as part of your overall furnace maintenance schedule.
- Ispezione annuale: It is advisable to have a qualified HVAC technician inspect the inducer motor annually during routine furnace servicing.
- Controllare eventuali ostruzioni: Ensure that the motor's fan blades and housing are free from debris, dust, or foreign objects that could impede its operation or cause imbalance.
- Ascolta i rumori insoliti: During furnace operation, listen for any unusual grinding, squealing, or rattling noises coming from the inducer motor, which could indicate a bearing issue or obstruction.
- Controllo delle vibrazioni: Observe if the motor exhibits excessive vibration during operation. Excessive vibration can lead to premature wear.
- Sistema di ventilazione: Regularly check the furnace's exhaust venting system for blockages, leaks, or damage that could affect the inducer motor's performance.
Do not attempt to lubricate sealed bearings or disassemble the motor, as this can void any potential warranty and may damage the unit.
Risoluzione dei problemi
If your furnace is experiencing issues related to exhaust ventilation, the draft inducer motor may be a contributing factor. Always consult a qualified HVAC technician for diagnosis and repair.
| Sintomo | Possibile causa | Azione consigliata |
|---|---|---|
| Furnace not igniting, no inducer motor sound | No power to furnace, faulty control board, faulty pressure switch, seized motor. | Check furnace power supply. Consult HVAC technician for diagnosis of control board, pressure switch, or motor. |
| Inducer motor runs but furnace does not ignite | Blocked exhaust vent, faulty pressure switch, faulty igniter, gas supply issue. | Check exhaust vent for obstructions. Consult HVAC technician for further diagnosis. |
| Unusual noises (grinding, squealing) from motor | Worn bearings, debris in fan housing, loose mounting. | Turn off furnace immediately. Consult HVAC technician for inspection and repair/replacement. |
| Motor runs intermittently or cycles on/off rapidly | Overheating, electrical issue, control board fault. | Consult HVAC technician for electrical and control system diagnosis. |
Always ensure power is disconnected before inspecting any furnace components. Do not attempt repairs if you are not qualified.
Specifiche
The following are key specifications for the Fasco D9886202 Furnace Draft Inducer Exhaust Motor:
- Numero modello: D9886202
- Marca: Fasco
- Dimensioni del prodotto: Circa 12 x 12 x 12 pollici
- Peso dell'articolo: Circa 10 libbre
- Produttore: Fasco
- ASIN: B00FENDL18
- Data prima disponibilità: 24 settembre 2013
These specifications are subject to change without notice. For the most current information, please refer to the product packaging or contact Fasco directly.
Informazioni sulla garanzia
Specific warranty details for the Fasco D9886202 Furnace Draft Inducer Exhaust Motor are typically provided by the manufacturer or the authorized seller at the time of purchase. Please retain your proof of purchase for any warranty claims.
For information regarding the manufacturer's warranty, please refer to the documentation included with your product or visit the official Fasco website. Any extended protection plans offered by third parties are separate from the manufacturer's warranty.
Assistenza clienti
For technical assistance, installation questions, or warranty inquiries regarding your Fasco D9886202 Furnace Draft Inducer Exhaust Motor, please contact your authorized Fasco dealer or the seller from whom you purchased the product.
You may also visit the official Fasco websito per informazioni generali sui prodotti e risorse di supporto.
