1. Introduzione e informazioni sulla sicurezza
This manual provides essential instructions for the safe installation, operation, and maintenance of your Beko Oven Hood Red Indicator Lamp. Please read these instructions carefully before proceeding with installation or maintenance.
Avvertenze di sicurezza importanti:
- Always disconnect the appliance from the main power supply before attempting any installation, maintenance, or repair work. Failure to do so can result in electric shock or serious injury.
- Installation should ideally be performed by a qualified technician. If you are unsure, consult a professional.
- Gestisci il lamp assembly with care to avoid damage to the bulb or housing.
- Ensure all connections are secure and correctly fitted before restoring power.
2. Prodotto finitoview
The Beko Oven Hood Red Indicator Lamp is a genuine replacement part designed to indicate the operational status of your oven hood. It includes the red lens, the indicator bulb, and the housing unit.

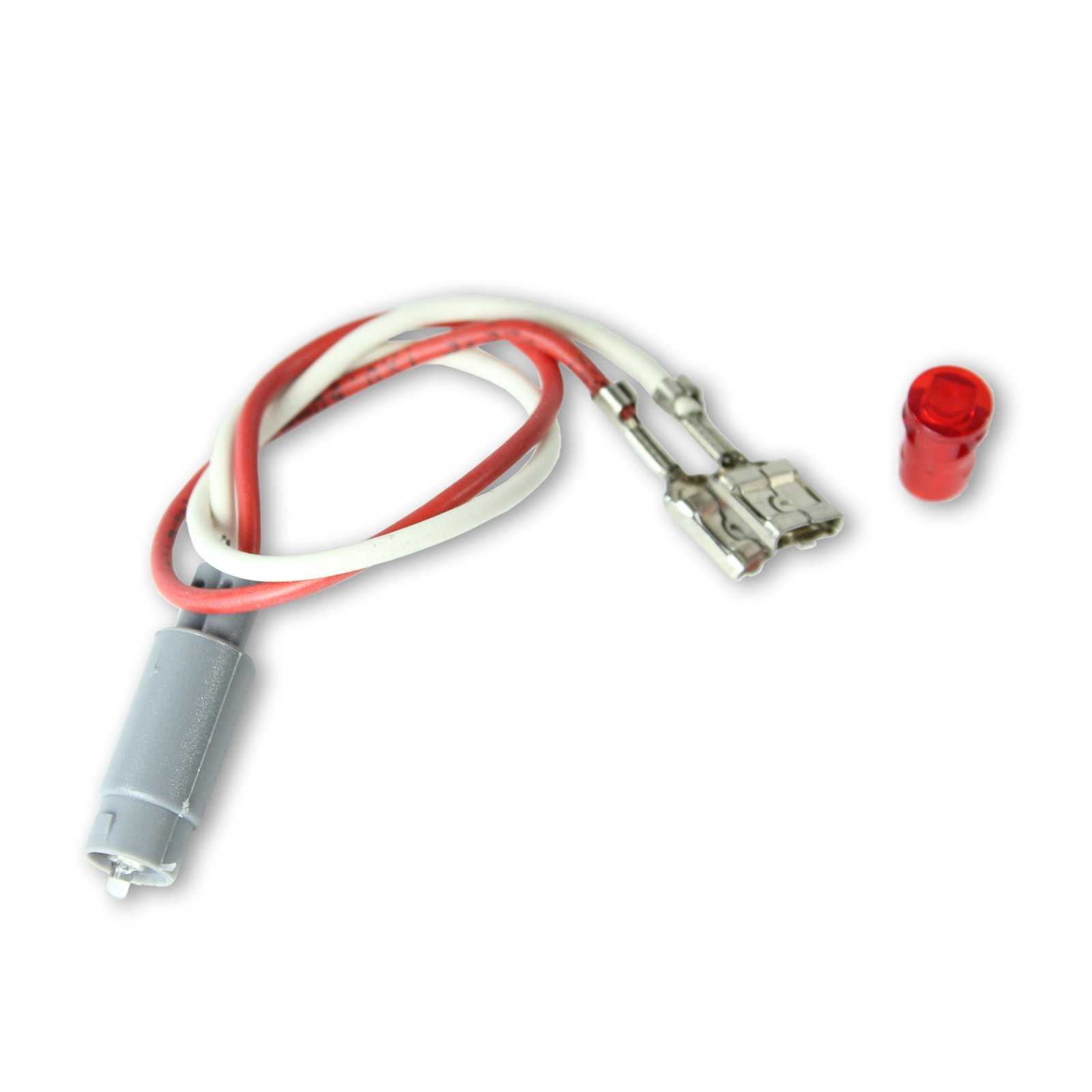

Figura 2.1: The Beko Oven Hood Red Indicator Lamp assembly. This image displays the complete Beko Oven Hood Red Indicator Lamp assembly, including the red lens, the bulb, and the housing unit, ready for installation.
Modelli compatibili:
Questo indicatore lamp is compatible with various Beko oven hood models, including but not limited to:
- D531S, D531W, D533S, D533W, D533X
- D653W
- DC5422S, DC5422W, DC5422X, DC543S, DC543W, DC543X
- DVC5622X
- S502S, S502W
Please verify your appliance model number before purchasing e installando questa parte sostitutiva.
3. Istruzioni per l'installazione
Follow these steps to safely install the Beko Oven Hood Red Indicator Lamp:
- Scollegare l'alimentazione: Before beginning, ensure the oven hood is completely disconnected from the main power supply at the circuit breaker or fuse box.
- Access Old Lamp: Carefully locate the existing indicator lamp on your oven hood fascia. Depending on your model, you may need to remove a panel or gently pry the old lamp assembly out.
- Rimuovi la vecchia Lamp: Disconnect the electrical wires from the old lamp assembly. Note the orientation of the wires (e.g., which wire connects to which terminal) if they are not color-coded.
- Installa nuova Lamp: Connect the electrical wires to the new Beko Red Indicator Lamp assembly. Ensure the connections are firm and correct.
- Sicuro Lamp: Inserisci la nuova lamp assembly into its designated opening on the oven hood fascia. Ensure it clicks securely into place or is fastened as per your appliance's design.
- Ripristina alimentazione: Una volta che il nuovo lamp is securely installed and all connections are verified, restore power to the oven hood at the circuit breaker or fuse box.
- Funzionalità di prova: Turn on your oven hood to verify that the new red indicator lamp si illumina correttamente.
Nota importante: Some users have reported that the electrical leads on the replacement lamp may be shorter than the original, potentially making it difficult to reach the plug-in points near the cooker knobs. If this occurs, ensure the lamp is positioned correctly and consider extending the wiring with appropriate, heat-resistant electrical connectors if necessary, or consult a qualified electrician.
4. Istruzioni per l'uso
The Beko Oven Hood Red Indicator Lamp operates automatically with your appliance. When the oven hood is switched on, the indicator lamp will illuminate, signaling that the appliance is active. When the oven hood is switched off, the lamp si spegnerà.
5. Manutenzione
The Beko Oven Hood Red Indicator Lamp richiede una manutenzione minima.
- Pulizia: Se l'obiettivo si sporca, pulirlo delicatamente con un panno morbido eamp cloth. Avoid abrasive cleaners or solvents, as these can damage the plastic lens. Ensure the appliance is off and cool before cleaning.
- Sostituzione della lampadina: Il lamp assembly includes a bulb. If the indicator lamp stops illuminating, the bulb may need replacement. Follow the installation steps (Section 3) to access the lamp assembly and replace the bulb. Ensure the replacement bulb matches the specifications of the original.
6. Risoluzione Dei Problemi
If your Beko Oven Hood Red Indicator Lamp non funziona come previsto, considerare quanto segue:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Lamp non si illumina. | Nessuna alimentazione all'apparecchio. | Check the circuit breaker or fuse box to ensure power is supplied to the oven hood. |
| Lamp non si illumina. | Lampadina difettosa. | Replace the bulb within the lamp assembly. Refer to Section 5 for bulb replacement. |
| Lamp non si illumina. | Collegamenti elettrici allentati o errati. | Scollegare l'alimentazione and re-check all electrical connections to the lamp assembly. Ensure they are secure and correctly oriented. |
| Lamp wires are too short during installation. | Variation in wire length compared to original part. | Regolare con attenzione la lamp's position. If necessary, consult a qualified electrician for safe wire extension using appropriate connectors. Do not force connections. |
7. Specifiche
- Produttore: Becco
- Riferimento del produttore: 165955705
- ASIN: B00IINHTQO
- Tipo di prodotto: Oven Hood Red Indicator Lamp (includes Bulb, Lens & Housing)
8. Garanzia e supporto
Information regarding the specific warranty period or direct customer support for this Beko Oven Hood Red Indicator Lamp is not available in the provided product data. For warranty claims or technical assistance, please refer to the documentation supplied with your original Beko appliance or contact Beko customer service directly through their official websito.
