1. Introduzione
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Vestil L-270-DC-HD 27x45 DC Powered Tote Lift 3k. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage. Keep this manual for future reference.
2. Informazioni sulla sicurezza
AVVERTIMENTO: La mancata osservanza di queste istruzioni di sicurezza può provocare lesioni gravi o mortali.
- Always read and understand the entire manual before operating the tote lift.
- Do not exceed the rated load capacity of 3000 pounds (1360 kg). Overloading can cause instability and equipment failure.
- Ensure the load is centered and stable on the forks before lifting or moving.
- Operate the lift only on level, stable surfaces. Avoid inclines or uneven terrain.
- Keep hands and feet clear of all moving parts, especially during lifting and lowering operations.
- Indossare adeguati dispositivi di protezione individuale (DPI), tra cui scarpe antinfortunistiche e guanti.
- Do not use the lift as a personnel carrier or lifting platform for individuals.
- Ensure the battery is properly charged and maintained according to the instructions.
- Inspect the lift for damage or wear before each use. Do not operate if damaged.
- Only authorized and trained personnel should operate this equipment.
3. Prodotto finitoview
The Vestil L-270-DC-HD is a DC-powered tote lift designed for efficient material handling. It features a robust construction and an electric lift mechanism for raising and lowering loads.
Figura 1: lato view of the Vestil L-270-DC-HD tote lift in a raised position, showing the forks extended upwards.
Figura 2: lato view of the Vestil L-270-DC-HD tote lift in a lowered position, with forks resting near the ground.
3.1 componenti chiave
- Forchette: Used to engage and lift loads.
- Maniglia: For steering and controlling the lift and lower functions.
- Pannello di controllo: Contains buttons or levers for lift/lower operations and battery indicator.
- Vano batteria: Houses the DC power source.
- Ruote: For mobility and steering.
- Hydraulic Lift Mechanism: The system responsible for raising and lowering the forks.
Figura 3: Posteriore view of the tote lift, highlighting the ergonomic handle and the battery compartment.
4. Configurazione e funzionamento iniziale
4.1 Disimballaggio e ispezione
- Carefully remove the tote lift from its packaging.
- Inspect the unit for any signs of shipping damage. Report any damage to the carrier and supplier immediately.
- Assicurarsi che tutti i componenti elencati nella bolla di accompagnamento siano presenti.
4.2 Carica iniziale della batteria
Before first use, fully charge the battery. Refer to Section 6 for detailed charging instructions.
4.3 Familiarizzazione con i controlli
Locate the lift and lower controls on the handle. Test their functionality without a load to understand their response.
5. Istruzioni per l'uso
5.1 Controlli pre-operativi
- Verificare il livello di carica della batteria.
- Check for any visible damage, leaks, or loose components.
- Ensure the wheels move freely and the steering mechanism is functional.
5.2 Sollevamento di un carico
- Position the tote lift with the forks fully lowered and aligned with the pallet or tote.
- Slowly push the forks completely under the load.
- Engage the lift control to raise the forks until the load is clear of the ground.
- Ensure the load is stable and centered on the forks.

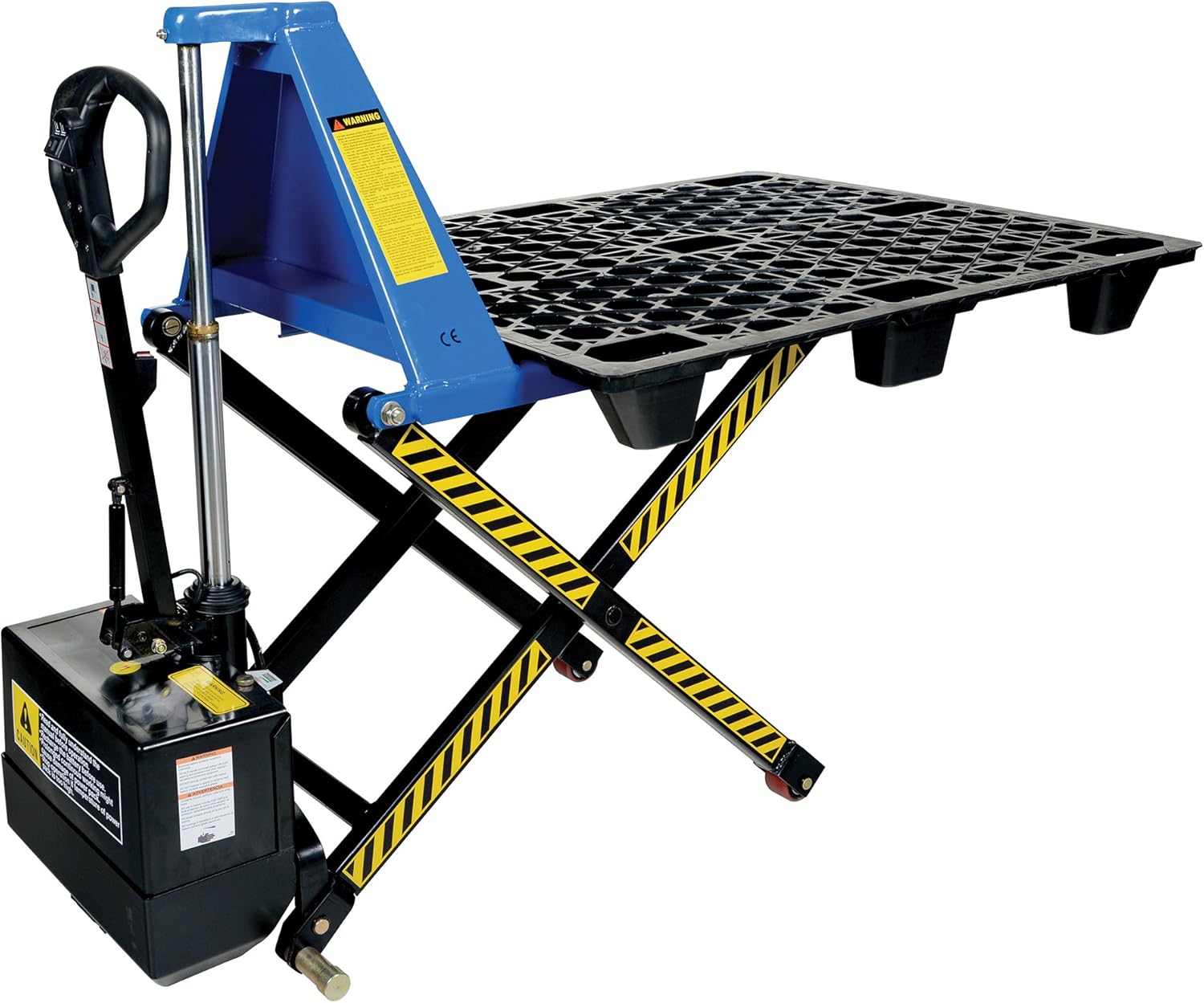

Figure 4: The tote lift with a pallet securely placed on its forks, raised to a working height.
5.3 Moving the Unit
- With the load lifted just enough to clear the ground, carefully steer the unit to its destination.
- Move at a slow, controlled pace, especially when turning or on uneven surfaces.
- Avoid sudden stops or starts.
5.4 Abbassamento del carico
- Position the load precisely where it needs to be placed.
- Engage the lower control to slowly and smoothly descend the forks until the load rests securely on the ground or desired surface.
- Once the load is fully supported, retract the forks from underneath.
6. Carica della batteria
The Vestil L-270-DC-HD is equipped with a DC power system. Proper battery charging is crucial for performance and longevity.
- Ensure the tote lift is turned off and parked in a safe, well-ventilated area.
- Connect the charger cable to the charging port on the lift.
- Collegare il caricabatterie a una presa elettrica adatta.
- Monitor the charger's indicator lights (if present) to confirm charging status.
- Allow the battery to charge fully. Charging times may vary depending on the battery's discharge level.
- Once fully charged, disconnect the charger from the outlet first, then from the lift.
ATTENZIONE: Use only the charger supplied or approved by Vestil. Do not expose the battery or charger to water or extreme temperatures.
7. Manutenzione
Regular maintenance ensures the safe and efficient operation of your tote lift.
7.1 Controlli giornalieri
- Controllare il livello di carica della batteria.
- Inspect forks for bends, cracks, or damage.
- Verify proper function of lift and lower controls.
- Check for any hydraulic fluid leaks.
7.2 Controlli settimanali/mensili
- Inspect wheels and casters for wear or damage. Clean any debris.
- Controllare tutti i dispositivi di fissaggio per la tenuta.
- Lubricate moving parts as recommended by Vestil (refer to specific lubrication points if available in product documentation).
- Clean the exterior of the unit to prevent dirt buildup.
7.3 Fluido idraulico
Periodically check the hydraulic fluid level. Use only recommended hydraulic fluid. Consult a qualified technician for fluid replacement or system bleeding.
8. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'ascensore non si solleva | Batteria scarica Sovraccarico Basso livello del fluido idraulico Problema di collegamento elettrico | Caricare la batteria Reduce load to within capacity Check/refill hydraulic fluid Inspect connections (contact service) |
| L'ascensore non si abbassa | Lower control malfunction Ostruzione | Check control mechanism (contact service) Rimuovere l'ostruzione |
| Unit difficult to move/steer | Damaged wheels/casters Detriti nelle ruote Steering mechanism issue | Inspect/replace wheels Pulisci le ruote Inspect steering components (contact service) |
| Batteria non in carica | Caricabatterie non collegato Caricabatterie/batteria difettosi Problema con la presa di corrente | Garantire una connessione corretta Test charger/battery (contact service) Controllare la presa di corrente |
If troubleshooting steps do not resolve the issue, contact Vestil customer support or a qualified service technician.
9. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del modello | L-270-DC-HD |
| Marca | Vestile |
| Capacità di carico | 3000 libbre (1360 kg) |
| Peso dell'articolo | 346 libbre (157 kg) |
| Materiale | Miscela |
| Colore | Multicolor (typically blue) |
| Dimensioni articolo (LxPxA) | 63 x 26.75 x 46.5 pollici (160 x 68 x 118 cm) |
| Dimensioni imballo (LxWxH) | 63.5 x 46.5 x 26.75 pollici (161 x 118 x 68 cm) |
| Codice UPC | 691215025027 |
| Produttore | Vestil Manufacturing Co. |
10. Informazioni sulla garanzia
Vestil products are typically covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please refer to the warranty documentation included with your purchase or contact Vestil customer support for detailed information regarding your product's warranty coverage.
11. Assistenza clienti
For technical assistance, replacement parts, or service inquiries, please contact Vestil customer support. When contacting support, have your product model number (L-270-DC-HD) and serial number (if applicable) readily available to expedite service.
Contact information for Vestil can typically be found on their official websito o sulla confezione del prodotto.
