1. Introduzione
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Arnold 48-Inch High-Lift Bagging Blade Set. These blades are designed to enhance the bagging performance of compatible lawn tractors by creating increased airflow for efficient grass clipping collection. Please read this manual thoroughly before attempting any installation or maintenance procedures.
2. Informazioni sulla sicurezza
AVVERTIMENTO: Always exercise extreme caution when handling mower blades. Blades are sharp and can cause severe injury. Follow all safety guidelines to prevent accidents.
- Always wear heavy-duty gloves and eye protection when handling or working near mower blades.
- Ensure the lawn mower engine is turned off, the spark plug wire is disconnected, and the key is removed before performing any maintenance or blade replacement.
- Allow the engine and blades to cool down completely before touching them.
- Never attempt to sharpen or balance blades while they are installed on the mower.
- Tenere mani, piedi e indumenti lontani dalle parti in movimento.
- Refer to your lawn mower's owner's manual for additional safety instructions specific to your equipment.
3. Contenuto della confezione
Your Arnold 48-Inch High-Lift Bagging Blade Set package includes:
- Three (3) Arnold 48-Inch High-Lift Bagging Blades
4. Compatibilità
These blades are designed for use with lawn tractors featuring 48-inch cutting decks e un Foro centrale a stella a 5 punte. They are compatible with various brands, including but not limited to:
- AYP
- Ariete
- Artigiano
- Elettrolux
- Husqvarna
- Rally
These blades replace Original Equipment (O.E.) part numbers: 180054, 532-180054, 173920, 532-173920.
Immagine: Example of a compatible Troy-Bilt lawn tractor. Always verify your mower's specifications before installation.
5. Istruzioni per l'installazione
Follow these steps carefully to replace your lawn mower blades:
- Preparare il tosaerba: Park the lawn mower on a flat, level surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire to prevent accidental starting. Allow the engine and deck to cool.
- Secure the Deck: If possible, raise the mower deck to a comfortable working height or remove it from the tractor according to your mower's manual. Use a block of wood to prevent the blade from turning while loosening the bolt.
- Rimuovere le vecchie lame: Using a wrench, loosen and remove the blade mounting bolt. Note the orientation of the old blade for correct installation of the new blade. Remove the old blade.
- Ispezionare i componenti: Examine the blade spindle and mounting hardware for wear or damage. Replace any worn parts as necessary.
- Installare nuove lame: Position the new Arnold high-lift bagging blade onto the spindle, ensuring the cutting edge faces the correct direction (typically upwards towards the deck). The 5-point star center hole should align perfectly with the spindle.
- Serrare il bullone della lama: Reinstall the blade mounting bolt and washer. Tighten the bolt securely using a torque wrench to the specifications provided in your lawn mower's owner's manual. Improperly tightened blades can be dangerous.
- Repeat for all Blades: Repeat the process for all three blades on the 48-inch deck.
- Controlli finali: Reconnect the spark plug wire and lower the mower deck. Before starting, manually rotate the blades to ensure they spin freely and do not contact any part of the deck.

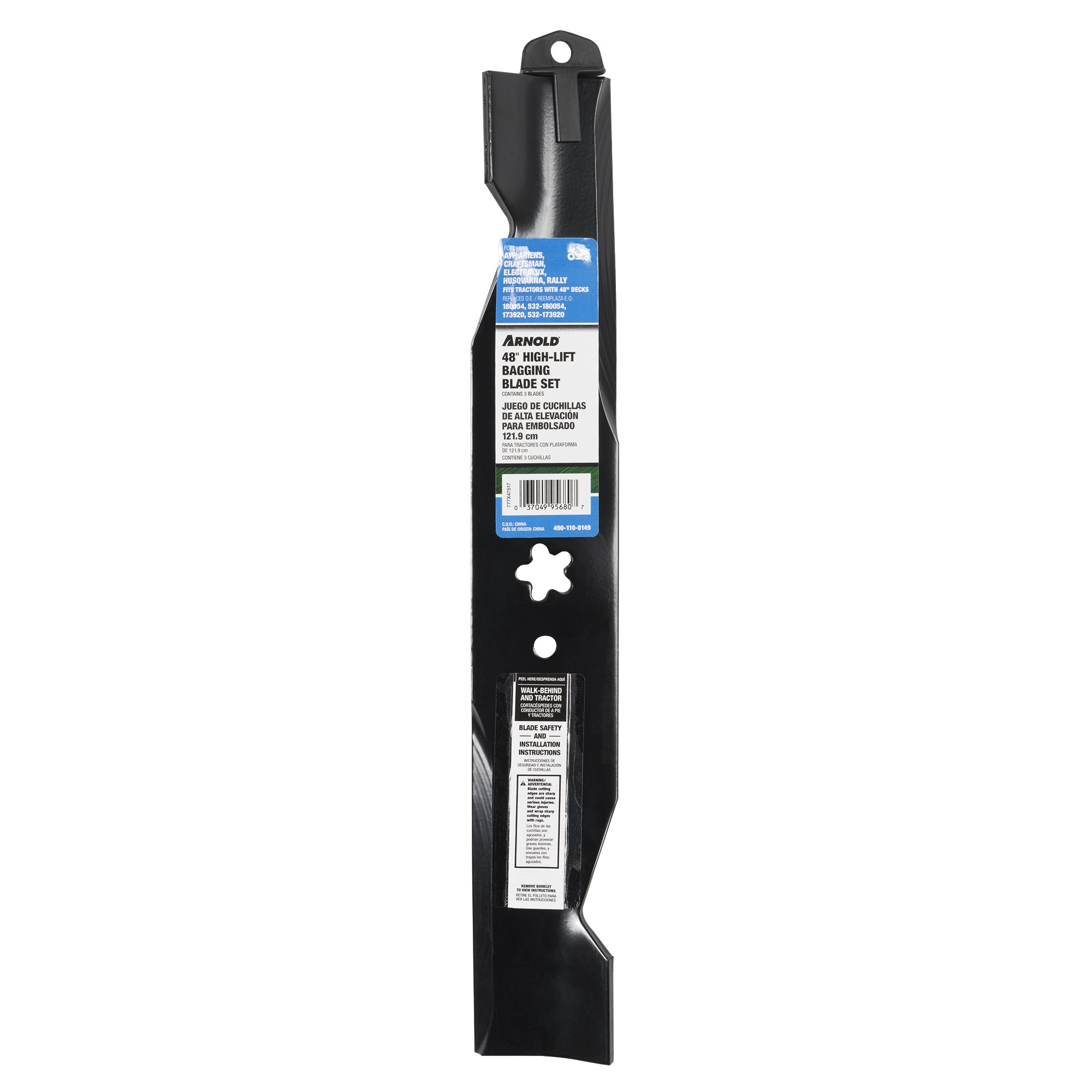

Image: The Arnold 48-Inch High-Lift Bagging Blade Set. Note the distinct high-lift design for improved airflow.
6. Linee guida operative
High-lift bagging blades are specifically designed to create a strong vacuum effect under the mower deck, lifting grass clippings for efficient collection into a bagging system. For optimal performance:
- Mow when grass is dry. Wet grass clogs the deck and reduces bagging efficiency.
- Evitare di tagliare più di un terzo della lunghezza del filo d'erba alla volta.
- Maintain a consistent mowing speed.
- Ensure your bagging system is clean and free of obstructions.
7. Manutenzione
Regular maintenance extends the life of your blades and ensures optimal cutting performance.
- Pulizia: After each use, clean grass clippings and debris from the blades and underside of the mower deck. Built-up grass can reduce airflow and bagging efficiency.
- Ispezione: Periodically inspect blades for nicks, bends, cracks, or excessive wear. Damaged blades should be replaced immediately.
- Affilatura: Keep blades sharp for a clean cut. Dull blades tear grass, leading to an unhealthy lawn. Sharpen blades with a file or grinder, maintaining the original cutting angle. Ensure blades are balanced after sharpening to prevent vibration. If you are unsure, consult a professional or replace the blades.
- Sostituzione: Replace blades if they are severely bent, cracked, or worn beyond safe limits.
8. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Poor cut quality (ragged edges) | Lame smussate o danneggiate | Affilare o sostituire le lame. |
| Vibrazioni eccessive durante il funzionamento | Unbalanced or bent blades; loose blade bolts | Inspect blades for damage and balance. Ensure blade bolts are tightened to specifications. Replace damaged blades. |
| Ineffective bagging | Clogged deck or bagging chute; wet grass; dull blades | Clean deck and chute. Mow when grass is dry. Sharpen or replace blades. |
9. Specifiche
- Nome del prodotto: Arnold 48-Inch High-Lift Bagging Blade Set
- Numero modello: Numero di telefono: 490-110-0149
- Quantità: 3 Blades per set
- Deck Size Compatibility: 48 pollici
- Tipo di foro centrale: 5-point Star
- Blade Dimensions (each): Circa 17.5 x 2.63 x 1.5 pollici
- Item Weight (set): Circa 5.17 libbre
- Sostituisce i numeri di parte OEM: 180054, 532-180054, 173920, 532-173920
10. Garanzia e supporto
For information regarding product warranty, returns, or technical support, please refer to the Arnold product packaging or visit the official Arnold brand webluogo. Conserva la ricevuta di acquisto per eventuali richieste di garanzia.
