Excelvan HOP-E801 Thermal Receipt Printer User Manual

1. Introduzione

The Excelvan HOP-E801 is a high-speed thermal receipt printer designed for Point of Sale (POS) systems and various other applications requiring efficient and reliable receipt printing. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your printer to ensure optimal performance.

Note: This device is not compatible with Mac OS.

Image 1.1: Excelvan HOP-E801 Thermal Receipt Printer. This image shows the overall design of the printer, highlighting its compact size and the receipt paper exiting the top.

2. Caratteristiche del prodotto

• Metodo di stampa: Thermal line printing for fast and quiet operation.
• Ad alta velocità: Prints at up to 300 mm/s.
• Risoluzione: Supports 576 dots/line or 512 dots/line.
• Compatibilità della carta: Supports 79.5 ± 0.5 mm and 57.5 ± 0.5 mm thermal paper rolls with a maximum diameter of 80 mm.
• Interfacce multiple: Equipped with USB, Ethernet (100M), COM (Serial), and Cash Drawer ports for versatile connectivity.
• Taglierina automatica: Features an automatic cutter for convenient receipt separation.
• Set di comandi: Compatible with ESC/POS print commands.
• Supporto codici a barre: Prints 1D barcodes (UPC-A/E, JAN13/8, CODE39/ITF/CODABAR/CODE93/128) and 2D barcodes (QRCODE).
• Stampa grafica: Supports bitmap image download and printing.
• Durata: Print head lifespan of 100 km (at print density ≤ 12.5) and cutter lifespan of 1,000,000 cuts.
• Respingente: 2048 K Bytes input buffer and 256 K Bytes NV Flash.
• Supporto del sistema operativo: Compatible with Windows 2000/2003/XP/Win7/Win8/Win8.1/Linux/Android/iOS.

3. Contenuto della confezione

Si prega di controllare attentamente il pacco per assicurarsi che tutti gli articoli siano presenti e integri:

• 1 x Excelvan HOP-E801 Thermal Receipt Printer
• 1 x European Plug Power Adapter
• 1 cavo USB (1.1 m)
• 1 rotolo di carta termica
• 1 x Paper Deflector
• 1 CD driver di x
• 1 x Manuale utente

Image 3.1: All components included in the Excelvan HOP-E801 Thermal Receipt Printer package, laid out for inspection.

4. Guida all'installazione

4.1 Collegamento della stampante

1. Collegamento elettrico: Connect the power adapter to the printer's power port and then plug it into a suitable power outlet.
2. Connessione dati: Connect the printer to your host device (computer, POS system) using one of the available interfaces:
   • USB: Use the provided USB cable to connect the printer to a USB port on your host device.
   • Collegamento Ethernet: Collegare un cavo Ethernet dal router di rete o dall'interruttore alla porta Ethernet della stampante.
   • Serial (COM): Use a serial cable to connect the printer to a COM port on your host device.
3. Collegamento al cassetto contanti (facoltativo): If using a cash drawer, connect its cable to the printer's cash drawer port.

Immagine 4.1: posteriore view of the Excelvan HOP-E801 printer, showing the USB, Serial (COM), Ethernet, Cash Drawer, and Power ports, along with the ON/OFF switch.

4.2 Caricamento della carta termica

1. Press the 'OPEN' button or lever on the side of the printer to open the paper cover.
2. Insert the thermal paper roll into the paper compartment, ensuring the paper feeds from the bottom of the roll and the leading edge comes out towards the front of the printer.
3. Estrarre una piccola quantità di carta dalla taglierina.
4. Chiudere saldamente il coperchio della carta finché non scatta in posizione.

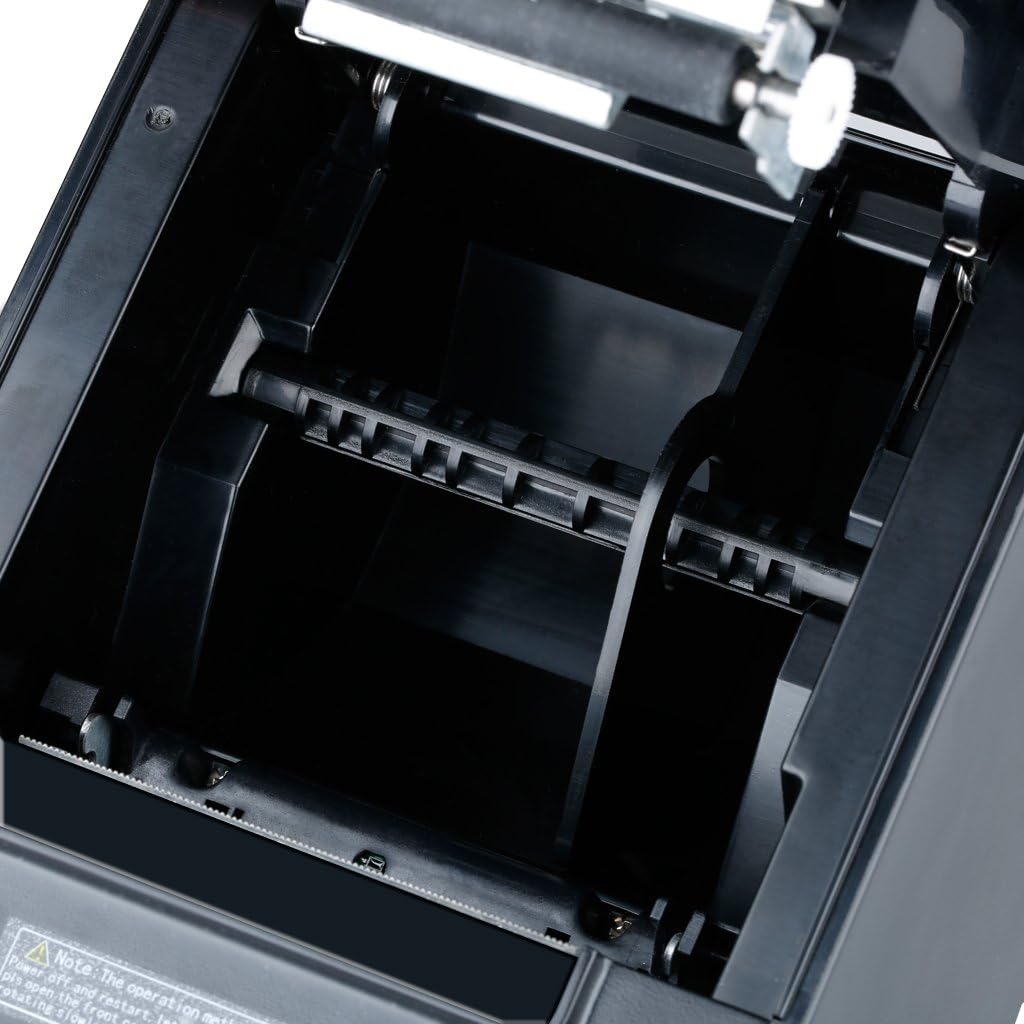

Immagine 4.2: Interno view of the paper compartment, illustrating the correct orientation for loading a thermal paper roll.

4.3 Installazione del driver

For Windows operating systems, insert the provided Driver CD into your computer and follow the on-screen instructions to install the printer driver. Drivers for Linux, Android, and iOS may be available for download from the manufacturer's website. Ensure the correct driver is installed for your specific operating system and connection type (USB, Ethernet, or Serial).

4.4 DIP Switch Settings (Set Print Mode)

The printer features DIP switches on the bottom panel to configure various print modes and settings. Refer to the detailed DIP switch configuration table in the full user manual for specific settings. Ensure the printer is powered off before adjusting DIP switches.

Immagine 4.3: Primo piano view of the DIP switches located on the bottom of the printer, used for setting various print modes.

5. Istruzioni per l'uso

5.1 Accensione/Spegnimento

Use the ON/OFF switch located at the rear of the printer to power it on or off. The 'Power' indicator light will illuminate when the printer is on.

5.2 Indicatori di stato

The printer has three indicator lights on the front panel:

• Energia: Indica che la stampante è accesa.
• Errore: Illuminates to indicate a printer error (e.g., paper jam, print head overheating).
• Carta: Si illumina quando il rotolo di carta è quasi esaurito o esaurito.

Image 5.1: Close-up of the printer's front panel, showing the Power, Error, and Paper indicator lights, along with the paper feed button and the 'OPEN' button for the paper cover.

5.3 Stampa di autotest

To perform a self-test, ensure the printer is off and paper is loaded. Press and hold the 'FEED' button (usually next to the indicator lights) while turning on the printer. Release the button once the printer starts printing. The self-test printout will display printer information, settings, and a sample print pattern.

Image 5.2: A self-test printout from the Excelvan HOP-E801 printer, showing diagnostic information and print quality.

5.4 Stampa di base

Once the printer is connected and drivers are installed, you can send print jobs from your application. Ensure the printer is selected as the default or desired printer in your software settings.

6. Manutenzione

6.1 Pulizia della stampante

Una pulizia regolare aiuta a mantenere la qualità di stampa e prolunga la durata della stampante.

• Esterno: Pulisci l'esterno con un panno morbido eamp stoffa. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
• Testina di stampa: Gently clean the thermal print head with an alcohol swab or a specialized thermal printer cleaning pen. Ensure the printer is off and cooled down before cleaning.
• Percorso carta: Rimuovere la polvere o i detriti di carta dal percorso della carta utilizzando una spazzola morbida o aria compressa.

6.2 Sostituzione dei rotoli di carta

Follow the instructions in Section 4.2 to replace an empty thermal paper roll.

6.3 Manutenzione della taglierina

The automatic cutter is designed for durability. If the cutter becomes stuck, refer to the troubleshooting section. Avoid forcing the cutter or using non-standard paper, which can damage the mechanism.

7. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your Excelvan HOP-E801 printer.

• La stampante non risponde:
  • Verificare che il cavo di alimentazione sia collegato correttamente e che la stampante sia accesa.
  • Verify the data cable (USB, Ethernet, COM) connection to both the printer and the host device.
  • Ensure the correct printer driver is installed and selected in your application.
• 'Error' Indicator Light On:
  • A paper jam might have occurred. Open the paper cover, clear any jammed paper, and re-load the paper roll.
  • The print head might be overheating. Turn off the printer and let it cool down for a few minutes before restarting.
• 'Paper' Indicator Light On:
  • The paper roll is low or empty. Replace the thermal paper roll as described in Section 4.2.
• Scarsa qualità di stampa:
  • La carta termica potrebbe essere vecchia o di scarsa qualità. Prova un nuovo rotolo di carta termica di alta qualità.
  • The print head might be dirty. Clean the print head as described in Section 6.1.
  • Adjust print density settings if available in your driver or application.
• Cutter Stuck:

  If the cutter becomes stuck, turn off the printer and restart it. This may reset the cutter mechanism. If the issue persists, gently try to rotate the cutter back to its original position if accessible, or contact support.

8. Specifiche

Image 8.1: Diagram illustrating the dimensions of the Excelvan HOP-E801 Thermal Receipt Printer in centimeters and inches.

9. Garanzia e supporto

Warranty information for the Excelvan HOP-E801 Thermal Receipt Printer is not provided in this document. For details regarding warranty coverage, technical support, or spare parts availability, please refer to the documentation included with your purchase or contact Excelvan customer service directly.
