Planet Audio PATV85 ATV UTV Sound System Instruction Manual

1. Prodotto finitoview

The Planet Audio PATV85 is a weatherproof powersports sound system designed for ATVs, UTVs, and other outdoor vehicles. It features integrated 8-inch speakers, 1.5-inch tweeters, a built-in amplifier, Bluetooth connectivity, an auxiliary input, a USB charging port, and an LED lightbar. The unit is fully marinized for protection against outdoor elements.

Figure 1: Planet Audio PATV85 ATV UTV Sound System, front view with LED lightbar illuminated.

Caratteristiche principali:

• Connettività Bluetooth: Trasmetti in streaming l'audio in modalità wireless dai dispositivi compatibili.
• Ingresso ausiliario: Connect devices via a 3.5mm audio cable.
• Design resistente alle intemperie: IPX5 rated for protection against water and elements.
• Integrato Amplificatore: Powers the speakers and tweeters for clear sound.
• LED Lightbar: Fornisce ulteriore illuminazione.
• Porta di ricarica USB: Conveniently charge mobile devices.
• Vano portaoggetti: Secure space for small items.
• Maniglie rinforzate: Durable metal handles for transport and mounting.

2. Cosa c'è nella scatola

Verificare che tutti i componenti siano presenti prima di iniziare l'installazione.

• PATV85 Sound System Unit
• Bluetooth Multi-function Controller
• Kit di montaggio sul manubrio
• Quick-connect Power Accessory Extension Adaptor (cigarette lighter plug)
• High-strength Nylon Mounting Straps
• Manuale dell'utente

3. Configurazione e installazione

Per garantire un funzionamento corretto e sicuro, si consiglia vivamente l'installazione da parte di un professionista.

3.1 Mounting the Sound System

1. Position the PATV85 unit securely on your ATV, UTV, or other vehicle. Ensure it does not obstruct your view o interferire con i comandi del veicolo.
2. Use the provided high-strength nylon mounting straps to firmly secure the unit. Thread the straps through the designated mounting points on the unit and around a stable part of your vehicle's frame or rack.
3. Tighten the straps to prevent movement during operation.

Figura 2: lato view of the PATV85 showing mounting strap attachment points.

3.2 Collegamento di alimentazione

The PATV85 requires a 12V power source.

1. Connect the quick-connect power accessory extension adaptor (cigarette lighter plug) to a 12V power outlet on your vehicle.
2. Alternatively, for a more permanent installation, use a hard wire adapter (not included) to connect directly to your vehicle's battery. Ensure proper fusing and wiring practices are followed.

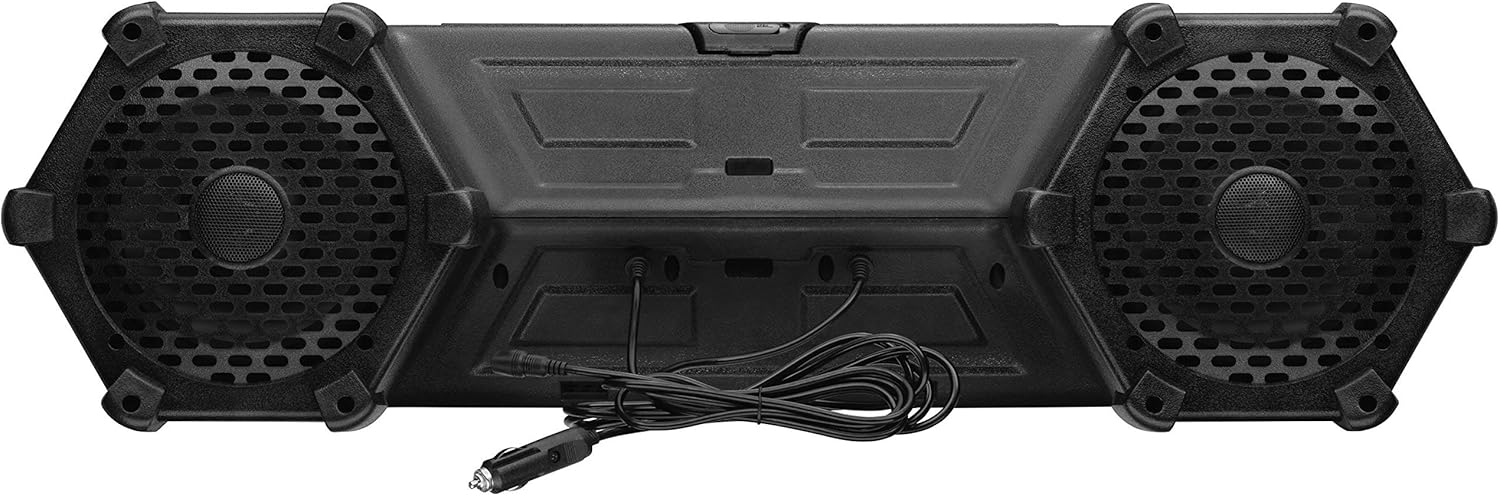

Figura 3: Posteriore view of the PATV85 showing the power input and auxiliary port.

3.3 Montaggio del controller

Mount the Bluetooth multi-function controller in an easily accessible location using the provided handlebar mounting kit.

Figure 4: The Bluetooth multi-function remote control for the PATV85.

4. Video di prodotto

5. Istruzioni per l'uso

5.1 Accensione/spegnimento

• Premere e tenere premuto il tasto Energia button on the multi-function controller to turn the unit on or off.

5.2 Associazione Bluetooth

1. Ensure the PATV85 is powered on.
2. Sul tuo dispositivo mobile, attiva il Bluetooth e cerca i dispositivi disponibili.
3. Select "Planet Audio PATV85" from the list.
4. Once paired, the Bluetooth indicator on the controller will illuminate steadily.

5.3 Ingresso ausiliario

• Connect your audio device (e.g., MP3 player, smartphone) to the 3.5mm AUX-IN port on the PATV85 using an audio cable (not included).
• Premere il tasto AUSILIARIO button on the multi-function controller to switch to auxiliary input mode.

5.4 Controllo della musica

• Riproduci/Pausa: Premere il tasto Riproduci/Pausa pulsante.
• Traccia successiva: Premere il tasto Traccia successiva pulsante.
• Traccia precedente: Premere il tasto Traccia precedente pulsante.
• Aumenta volume: Premere il tasto Alza il volume pulsante.
• Volume basso: Premere il tasto Abbassa il volume pulsante.

5.5 LED Lightbar Operation

• Premere il tasto Leggero button on the multi-function controller to turn the LED lightbar on or off.

5.6 porta di ricarica USB

• The USB port located inside the storage compartment is for charging devices only. It does not support data transfer.

5.7 Vano portaoggetti

• Open the lid on the top of the unit to access the storage compartment. Ensure the lid is securely closed before operating the vehicle.

Figura 5: in alto view of the PATV85, illustrating the storage compartment.

6. Manutenzione

• Pulizia: Pulire l'unità con un panno morbido, damp stoffa. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi.
• Protezione dalle intemperie: Although the unit is weatherproof, prolonged exposure to extreme conditions should be minimized. Ensure all covers and ports are sealed when not in use.
• Ispezione del cinturino: Periodically check the mounting straps for wear and tear. Replace if damaged to ensure secure attachment.

7. Risoluzione Dei Problemi

8. Specifiche

9. Garanzia e supporto

Planet Audio provides a 3-year Platinum Online Dealer Warranty for this product when purchased through authorized channels. For warranty claims or technical support, please contact Planet Audio customer service.

For optimal performance and safety, professional installation of this product is strongly encouraged.
