This document provides detailed instructions for the assembly, operation, and maintenance of your Tamiya 58630 1/10 RC Plasma Edge II Buggy Kit. This exciting shaft-driven 4WD R/C buggy assembly kit creates the Plasma Edge II, and includes stylish polycarbonate body and rear wing parts. Marking stickers add to the racy mood of the model, as do fluorescent yellow star dish wheels and white CVA oil shocks. The TT-02B is a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb controllability.
Informazioni importanti sulla sicurezza
Avvertimento: This product contains small parts and is not suitable for children under 16 years of age. Adult supervision is recommended during assembly and operation. Always read and understand all instructions before use. Failure to do so may result in injury or damage to the product.
Prodotto finitoview
The Tamiya Plasma Edge II is a 1/10 scale remote control buggy designed for off-road performance. It features a robust TT-02B chassis, known for its ease of assembly and maintenance. The model comes with a brushed 4WD system, ensuring reliable traction and control on various terrains.
Image: The Tamiya Plasma Edge II Buggy Kit, showcasing its blue and yellow livery, fluorescent yellow wheels, and rear wing.
Immagine: Primo piano view of the TT-02B chassis's differential gearbox, highlighting the internal gear mechanism and drive shafts.

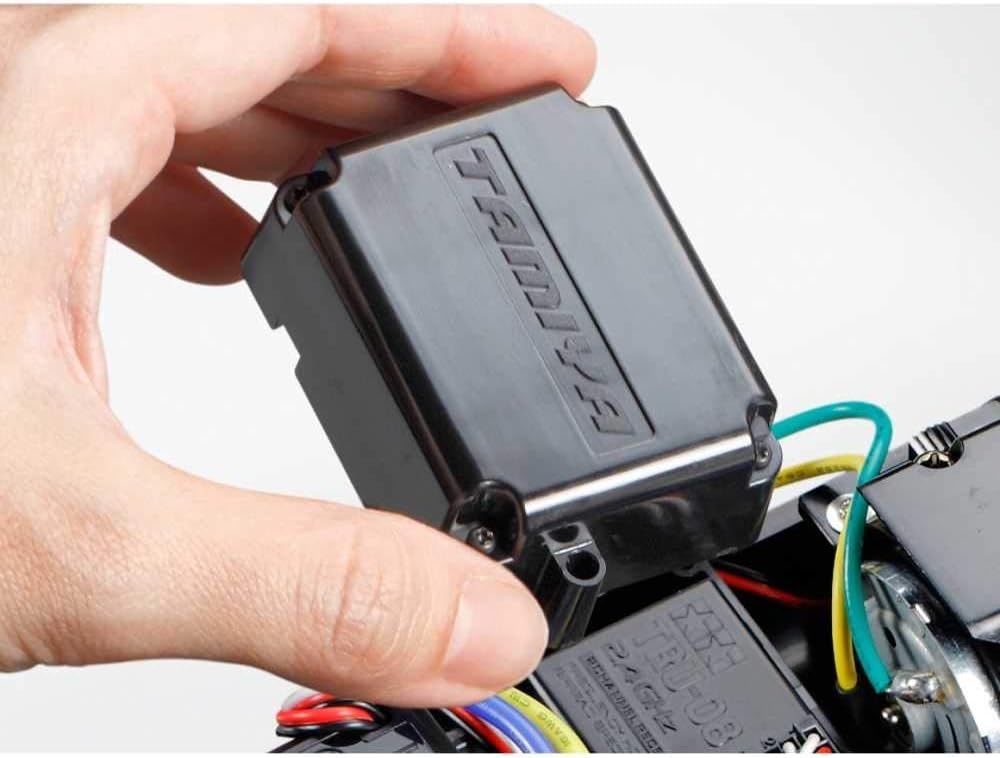

Image: A hand demonstrating the removable receiver case on the TT-02B chassis, designed to protect electronics from dirt and debris.
Prodotto finitoview Video
Video: Un prodotto ufficialeview video mostraasing the Tamiya 58630 1/10 RC Plasma Edge II Buggy Kit, highlighting its features and design.
Installazione e assemblaggio
The Tamiya Plasma Edge II is an assembly kit. Detailed step-by-step instructions are provided in the included manual to guide you through the build process. Please ensure you have all necessary tools before beginning assembly.
Articoli richiesti (non inclusi):
- Regolatore elettronico di velocità (ESC)
- Radio System (Transmitter and Receiver)
- Servo dello sterzo
- Pacco batteria
- Caricabatterie
- Polycarbonate Paint (for body shell)
The kit includes a brushed motor. Follow the assembly manual carefully for proper installation of all components.
Operating Your RC Buggy
The TT-02B chassis features a shaft-driven 4WD system for reliable power delivery. Its suspension setup utilizes 4-wheel independent double wishbone suspension with long arms and white CVA oil shock units, providing assured handling over rough terrain. Front and rear gearboxes include 4-bevel differentials for smooth operation.
Adjusting Gear Ratios:
The TT-02B chassis allows for 4 different gear ratios with the use of 3 separately-sold types of pinion gear. This enables you to match the characteristics of your car setup to various track conditions.
Protezione:
The off-road chassis includes a receiver case and motor cover to protect these vital components from dirt and debris encountered during operation.
Manutenzione
Regular maintenance is crucial for the longevity and performance of your RC buggy. The front/rear gearboxes are sealed to prevent dust intrusion. For easy access and maintenance, the top of the gearbox can be removed by loosening a few screws.
Pulizia:
After each run, especially in dusty or dirty conditions, clean your buggy thoroughly. Remove any accumulated dirt from the chassis, suspension components, and wheels. Inspect for any loose screws or damaged parts.
Lubrificazione:
Periodically lubricate moving parts as recommended in the full assembly manual to ensure smooth operation and reduce wear.
Risoluzione dei problemi
If you encounter any issues with your Tamiya Plasma Edge II, refer to the detailed troubleshooting section in the comprehensive assembly manual. Common issues may include loss of power, erratic steering, or unusual noises. Ensure all connections are secure, batteries are charged, and components are correctly assembled and maintained.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Dimensioni del prodotto | 19.13 x 9.13 x 6 pollici |
| Peso dell'articolo | 3.47 libbre |
| ASIN | B01CYDW9P4 |
| Numero modello articolo | TAM58630 |
| Età consigliata dal produttore | 16 - 16 anni |
| Produttore | Tamiya |
| Data prima disponibilità | 23 marzo 2016 |
Cosa c'è nella scatola
- Tamiya 58630 1/10 RC Plasma Edge II Buggy Kit, with TT-02B Chassis, Brushed 4WD
Garanzia e supporto
For warranty information, technical support, or to purchase replacement parts, please refer to the contact details provided in the original product packaging or visit the official Tamiya websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
