Golden Technologies BUZZAROUND EX Extreme 4-Wheel Travel Scooter User Manual

1. Introduzione

This manual provides essential information for the safe and effective operation, maintenance, and care of your Golden Technologies BUZZAROUND EX Extreme 4-Wheel Travel Scooter. Please read this manual thoroughly before using your scooter to ensure proper understanding of its features and functions. Retain this manual for future reference.

2. Informazioni sulla sicurezza

Your safety is paramount. Always operate the scooter responsibly and adhere to the following guidelines:

• Capacità di peso: Non superare la capacità di peso massima di 150 kg (330 libbre). Superare questo limite può compromettere la stabilità e le prestazioni.
• Terreno: The scooter is designed for use on relatively level, hard-packed surfaces. Avoid steep inclines, soft terrain (like loose gravel or sand), and uneven surfaces to prevent tipping.
• Controllo della velocità: Adjust your speed according to the environment and your comfort level. The scooter has a maximum speed of 5 mph.
• Visibilità: Utilize the ultra-bright LED headlight and taillight for improved visibility in low-light conditions.
• Smontaggio: When disassembling for transport, ensure all components are securely handled and stored to prevent injury or damage.
• Ricarica: Always charge the batteries in a well-ventilated area. Refer to the charging instructions for proper procedure and duration.
• Condizioni ambientali: Avoid operating the scooter in snow or water to prevent damage to electrical components.

3. Prodotto finitoview

The BUZZAROUND EX Extreme is a 4-wheel heavy-duty travel scooter designed for extended range and comfort. It combines portability with features typically found in full-size scooters.

Caratteristiche principali:

• Gamma estesa: Equipped with two U1 batteries, providing an operating range of up to 18 miles per charge.
• Comfort Suspension: Features comfort spring suspension for a smoother ride over varied surfaces.
• Visibilità migliorata: Includes ultra-bright LED headlight and taillight.
• Portabilità: Designed for quick and easy disassembly into several lightweight pieces for transport.
• Sedili regolabili: Stadium-style, height-adjustable seat for user comfort and accessibility.
• Capacità aumentata: Supports a weight capacity of up to 330 lbs.
• Pneumatici: Larger 9-inch tires for improved stability and handling.
• Porta di ricarica: Conveniently located below the control panel.
• Spazio al suolo: Offers 4-inch ground clearance.
• Personalizzazione: Includes both red and blue shroud panels.

Componenti del prodotto:

Figura 3.1: Fronte view of the BUZZAROUND EX Extreme 4-Wheel Travel Scooter. This image shows the front basket, tiller, and seat.

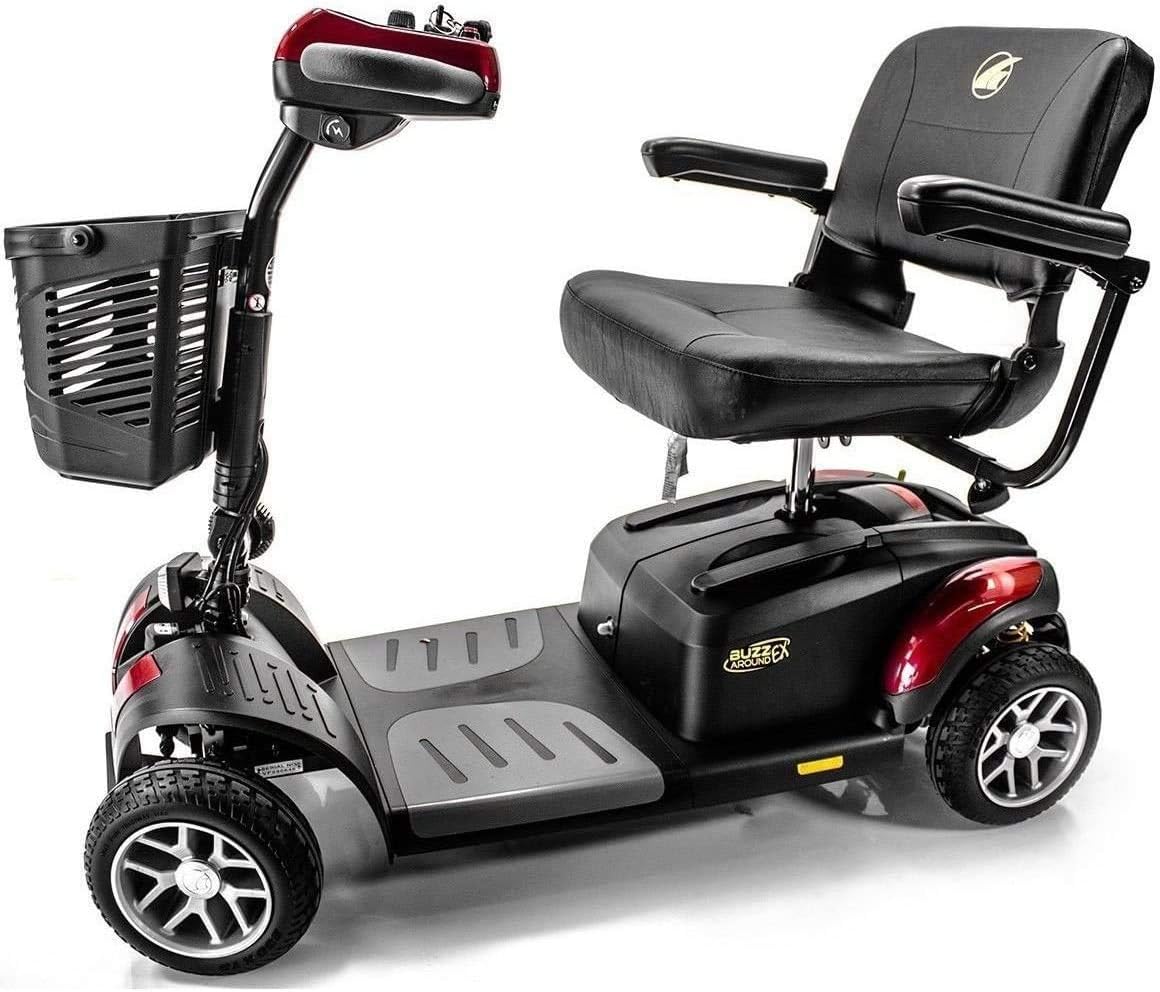

Figura 3.2: lato view of the BUZZAROUND EX Extreme 4-Wheel Travel Scooter, highlighting its overall structure and seat.

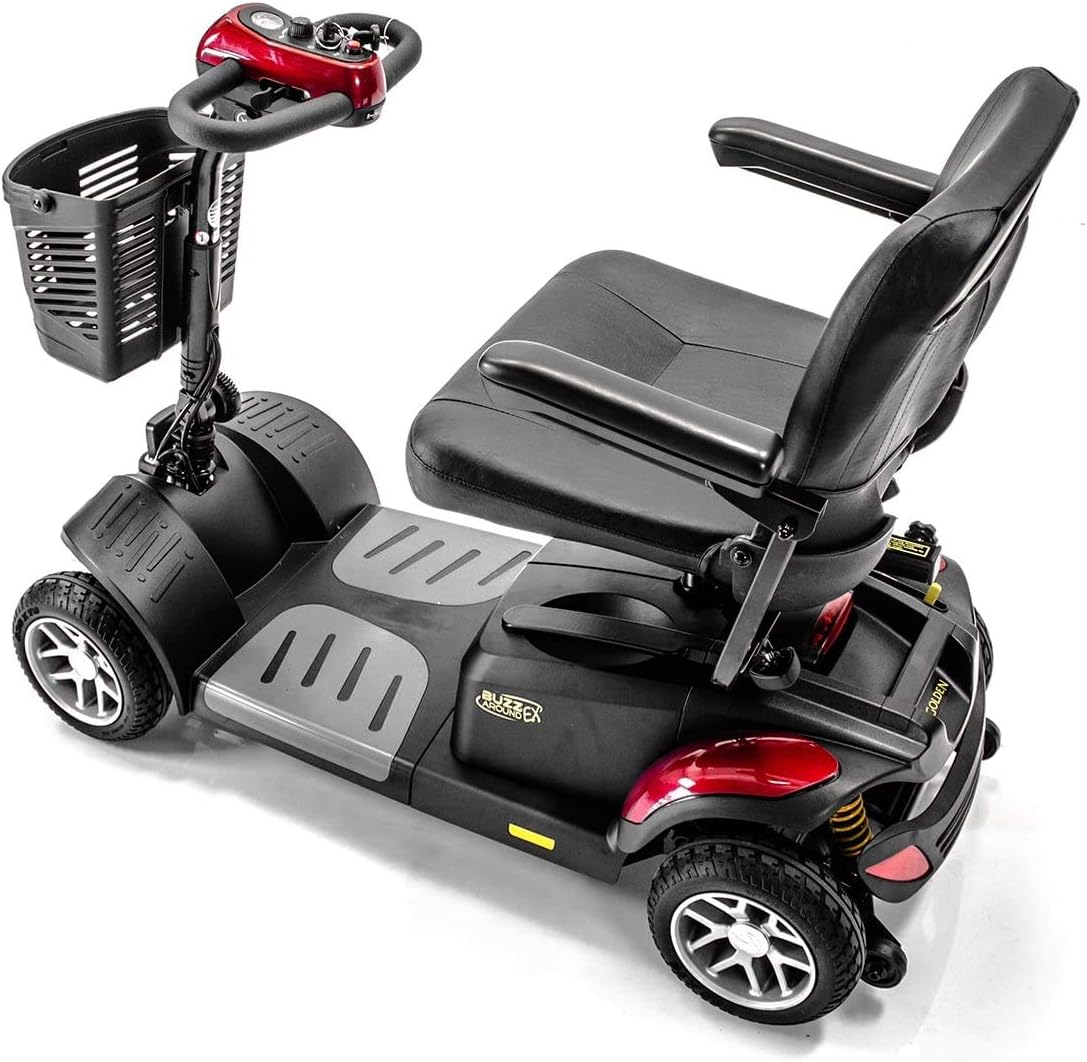

Figura 3.3: Posteriore view of the BUZZAROUND EX Extreme 4-Wheel Travel Scooter, showing the rear wheels and suspension.

Figure 3.4: Close-up of the tiller and control panel, showing the key ignition, speed dial, and battery indicator.

4. Installazione e assemblaggio

The BUZZAROUND EX Extreme is designed for easy assembly and disassembly. Follow these steps for initial setup:

1. Disimballaggio: Rimuovere con attenzione tutti i componenti dalla confezione.
2. Montaggio base: Connect the front and rear sections of the scooter base. Ensure they lock securely into place.
3. Installazione della batteria: Install the two U1 batteries into their designated compartments. Ensure proper polarity.
4. Attacco del sedile: Place the seat onto the seat post and secure it. Adjust the seat height as needed for comfort.
5. Regolazione della barra: Raise the tiller to the desired operating position and lock it.
6. Carica iniziale: Before first use, fully charge the batteries for at least 12 hours. The charging port is located below the control panel.

Figure 4.1: The BUZZAROUND EX Extreme scooter disassembled into its main components for transport or storage.

Figure 4.2: Demonstrates the ease of loading the disassembled scooter into a car trunk.

5. Istruzioni per l'uso

Prima di utilizzare lo scooter, familiarizzare con i comandi.

1. Accensione/spegnimento: Inserire la chiave nell'accensione e girarla in posizione "ON".
2. Regolazione della velocità: Use the speed dial on the tiller to set your desired maximum speed. Start at a low speed until you are comfortable.
3. Guida: Use the throttle lever to move forward or backward. Push the right side for forward motion, and the left side for reverse. Release the lever to engage the automatic brake.
4. Sterzo: Use the tiller to steer the front wheels.
5. Indicatore della batteria: Monitor the battery gauge on the control panel. Recharge when the indicator shows low battery to avoid being stranded.
6. Fari anteriori/posteriori: Activate the LED lights as needed for visibility.
7. Comfort Suspension: The built-in comfort spring suspension helps absorb shocks, providing a smoother ride over minor bumps and uneven surfaces.

Figure 5.1: Scooters positioned for social interaction, demonstrating maneuverability in various settings.

Video ufficiale del prodotto:

6. Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo scooter.

• Cura della batteria:
  • Always fully charge batteries after each use.
  • Perform an initial charge of at least 12 hours before the first use.
  • If the scooter will not be used for an extended period, charge the batteries once a month to maintain their health.
  • Battery life can vary; expect replacement every 6 months to a year with regular use.
• Pulizia: Pulisci lo scooter con un pannoamp cloth. Avoid using excessive water or harsh chemicals directly on electrical components.
• Ispezione degli pneumatici: Controllare regolarmente la pressione degli pneumatici e verificare la presenza di eventuali segni di usura o danni.
• Ispezione generale: Periodically check all nuts, bolts, and connections to ensure they are secure.

7. Risoluzione Dei Problemi

Questa sezione affronta i problemi più comuni che potresti riscontrare. Per problemi non elencati qui, contatta l'assistenza clienti.

8. Specifiche

9. Garanzia e supporto

Golden Technologies is committed to providing quality products and support.

• Resi: This product typically includes a 30-day easy return policy. Please refer to your purchase documentation for specific terms and conditions.
• Assistenza clienti: Golden Technologies is known for its responsive and helpful customer service. For any issues, questions, or to arrange service, please contact Golden Technologies customer support directly.
• Supporto del produttore: The manufacturer, Golden Technologies, is prompt at addressing and resolving issues.
