1. Prodotto finitoview
The Hilti CP 606 Firestop Sealant is a high-performance, intumescent acrylic sealant designed for firestopping applications. It expands when exposed to heat, forming a fire-resistant barrier that helps prevent the spread of fire and smoke through penetrations in fire-rated constructions. This product is suitable for various joint and penetration sealing applications in walls and floors.

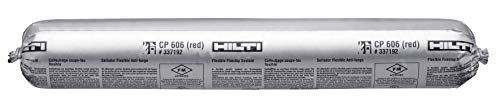

An image showing a single 10.5oz tube of Hilti CP 606 red firestop sealant, clearly displaying the Hilti logo and product identification.
2. Informazioni sulla sicurezza
Always prioritize safety when working with sealants. Read and understand the Safety Data Sheet (SDS) before use. Observe all local safety regulations.
- Dispositivi di protezione individuale (DPI): Wear appropriate PPE, including safety glasses, gloves, and protective clothing, to prevent skin and eye contact.
- Ventilazione: Use in well-ventilated areas. If adequate ventilation is not available, use respiratory protection.
- Contatto con la pelle: In caso di contatto con la pelle, lavare abbondantemente con acqua e sapone.
- Contatto visivo: In caso di contatto con gli occhi, sciacquare immediatamente con abbondante acqua per diversi minuti e consultare un medico.
- Ingestione: Non ingerire. In caso di ingestione, consultare immediatamente un medico.
- Tenere fuori dalla portata dei bambini: Tenere fuori dalla portata dei bambini e degli animali domestici.
3. Impostazione e preparazione
- Preparazione della superficie: Ensure all surfaces to be sealed are clean, dry, and free from dust, oil, grease, loose particles, and other contaminants. Substrates should be sound and stable.
- Joint Dimensions: Verify that joint dimensions are within the product's specified limits for optimal performance.
- Materiale di supporto: For deeper joints, use a suitable backing material (e.g., backer rod) to control sealant depth and ensure proper sealant geometry.
- Strumenti necessari:
- Standard caulking gun
- Utility knife or sealant cutter
- Trowel or tooling stick for finishing
- Cleaning supplies (rags, appropriate solvent if needed)
- Temperatura: Apply the sealant within the recommended temperature range, typically between 5°C and 40°C (41°F and 104°F).
4. Istruzioni per l'applicazione
- Preparare la cartuccia: Cut the tip of the sealant tube at a 45-degree angle to the desired bead size. Puncture the inner seal of the cartridge.
- Load Caulking Gun: Insert the prepared cartridge into a standard caulking gun.
- Applicare il sigillante: Apply the sealant evenly and continuously into the joint or penetration, ensuring full contact with the substrate. Maintain consistent pressure on the trigger to achieve a smooth, uniform bead.
- Utensili: Within 5-10 minutes of application (before skinning occurs), tool the sealant to ensure good adhesion and a smooth finish. Remove any excess sealant immediately.
- Stagionatura: The sealant will skin over in approximately 15-30 minutes, depending on temperature and humidity. Full cure time can range from several days to weeks, depending on bead thickness and environmental conditions. Protect the freshly applied sealant from water and heavy traffic until fully cured.
5. Manutenzione
Once cured, Hilti CP 606 Firestop Sealant requires minimal maintenance. Periodically inspect sealed joints and penetrations for any signs of damage, cracking, or degradation. If damage is observed, clean the area and reapply sealant as necessary to maintain the firestop integrity.
6. Risoluzione Dei Problemi
- Scarsa adesione:
Ensure surfaces are clean, dry, and free of contaminants. Proper surface preparation is critical for good adhesion.
- Slow Curing:
Low temperatures and high humidity can extend curing times. Ensure adequate ventilation and maintain recommended application temperatures.
- Cracking or Shrinkage:
Excessive joint movement or improper joint design can lead to cracking. Ensure correct joint dimensions and use of backing material where appropriate.
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | HILTI |
| Numero di modello | 3436798 (CP 606) |
| Modulo articolo | Liquid (Sealant) |
| Colore | Rosso |
| Dimensioni del contenitore | 10.5 oz Tube |
| Livello di resistenza all'acqua | Impermeabile |
| Produttore | Hilti |
| Prima data disponibile | 9 ottobre 2017 |
8. Conservazione e smaltimento
- Magazzinaggio: Store the sealant in its original, unopened packaging in a cool, dry place, away from direct sunlight and extreme temperatures. Recommended storage temperature is typically between 5°C and 25°C (41°F and 77°F).
- Disposizione: Dispose of unused product and empty containers in accordance with local, state, and federal regulations. Do not dispose of in drains or waterways. Consult local waste management authorities for proper disposal methods.
9. Garanzia e supporto
For specific warranty information regarding the Hilti CP 606 Firestop Sealant, please refer to the official Hilti website or contact Hilti customer service directly. Hilti provides comprehensive technical support and product documentation to assist with proper application and performance.
Funzionario Hilti Websito: www.hilti.com
