Xprinter XP-Q200 Thermal Printer User Manual

1. Introduzione e oltreview

This manual provides detailed instructions for the setup, operation, and maintenance of your Xprinter XP-Q200 80mm Thermal Printer. The XP-Q200 is a high-speed thermal receipt printer designed for various operating systems including Windows, Android, and iOS. It offers versatile connectivity options such as USB, Bluetooth, and Ethernet, making it suitable for a wide range of business environments.

Figura 1.1: Fronte view of the Xprinter XP-Q200 Thermal Printer.

2. Informazioni sulla sicurezza

Please read the following safety precautions carefully before using the printer to ensure safe and proper operation:

• Do not touch the thermal print head immediately after printing, as it may be hot.
• Use only the power adapter supplied with the printer. Using an incorrect adapter may damage the printer or cause fire.
• Do not disassemble or modify the printer. Refer all servicing to qualified personnel.
• Tenere la stampante lontana da acqua, umidità e luce solare diretta.
• Assicurarsi che la stampante sia posizionata su una superficie stabile e piana.

3. Contenuto della confezione

Verify that all items listed below are included in your printer package:

• Xprinter XP-Q200 Thermal Printer Unit
• Adattatore di alimentazione
• Cavo USB
• Thermal Paper Roll (initial)
• Manuale d'uso

4. Caratteristiche del prodotto

The Xprinter XP-Q200 offers a range of features designed for efficient and reliable thermal printing:

• Stampa ad alta velocità: Achieves print speeds of up to 260mm/sec with an integrated auto cutter.
• Interfacce multiple: Equipped with USB, Bluetooth, and Ethernet connectivity for flexible integration.
• Ampia compatibilità: Supports Windows, Linux, and Android operating systems.
• Logo and Barcode Support: Allows for downloading and printing of store logos (BMP file format) and various barcode types on thermal paper.
• Gestione della carta: Designed to handle thermal paper rolls up to 80x80mm.
• International Language Support: Supports a variety of international languages and scripts.
• Allarmi di errore: Features print job tips and error alarm functions for operational awareness.
• Black Mark Detection: Includes a black mark detection function for specific printing applications.
• Missing Orders Function: Incorporates a feature to help avoid "missing orders."
• Capacità di monitoraggio: Supports Ethernet and Serial port monitoring functions.
• NV Logo Storage: Provides 256K Bytes of NV Logo download storage.

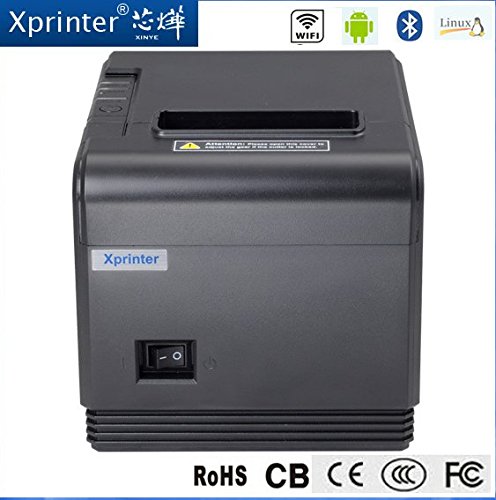

Figura 4.1: Fronte view highlighting connectivity options.

5. Impostazione

5.1 Configurazione fisica

1. Unpack the printer and remove all protective packaging materials.
2. Place the printer on a stable, flat surface near a power outlet and your host device.
3. Connect the power adapter to the printer's power port and then plug it into a wall outlet.

5.2 Caricamento della carta termica

1. Press the cover open button (usually located on the side or front) to open the printer's top cover.
2. Insert the thermal paper roll into the paper compartment with the printing side facing the thermal print head. Ensure the roll unwinds from the bottom.
3. Estrarre una piccola quantità di carta dalla taglierina.
4. Close the top cover firmly until it clicks into place. The printer will automatically feed the paper to the correct position.

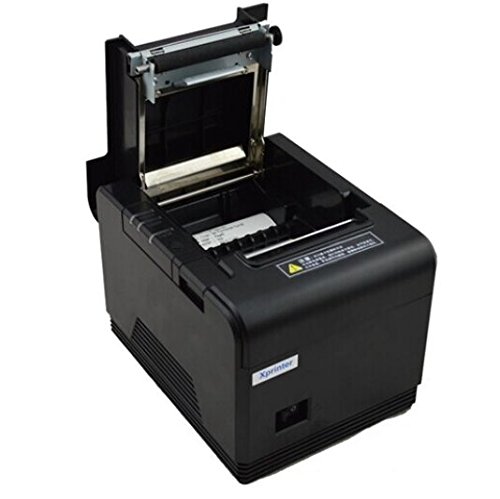

Figure 5.1: Loading thermal paper into the printer.

5.3 Connessione a un dispositivo

The XP-Q200 supports USB, Bluetooth, and Ethernet connections.

Figura 5.2: Posteriore view of the printer with connectivity ports.

5.3.1 Connessione USB

• Connect one end of the USB cable to the printer's USB port and the other end to your computer's USB port.
• The computer should detect the printer automatically.

5.3.2 Bluetooth Connection (for Android/iOS)

• Assicurarsi che la stampante sia accesa.
• On your Android or iOS device, go to Bluetooth settings and enable Bluetooth.
• Cercare available devices. The printer should appear as "XP-Q200" or similar.
• Select the printer to pair. The default PIN is usually "0000" or "1234".
• Once paired, you can select the printer from your application's print settings.

5.3.3 Connessione Ethernet

• Collegare un cavo Ethernet dalla porta Ethernet della stampante al router o allo switch di rete.
• The printer will obtain an IP address automatically via DHCP. For static IP configuration, refer to the advanced settings utility provided with the printer drivers.

5.4 Installazione del driver

For Windows and Linux systems, you will need to install the appropriate printer drivers. Drivers are typically available on the Xprinter official website or on a CD included with the printer. Follow the on-screen instructions during installation.

6. Istruzioni per l'uso

6.1 Stampa di base

Once the printer is connected and drivers are installed (if applicable), you can send print jobs from your application. Ensure the printer is powered on and has paper loaded.

• From your application (e.g., POS software, web browser), select the print option.
• Choose "Xprinter XP-Q200" from the list of available printers.
• Adjust any print settings as needed (e.g., paper size, copies).
• Fare clic su "Stampa" per inviare il lavoro alla stampante.

6.2 Logo and Barcode Printing

The XP-Q200 supports custom logo and barcode printing. Refer to the printer's utility software (usually provided with drivers) for instructions on how to upload logos (BMP format) to the printer's NV memory and configure barcode printing settings.

7. Manutenzione

7.1 Pulizia della stampante

Una pulizia regolare aiuta a mantenere la qualità di stampa e prolunga la durata della stampante.

• Testina di stampa: Utilizzare un batuffolo di cotone leggermenteampened with isopropyl alcohol to gently wipe the thermal print head. Allow it to dry completely before closing the cover. Clean the print head regularly, especially if print quality degrades.
• Rullo di laminazione: Clean the rubber platen roller with a soft cloth damparricchito con alcol isopropilico.
• Esterno: Pulire l'esterno della stampante con un panno morbido e asciutto. Non utilizzare detergenti abrasivi o solventi.

7.2 Rimozione degli inceppamenti della carta

Se si verifica un inceppamento della carta:

1. Spegnere la stampante.
2. Aprire il coperchio superiore.
3. Carefully remove any jammed paper. Ensure no small pieces of paper remain inside.
4. Close the top cover firmly.
5. Turn the printer back on.

8. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your XP-Q200 printer.

9. Specifiche
