Manuale utente del commutatore modulare Hager SFT140

1. Prodotto finitoview

This manual provides detailed instructions for the installation, operation, and maintenance of the Hager SFT140 Modular Changeover Switch. The SFT140 is a 1-pole, 40A device designed for switching between two power sources or circuits, featuring a central off position (I-0-II). It is suitable for modular installations in electrical panels.

Caratteristiche principali:

• Tipo di controllo: Interruttore di commutazione
• Poli: 1 poli
• Valutazione attuale: 40A
• Switching Positions: I - 0 - II (Common at the top)
• Frequenza nominale: Frequenza 50/60 Hz
• Standard: Norma CEI 60947-3
• Materiale: Acciaio legato

2. Informazioni sulla sicurezza

AVVERTIMENTO: Electrical installations must only be carried out by a qualified electrician. Failure to follow these instructions can result in serious injury or death.

• Scollegare sempre l'alimentazione principale prima di installare, effettuare la manutenzione o rimuovere il dispositivo.
• Assicurarsi che tutti i cablaggi siano conformi alle normative elettriche locali e nazionali.
• Non superare la corrente e il vol specificatitage ratings of the switch.
• Proteggere il dispositivo dall'umidità e dalle temperature estreme.
• Prima di ripristinare l'alimentazione, verificare che tutti i collegamenti siano saldi.

3. Installazione

3.1 Montaggio

The Hager SFT140 is designed for modular installation on a DIN rail within an electrical enclosure.

1. Assicurarsi che l'alimentazione principale sia scollegata.
2. Locate an available space on the DIN rail within your electrical panel.
3. Agganciare il bordo superiore dell'interruttore alla guida DIN.
4. Press the bottom of the switch firmly until it clicks into place on the DIN rail.
5. Verify the switch is securely mounted and does not wobble.

3.2 Cablaggio

The SFT140 is a 1-pole changeover switch with common at the top (I-0-II). Refer to the wiring diagram below and the markings on the device for correct connections.

• Terminale 1: Input for Source I
• Terminale 2: Output (Common)
• Terminale 3: Input for Source II
• Terminale 4: Output (Common)

Note: The common connection is typically made at the top terminals (1 and 2) for the output, and the two sources (I and II) are connected to the bottom terminals (3 and 4). However, always verify with the specific markings on your device.

1. Togliere circa 10-12 mm di isolamento dalle estremità dei fili.
2. Loosen the screw terminals on the switch.
3. Insert the wires into the appropriate terminals as per your wiring scheme.
4. Tighten the screw terminals securely. Ensure no bare wire strands are exposed.
5. Controllare attentamente tutti i collegamenti per verificarne la tenuta e la correttezza.

Figura 1: Davanti view of the Hager SFT140 switch, showing the operating lever, terminal markings (1, 2, 4), and technical specifications such as IEC 60947-3, AC22A, Ie=40A, P(230V)=6kW, and frequency 50/60 Hz. The barcode 3250615510914 is also visible.

Figura 2: Parte superiore anteriore view of the Hager SFT140 switch, providing another perspective of the operating lever and the main product markings.

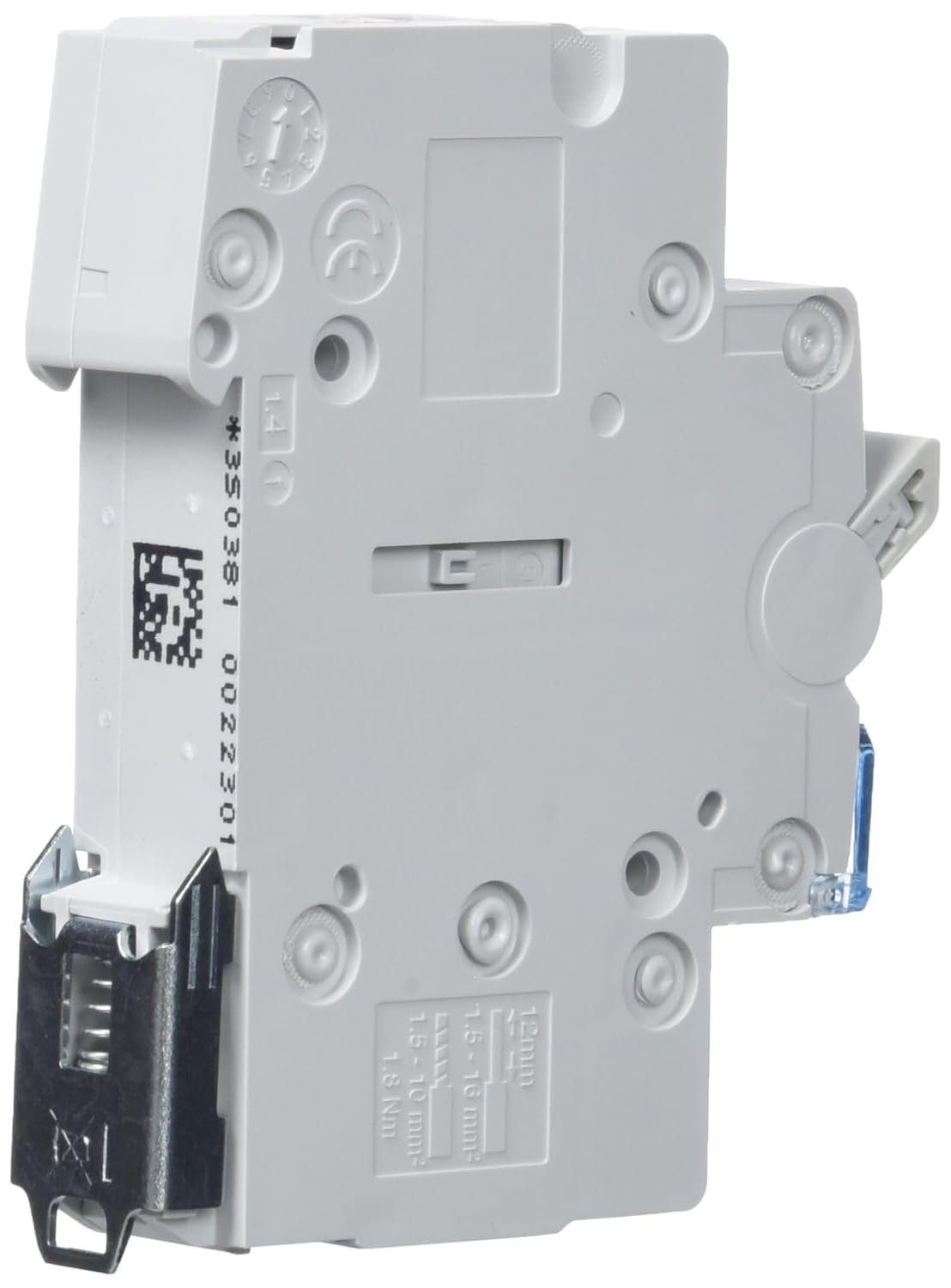

Figura 3: Lato view of the Hager SFT140 switch, illustrating the DIN rail mounting clip and wire stripping length (12mm) and wire cross-sections (1.5-10 mm²).

Figura 4: Bottom-side view of the Hager SFT140 switch, showing the underside of the DIN rail mounting mechanism.

4. Funzionamento

The Hager SFT140 switch has three positions, indicated by the lever:

• Posizione I: Connects the circuit to Source I.
• Posizione 0: Disconnects both Source I and Source II from the circuit (OFF position).
• Posizione II: Connects the circuit to Source II.

To change the position, simply move the operating lever to the desired setting (I, 0, or II). Ensure the lever is fully engaged in each position.

5. Manutenzione

The Hager SFT140 Modular Changeover Switch is designed for maintenance-free operation under normal conditions.

• Periodically inspect the device for any signs of physical damage, overheating (discoloration), or loose connections.
• Ensure the operating lever moves freely and engages positively in all three positions.
• Clean the exterior of the switch with a dry, soft cloth if necessary. Do not use abrasive cleaners or solvents.
• If any issues are observed, disconnect power immediately and consult a qualified electrician.

6. Risoluzione Dei Problemi

If you experience problems with your Hager SFT140 switch, consider the following:

For problems not listed here or if troubleshooting steps do not resolve the issue, contact a qualified electrician or Hager technical support.

7. Specifiche

8. Garanzia e supporto

For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Hager websito.

For technical support, product inquiries, or service, please contact your local Hager distributor or customer service center.
