Hager SVN129 LED Pilot Light Instruction Manual

1. Introduzione

This instruction manual provides essential information for the safe installation, operation, and maintenance of the Hager SVN129 LED Pilot Light. The SVN129 is a compact indicator designed for electrical panels and control systems, featuring red, green, and orange LED illumination and operating on a 230V AC supply.

Si prega di leggere attentamente il presente manuale prima dell'installazione e di conservarlo per riferimento futuro.

2. Informazioni sulla sicurezza

AVVERTIMENTO: Electrical installation should only be performed by qualified and authorized personnel. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Prima di installare o effettuare la manutenzione del dispositivo, scollegare sempre l'alimentazione dall'interruttore principale.
• Assicurarsi che tutti i cablaggi siano conformi alle normative elettriche locali e nazionali.
• Non utilizzare il dispositivo se appare danneggiato.
• This device is designed for indoor use in dry locations unless otherwise specified.
• Verificare il volume di fornituratage matches the device's rated voltage (230 V CA).

3. Prodotto finitoview

The Hager SVN129 is an LED pilot light designed for clear visual indication within electrical systems. Its key features include:

• Illuminazione a LED: Provides bright red, green, and orange light for status indication.
• Voltage Valutazione: Operates on 230V AC.
• Dimensioni del modulo: Occupies 1 module space in a standard electrical panel.
• Frequenza: Designed for 50/60 Hz systems.

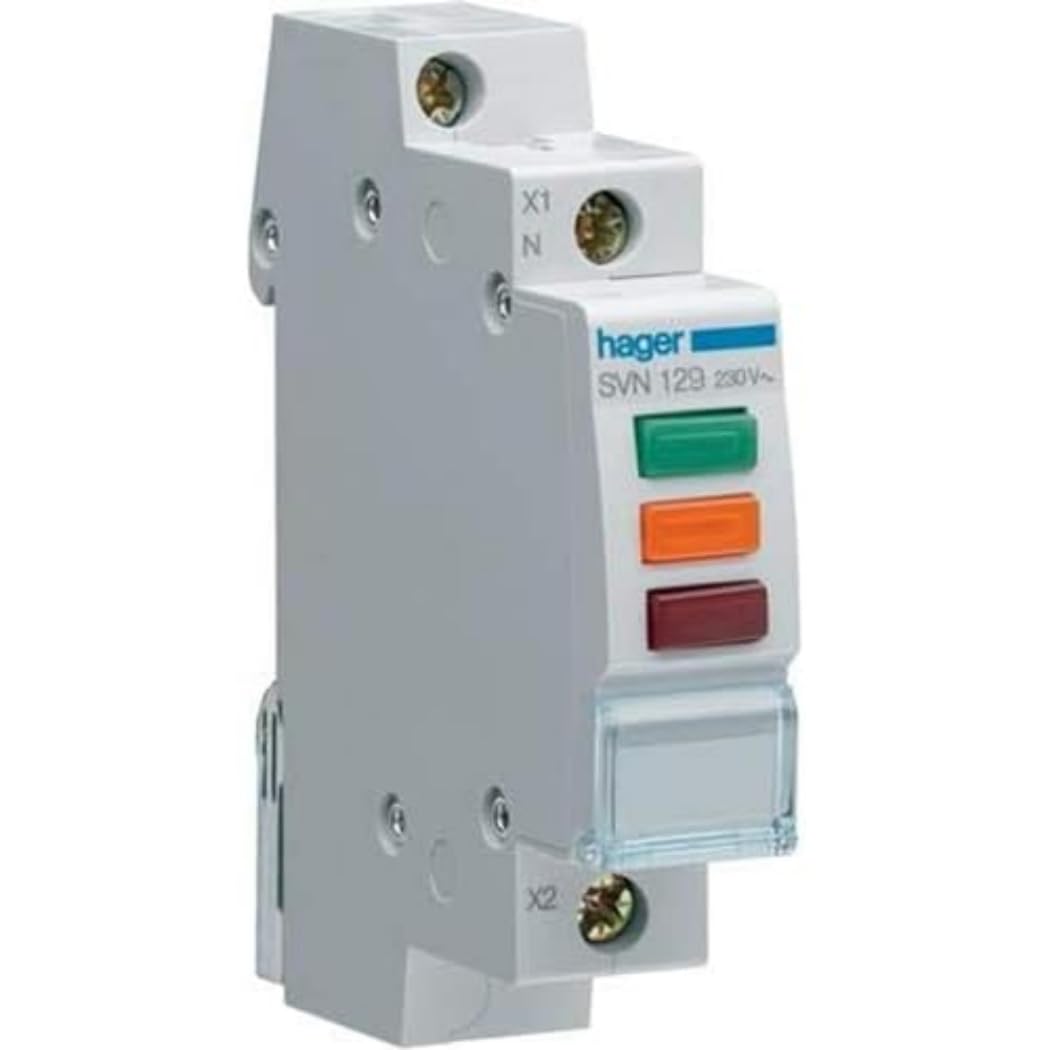

Figure 1: Hager SVN129 LED Pilot Light. This image displays the front view of the SVN129 LED pilot light, highlighting its compact form factor suitable for integration into electrical panels. The indicator features a clear lens, designed to display red, green, or orange light depending on the operational status.

4. Configurazione e installazione

Installation of the Hager SVN129 LED Pilot Light should be carried out by a qualified electrician in accordance with all applicable electrical standards and regulations.

1. Disconnessione dell'alimentazione: Ensure the main power supply to the installation area is completely disconnected and secured against accidental re-connection.
2. Montaggio: The SVN129 is designed for DIN rail mounting. Snap the device onto the DIN rail in the desired position within the electrical enclosure.
3. Cablaggio: Connect the 230V AC supply wires to the designated terminals on the pilot light. Refer to the wiring diagram on the device or packaging for correct polarity and connection points. Typically, these devices have two terminals for line and neutral connections.
4. Connessioni sicure: Assicurarsi che tutte le viti dei terminali siano serrate saldamente per evitare collegamenti allentati, che potrebbero causare surriscaldamento o funzionamento intermittente.
5. Verifica: Double-check all wiring connections before restoring power.
6. Ripristino dell'energia: Restore power to the circuit. The pilot light should illuminate according to the circuit status it is monitoring.

5. Istruzioni per l'uso

The Hager SVN129 LED Pilot Light operates as a visual indicator. Once correctly installed and connected to a 230V AC circuit, it will illuminate to indicate the status of that circuit or a specific condition within an electrical system.

• The specific color (red, green, or orange) displayed by the LED will depend on the model variant and the intended application for which it was selected.
• No user interaction is required for its operation beyond initial installation.

6. Manutenzione

The Hager SVN129 LED Pilot Light is designed for minimal maintenance. However, periodic checks can ensure continued reliable operation.

• Pulizia: If necessary, gently wipe the surface of the pilot light with a soft, dry, or slightly damp panno. Non usare detergenti abrasivi o solventi.
• Ispezione: Periodically inspect the device for any signs of physical damage, discoloration, or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
• Nessuna parte riparabile dall'utente: The LED pilot light contains no user-serviceable parts. Do not attempt to open or repair the unit.

7. Risoluzione Dei Problemi

If the Hager SVN129 LED Pilot Light is not functioning as expected, consider the following troubleshooting steps:

• Luce non illuminante:
  • Controllare se l'alimentazione del circuito è attiva.
  • Verify that the pilot light is correctly wired and connections are secure.
  • Garantire la fornitura voltage è 230 V CA.
  • If the above steps do not resolve the issue, the device may be faulty and require replacement by a qualified electrician.
• Funzionamento intermittente:
  • Check for loose wiring connections at the terminals.
  • Ensure stable power supply to the circuit.

For issues not covered here, contact a qualified electrician or Hager customer support.

8. Specifiche

9. Garanzia e supporto

For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Hager website. For technical support or inquiries, please contact Hager customer service through their official channels.

Nota: le specifiche e l'aspetto del prodotto sono soggetti a modifiche senza preavviso.
