BLANCO Waste Separation System Flexon II 30/1 User Manual

1. Introduzione

This manual provides instructions for the installation, operation, and maintenance of your BLANCO Waste Separation System Flexon II 30/1. This system is designed for integration into 30 cm base cabinets, offering an efficient solution for waste management in your kitchen.

The Flexon II system features a contemporary design, is adapted for popular drawer cabinets, and provides easy access for waste disposal and cleaning. Its assembly process is designed for quick and straightforward installation.

Image: Main components of the BLANCO Flexon II Waste Separation System, including the lid and the waste container.

2. Contenuto della confezione

Prima di iniziare l'installazione, verificare che tutti i componenti elencati di seguito siano presenti nel pacchetto.

• 1 x Kitchen waste sorter container (19 liters)
• 1 x Mounting set
• 1 x Manuale utente

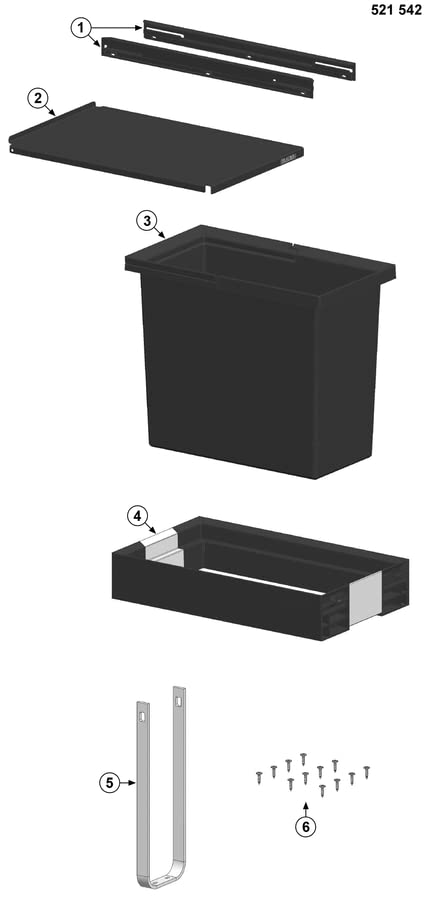

Immagine: Esploso view diagram showing individual parts of the BLANCO Flexon II system, including mounting rails (1), lid (2), waste container (3), frame (4), and mounting bracket (5) with screws (6).

3. Configurazione e installazione

The BLANCO Flexon II system requires installation in a standing cabinet equipped with a front panel and a pull-out drawer. The waste separation unit is mounted within this drawer.

3.1 Requisiti di preinstallazione

• Larghezza del Governo: Designed for 30 cm base cabinets.
• Tipo di cassetto: Requires a pull-out drawer.
• Altezza di montaggio: The top edge of the selector cover must be 360 mm above the drawer bottom.
• Profondità di montaggio: A minimum depth of 400 mm is required.
• Drawer Side Wall Height: Maximum height of the drawer's side walls should be 265 mm.

3.2 Passaggi di installazione

1. Ensure the cabinet and drawer meet the pre-installation requirements.
2. Refer to the included mounting set instructions for specific hardware placement.
3. Secure the mounting rails (part 1 from exploded view) to the inside of the cabinet or drawer according to the specified dimensions.
4. Assemble the frame (part 4) and attach the waste container (part 3) within it.
5. Slide the assembled unit into the mounted rails, ensuring it is securely seated and operates smoothly with the pull-out drawer.
6. Place the lid (part 2) on top of the container.

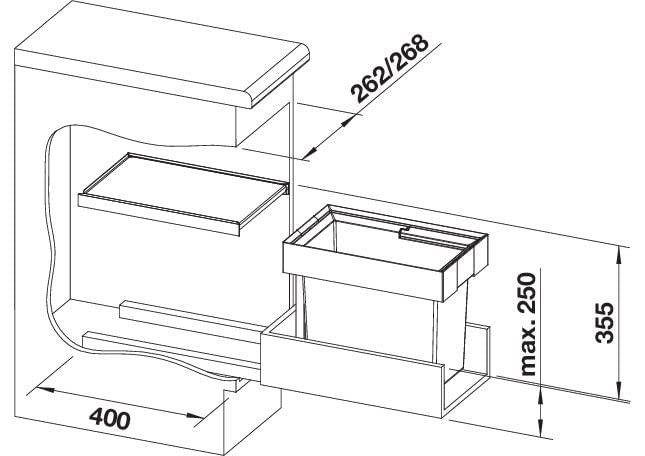

Image: Technical diagram illustrating the installation of the BLANCO Flexon II system within a base cabinet drawer, showing critical dimensions for depth (400 mm), height (355 mm), and width (262/268 mm).

4. Funzionamento

The BLANCO Flexon II system is designed for intuitive use within your kitchen drawer.

4.1 Accesso al sistema

To access the waste container, simply pull out the cabinet drawer. The waste separation unit will extend with the drawer, providing full access to the 19-liter bucket.

Image: The BLANCO Flexon II waste separation system fully extended within a kitchen base cabinet drawer, showing the accessible waste container.

4.2 Smaltimento dei rifiuti

The system features one 19-liter container. Use this container for general waste or for specific recyclable materials as per your local guidelines. The lid helps to contain odors.

5. Manutenzione e pulizia

Regular cleaning will ensure the longevity and hygiene of your waste separation system.

5.1 Pulizia del contenitore

• The waste container is removable for easy cleaning. Lift the container out of its frame.
• Wash the container with warm water and a mild detergent.
• Rinse thoroughly and allow to air dry completely before placing it back into the system.
• Evitare detergenti abrasivi o prodotti chimici aggressivi, poiché potrebbero danneggiare il materiale plastico.

Image: A person cleaning the removable BLANCO Flexon II waste container with a soft cloth and water, demonstrating ease of maintenance.

5.2 Cleaning the Frame and Lid

• Wipe down the frame and lid with a damp panno e detergente delicato.
• Asciugare con un panno morbido e pulito.

6. Risoluzione Dei Problemi

If you encounter issues with your BLANCO Flexon II system, consider the following:

• System not sliding smoothly: Check for any obstructions in the drawer or on the rails. Ensure the mounting screws are tight and the system is correctly aligned.
• Container not fitting correctly: Verify that the container is seated properly within its frame and that no debris is preventing it from settling.
• Problemi di odore: Ensure the lid is properly closed. Clean the container and surrounding areas thoroughly. Consider using waste bags to further contain odors.

7. Specifiche

Image: Graphic displaying '19 l', indicating the capacity of the waste container.

8. Garanzia e supporto

For warranty information or technical support, please refer to the official BLANCO website or contact BLANCO customer service directly. Keep your purchase receipt as proof of purchase.

BLANCO Customer Service: Per favore visita www.blanco.com per i dettagli di contatto specifici della tua regione.
