SpeedTech Lights K-Force 55 Full Size LED Strobe Light Bar User Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your SpeedTech Lights K-Force 55 Full Size LED Strobe Light Bar. Please read this manual thoroughly before installation and use to ensure proper function and safety. This product is designed for emergency vehicle warning applications.

Immagine 1.1: Passoview of the SpeedTech Lights K-Force 55 Full Size LED Strobe Light Bar. This image displays the complete light bar unit, highlighting its sleek design and LED modules.

2. Informazioni sulla sicurezza

Always prioritize safety during installation and operation. Failure to follow these instructions may result in property damage, injury, or improper product function.

• Prima di iniziare l'installazione, assicurarsi che l'alimentazione del veicolo sia scollegata.
• Mount the light bar securely to prevent detachment during vehicle operation.
• Verify all wiring connections are correct and insulated to prevent short circuits.
• Do not look directly into the light bar when it is active, as the intense light can cause eye strain or temporary vision impairment.
• This product is SAE J845 Certified, indicating compliance with specific performance standards for emergency warning lights.

Image 2.1: Certification and Warranty. This image shows the 'SAE J595 Certified' and '5 Year Warranty' labels, indicating the product's adherence to safety standards and manufacturer support.

3. Contenuto della confezione

Controllare la confezione per assicurarsi che tutti i componenti siano presenti:

• SpeedTech Lights K-Force 55 LED Strobe Light Bar
• Scatola di controllo
• Mounting Hardware (including universal gutter brackets)
• Cablaggio elettrico
• Manuale di istruzioni (questo documento)

4. Configurazione e installazione

Proper installation is crucial for the performance and longevity of your light bar. If you are unsure about any step, consult a qualified professional.

4.1 Montaggio della barra luminosa

1. Identify a suitable mounting location on the vehicle roof, ensuring clear visibility and secure attachment points.
2. Use the provided universal gutter brackets to secure the light bar to the vehicle. Ensure the brackets are tightened sufficiently to prevent movement.
3. Verify the light bar is level and stable before proceeding with wiring.

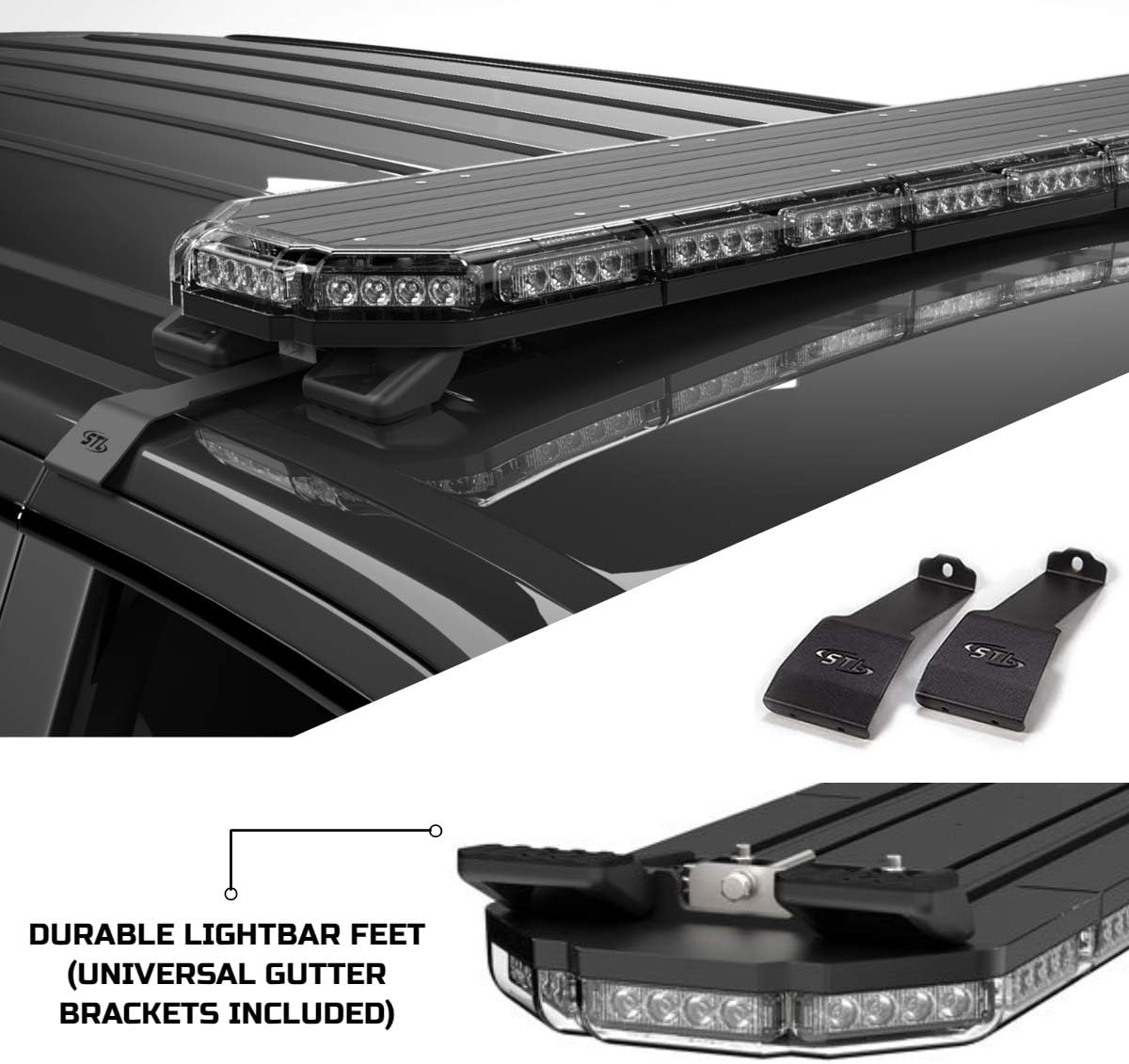

Image 4.1: Mounting Hardware. This image illustrates the durable light bar feet and the included universal gutter brackets, designed for secure roof mounting.

4.2 Collegamenti di cablaggio

Connect the light bar to the vehicle's electrical system using the provided wiring harness and control box. Refer to the wiring diagram included with your product for specific connections.

• Connect the main power wire to a fused 12V DC power source.
• Connect the ground wire to a suitable chassis ground point.
• Route all wires carefully, avoiding hot surfaces, sharp edges, and moving parts. Secure wiring with cable ties.
• Connect the light bar to the control box using the designated connector.

Image 4.2: Installation Overview. This diagram shows the light bar mounted on a vehicle, highlighting the universal gutter brackets and the remote control box with its various functions.

5. Istruzioni per l'uso

The K-Force 55 light bar is controlled via the included control box, offering multiple flash patterns and operational modes.

Image 5.1: Control Box Features. This image details the control box, showing buttons for various functions including power, flash pattern selection, traffic advisor, alley lights, cruise mode, and auxiliary control.

5.1 Control Box Functions

• ON/OFF Power Slide Switch: Controls power to different sections of the light bar.
  • Position 1: Front of bar on
  • Position 2: Back of bar on
  • Position 3: Full bar on
• Pulsante MODE: Cycles through the 34 available flash patterns. The system features memory recall, retaining the last selected pattern.
• Pulsante MODELLO: Changes the flash pattern.
• TD (Traffic Advisor) Button: Activates traffic advisor patterns (left, right, center out). Use directional arrow buttons to select.
• ALLEY Button: Activates alley lights.
• CRUISE Button: Activates cruise mode, providing a steady burn illumination.
• Pulsante AUX: Controls an auxiliary output for additional lighting or equipment.
• NIGHT Button: Activates night mode, which typically dims the light output for reduced intensity in low-light conditions.
• Frecce direzionali: Used to control traffic advisor patterns (left, right, center out).

6. Manutenzione

The K-Force 55 light bar is designed for durability and minimal maintenance. Regular cleaning and inspection will help ensure optimal performance.

• Pulizia: Clean the lens and housing with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the polycarbonate lens.
• Ispezione: Periodically check all mounting hardware for tightness and inspect wiring for any signs of wear, fraying, or damage.
• The unit features weatherproof housing, designed to withstand harsh environments.

7. Risoluzione Dei Problemi

If you encounter issues with your K-Force 55 light bar, refer to the following common problems and solutions:

8. Specifiche

• Modello: K-Force 55
• Numero di parte del produttore: F-KFT55RR
• Marca: SpeedTech Lights
• Colore: Rosso/Rosso
• Colore della lente: Rosso
• Materiale della lente: Policarbonato
• Dimensioni (L x P x A): 59 x 15 x 7 pollici
• Peso dell'articolo: 37 libbre
• Caratteristica speciale: Impermeabile
• Valutazione di sicurezza: SAE J845 Certified
• Modelli flash: 34 (with memory recall)
• Caratteristiche di controllo: TD (Traffic Advisor), Alley, Cruise Mode, Night Mode, Auxiliary Control

Image 8.1: Product Dimensions. This diagram provides the key measurements of the light bar, indicating its length, width, and height for installation planning.

9. Garanzia e supporto

The SpeedTech Lights K-Force 55 LED Strobe Light Bar comes with a Garanzia di 5 anno. For warranty claims, technical support, or any questions regarding your product, please contact SpeedTech Lights directly.

Produttore: SpeedTech Lights

Websito: Visit the SpeedTech Lights Store on Amazon

Please have your model number (K-Force 55) and manufacturer part number (F-KFT55RR) available when contacting support.
