Cisa 11931.70.3

Manuale d'uso della serratura elettrica da applicare Cisa 11931.70.3

Modello: 11931.70.3

1. Introduzione

This manual provides essential instructions for the proper installation, operation, and maintenance of your Cisa 11931.70.3 Electric Rim Lock. Please read this manual thoroughly before installation and keep it for future reference. This electric rim lock is designed for secure access control applications, offering reliable performance when installed and maintained correctly.

2. Informazioni sulla sicurezza

3. Contenuto della confezione

Verificare che tutti gli elementi siano presenti e integri prima di procedere con l'installazione:

4. Prodotto finitoview e dimensioni

The Cisa 11931.70.3 is an electric rim lock designed for surface mounting on doors. It features a robust metal construction and is suitable for various security applications. Below is a technical drawing illustrating the lock's dimensions and key components.

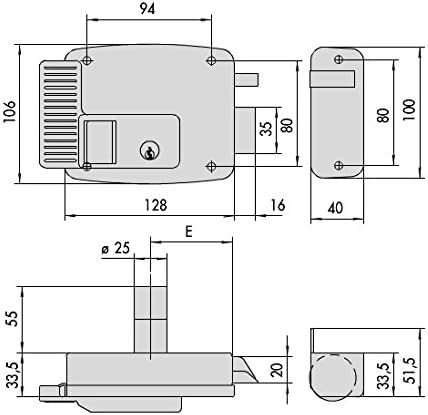

Technical drawing of Cisa 11931.70.3 electric rim lock with dimensions

Figure 1: Technical drawing showing the dimensions of the Cisa 11931.70.3 electric rim lock. Key measurements include overall width (94mm), height (106mm), depth (40mm), and bolt projection. All dimensions are in millimeters.

Familiarize yourself with the lock's physical characteristics and dimensions to ensure proper fit and installation on your door. The drawing provides critical measurements for mounting and alignment.

5. Door Handing and Orientation

Correctly identifying the door's handing (left or right, inward or outward opening) is crucial for proper installation and function of the electric rim lock. Refer to the diagram below to determine the appropriate handing for your door.

Diagram illustrating door handing options: right internal, left internal, right external, left external

Figure 2: Door handing guide. 1 = Right Internal, 2 = Left Internal, 3 = Right External, 4 = Left External. This diagram helps determine the correct orientation for the lock's installation based on how the door opens and from which side it is viewed.

6. Configurazione e installazione

Installation should be performed by a competent individual. Ensure all safety precautions are followed.

  1. Prepara la porta: Mark the desired position for the lock body on the door. Ensure it is at a comfortable height and allows for proper clearance.
  2. Fori di montaggio del trapano: Using the provided template (if applicable) or the dimensions from Figure 1, drill pilot holes for the lock body and the external cylinder (if used). Ensure holes are straight and of the correct diameter.
  3. Install External Cylinder: If your model includes an external cylinder, insert it through the door and secure it according to its specific instructions.
  4. Mount Lock Body: Position the main lock body on the door, aligning it with the drilled holes. Secure it firmly with the provided screws. Do not overtighten.
  5. Installare la piastra di battuta: Close the door and mark the position for the strike plate on the door frame, ensuring it aligns perfectly with the lock's bolt. Mount the strike plate securely.
  6. Collegamento elettrico: Connect the lock to the power supply and access control system (if applicable) according to the wiring diagram provided with your specific model. Ensure correct polarity and voltage. This step must be performed by a qualified electrician.
  7. Funzionalità di prova: Before fully securing all covers, test the lock's operation with both the key and the electrical impulse. Ensure the bolt extends and retracts smoothly and the door latches correctly.

7. Istruzioni per l'uso

8. Manutenzione

9. Risoluzione Dei Problemi

Per i problemi più comuni e le possibili soluzioni, fare riferimento alla tabella sottostante.

ProblemaPossibile causaSoluzione
Lock does not engage/disengage electrically.No power, incorrect wiring, faulty solenoid.Check power supply. Verify wiring connections. Consult a qualified electrician if the solenoid is suspected to be faulty.
Key turns but door does not unlock.Misalignment, worn cylinder, internal mechanism issue.Check door and frame alignment. Lubricate keyway. If issue persists, professional inspection may be required.
La porta vibra quando è chiusa.Loose strike plate, worn bolt.Tighten strike plate screws. Adjust strike plate position if necessary.
La serratura è rigida o difficile da usare.Lack of lubrication, dirt/debris.Clean and lubricate the lock mechanism and keyway.

Se riscontri problemi non elencati qui o se le soluzioni suggerite non risolvono il problema, contatta l'assistenza clienti.

10. Specifiche

CaratteristicaDettaglio
Numero di modello11931.70.3
MarcaCisa
MaterialeMetallo
Peso dell'articolo1.5 chilogrammi
Numero di pezzi1
Codice articolo internazionale (EAN)08015345073178
Prima data disponibile18 maggio 2017

11. Informazioni sulla garanzia

Cisa products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship under normal use. The specific terms and duration of the warranty may vary by region and purchase date. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation provided at the time of purchase or visit the official Cisa websito.

12. Assistenza clienti

If you require assistance with installation, operation, or troubleshooting that is not covered in this manual, please contact Cisa customer support or your authorized dealer. Have your product model number (11931.70.3) and purchase details ready when contacting support.
