Introduzione
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your DeLonghi ECAM650.85 PrimaDonna Elite Fully Automatic Coffee Machine. Please read all instructions carefully before using the appliance.
Image: The DeLonghi ECAM650.85 PrimaDonna Elite Fully Automatic Coffee Machine, showcasinil suo design elegante e un latte preparato.
Impostare
- Disimballaggio: Carefully remove all packaging materials. Ensure all components are present: main unit, milk carafe, hot chocolate carafe, user manual, and warranty card.
- Posizionamento: Place the machine on a stable, level surface away from water sources and heat. Ensure adequate ventilation.
- Serbatoio dell'acqua: Riempire il serbatoio dell'acqua con acqua fresca e fredda.
- Contenitore di fagioli: Open the lid and fill the bean container with fresh coffee beans. The machine has an integrated grinder with 13 adjustable settings.
- Collegamento elettrico: Collegare l'apparecchio a una presa di corrente idonea (220 V).
- Avvio iniziale: Follow the on-screen instructions on the 4.3" TFT color display for the initial setup, including language selection and water hardness testing.
Image: A hand filling the coffee bean container of the DeLonghi PrimaDonna Elite machine.
Istruzioni per l'uso
Display TFT a colori da 4.3"
The machine features a large 4.3" TFT color display with touchscreen technology for easy navigation and beverage selection. All coffee specialties are available at one touch.
Image: Close-up of the machine's touchscreen display showing beverage selection and customization options.
Beverage Selection and Customization
The PrimaDonna Elite offers over 50 hot and cold one-touch beverage options. You can customize your drinks by adjusting aroma, quantity, and milk froth levels. The machine also supports 6 user profiles for individually tailored drinks.
- Caffè espresso: For a rich, concentrated coffee.
- Caffè: A classic black coffee.
- Cappuccino: Espresso with steamed milk and a generous layer of milk foam.
- latte macchiato: Layered drink with milk, espresso, and milk foam.
- Cioccolata calda: Prepare delicious hot chocolate using the dedicated carafe.
- Cold Beverages: Utilize the extra carafe for cold coffee and cold milk foam.

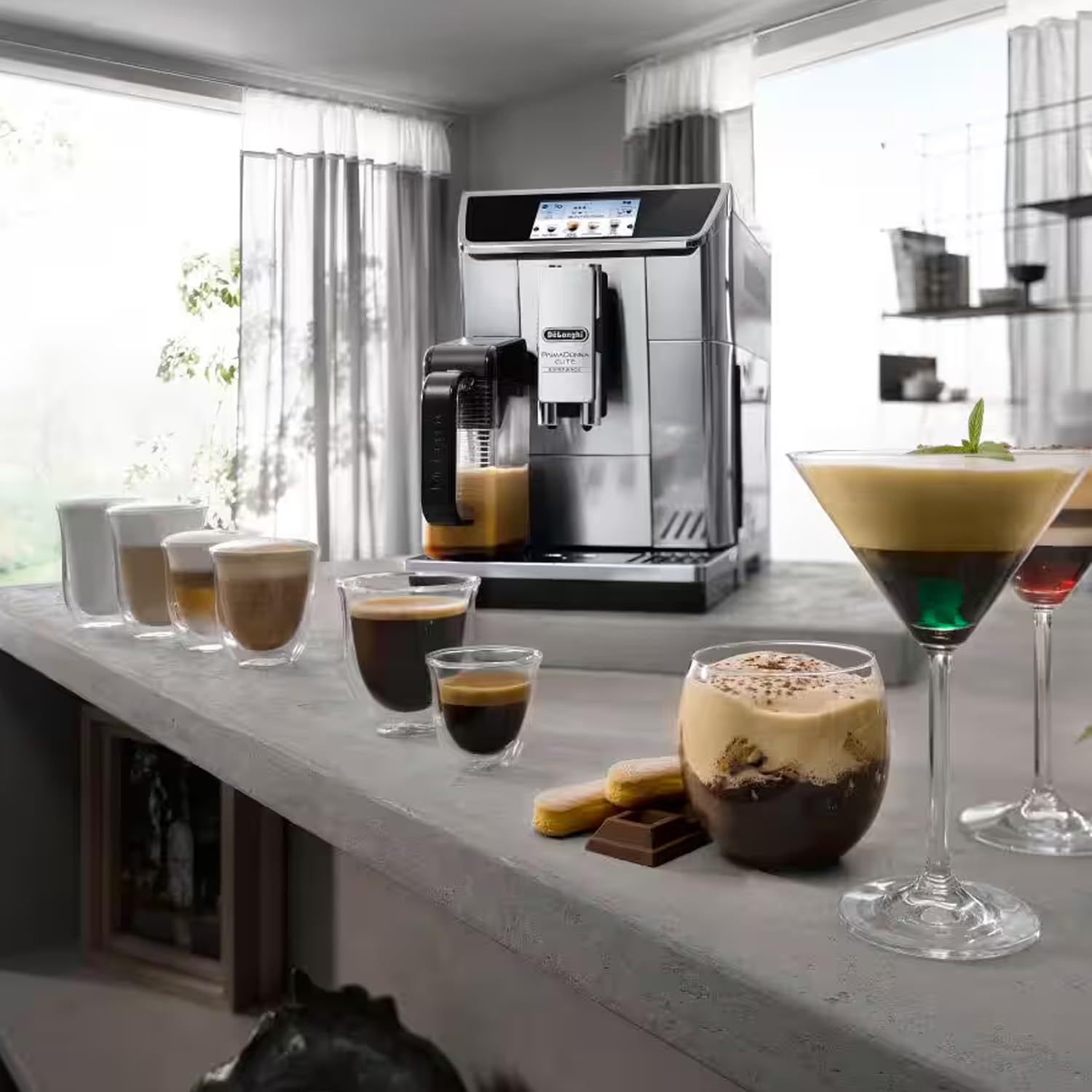

Image: The DeLonghi PrimaDonna Elite preparing a layered coffee beverage with milk foam.
Automatic LatteCrema System
The automatic LatteCrema system ensures creamy, dense, and long-lasting milk foam at the perfect temperature. It also features one-touch automatic cleaning after each use.
Image: Close-up of the LatteCrema system preparing milk foam for a beverage.
Coffee Link App
The machine can be connected to the innovative Smart Coffee Link App. This app provides easy and intuitive access to all machine functions, allowing you to create and customize recipes, manage profiles, and receive tips and suggestions.
Image: A smartphone showing the DeLonghi Coffee Link App, used for customizing coffee recipes.
Video ufficiali dei prodotti
Video: Un oltreview of the DeLonghi PrimaDonna Elite Experience Coffee Machine, demonstrating its features and ease of use.
Video: A detailed demonstration of the DeLonghi PrimaDonna Elite's functionality, including beverage customization and the LatteCrema system.
Manutenzione
Una pulizia e una manutenzione regolari sono essenziali per garantire la longevità e le prestazioni ottimali della macchina da caffè.
- Pulizia automatica: The LatteCrema system performs an automatic cleaning cycle after each use.
- vassoio antigoccia: The drip tray with a dishwasher-safe removable grid should be emptied and cleaned regularly.
- Unità di infusione: The brewing unit is removable for easy cleaning. Refer to the detailed instructions in the full manual for proper removal and cleaning procedures.
- Decalcificazione: The machine will prompt you when descaling is required. Use only DeLonghi descaling solution and follow the on-screen instructions.
- Water Tank & Milk Carafe: Clean these components regularly with warm water and mild detergent.
Risoluzione dei problemi
If you encounter any issues, please refer to the following common solutions before contacting customer support.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La macchina non si accende | Cavo di alimentazione non collegato, problema con la presa di corrente. | Controllare il collegamento del cavo di alimentazione e assicurarsi che la presa funzioni. |
| Il caffè non viene erogato | Water tank empty, brewing unit clogged, coffee beans low. | Fill water tank, clean brewing unit, refill coffee beans. |
| Il latte non si monta correttamente | Milk carafe not clean, milk type unsuitable, milk too warm. | Clean milk carafe thoroughly, use cold fresh milk, ensure milk is suitable for frothing. |
| Messaggio di errore sul display | Problema interno specifico. | Refer to the full user manual for specific error codes and solutions. If the issue persists, contact customer support. |
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | De'Longhi |
| Numero di modello | ECAM650.85.MS |
| Dimensioni del prodotto | 26D x 48W x 37.5H centimetri |
| Tipo di caffettiera | Espresso Machine (Fully Automatic) |
| Pressione | 19 barra |
| Energia | 1450W |
| Voltage | 220V |
| Display | 4.3" TFT Color Touchscreen |
| Caratteristiche speciali | Auto Clean Function, Coffee Link App, LatteCrema System, Hot Chocolate Function, Multibeverage Function |
| Tipo di ingresso caffè | Fagioli interi |
| Paese di origine | Italia |
Garanzia e supporto
Garanzia: The product comes with a 1-year warranty provided by SILVEOR LIFESTYLE INDIA LLP, the official importer of DeLonghi Coffee machines in India. This warranty is valid only through purchases from SILVEOR LIFESTYLE INDIA LLP authorized online partners, such as the Official Brand Distributor.
Assistenza post-vendita: For any after-sale support, please contact SILVEOR LIFESTYLE INDIA LLP. Their contact details are:
- Numero Verde: 1800 203 3450
- E-mail: Support@silveorindia.com
Conservare la ricevuta d'acquisto per eventuali reclami in garanzia.
