AKO 15226 Electronic Controller DI IP2 User Manual

1. Introduzione

This manual provides essential information for the safe and efficient use of the AKO 15226 Electronic Controller DI IP2. Please read these instructions carefully before installation, operation, or maintenance to ensure proper functioning and to prevent damage to the device or injury to personnel. Keep this manual in an accessible location for future reference.

2. Informazioni sulla sicurezza

Osservare sempre le seguenti precauzioni di sicurezza:

• Sicurezza elettrica: Installation and maintenance must be performed by qualified personnel only. Disconnect power before performing any work on the device.
• Voltage: Ensure the power supply matches the device's specified voltage (CA 230 V).
• Ambiente: Do not expose the device to excessive moisture, dust, or extreme temperatures beyond its operating range. The device has an IP2 protection rating, indicating limited protection against solid objects and no protection against liquids.
• Montaggio: Securely mount the device on a DIN rail as specified to prevent accidental dislodgement.
• Uso previsto: Use the controller only for its intended purpose as an electronic regulator for industrial applications.

3. Prodotto finitoview

The AKO 15226 is a versatile electronic controller designed for precise regulation in various industrial and scientific applications. It features a clear 3.5-digit display and supports a wide range of universal sensors, including NTC, PTC, Pt100, and TC(J,K).

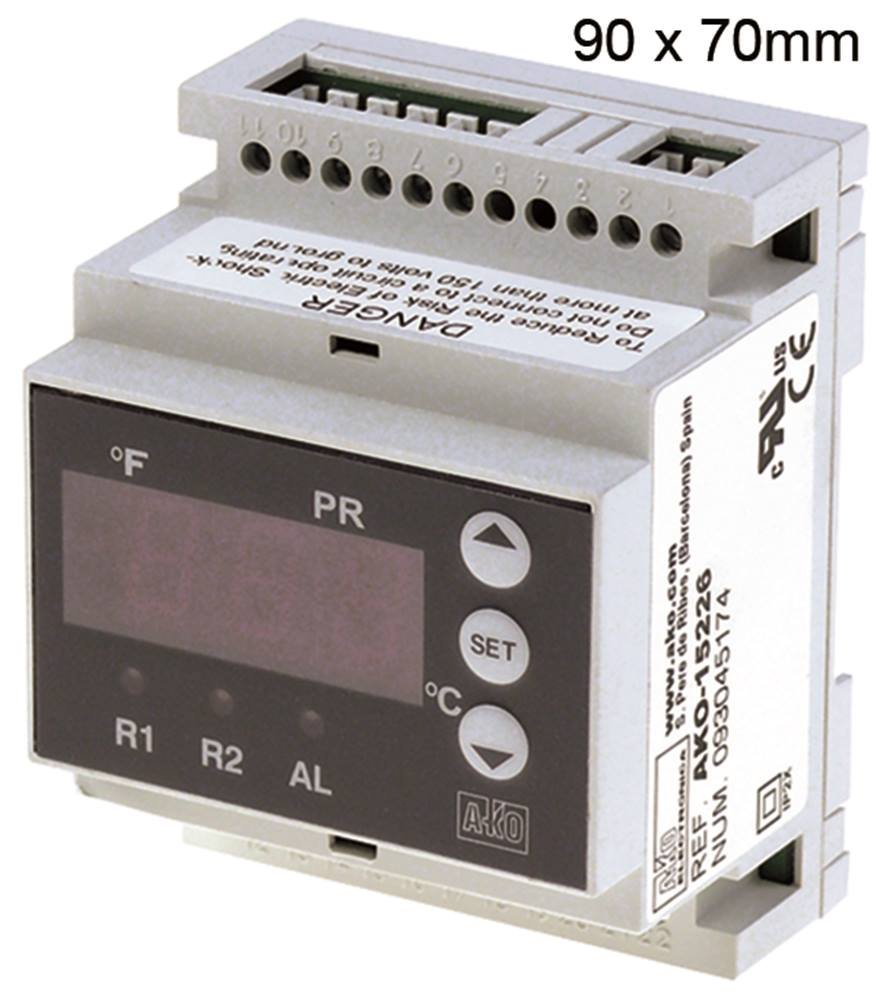

Figura 3.1: Davanti view of the AKO 15226 Electronic Controller. This image shows the compact design suitable for DIN rail mounting, with its digital display and control interface.

Caratteristiche principali:

• Display: 3.5-digit indicator for clear readings.
• Tipo di montaggio: Designed for DIN rail installation.
• Dimensioni: Installation dimensions of 90 x 70 x 58 mm.
• Profondità di installazione: 61.5 mm.
• Compatibilità sensore: Universal sensor input for NTC, PTC, Pt100, and TC(J,K)/mA.
• Produzione: Two CO-8A (4) relay outputs.
• Precisione: 1% accuracy.
• Alimentazione elettrica: CA 230V.
• Grado di protezione: IP2.

4. Impostazione

Follow these steps for proper installation of the AKO 15226 controller:

1. Disconnessione dell'alimentazione: Ensure all power to the installation area is disconnected before beginning.
2. Montaggio: Mount the controller securely onto a standard DIN rail. Ensure it clicks into place firmly.
3. Wiring Power: Connect the AC 230V power supply to the designated terminals on the controller. Refer to the wiring diagram provided with the device for correct polarity and terminal identification.
4. Collegamento del sensore: Connect your chosen NTC, PTC, Pt100, or TC(J,K)/mA sensor to the universal sensor input terminals. Observe correct wiring for the specific sensor type.
5. Connessioni di uscita: Connect the devices or systems to be controlled to the two relay output terminals (CO-8A). Ensure proper load capacity and wiring.
6. Verifica: Prima di ripristinare l'alimentazione, verificare nuovamente la sicurezza e la correttezza di tutti i collegamenti.
7. Accensione: Restore power to the system. The controller display should illuminate.

5. Istruzioni per l'uso

Once installed and powered, the AKO 15226 controller is ready for operation. The 3.5-digit display shows the current measured value from the connected sensor. Specific operating modes and parameter settings are typically accessed via front panel buttons (if present) or through a dedicated configuration interface.

• Lettura del display: The primary display indicates the real-time value from the connected sensor (e.g., temperature, pressure).
• Regolazione dei parametri: Consult the detailed programming guide (usually a separate document or integrated into the full manual) for instructions on setting control parameters such as setpoints, hysteresis, and alarm thresholds.
• Uscite relè: The two relay outputs will activate or deactivate based on the configured control logic and the measured sensor value.
• Indicatori di stato: Observe any LED indicators on the front panel for operational status, alarm conditions, or relay activation.

6. Manutenzione

Regular maintenance ensures the longevity and reliable operation of your AKO 15226 controller.

• Pulizia: Pulire periodicamente l'esterno del controller con un panno morbido e asciutto. Non utilizzare detergenti abrasivi o solventi. Assicurarsi che nessun liquido penetri nel dispositivo.
• Ispezione: Regularly inspect wiring connections for any signs of wear, corrosion, or looseness. Tighten connections as necessary.
• Controllo ambientale: Verificare che l'ambiente operativo rimanga entro gli intervalli di temperatura e umidità specificati.
• Calibrazione del sensore: If accuracy is critical, periodically check and recalibrate the connected sensors according to their respective manufacturer's guidelines.
• Aggiornamenti del firmware: Controllare il produttore website for any available firmware updates, though this model typically does not support user-updatable firmware.

7. Risoluzione Dei Problemi

If you encounter issues with your AKO 15226 controller, refer to the table below for common problems and their solutions.

8. Specifiche

Detailed technical specifications for the AKO 15226 Electronic Controller:

9. Garanzia e supporto

AKO products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official AKO website. In case of technical issues or questions not covered in this manual, please contact AKO customer support or your authorized distributor.

Please have your model number (AKO 15226) and serial number (if applicable) ready when contacting support for faster service.
