Rockville RAM12BT 12" Portable Karaoke Machine/System Instruction Manual

Introduzione

This manual provides detailed instructions for the setup, operation, and maintenance of your Rockville RAM12BT 12" Portable Karaoke Machine/System. This versatile unit functions as a portable PA speaker, karaoke machine, and multimedia player, equipped with Bluetooth connectivity, wireless microphones, and integrated LED lighting. Please read this manual thoroughly before using the product to ensure proper function and safety.

Contenuto della confezione

• (1) Rockville RAM12BT 12" Rechargeable Powered PA Speaker
• (2) Wireless VHF Microphones
• (1) NYC Acoustics USB RGB LED Light Strip Package Kit
• (1) Telecomando
• (1) Cavo di ricarica USB
• (1) Auxiliary RCA Line In/RCA Line Out Cable
• (1) Owner's Manual

Image: Rockville RAM12BT 12" Portable Karaoke Machine/System with two wireless microphones and a rechargeable battery.

Image: Remote control for the Rockville RAM12BT speaker, allowing convenient operation.

Image: NYC Acoustics USB RGB LED Light Strip Package Kit, included for ambient lighting.

Image: Auxiliary RCA Line In/RCA Line Out Cable for connecting external audio sources.

Caratteristiche del prodotto

• Amplified Pro Audio Speaker with Bluetooth Capability.
• Power Ratings: 600 Watts Peak, 300 Watts Program, 150 Watts RMS.
• High Power Class A/B Amppiù vivace.
• Bluetooth Pairing from External Music Source.
• TWS (True Wireless Stereo) allows linking two RAM speakers wirelessly for stereo sound.
• Built-In USB (2.0)/SD/MMC/MP3 Inputs with LCD Display (supports MP3, WMA, WAV).
• Built-In FM Radio Tuner.
• 5-Band Equalizer for audio adjustment.
• AUX RCA Line In/RCA Line Out.
• (1) Mic Input (XLR) and (1) Mic Input (1/4").
• Wireless VHF Mic Capability with (2) Wireless VHF Mics Included.
• Built-In 12V-7A Battery for Portability.
• Optional External Battery Connection for Extended Play Time.
• AC Power Input with Built-in Battery Charger.
• Built-In Wheels and Carry Handles for Easy Transport.
• 60oz Magnet Motor Structure, 4 Ohm 1.5" KSV High Power Voice Coil.
• 25mm, 8 Ohm Titanium Diaphragm Tweeter.
• Includes NYC Acoustics USB RGB LED Light Strip Package Kit for TV backlighting.

Impostare

1. Disimballaggio: Rimuovere con cautela tutti i componenti dall'imballaggio. Conservare l'imballaggio per un trasporto o uno stoccaggio futuri.
2. Carica iniziale: Before first use, fully charge the built-in 12V-7A battery using the provided USB charging cable and a compatible USB power adapter (not included). The unit can also operate while plugged into AC power.
3. Microfoni wireless: Insert 2x AA batteries (not included) into each wireless microphone.
4. Telecomando: Inserire 2 batterie AAA (non incluse) nel telecomando.
5. Posizionamento: Place the speaker on a stable, flat surface or mount it on a compatible 35mm speaker stand using the built-in socket.

Immagine: Lato view of the Rockville RAM12BT speaker, highlighting the carry handle for portability.

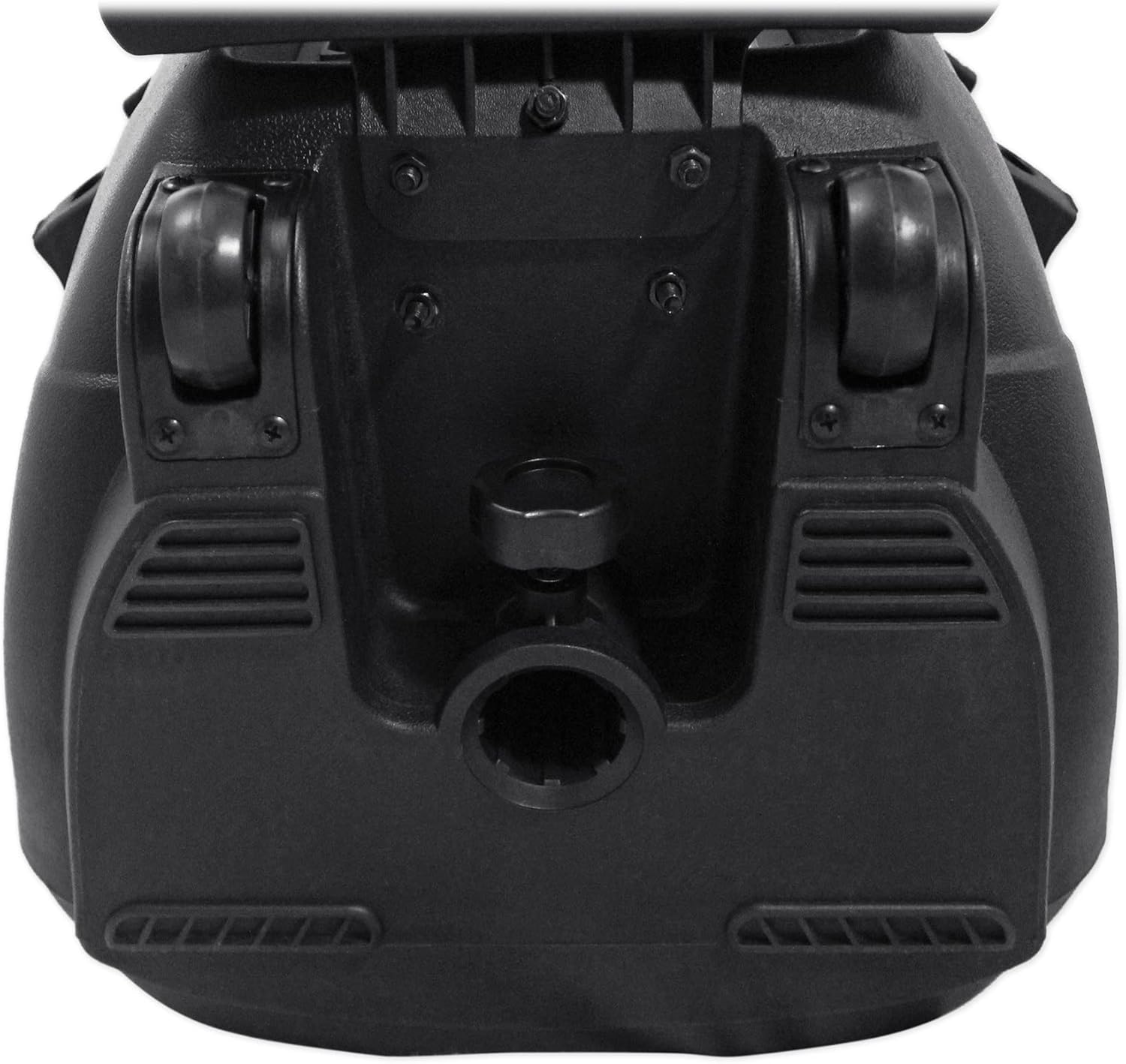

Immagine: In basso view of the Rockville RAM12BT speaker, showing integrated wheels and the speaker pole mount socket.

Istruzioni per l'uso

Accensione/spegnimento

Locate the power switch on the top panel of the speaker. Flip the switch to the "ON" position to power on the unit. The LCD display will illuminate, and the LED lights on the speaker grille will activate. To power off, flip the switch to the "OFF" position.

Image: Top panel of the Rockville RAM12BT speaker, displaying the power switch, input ports, and control knobs.

Connessione Bluetooth

1. Power on the RAM12BT speaker.
2. Press the "MODE" button on the speaker's control panel or remote until "BLUE" appears on the LCD display. The unit is now in Bluetooth pairing mode.
3. On your Bluetooth-enabled device (smartphone, tablet, etc.), search for "TONOR K20" or "Rockville" in the Bluetooth settings.
4. Select the speaker from the list to pair. Once connected, the LCD display will show "BLUETOOTH Connected!".
5. You can now play audio from your device through the RAM12BT speaker.

USB/SD/TF Card Playback

Insert a USB drive or SD/TF card (with MP3, WMA, or WAV files) into the corresponding slot on the top panel. The speaker will automatically switch to USB/SD/TF mode and begin playing the audio files. Use the "PREV", "PLAY/PAUSE", and "NEXT" buttons to control playback.

Ingresso ausiliario

Connect an external audio device (e.g., MP3 player, CD player) to the "AUX RCA Line In" ports using the provided RCA cable. Press the "MODE" button until "AUX" is displayed. Adjust the volume on both the external device and the RAM12BT speaker.

Microphone Usage (Wireless & Wired)

1. Microfoni wireless: Turn on the included wireless VHF microphones. They will automatically connect to the speaker. Adjust the individual microphone volumes using the "MIC A VOL" and "MIC B VOL" knobs on the top panel.
2. Microfoni cablati: Plug a wired microphone (not included) into the "MIC IN" (XLR or 1/4") input. Adjust the microphone volume using the "MIC VOL" knob.
3. Effetto eco: Use the "ECHO" knob to add or reduce an echo effect to the microphone audio.

Radio FM

Press the "MODE" button until "FM" is displayed. Extend the antenna for better reception. Use the "PREV" and "NEXT" buttons to scan for radio stations. The speaker will automatically save found stations.

Controllo della luce a LED

The speaker features integrated LED lights on the front grille. Use the "LED" switch on the top panel to turn the lights "ON" or "OFF". The lights will react to the music or microphone input.

TWS (True Wireless Stereo) Linking

If you have two RAM12BT speakers, you can link them wirelessly for a stereo sound experience:

1. Assicurarsi che entrambi gli altoparlanti siano accesi e non connessi ad alcun dispositivo Bluetooth.
2. Press and hold the "SCAN/TWS" button on one speaker (this will be your main speaker) for 3 seconds. The speaker will enter TWS pairing mode.
3. The main speaker will automatically search for and connect to the second speaker. Once connected, both speakers will play audio in stereo.
4. Connect your Bluetooth device to the main speaker as described in the "Bluetooth Connection" section.

Regolazioni audio

Use the "BASS" and "TREBLE" knobs on the top panel to adjust the low and high frequencies of the overall audio output. The 5-band equalizer provides more precise control over various frequency ranges.

Manutenzione

• Pulizia: Utilizzare un panno morbido e asciutto per pulire l'esterno dell'altoparlante. Evitare l'uso di detergenti abrasivi o solventi.
• Cura della batteria: Charge the built-in battery every 30 days, even if not in use, to maintain battery health and prolong its lifespan.
• Magazzinaggio: Conservare l'altoparlante in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.

Risoluzione dei problemi

Specifiche

Garanzia e supporto

For warranty information or technical support, please refer to the warranty card included in your package or visit the official Rockville websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
