Manuale utente ESC Hobbywing FLYFUN-160A-HV-OPTO-V5

1. Introduzione

This manual provides detailed instructions for the installation, setup, operation, and maintenance of your Hobbywing FLYFUN-160A-HV-OPTO-V5 Electronic Speed Controller (ESC). This high-performance ESC is designed for remote-controlled aircraft, offering robust power delivery and advanced protection features. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. Precauzioni di sicurezza

• Scollegare sempre la batteria dall'ESC quando non è in uso per evitare l'attivazione accidentale del motore.
• Assicurarsi che tutti i collegamenti siano sicuri e adeguatamente isolati per evitare cortocircuiti.
• Utilizzare in un'area ben ventilata per evitare il surriscaldamento.
• Tenere le mani e gli abiti larghi lontani dalle eliche e dai motori in rotazione.
• Verificare la corretta direzione di rotazione del motore prima del volo.
• This product is not a toy. Recommended for users 18 years and older.

3. Prodotto finitoview

The Hobbywing FLYFUN-160A-HV-OPTO-V5 is a high-voltage, high-amperage Electronic Speed Controller featuring a powerful switch-mode BEC and multiple protection functions. It is designed for demanding RC aircraft applications.

Figura 3.1: Dall'alto verso il basso view of the Hobbywing FLYFUN-160A-HV-OPTO-V5 ESC, illustrating the heat sink and various connection wires.

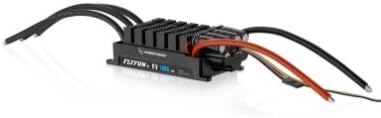

Figura 3.2: Angolato view of the Hobbywing FLYFUN-160A-HV-OPTO-V5 ESC, highlighting its compact design and connection points.

Caratteristiche principali:

• High-Power Switch-Mode BEC: Provides continuous 8A / peak 20A current, with adjustable voltage options of 5.2V, 6.0V, and 7.4V to power various onboard electronics.
• DEO Technology (Driving Efficiency Optimization): Enhances throttle response, improves flight stability and flexibility, increases driving efficiency for longer flight times, and reduces ESC temperature for reliable operation.
• Molteplici funzionalità di protezione: Includes start-up protection, over-current protection, ESC thermal protection, capacitor thermal protection, overload protection, throttle signal loss (Fail Safe), and abnormal input voltage protezione.
• Programmabilità: The ESC can be programmed via a transmitter or an optional LED program card.
• Soft Start-ups & Reverse Brake: Offers controlled motor start-up and braking capabilities.

4. Configurazione e installazione

4.1 Collegamenti di cablaggio

1. Collegamento del motore: Connect the three output wires from the ESC to the three phase wires of your brushless motor. Ensure proper soldering for a secure connection. If the motor rotates in the wrong direction, swap any two of the three ESC-to-motor wires.
2. Collegamento della batteria: Connect the red and black input wires of the ESC to the positive and negative terminals of your battery pack, respectively. Observe correct polarity to prevent damage.
3. Collegamento del ricevitore: Plug the throttle signal cable from the ESC into the throttle channel of your receiver.

4.2 BEC voltage Regolazione

The built-in BEC allows for adjustable output voltage to power your receiver and servos. The voltage can be set to 5.2V, 6.0V, or 7.4V. Refer to the programming section for instructions on how to adjust this setting. Ensure the selected voltage is compatible with your receiver and servo specifications.

4.3 Programmazione dell'ESC

The FLYFUN-160A-HV-OPTO-V5 ESC can be programmed using your transmitter or a dedicated LED program card (sold separately). While basic settings can be adjusted via transmitter, using the LED program card is recommended for comprehensive and precise configuration, including BEC voltage adjustment, brake settings, and other advanced parameters. Consult the LED program card manual for detailed programming steps.

5. Funzionamento

5.1 Accensione iniziale

1. Ensure your transmitter is powered on and the throttle stick is at its lowest position.
2. Connect the battery to the ESC. The ESC will emit a series of tones indicating successful initialization and cell count detection.
3. Wait for the arming tone, indicating the ESC is ready for operation.

5.2 Controllo dell'acceleratore

Gradually advance the throttle stick on your transmitter to control motor speed. The DEO Technology ensures a rapid and smooth throttle response, providing precise control during flight maneuvers. The soft start-up feature prevents sudden jolts to the motor and gearbox.

5.3 Reverse Brake Function

The ESC supports a reverse brake function. This feature can be configured via programming. Refer to the programming instructions for details on enabling and adjusting the brake settings.

6. Funzionalità di protezione

The Hobbywing FLYFUN-160A-HV-OPTO-V5 ESC incorporates several protection mechanisms to ensure reliable operation and prolong its lifespan:

• Protezione all'avvio: Prevents damage from improper motor start-up conditions.
• Protezione da sovracorrente: Automatically reduces power or shuts down if current draw exceeds safe limits.
• Protezione termica ESC: Reduces power or shuts down if the ESC internal temperature becomes too high.
• Capacitor Thermal Protection: Monitors and protects the capacitors from overheating.
• Protezione da sovraccarico: Safeguards against excessive load on the motor.
• Throttle Signal Loss (Fail Safe): If the throttle signal is lost for a set period, the ESC will reduce power or shut down to prevent runaway.
• Volume ingresso anomalotage Protezione: Protects the ESC from incorrect or unstable input voltage.

7. Specifiche

8. Risoluzione Dei Problemi

• Motor Not Spinning / Intermittent Operation:
  • Check all wiring connections (motor, battery, receiver) for looseness or poor soldering.
  • Ensure the battery is fully charged and capable of delivering the required current.
  • Verify that the throttle signal cable is correctly plugged into the receiver's throttle channel.
  • Confirm that the ESC has armed successfully (indicated by specific tones).
• Motor Spins in Wrong Direction:
  • Swap any two of the three ESC-to-motor phase wires.
• ESC Overheating / Thermal Cutoff:
  • Assicurare un flusso d'aria adeguato attorno all'ESC.
  • Check for excessive current draw from the motor (e.g., oversized propeller, binding drivetrain).
  • Verify that the ESC's timing settings are appropriate for your motor.
  • If using the brake function, ensure it is not causing excessive heat build-up during rapid throttle changes. Adjust brake settings if necessary.
• Difficoltà di programmazione:
  • Ensure the LED program card is correctly connected and functioning.
  • If programming via transmitter, ensure the throttle stick is at maximum during the initial programming entry sequence, then moved to minimum for parameter selection.
  • Refer to the specific programming instructions for the LED program card or transmitter method.

9. Manutenzione

• Regularly inspect all wires and connectors for signs of wear, damage, or corrosion.
• Mantenere l'ESC pulito e privo di polvere, sporco e umidità. Utilizzare una spazzola morbida o aria compressa per la pulizia.
• Ensure the heat sink fins are clear of obstructions to allow for efficient cooling.
• Quando non viene utilizzato, conservare l'ESC in un ambiente fresco e asciutto.

10. Garanzia e supporto

Hobbywing strives to provide accurate product information. However, typographical errors may occur. For the most current information regarding product descriptions, labels, and policies, please refer to the official Hobbywing websito o contattare il servizio clienti.

For information regarding warranty, returns, and support, please visit the HobbywingDirect return policy page: https://www.hobbywingdirect.com/pages/return-policy.
