1. Introduzione
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Epson WorkForce ET-4750 EcoTank Wireless Color All-in-One Supertank Printer. This device integrates printing, scanning, copying, and faxing functionalities, designed for efficiency and ease of use.
The ET-4750 features a cartridge-free ink system with large, refillable ink tanks, offering a cost-effective printing solution. It also includes a 2.4-inch color touchscreen for intuitive navigation and supports various connectivity options.
2. Guida all'installazione
2.1 Disimballaggio e ispezione iniziale
Carefully remove the printer from its packaging. Ensure all components listed in the 'What's in the Box' section are present. Remove all protective tapes and packing materials from the printer's exterior and interior.
2.2 Riempimento dei serbatoi di inchiostro
The Epson WorkForce ET-4750 utilizes an EcoTank system, eliminating the need for traditional ink cartridges. Follow these steps to fill the ink tanks:
- Aprire il coperchio del serbatoio dell'inchiostro sul lato destro della stampante.
- Open the cap for each color tank (Black, Cyan, Magenta, Yellow).
- Uncap the corresponding ink bottle (Epson 502 series). The bottles are designed with unique keys to prevent incorrect filling.
- Insert the ink bottle into the filling port. The ink will automatically start flowing into the tank and stop when full.
- Once the tank is full, remove the bottle and securely close the tank cap and the ink tank unit cover.
- Ripetere l'operazione per tutti i colori.
Image: Refilling the ink tanks on the Epson ET-4750. The unique key system ensures each color bottle fits only its designated tank, preventing accidental mixing.
Video: Demonstrates the process of filling the ink tanks and highlights the printer's multi-function capabilities including scanning and copying.
2.3 Caricamento della carta
The printer features a high-capacity 250-sheet paper tray. To load paper:
- Estrarre il cassetto della carta dalla parte anteriore della stampante.
- Regolare le guide della carta in base al formato della carta.
- Load up to 250 sheets of plain paper, print-side down.
- Spingere delicatamente il cassetto della carta nella stampante finché non scatta in posizione.

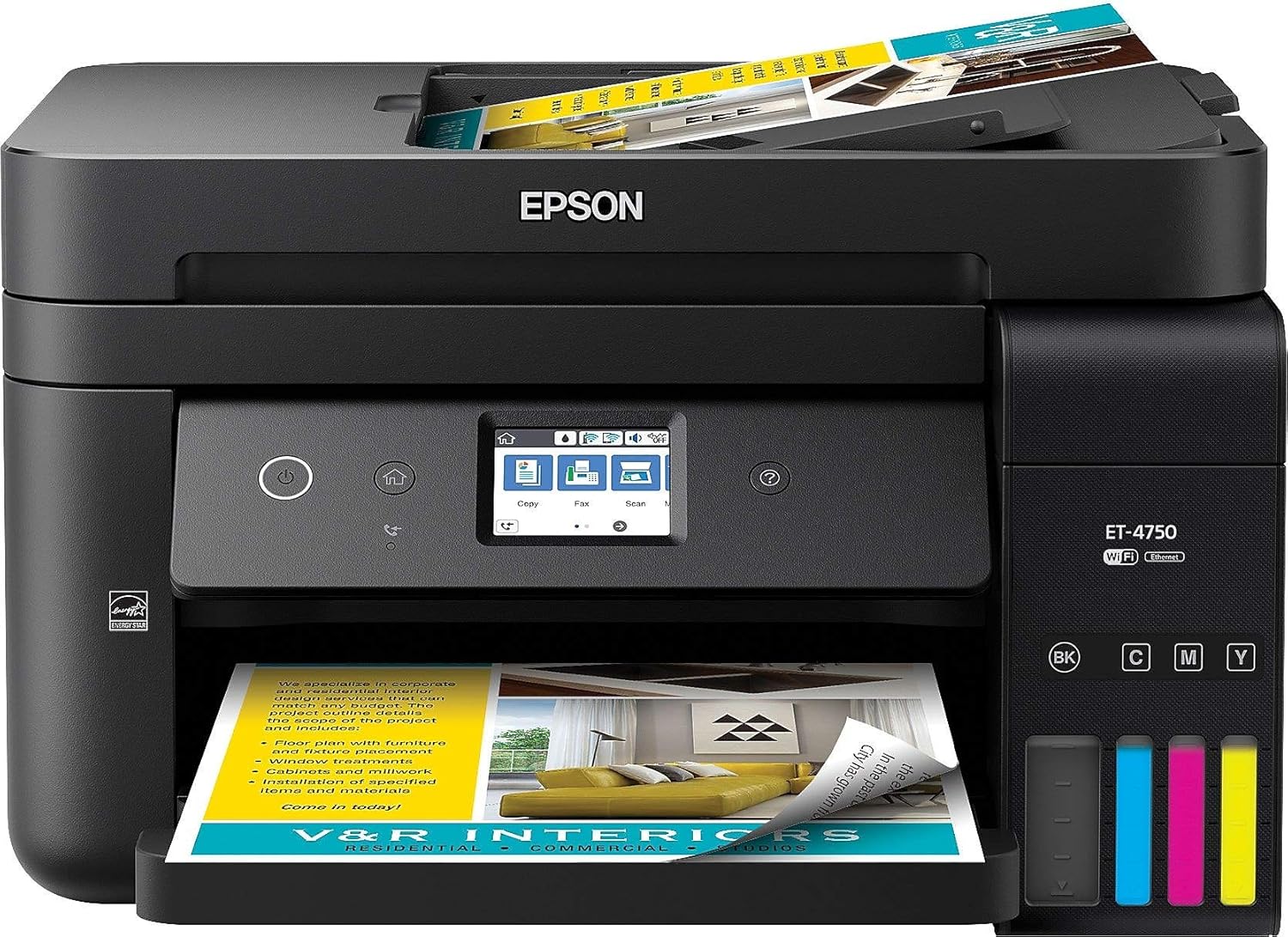

Image: The Epson ET-4750 printer with its paper tray extended and paper loaded, showcasing its readiness for printing tasks.
Video: Illustrates loading paper into the 250-sheet capacity tray and using the 30-sheet auto document feeder for scanning.
2.4 Connecting Your Printer
L'ET-4750 offre molteplici opzioni di connettività:
- Senza fili (Wi-Fi): Use the 2.4-inch color touchscreen to navigate to the Wi-Fi setup wizard and connect to your wireless network.
- Collegamento Ethernet: Collegare un cavo Ethernet dal router alla porta Ethernet della stampante.
- USB: Collegare un cavo USB (non incluso) dal computer alla porta USB della stampante.
Image: Wireless printing from a smartphone to the Epson ET-4750, demonstrating its mobile connectivity features.
3. Utilizzo della stampante
3.1 Utilizzo del pannello di controllo
The printer features a 2.4-inch color touchscreen for easy navigation and control of all functions. Use the touch-and-swipe interface to select options for printing, scanning, copying, and faxing, as well as to access settings and troubleshooting information.
3.2 Stampa dei documenti
To print, ensure the printer is connected to your device and paper is loaded. Select the print option from your computer or mobile device. The ET-4750 supports automatic two-sided (duplex) printing to save paper.
3.3 Scansione di documenti
The printer offers two methods for scanning:
- Alimentatore automatico di documenti (ADF): For scanning multiple pages, place your documents face-up in the ADF tray. The ADF can hold up to 30 sheets.
- Scanner piano: For single pages, books, or irregular items, lift the scanner lid and place the item on the glass.
Select the 'Scan' option on the control panel or from your computer's scanning software to initiate the scan.

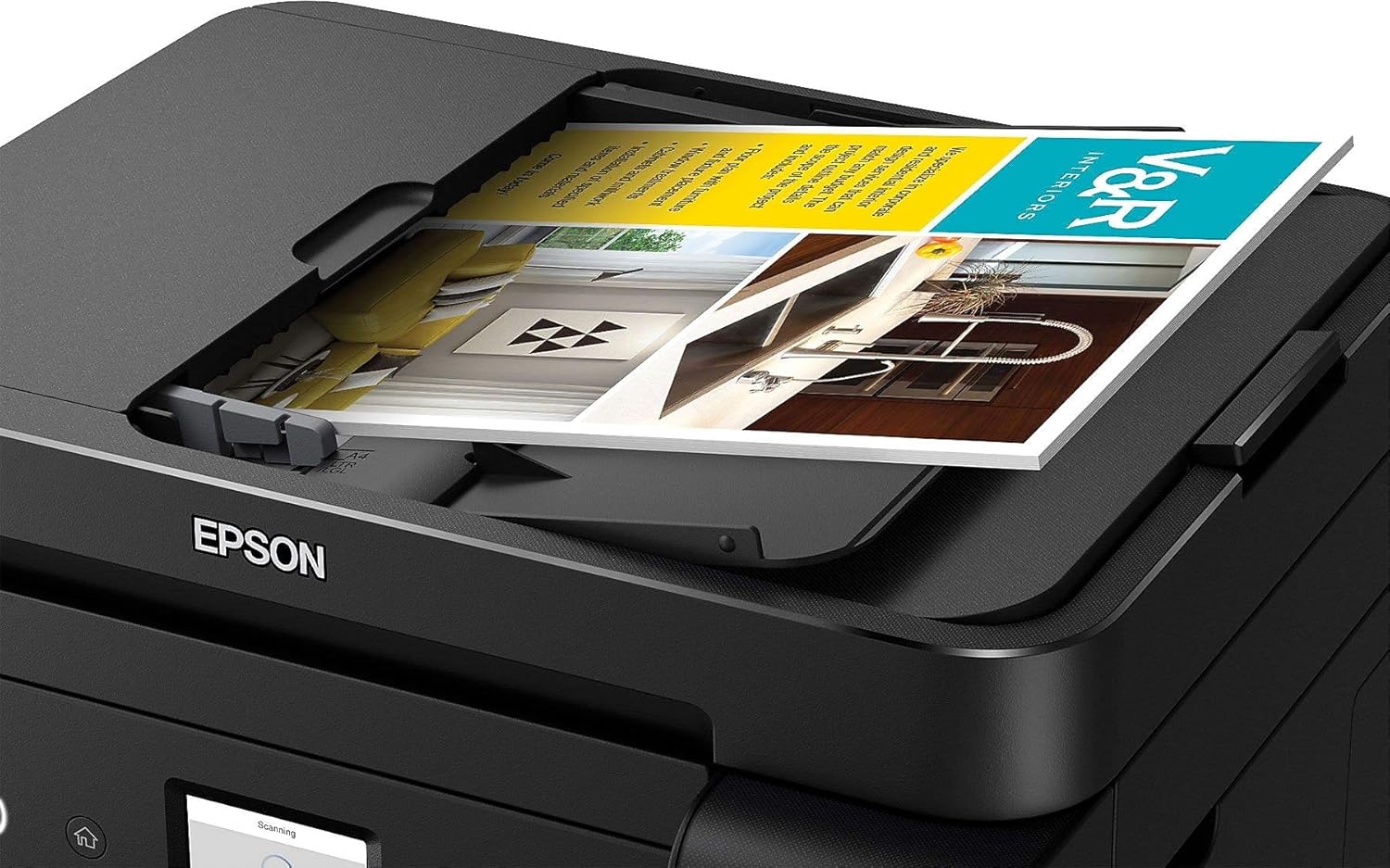

Image: The Automatic Document Feeder (ADF) in action on the Epson ET-4750, ready to process multiple pages for scanning or copying.
3.4 Copia dei documenti
To make copies, place your original document on the flatbed scanner or in the ADF. Use the control panel to select 'Copy', adjust settings such as number of copies, color/black & white, and then press the start button.
3.5 Invio di documenti via fax
The ET-4750 includes fax functionality. Connect a phone line to the printer's fax port. Use the control panel to enter the recipient's fax number and send your document.
4. Manutenzione
4.1 Monitoraggio dei livelli di inchiostro
The transparent ink tanks on the front of the printer allow for easy visual monitoring of ink levels. Refill tanks promptly when levels are low to ensure continuous operation and prevent air from entering the ink system.
Image: The transparent ink tanks on the side of the Epson ET-4750, allowing users to easily monitor ink levels for each color.
4.2 Pulizia e allineamento della testina di stampa
If print quality declines (e.g., missing lines, streaking), perform a print head cleaning or alignment using the printer's control panel or the printer software on your computer. Refer to the on-screen instructions for detailed steps.
4.3 Sostituzione della scatola di manutenzione
The printer has a user-replaceable maintenance box that collects waste ink. When the printer indicates that the maintenance box is full, replace it according to the instructions provided on the printer's screen or in the full user guide.
5. Risoluzione Dei Problemi
For common issues, consult the printer's 2.4-inch color touchscreen, which often provides guided troubleshooting steps. Below are general tips for frequent problems:
- Inceppamenti della carta: Follow the on-screen instructions to clear paper jams. Always turn off the printer before attempting to remove jammed paper.
- Problemi di qualità di stampa: Perform a nozzle check, print head cleaning, or print head alignment. Ensure you are using genuine Epson ink.
- Problemi di connettività: Verify Wi-Fi or Ethernet cable connections. Restart your router and printer. Ensure printer drivers are up to date.
6. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Dimensioni del prodotto (P x L x A) | 16.4" x 19.8" x 10" |
| Peso dell'articolo | 15 libbre |
| Dimensione massima del supporto | 8.5 x 14 pollici |
| Capacità massima del foglio di input | 250 fogli |
| Velocità di stampa massima (monocromatica) | 11 ppm |
| Velocità massima di stampa (colore) | 5.5 ppm |
| Risoluzione massima di stampa a colori | 2400 dpi |
| Risoluzione massima di stampa in bianco e nero | 1200 dpi |
| Stampa fronte-retro | Automatico |
| Tipo di scanner | Alimentato a foglio |
| Tecnologia di connettività | Hi-Speed USB 2.0, Wi-Fi (802.11n only), Wi-Fi Direct, Ethernet |
| Colore dell'inchiostro | Cyan, Magenta, Yellow, Black (Epson 502 series) |
| Metodo di controllo | Voice (Amazon Alexa, Vera), Touchscreen |
7. Garanzia e supporto
The Epson WorkForce ET-4750 EcoTank printer comes with a 12-month standard limited warranty or 50,000 plain paper sheets (whichever comes first). An additional 12 months of warranty (total of 24 months or 50,000 sheets) may be available upon product registration and exclusive use of genuine Epson ink bottles.
For detailed warranty information, technical support, driver downloads, and additional resources, please visit the official Epson support website. Using non-Epson inks or inks not formulated for your specific printer may cause damage not covered by the Epson warranty.
