Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE Grohtherm SmartControl Thermostatic Trim 29161LS0. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Configurazione e installazione
The GROHE Grohtherm SmartControl Thermostatic Trim is designed for concealed installation. It is crucial that this product is installed in combination with the GROHE Rapid Smart Box (35601000), which is sold separately. Professional installation is recommended due to the complexity of concealed plumbing systems.
Caratteristiche principali dell'installazione:
- GROHE QuickFix System: Ensures swift and straightforward installation with covered escutcheon and shaft sealing, and covered fixing.
- Angle Adjustable: The metal wall escutcheon features slotted fixation holes, allowing the trim to be angle-adjusted up to 6 degrees. This provides a flexible solution if the rough-in is not perfectly level.
- Sottile Profile: The 3/8" (10mm) thin profile escutcheon contributes to a minimalist and streamlined aesthetic.
Istruzioni per l'uso
The Grohtherm SmartControl Thermostatic Trim offers intuitive control over your shower or bath experience.
Controllo della temperatura:
- The main central knob controls the water temperature. Rotate it to adjust the temperature to your preference.
- GROHE Safe Stop: For safety, the trim includes a safety button that limits the maximum temperature to 100°F (38°C) to prevent scalding. To exceed this temperature, press and hold the Safe Stop override button while rotating the knob further.
- GROHE Turbostat Technology: This integrated technology ensures constant water temperature, preventing unpleasant fluctuations during your shower or bath.
Selezione del flusso e dell'uscita dell'acqua:

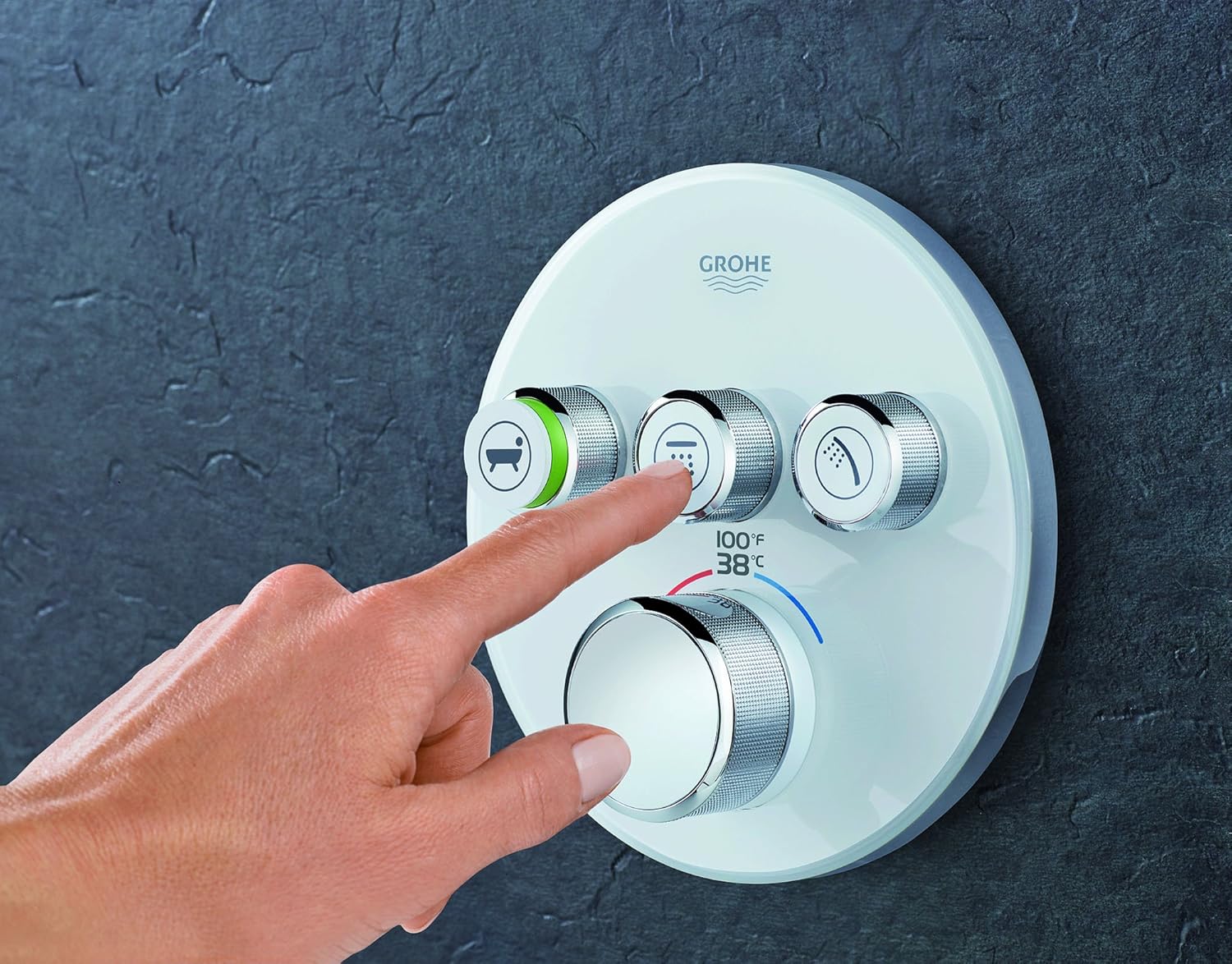

- The three outer buttons allow you to select and control different water outlets (e.g., hand shower, head shower, body spray, or bath filler).
- Controllo intelligente: Push a button to turn an outlet ON or OFF. Turn the button to adjust the water volume from Eco Joy (reduced flow) to Full Flow.
- Prese multiple: This trim supports running multiple outlets simultaneously, providing flexibility for various shower setups.
- Easy Logic Markings: The buttons feature clear, exchangeable symbols for intuitive identification of each outlet.
Video ufficiale del prodotto:
Video 1: GROHE SmartControl Operation. This video demonstrates the push-turn functionality of the SmartControl buttons for selecting outlets and adjusting water volume.
Manutenzione e cura
To maintain the pristine appearance and optimal function of your GROHE Grohtherm SmartControl Thermostatic Trim, follow these care guidelines:
- Pulizia: Il professionista magrofile and durable GROHE Starlight Moon finish are designed for easy cleaning. Use only mild soap and water with a soft cloth. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Ispezione regolare: Periodically check the trim for any signs of wear or damage. Ensure all buttons and knobs operate smoothly.
- Qualità dell'acqua: In areas with hard water, mineral deposits may accumulate. Regular cleaning helps prevent buildup.
Risoluzione dei problemi
If you encounter issues with your thermostatic trim, consider the following:
- Fluttuazioni di temperatura: While GROHE Turbostat technology minimizes fluctuations, ensure your water heater is functioning correctly and there are no sudden changes in household water demand. If persistent, consult a plumber.
- Basso flusso d'acqua: Check if the volume control on the SmartControl buttons is set to full flow. Ensure the main water supply to your shower is adequate.
- I pulsanti non rispondono: Verify that the trim is correctly installed and connected to the GROHE Rapid Smart Box. If issues persist, professional assistance may be required.
- Perdita: Any signs of leaking should be addressed immediately by a qualified plumber to prevent water damage.
For complex issues or repairs, it is highly recommended to contact a certified plumber or GROHE customer service.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | 29161LS0 |
| Marca | GROHE |
| Colore | Luna Bianca |
| Materiale | Metallo |
| Stile | Triplicare |
| Modello | Girare |
| Dimensioni del prodotto | 6.09 x 12.58 x 4.79 pollici |
| Peso dell'articolo | 1.59 libbre |
| Pressione massima di esercizio | 43.5 libbre per pollice quadrato |
| Numero di porte | 3 |
| Consumo di acqua | 9.5 galloni al minuto |
| Metodo di installazione | Montato a parete |
| Componenti inclusi | Control Module, Installation Manual, Metal wall escutcheon, Thermostatic Trim |
| Required Rough-in Set | GROHE Rapid Smart Box (35601000) - Sold Separately |
Informazioni sulla garanzia
Questo prodotto GROHE è dotato di un LIMITATO warranty. For specific details regarding the terms, conditions, and duration of your warranty, please refer to the official warranty documentation included with your product or visit the official GROHE websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
Assistenza clienti
For further assistance, technical support, or to inquire about replacement parts, please contact GROHE customer service. You can find contact information on the official GROHE websito o tramite la confezione del prodotto.
Risorse online: Visit GROHE's official websito per la registrazione del prodotto, le FAQ e ulteriore supporto.
