1. Prodotto finitoview
This manual provides instructions for the installation, operation, and maintenance of the GROHE Rainshower 310 Smartactive Cube Head Shower Set. This ceiling-mounted shower set features a 310mm square showerhead with a 142mm shower arm, offering two distinct spray options that can be used individually or combined. The unit incorporates GROHE's Inner WaterGuide insulation to prevent surface overheating and an integrated anti-limescale system with SpeedClean nozzles for easy maintenance.

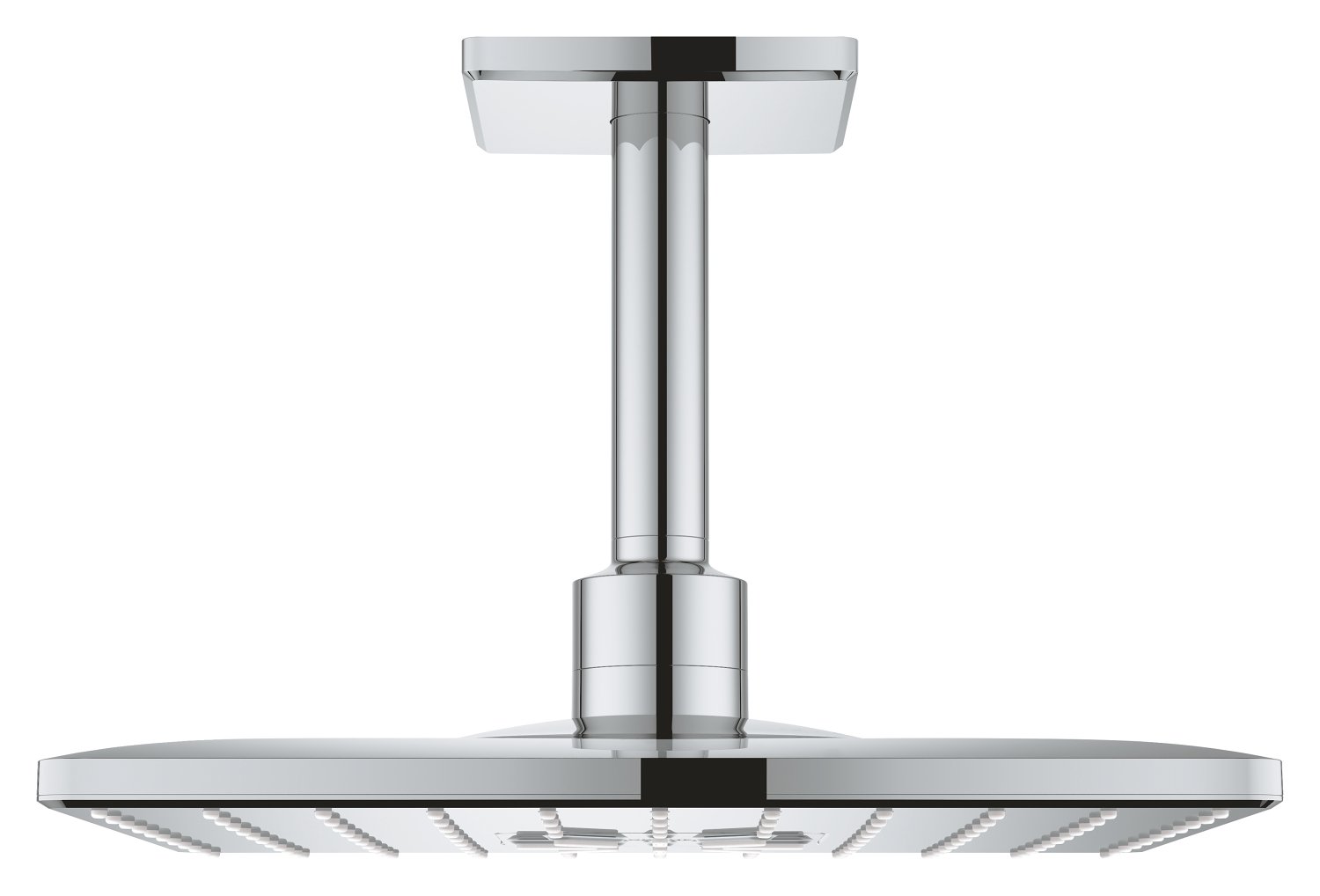

Figure 1.1: GROHE Rainshower 310 Smartactive Cube Head Shower Set (Chrome Finish)
2. Informazioni sulla sicurezza
Leggere attentamente tutte le istruzioni prima dell'installazione e dell'uso. Conservare il presente manuale per riferimento futuro.
- L'installazione deve essere eseguita da un professionista qualificato per garantire il corretto funzionamento e la conformità alle normative idrauliche locali.
- Prima di iniziare qualsiasi lavoro di installazione o manutenzione, assicurarsi che l'alimentazione idrica sia chiusa.
- Questo prodotto è progettato per l'uso con scaldabagni istantanei (scaldacqua chiusi), bagni termali e accumulatori. È non adatto all'uso con scaldabagni aperti (dispositivi a bassa pressione).
- Non utilizzare detergenti abrasivi o prodotti chimici aggressivi sulla finitura cromata, poiché potrebbero danneggiarne la superficie.
- Verificare che tutti i collegamenti siano sicuri e a tenuta stagna per evitare perdite.
3. Contenuto della confezione
Prima di procedere con l'installazione, verificare che tutti i componenti siano presenti e integri.
- GROHE Rainshower 310 Smartactive Cube Head Shower (310mm)
- Ceiling-Mounted Shower Arm (142mm)
- Mounting Hardware (screws, anchors, seals)
- Manuale di istruzioni
4. Configurazione e installazione
The GROHE Rainshower 310 Smartactive Cube Head Shower is designed for ceiling installation. Accurate measurements and secure mounting are critical for proper function and safety.
4.1. Controlli pre-installazione
- Ensure the ceiling structure can support the weight of the showerhead and arm, especially when filled with water.
- Confirm that the water supply lines are correctly positioned and accessible for connection.
- Verify compatibility with your water heating system as specified in Section 2.
4.2. Dimensioni e montaggio
Refer to the dimension diagram below for precise measurements required for ceiling cutout and installation depth. The shower arm length is 142mm, and the showerhead diameter is 310mm.

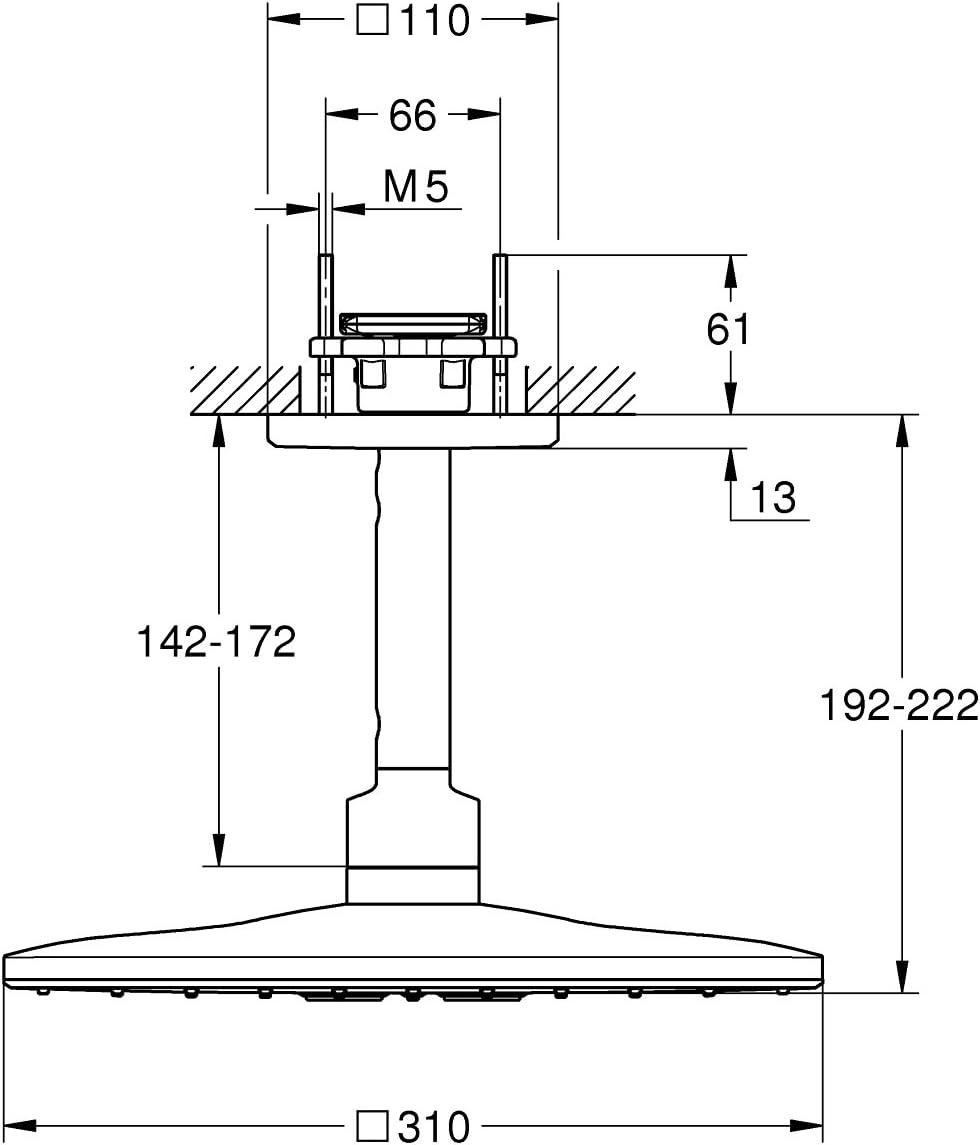

Figure 4.1: Installation Dimensions (All measurements in mm)
The installation requires a ceiling opening for the shower arm connection. The total height from the ceiling surface to the bottom of the showerhead ranges from 192mm to 222mm, depending on the adjustable arm extension (142-172mm from the mounting point).

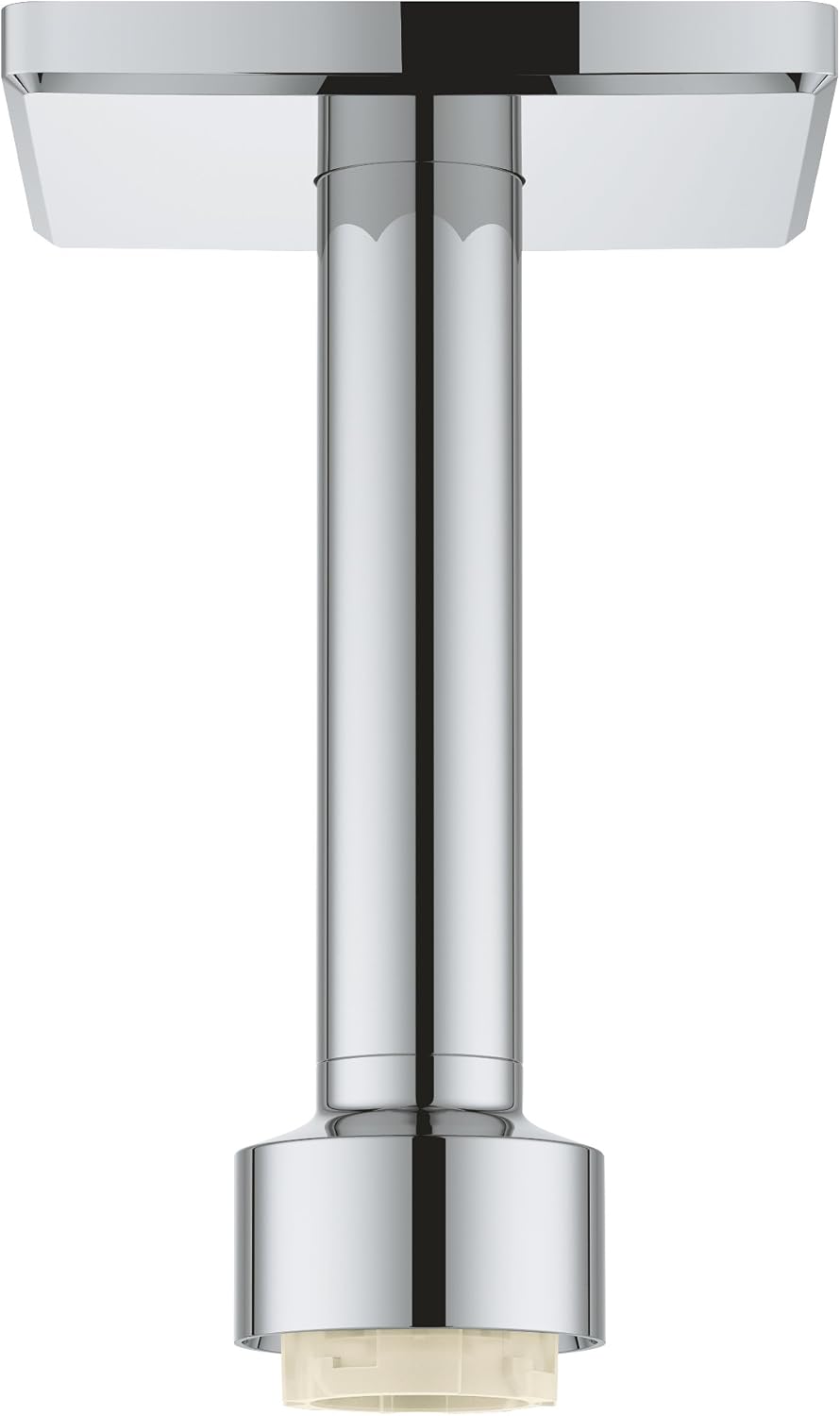

Figure 4.2: Shower Arm and Head Connection Detail
4.3. Fasi di installazione
- Mark the desired position for the showerhead on the ceiling.
- Create the necessary ceiling cutout according to the dimension diagram (Figure 4.1).
- Install the rough-in box (if applicable, e.g., GROHE Box Ref 264840000) and connect the water supply lines.
- Secure the ceiling-mounted shower arm to the rough-in box or directly to the ceiling structure using the provided mounting hardware. Ensure a watertight seal.
- Attach the Rainshower 310 Smartactive Cube Head Shower to the shower arm. Hand-tighten first, then use a wrench if necessary, being careful not to overtighten.
- Aprire l'erogazione idrica e verificare che non vi siano perdite.
5. Istruzioni per l'uso
The GROHE Rainshower 310 Smartactive Cube Head Shower offers two distinct spray patterns for a personalized shower experience.
Figure 5.1: Showerhead with Spray Options
5.1. Spray Options
- DreamSpray: This setting provides a balanced flow from all nozzles for a luxurious and even spray.
- PureRain / JetRain: This powerful, improved spray option delivers a focused and invigorating water flow.
5.2. Switching Spray Patterns
The showerhead allows you to select between the two spray options or combine them. The method for switching spray patterns is typically integrated into the shower mixer or a diverter valve (sold separately). Consult your shower mixer's manual for specific instructions on how to activate and switch between the DreamSpray and PureRain/JetRain functions.
6. Manutenzione
Regular cleaning and maintenance will ensure the longevity and optimal performance of your GROHE Rainshower 310 Smartactive Cube Head Shower.
- Pulizia della finitura: The GROHE StarLight technology ensures a long-lasting chrome finish resistant to dirt and scratches. Clean the surface with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome fixtures. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Anti-Limescale System (SpeedClean): The integrated SpeedClean nozzles are designed for easy limescale removal. Simply wipe the silicone nozzles with your finger or a soft cloth to dislodge any mineral deposits. This should be done regularly, especially in hard water areas.
- Guida all'acqua interna: The Inner WaterGuide insulation keeps hot water away from the surfaces, preventing them from overheating and extending the product's lifespan. No specific user maintenance is required for this feature.
7. Risoluzione Dei Problemi
Se riscontri problemi con il soffione della doccia, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Flusso d'acqua ridotto | Limescale buildup in nozzles | Wipe SpeedClean nozzles to remove deposits (see Section 6). |
| Modello di spruzzo non uniforme | Ugelli bloccati | Clean individual nozzles by gently rubbing them. |
| Perdite nei collegamenti | Collegamenti allentati o guarnizioni danneggiate | Ensure all connections are tightened correctly. Replace seals if damaged. If problem persists, contact a professional plumber. |
| No water or very low pressure | Water supply turned off, main water pressure issue, or blockage in supply line | Check main water supply. Consult a professional plumber if the issue is not resolved. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti GROHE o un idraulico qualificato.
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | GROHE |
| Numero di modello | 26481000 |
| Stile | Ceiling installation (cubic design) |
| Forma | Piazza |
| Materiale | Ottone |
| Tipo di finitura | Cromo lucido |
| Tipo di installazione | Montaggio a soffitto |
| Dimensioni del prodotto | 17.01"L x 13.7"W (circa 43.2 cm L x 34.8 cm W) |
| Numero di impostazioni di spruzzatura | 2 (DreamSpray, PureRain/JetRain) |
| Portata | 2.0 GPM (galloni al minuto) |
| Caratteristiche speciali | Inner WaterGuide insulation, Integrated anti-limescale system (SpeedClean) |
| Peso dell'articolo | 5.94 libbre (circa 2.69 kg) |
9. Garanzia e supporto
GROHE products are manufactured to the highest standards and come with a comprehensive warranty.
9.1. GROHE 5 Year Guarantee
This product is covered by a GROHE 5 Year Guarantee, ensuring quality and reliability. Please retain your proof of purchase for warranty claims.
Figure 9.1: GROHE 5 Year Guarantee
9.2. International Products
Please note that international products may have separate terms, are sold from abroad, and may differ from local products, including fit, age ratings, and language of product, labeling, or instructions. For specific warranty details in your region, refer to the documentation provided with your purchase or visit the official GROHE websito.
9.3. Assistenza clienti
For further assistance, technical support, or warranty inquiries, please contact GROHE customer service through their official websito o le informazioni di contatto fornite con la documentazione del prodotto.
