De'Longhi Solenoid Valve 5212810211 Instruction Manual

1. Introduzione

This manual provides instructions for the proper installation, function, and care of your De'Longhi Solenoid Valve, model 5212810211. This component is an original De'Longhi replacement part designed for use in compatible steam irons and steam generators. Please read this manual thoroughly before attempting any installation or maintenance.

2. Istruzioni di sicurezza

• Scollegare l'alimentazione: Always ensure the appliance is unplugged from the power source before attempting any installation, removal, or maintenance of the solenoid valve. Failure to do so can result in electric shock or injury.
• Installazione professionale: Installation of this component should ideally be performed by a qualified technician. If you are not experienced with appliance repair, seek professional assistance.
• Equipaggiamento protettivo: Durante l'installazione, indossare adeguati dispositivi di protezione individuale, come occhiali e guanti di sicurezza, per evitare lesioni.
• Parti originali: Use only genuine De'Longhi replacement parts to ensure compatibility and safe operation.
• Water and Steam: Be aware of residual water or steam in the appliance, which may be hot. Allow the appliance to cool completely before servicing.

3. Prodotto finitoview

The De'Longhi Solenoid Valve 5212810211 is a critical component in steam irons and steam generators. It consists of an electro-solenoid valve and a coil, working together to control the flow of water and steam within the appliance. When activated, the valve opens or closes, allowing or stopping the passage of steam as required for ironing.

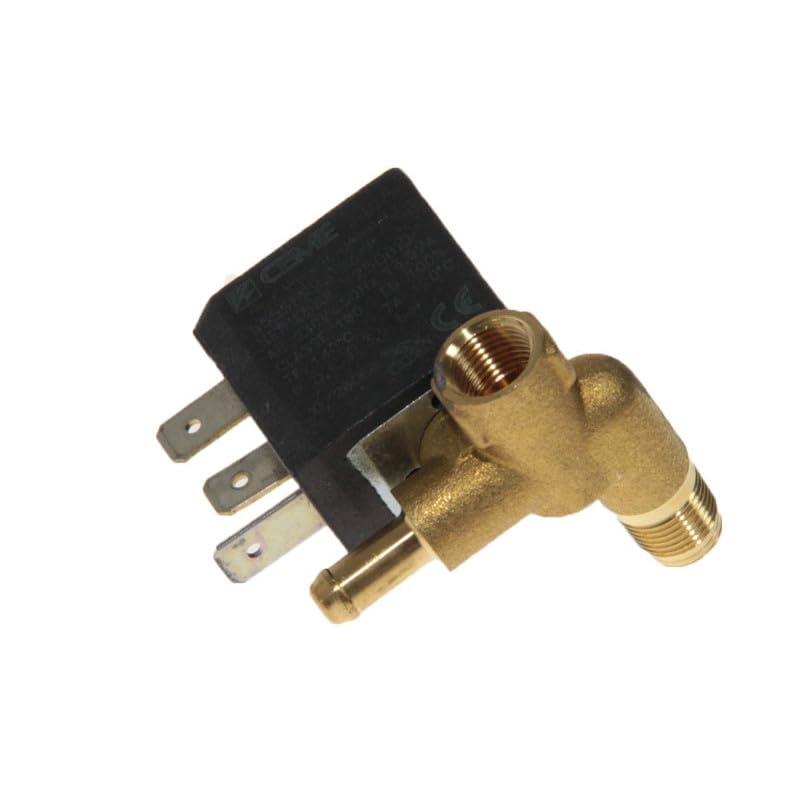

Figura 1: De'Longhi Solenoid Valve 5212810211. This image shows the compact design of the solenoid valve, including its electrical coil and valve body, ready for installation into a compatible De'Longhi appliance.

4. Installazione (configurazione)

This section outlines the general steps for replacing a solenoid valve. Specific procedures may vary depending on your appliance model. Always refer to your appliance's service manual for detailed, model-specific instructions.

1. Preparazione: Ensure the appliance is completely cool and disconnected from the power supply. Drain any remaining water from the steam generator or iron.
2. Accesso: Aprire con cautela l'apparecchio casing to gain access to the existing solenoid valve. This may involve removing screws or clips.
3. Disconnetti: Disconnect the electrical wiring from the old solenoid valve. Note the orientation and connection points for reassembly. Disconnect any water or steam hoses attached to the valve.
4. Rimuovere la vecchia valvola: Unscrew or unclip the old solenoid valve from its mounting.
5. Installare la nuova valvola: Position the new De'Longhi 5212810211 solenoid valve in the same location and secure it.
6. Riconnetti: Reconnect the water/steam hoses and the electrical wiring to the new valve, ensuring all connections are secure and correctly oriented.
7. Rimontare: Rimontare con attenzione l'apparecchio casing.

Strumenti necessari: Depending on your appliance, you may need screwdrivers, pliers, and possibly a wrench.

5. Funzionamento

Once installed, the solenoid valve operates automatically as part of your steam iron or steam generator's system. When the appliance is powered on and the steam function is activated, the electrical coil energizes, opening the valve to allow steam to flow. When the steam function is deactivated, the coil de-energizes, closing the valve and stopping the steam flow.

Test iniziale: After installation, fill the appliance with water and plug it in. Allow it to heat up. Test the steam function to ensure the new solenoid valve is operating correctly and there are no leaks.

6. Manutenzione

The De'Longhi Solenoid Valve 5212810211 is designed for durability and typically requires no user-level maintenance. However, regular inspection of the appliance's internal components during other service procedures can help identify potential issues early.

• Ispezionare le connessioni: Periodically check the electrical and hose connections to the valve for any signs of corrosion, wear, or leaks.
• Pulizia: Ensure the area around the valve remains free from mineral deposits or debris, which could impede its function.

7. Risoluzione Dei Problemi

If your appliance exhibits issues related to steam production after valve replacement, consider the following:

For complex issues, it is recommended to contact a qualified appliance repair technician or De'Longhi customer support.

8. Specifiche

• Numero modello: 5212810211
• Marca: De'Longhi
• Dimensioni del prodotto (L x P x A): Dimensioni: 3.2 x 2.2 x 4.2 cm
• Peso dell'articolo: 100 grammi
• ASIN: B078HH758C
• Compatibilità: Original replacement part for various De'Longhi steam irons and steam generators. Refer to your appliance's identification plate for compatibility verification.

9. Garanzia e supporto

Warranty information for this replacement part is typically covered under the terms provided by the original seller or the appliance manufacturer. Please retain your proof of purchase for any warranty claims.

For technical support or inquiries regarding specific appliance compatibility, please contact De'Longhi customer service or refer to the support resources provided with your original appliance.
