TOTO L250C Wall-Mounted Washbasin (Medium Size) - White Instruction Manual

1. Introduzione

This manual provides instructions for the TOTO L250C wall-mounted washbasin. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. This washbasin is designed for wall-mounting and is a medium-sized unit, available in #NW1 White.

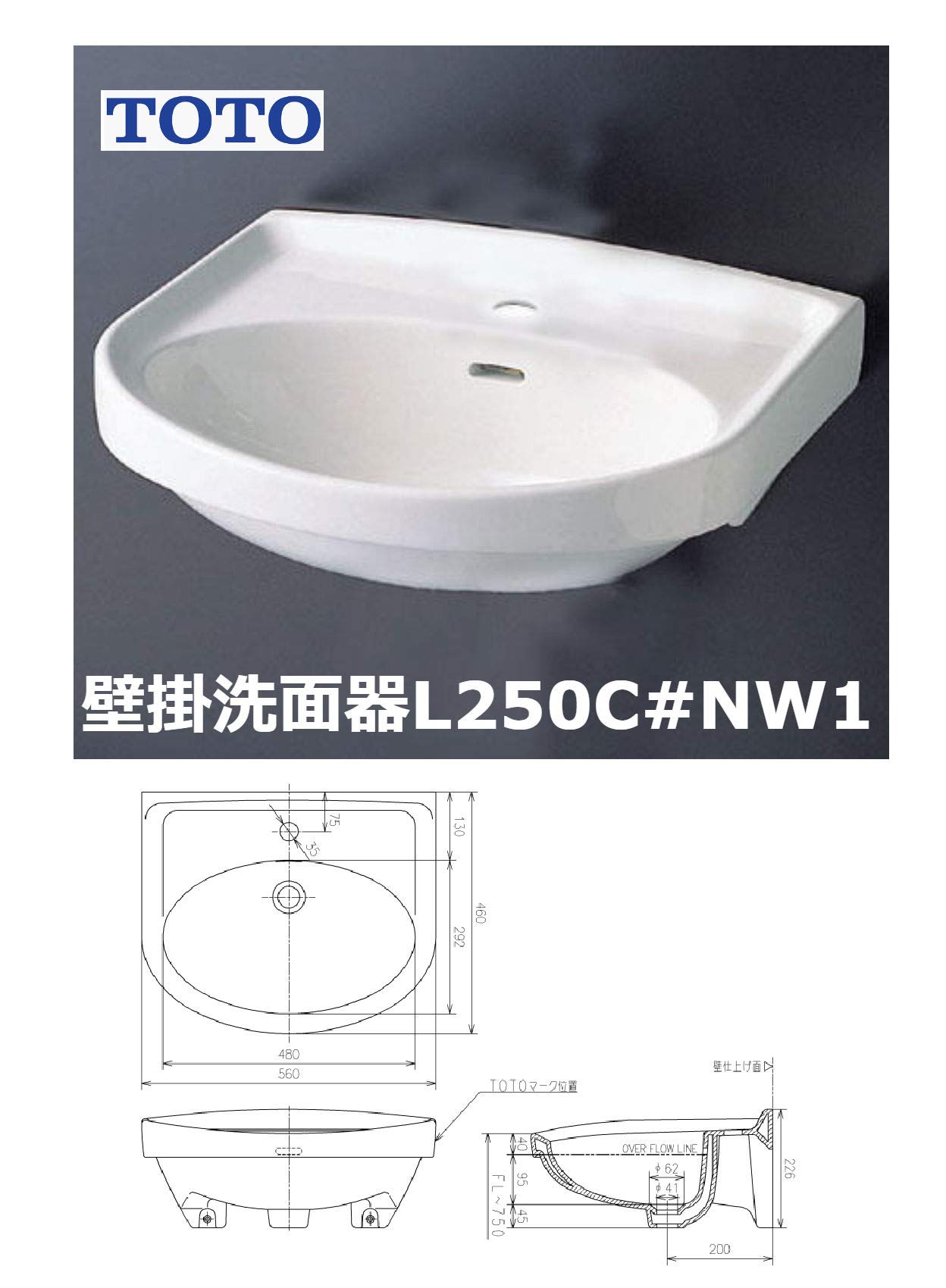

Immagine 1.1: anteriore view of the TOTO L250C Wall-Mounted Washbasin in White.

2. Caratteristiche del prodotto

• Peso del prodotto: 13.5 kg
• Peso del pacco: 14.5 kg
• Actual Capacity: 6.5 liters
• Design a parete per ottimizzare lo spazio.
• Medium size for versatile application.
• Available in #NW1 White finish.

Note: #SR2 Pastel Pink and #NG2 White Gray are made-to-order products, with delivery taking approximately 2 weeks.

3. Configurazione e installazione

The TOTO L250C is a wall-mounted washbasin. Proper installation is crucial for safety and functionality. It is highly recommended that installation be performed by a qualified professional.

3.1 Controlli pre-installazione

• Verificare che tutti i componenti siano presenti e non danneggiati.
• Ensure the wall structure is adequate to support the weight of the washbasin quando riempito d'acqua.
• Confirm the model number, color, dimensions, and product specifications on the official TOTO manufacturer's website before proceeding with installation.

3.2 Fasi di installazione (linee guida generali)

1. Mark the desired mounting height and positions for the wall brackets or bolts.
2. Drill pilot holes and secure the mounting hardware to the wall according to the manufacturer's detailed instructions.
3. Carefully lift and attach the washbasin to the secured mounting hardware.
4. Connect the water supply lines and drain assembly. Ensure all connections are watertight.
5. Verificare la presenza di perdite e il corretto drenaggio.

For detailed, model-specific installation instructions, diagrams, and required tools, please refer to the official TOTO manufacturer's website or the installation guide provided with the product packaging.

4. Istruzioni per l'uso

The TOTO L250C washbasin is designed for standard personal hygiene use. Ensure the faucet (not included with the washbasin unit) is properly installed and connected to a water supply.

4.1 Utilizzo di base

• Turn on the faucet to dispense water for washing hands, face, or other personal hygiene needs.
• Adjust water temperature and flow as desired using the faucet controls.
• After use, turn off the faucet completely to prevent water waste and leaks.

4.2 Considerazioni sul flusso dell'acqua

If a faucet is included or purchased separately, please note that due to manufacturer's water flow testing, residual water may occasionally be present inside the faucet or washbasin upon delivery. This is a normal part of the quality assurance process and does not indicate a product defect or quality issue.

5. Manutenzione

Regular cleaning and proper maintenance will help preserve the appearance and functionality of your TOTO L250C washbasin.

5.1 Cleaning the Washbasin

• Use a soft cloth or sponge with mild, non-abrasive cleaning agents.
• Avoid using harsh chemicals, abrasive cleaners, scouring pads, or steel wool, as these can damage the surface finish.
• Risciacquare la lavatriceasin thoroughly with clean water after cleaning to remove any cleaning agent residue.
• Wipe dry with a soft cloth to prevent water spots and maintain shine.

5.2 Manutenzione dello scarico

• Periodically remove and clean the drain stopper to clear any accumulated hair or debris.
• If slow drainage occurs, use a plumbing-safe drain cleaner or consult a plumber.

6. Risoluzione Dei Problemi

Questa sezione affronta i problemi comuni che potresti riscontrare con la tua lavatriceasin.

6.1 Perdite d'acqua

• Problema: Water leaking from faucet connections.
  Soluzione: Ensure all faucet connections are tightened properly. Check for worn washers or O-rings and replace if necessary.
• Problema: Water leaking from drain assembly.
  Soluzione: Verify that the drain assembly is correctly installed and sealed. Check for cracks in the drain pipes or loose connections.

6.2 Slow Drainage

• Problema: Water drains slowly from the basin.
  Soluzione: Remove the drain stopper and clear any hair or debris. If the problem persists, a clog may be further down the drainpipe, requiring a plumbing snake or professional assistance.

6.3 Residual Water in Faucet/Basin

• Problema: Small amounts of water are present in the faucet or basin upon initial unpacking.
  Soluzione: This is normal. Faucets undergo water flow testing by the manufacturer, and residual water may remain. This does not affect product quality.

7. Specifiche

8. Garanzia e supporto

For specific warranty information, terms, and conditions related to the TOTO L250C washbasin, please refer to the official TOTO manufacturer's websito o nella documentazione di garanzia allegata al prodotto.

Avviso importante: Returns or exchanges are generally not accepted after product shipment. Please review the seller's return and exchange policy before placing your order.

If you require technical support or have questions not covered in this manual, please contact TOTO customer service or your authorized dealer.
