1. Introduzione
This instruction manual provides detailed guidance for the assembly and care of your Amati B1300.02 HM Bomb Vessel Granado Model Kit. This 1/64 scale model accurately represents the bomb ship Granado, commissioned on September 14, 1741. Originally conceived as a sloop, the Granado was converted to its role as a bomb ship during the Seven Years' War, equipped with two 13-inch mortars, a 4-pounder gun, and swivelling anti-personnel guns.
The kit is designed for adult model enthusiasts and includes high-quality components to ensure a rewarding building experience.
2. Contenuto del kit e configurazione
Before beginning assembly, carefully unpack all components and verify against the parts list provided in the kit's dedicated instructions. The Amati B1300.02 kit includes:
- Laser-cut wooden parts for precise construction.
- Components for a double-planked hull, providing structural integrity and realistic appearance.
- Various metal fittings for detailed embellishments.
- A wooden display stand to showcase the completed model.
- Comprehensive assembly instructions (refer to the included documentation for specific steps).
Ensure you have a clean, well-lit workspace. Recommended tools (not included) typically include hobby knives, glues suitable for wood and metal, small clamps, sandpaper, and painting supplies if you intend to finish the model.
Figura 2.1: Oltreview of the Amati B1300.02 Model Kit box and its contents, including laser-cut wood, fittings, and instructions.
3. Assembly and Operating Guidelines
The assembly of the HM Bomb Vessel Granado model requires patience and attention to detail. Follow the step-by-step instructions provided with your kit. Begin with the hull construction, ensuring all planks are securely attached and aligned. Progress through the deck details, mast rigging, and the installation of the various fittings and armaments, such as the 13-inch mortars and 4-pounder gun.
The completed model, with an approximate length of 80 cm, is intended for static display. Its intricate details, including the rigging and historical armament, reflect the original vessel's design and function.

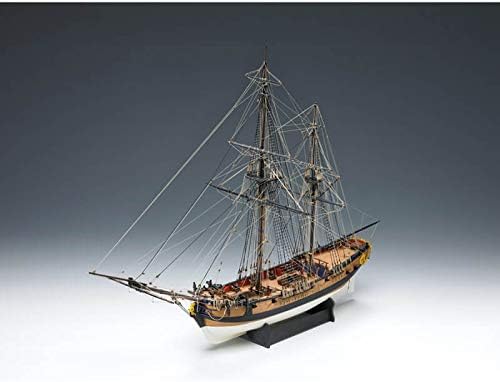

Figure 3.1: The fully assembled Amati HM Bomb Vessel Granado model, showcasing its detailed rigging and hull.
Figura 3.2: dettagliata view of the deck, showing intricate rigging and structural elements.

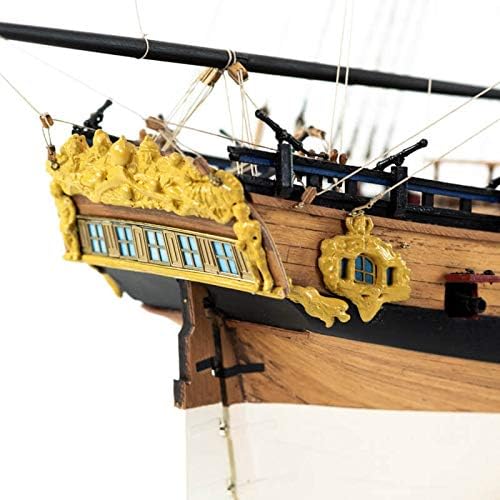

Figure 3.3: Close-up of the stern, highlighting the decorative elements and hull planking.
4. Manutenzione
To preserve the appearance and integrity of your Amati Granado model, follow these maintenance guidelines:
- Spolverare: Regularly dust the model using a soft brush or a can of compressed air. Avoid abrasive materials that could scratch the surface or dislodge small parts.
- Gestione: Always handle the model with care, preferably by its base or main hull structure, to avoid damaging delicate rigging or fittings.
- Ambiente di visualizzazione: Display the model in a stable environment, away from direct sunlight, extreme temperature fluctuations, and high humidity. These conditions can cause wood to warp, fade, or degrade over time.
- Pulizia: Per lo sporco ostinato, una leggera damp cloth can be used on wooden surfaces, but avoid excessive moisture. Do not use harsh chemical cleaners.
5. Risoluzione Dei Problemi
While building a model kit can present challenges, most issues can be resolved with careful attention. Here are common troubleshooting tips:
- Parti non adatte: Double-check the part numbers against the instructions. Ensure any excess material from laser cutting is removed. Gentle sanding may be required for a snug fit.
- Broken or Missing Parts: If a part is broken during assembly, attempt to repair it with appropriate adhesive. For genuinely missing parts, refer to the "Warranty & Support" section for guidance on contacting the manufacturer.
- Rigging Issues: Rigging can be complex. Refer to the detailed diagrams in your kit's instructions. Use tweezers and a steady hand. If lines fray, a small amount of diluted white glue can be used to stiffen them.
- Adhesive Problems: Ensure you are using the correct type of adhesive for the materials (wood, metal). Allow sufficient drying time as per the adhesive manufacturer's instructions.
6. Specifiche
| Marca | Amati |
| Numero di modello | B1300.02 |
| Nome del prodotto | HM Bomb Vessel Granado Model Kit |
| Scala | 1:64 |
| Assembled Length (approx.) | 80 cm (31.5 pollici) |
| Dimensioni assemblate (L x P x A) | 86 x 32 x 60 cm (33.8 x 12.6 x 23.6 pollici) |
| Materiale | Legno, Metallo |
| Peso dell'articolo (kit) | 1 chilogrammo (2.2 libbre) |
| Fascia d'età consigliata | Adulto |
7. Garanzia e supporto
For information regarding product warranty, missing parts, or technical assistance, please refer to the documentation included within your Amati B1300.02 model kit. Alternatively, you may visit the official Amati webo contattare direttamente l'assistenza clienti. Conservare la prova d'acquisto per eventuali reclami in garanzia.
Note: This manual provides general guidance. Always prioritize the specific instructions provided within your model kit for detailed assembly steps and part identification.
