Leitz IQ Office Pro P5+ Micro Cut Shredder

1. Introduzione

The Leitz IQ Office Pro P5+ Shredder is designed for secure and efficient document destruction in office environments. Featuring advanced micro-cut technology, it ensures a high level of security for your confidential information. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your shredder.

Immagine: Frontale view of the Leitz IQ Office Pro P5+ Shredder, showing its sleek design and the waste bin filled with shredded paper.

2. Informazioni sulla sicurezza

Precauzioni generali di sicurezza

• Leggere tutte le istruzioni prima dell'uso.
• Keep hands, hair, loose clothing, and ties away from the paper entry slot.
• Tenere i bambini e gli animali domestici lontano dal distruggidocumenti.
• Do not insert more sheets than specified (7-8 sheets A4, 70-80 gsm).
• Do not shred metal objects, plastic cards, or adhesive labels unless explicitly stated as compatible. This shredder is designed for paper, staples, and paper clips.
• Empty the waste bin regularly to prevent jams.

Sicurezza elettrica

• Assicurarsi che la presa di corrente corrisponda al voltage requirements of the shredder.
• Do not use the shredder if the power cord is damaged.
• Unplug the shredder before moving, cleaning, or performing maintenance.
• Avoid placing the shredder near water or in damp ambienti.

3. Prodotto finitoview

Caratteristiche principali

• Micro Cut Security (DIN P5+): Shreds documents into tiny 2x5mm particles for enhanced security.
• Alta capacità: Shreds up to 7-8 sheets of A4 paper (70-80 gsm) per pass.
• Grande contenitore per rifiuti: 30-liter removable bin holds up to 350 shredded sheets.
• Tecnologia anti-inceppamento: Automatically reverses if too much paper is inserted, preventing jams.
• Funzionamento silenzioso: Designed for a calm working environment.
• Tempo di esecuzione esteso: Operates continuously for up to 4 hours (240 minutes).
• Controlli touch intuitivi: Easy-to-use interface for simple operation.

Immagine: Primo piano view of the shredder's control panel with touch buttons and the fine micro-cut shredded paper in the bin.

4. Impostazione

Disimballaggio

1. Estrarre con cautela il distruggidocumenti dalla confezione.
2. Remove any protective materials or plastic bags.
3. Ensure all components are present, including the shredder unit and waste bin.

Image: The Leitz IQ Office Pro P5+ Shredder next to its instruction manual, indicating the contents of the package.

Posizionamento

• Posizionare il distruggidocumenti su una superficie piana e stabile.
• Ensure there is adequate space around the shredder for ventilation and easy access to the waste bin.
• Position the shredder near a power outlet.

Collegamento di potenza

1. Insert the waste bin securely into the shredder unit.
2. Collegare il cavo di alimentazione a una presa elettrica dotata di messa a terra.
3. The shredder is now ready for operation.

5. Istruzioni per l'uso

Distruzione dei documenti

1. Assicurarsi che il distruggidocumenti sia collegato alla presa di corrente e che il contenitore dei rifiuti sia inserito correttamente.
2. Turn on the shredder using the power button on the control panel.
3. Insert up to 7-8 sheets of A4 paper (70-80 gsm) into the paper entry slot. The shredder will automatically start shredding.
4. The shredder can also handle small staples and paper clips.
5. For optimal performance and quiet operation, consider using Leitz pre-lubricated paper.

Image: The shredder with visual indicators for its 7-sheet capacity and 30-liter waste bin, highlighting its efficiency.

Tecnologia anti-inceppamento

The Leitz IQ Office Pro P5+ Shredder features advanced anti-jam technology. If too much paper is inserted, the shredder will automatically reverse to clear the jam. Remove the excess paper and re-insert a smaller quantity.

Image: Graphic illustrating the Anti-Jam feature and the 2+1 year guarantee offered with the shredder.

Svuotare il cestino dei rifiuti

1. When the waste bin is full, the shredder will stop operating.
2. Pull out the removable waste bin from the front of the shredder.
3. Dispose of the shredded paper.
4. Reinsert the waste bin firmly until it clicks into place. The shredder will then be ready for use again.

6. Manutenzione

Pulizia

• Scollegare sempre il distruggidocumenti prima di pulirlo.
• Pulire l'esterno del distruggidocumenti con un panno morbido e asciutto. Non utilizzare detergenti abrasivi o solventi.
• Periodically clean the paper entry area to remove any paper dust or debris.

Lubrificazione

To maintain optimal performance and extend the life of your shredder, it is recommended to lubricate the cutting blades regularly. Use shredder oil or lubrication sheets specifically designed for paper shredders. Follow the instructions provided with the lubrication product.

7. Risoluzione Dei Problemi

8. Specifiche

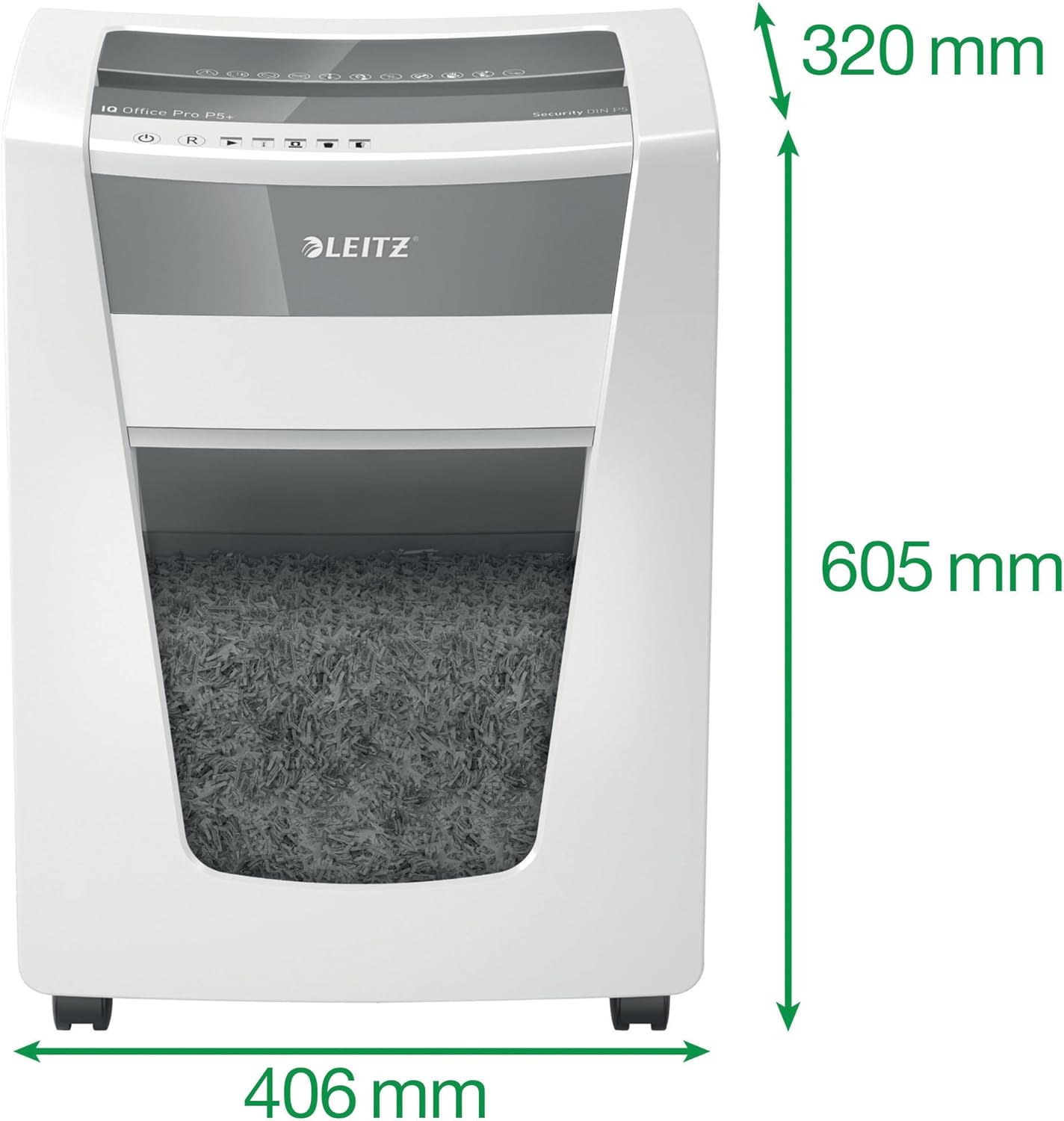

Image: The shredder with its key dimensions (height, width, depth) clearly marked.

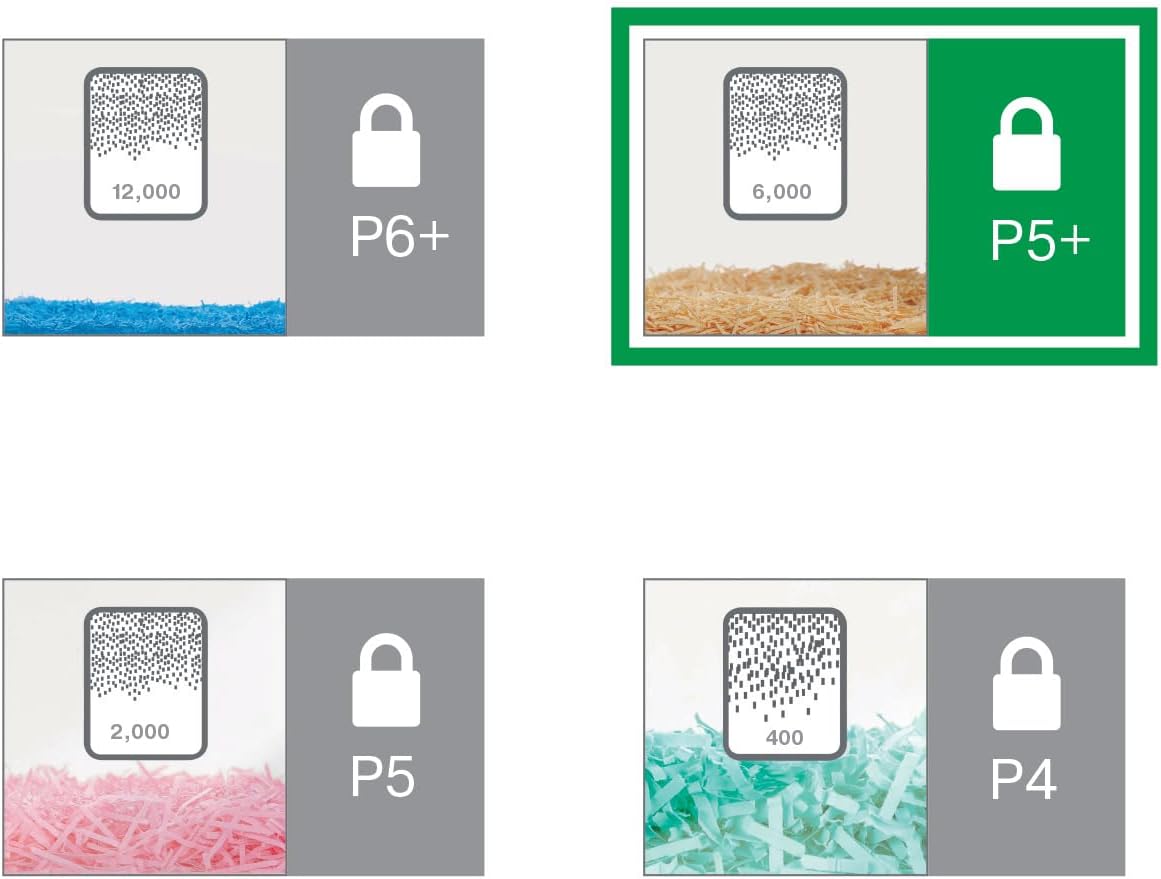

Image: A visual comparison of different DIN security levels (P4, P5, P5+, P6+), illustrating the decreasing particle size for higher security.

9. Garanzia e supporto

Informazioni sulla garanzia

This Leitz IQ Office Pro P5+ Shredder comes with a 2-year warranty. An additional 1-year warranty (total 3 years) can be obtained upon product registration. Please refer to the warranty card included with your product for detailed terms and conditions, or visit the official Leitz websito per la registrazione.

Assistenza clienti

For technical assistance, spare parts, or any inquiries regarding your Leitz shredder, please contact Leitz customer support. Contact information can typically be found on the official Leitz websito o sulla confezione del prodotto.

Puoi anche visitare il Leitz official websito per ulteriori informazioni e risorse di supporto.
