Manuale d'uso della testata per basso Darkglass Alpha Omega 900

1. Introduzione

This manual provides comprehensive instructions for the Darkglass Alpha Omega 900 Bass Head. It covers setup, operation, maintenance, troubleshooting, and technical specifications. Please read this manual thoroughly before operating the device to ensure proper use and to maximize its performance and longevity.

The Alpha Omega 900 is a 900-watt bass amplifier head featuring a built-in compressor, IR cabinet simulation, a 6-band graphic EQ, and MIDI capabilities, offering unparalleled tonal flexibility and power for the modern bass player.

2. Prodotto finitoview

Controlli del pannello frontale

Davanti view of Darkglass Alpha Omega 900 Bass Head

Figure 2.1: Front panel of the Alpha Omega 900 Bass Head, showing input, compression, drive, level, EQ, and master controls.

Ingresso: Connect your instrument here. Features Passive/Active switch for different pickup outputs.
Confronto: Controlla la quantità di compressione.
Guidare: Regola la quantità di distorsione.
Livello: Sets the overall output volume of the distortion circuit.
Modificato: Selects between Alpha (punchy, tight) and Omega (brutal, raw) distortion circuits.
si fondono: Mixes the clean signal with the distorted signal.
Guadagno: Controlla il guadagno di ingresso del amppiù vivace.
Equalizzatore grafico: 6-band graphic equalizer for precise tone shaping (250 Hz, 500 Hz, 1.5 kHz, 3 kHz, 5 kHz).
Disattiva audio: Mutes the output signal.
Maestro: Controlla il volume di uscita complessivo del amppiù vivace.

Collegamenti del pannello posteriore

Posteriore view of Darkglass Alpha Omega 900 Bass Head showing various input and output jacks

Figure 2.2: Rear panel of the Alpha Omega 900 Bass Head, detailing speaker outputs, effects loop, auxiliary input, headphone output, USB, DI outputs, MIDI, and footswitch connections.

Uscita altoparlante: Connect to your bass cabinet.
Invia/Restituisci: Effects loop for external effects pedals.
Ingresso ausiliario: Connect external audio devices for practice.
Uscita cuffie: Per la pratica silenziosa.
USB: Connect to a computer for Darkglass Suite software access and firmware updates.
Pre DI/Post DI: Balanced XLR outputs for direct connection to mixing consoles or audio interfaces.
Italiano: For external MIDI control.
Interruttore a pedale: Connect the Darkglass Intelligent Footswitch for remote control of functions.

3. Impostazione

Collegamento elettrico: Connect the power cable to the AC inlet on the rear panel and then to a grounded power outlet. Ensure the power switch is in the OFF position before connecting.
Collegamento dell'altoparlante: Connect your bass cabinet(s) to the Speaker Output jacks using appropriate speaker cables. Ensure the impedance of your cabinet(s) matches the amplifier's output capabilities (minimum 2 Ohm load).
Collegamento dello strumento: Plug your bass guitar into the Input jack on the front panel. Select the Passive or Active input mode based on your instrument's pickups.
Footswitch Connection (Optional): Connect the Darkglass Intelligent Footswitch to the Footswitch jack on the rear panel for remote control of distortion and mute functions.
Dispositivi ausiliari (opzionali): For practice, connect an external audio source (e.g., smartphone, MP3 player) to the Aux In jack. Adjust the Headphone Volume for monitoring.
DI Output (Optional): For recording or live sound, connect the Pre DI or Post DI XLR outputs to a mixing console or audio interface. Use the Ground Lift switch if hum is present.

4. Istruzioni per l'uso

Funzionamento di base

Accensione: After all connections are made, set the Master volume to minimum and then turn on the power switch.
Regolazione del volume: Slowly increase the Master volume to your desired listening level.
Modellazione del tono: Use the 6-band Graphic EQ sliders to adjust your tone. Experiment with the frequency bands to find your desired sound.
Compressione: Adjust the Comp knob to control the dynamic range of your signal.
Distorsione: Engage the distortion circuit using the dedicated switch. Use the Drive, Level, Mod, and Blend knobs to sculpt your distorted tone.

Funzionalità avanzate

IR Cabinet Simulation: The Alpha Omega 900 features built-in Impulse Response (IR) cabinet simulation. These can be accessed and managed via the Darkglass Suite software.
Software Darkglass Suite: Collegare il amplifier to your computer via the USB port. Download and install the Darkglass Suite software from the official Darkglass website. This software allows for firmware updates, loading custom IRs, and fine-tuning various ampparametri lificatori.

Screenshot of Darkglass Suite software interface

Figure 4.1: Darkglass Suite software interface for managing IRs and settings.

Controllo MIDI: IL amplifier supports MIDI control for various functions. Refer to the Darkglass website or Darkglass Suite for detailed MIDI implementation charts.

5. Manutenzione

Pulizia: Utilizzare un panno morbido e asciutto per pulire il ampl'esterno del filtro. Evitare detergenti abrasivi o solventi.
Ventilazione: Assicurare una ventilazione adeguata attorno all' amplifier. Do not block the cooling fan or vents on the rear panel.
Magazzinaggio: Conservare il amplifier in a dry, cool environment away from direct sunlight and extreme temperatures.
Trasporti: When transporting, use a padded case to protect the amplifier from physical damage.

6. Risoluzione Dei Problemi

Problema	Possibile causa	Soluzione
Nessun suono	Power not connected, Master volume low, Mute engaged, faulty cables, incorrect input selection.	Check power connection, increase Master volume, disengage Mute, check all cables, ensure Passive/Active switch is correct.
Ronzio/ronzio	Ground loop, faulty instrument cable, interference from other electronics.	Engage Ground Lift switch on DI output, try different cables, move amplifier lontano da altri dispositivi elettronici.
Distortion not engaging	Distortion switch not activated, Drive knob set too low.	Press the Distortion switch, increase the Drive knob.
Surriscaldamento	Blocked vents, prolonged high-volume use in poor ventilation.	Ensure vents are clear, allow amplifier to cool down, operate in a well-ventilated area.

7. Specifiche

Uscita Wattage: 900 Watt RMS
Impedenza di ingresso: 1 M Ohm
Impedenza di carico minima: 2 Ohm
Dimensioni (L x P x A): 11 x 12 x 3.75 pollici (27.94 x 30.48 x 9.53 cm)

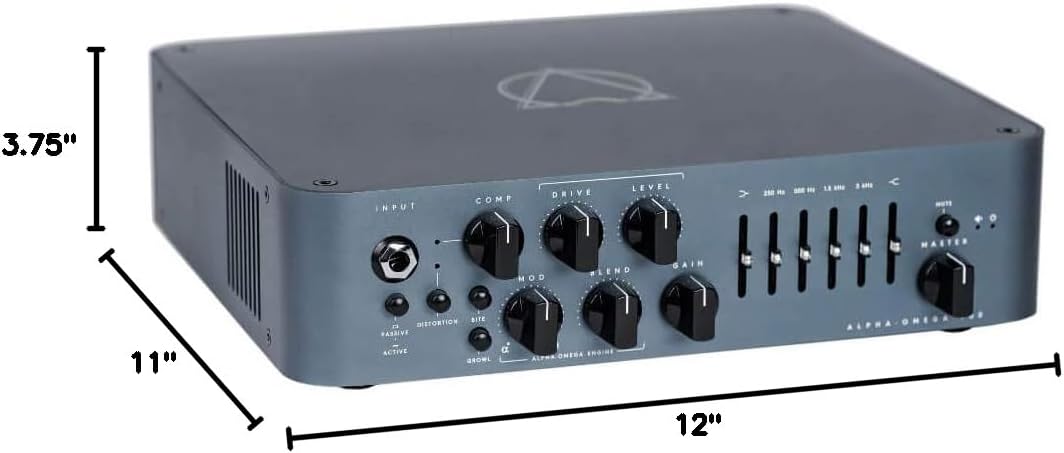

Dimensions of Darkglass Alpha Omega 900 Bass Head

Figure 7.1: Physical dimensions of the Alpha Omega 900 Bass Head.

Peso: Circa 1 libbra (0.45 kg) - Note: This weight seems unusually low for a 900W bass head. Please refer to official Darkglass specifications for precise weight.
Controlli: Input, Comp, Drive, Level, Mod, Blend, Gain, 6-band Graphic EQ, Mute, Master.
Connettività: Instrument Input, Speaker Outputs, Send/Return, Aux In, Headphone Output, USB, Pre DI, Post DI, MIDI, Footswitch.
Caratteristiche: Built-in Compressor, Alpha/Omega Distortion Engine, IR Cabinet Simulation, MIDI Control.

8. Garanzia e supporto

Darkglass Electronics products are covered by a limited warranty. For detailed warranty information, please visit the official Darkglass Electronics websito o contattare il servizio clienti.

For technical support, troubleshooting assistance, or service inquiries, please contact Darkglass Electronics customer support through their official websito: www.darkglass.com/support
