The ABB SK615546-2 is an Emergency Stop Legend Plate designed to provide clear visual identification for emergency stop buttons in industrial and commercial applications. Made from durable yellow aluminum, this plate features a 70mm central hole to accommodate standard emergency stop actuators, with "Emergency" and "Stop" clearly marked for immediate recognition.

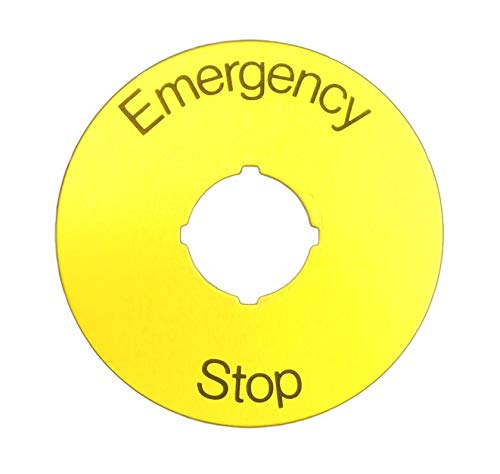

This image displays the ABB SK615546-2 E-Stop Legend Plate. It is a circular, yellow aluminum plate with a central 70mm hole designed to fit around an emergency stop button. The word 'Emergency' is engraved in black text above the hole, and 'Stop' is engraved below it, providing clear identification for the emergency stop function.
Installazione
The SK615546-2 legend plate is designed for straightforward installation around compatible emergency stop pushbuttons. Ensure the power to the equipment is disconnected before beginning installation.
- Preparazione: Verify that the emergency stop button's mounting diameter is compatible with the legend plate's 70mm hole.
- Posizionamento: Carefully slide the legend plate over the emergency stop button's shaft or base, ensuring the "Emergency" and "Stop" text is oriented correctly for clear visibility.
- Protezione: Secure the legend plate in place using the appropriate retaining nut or mechanism provided with your emergency stop button. Ensure it is snug but do not overtighten to avoid damage to the plate or button.
- Controllo finale: Confirm the legend plate is securely mounted and the text is clearly legible and facing the intended direction.
For detailed instructions on mounting the emergency stop button itself, refer to the specific manual provided with your emergency stop device.
Funzione e funzionamento
The ABB SK615546-2 E-Stop Legend Plate serves as a critical visual indicator for emergency stop controls. Its primary function is to enhance safety by:
- Chiara identificazione: The bright yellow color and bold "Emergency Stop" text ensure that the emergency stop button is immediately recognizable in critical situations.
- Conformità: Aids in meeting safety standards and regulations that require clear labeling of emergency controls.
- Risposta rapida: Facilitates quick and accurate location of the emergency stop button during an emergency, potentially reducing response time.
This legend plate does not have any operational components; its function is purely visual and passive, supporting the operation of the emergency stop button it surrounds.
Manutenzione
Regular maintenance of the legend plate ensures its continued legibility and effectiveness.
- Pulizia: Periodically clean the surface of the legend plate with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or fade the text.
- Ispezione: Routinely inspect the legend plate for any signs of damage, such as cracks, fading, or dislodgement. Ensure the text remains clear and visible.
- Montaggio sicuro: Verify that the legend plate remains securely mounted around the emergency stop button. If it becomes loose, re-secure it as per the installation instructions.
Risoluzione dei problemi
As a passive component, the legend plate has limited troubleshooting scenarios. Most issues relate to its physical condition or mounting.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Text is faded or illegible. | Exposure to harsh chemicals, excessive sunlight, or physical abrasion. | Replace the legend plate. Ensure proper environmental conditions if possible. |
| Legend plate is loose or detached. | Improper installation or vibration. | Re-secure the legend plate according to installation instructions. Check the retaining mechanism of the E-stop button. |
| Plate is cracked or damaged. | Impatto fisico o stress. | Replace the damaged legend plate immediately to maintain safety standards. |
Specifiche
- Modello: SK615546-2
- Marca: FIGURA
- Tipo: E-Stop Legend Plate
- Materiale: Alluminio
- Colore: Yellow (Plate), Black (Text)
- Diametro del foro: 70mm
- Parole chiave: ABB, SK615546-2, E-Stop, Legend, Plate, Yellow, Aluminium, 70mm, Hole
- Primo disponibile: 21 febbraio 2019
Informazioni sulla garanzia
Specific warranty details for the ABB SK615546-2 E-Stop Legend Plate are not provided within this manual. For warranty inquiries, please refer to the official ABB website or contact an authorized ABB distributor.
Assistenza clienti
For technical assistance, product information, or support regarding the ABB SK615546-2 E-Stop Legend Plate, please visit the official ABB website or contact your local ABB representative. You can find contact information and resources on the Negozio ABB su Amazon or the main ABB corporate websito.
