1. Introduzione
This manual provides essential information for the proper installation, operation, and maintenance of the Seeku FX1N-30MR PLC Industrial Control Board. Please read this manual thoroughly before using the product to ensure safe and efficient operation. Keep this manual for future reference.
2. Informazioni sulla sicurezza
Osservare sempre le seguenti precauzioni di sicurezza per prevenire lesioni personali e danni all'apparecchiatura:
- Prima di effettuare qualsiasi cablaggio o manutenzione, assicurarsi che l'alimentazione sia scollegata.
- Solo personale qualificato può installare, utilizzare e manutenere questo dispositivo.
- Do not operate the PLC in environments exceeding its specified operating temperature or humidity ranges.
- Avoid exposing the device to direct sunlight, excessive dust, corrosive gases, or strong vibrations.
- Verify all wiring connections are correct and secure before applying power. Incorrect wiring can cause damage to the PLC or connected equipment.
3. Prodotto finitoview
The Seeku FX1N-30MR is a compact and reliable Programmable Logic Controller (PLC) designed for industrial automation applications. It features 16 digital inputs and 14 relay outputs, along with analog input/output capabilities and communication interfaces.
Caratteristiche principali:
- High-quality chip for stable performance and power-off protection.
- Integrated RS-232 and RS-485 communication interfaces.
- Built-in real-time clock and Run/Stop switch.
- Analog input (3AD 0-10V) and analog output (2DA 0-10V).
- Compact size for space-saving installations.
Identificazione dei componenti:

Figura 3.1: Fronte view of the FX1N-30MR PLC, highlighting the input (X) and output (Y) terminals, RS-232 port, and power input.

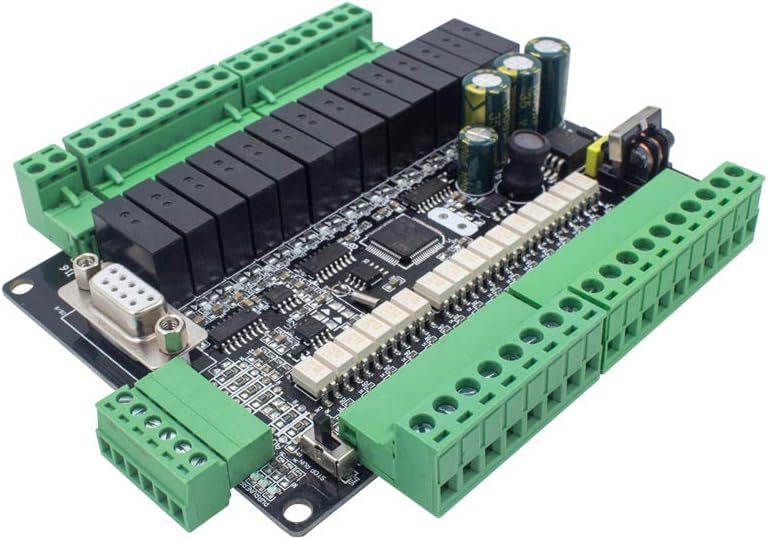

Figura 3.2: Angolato view of the PLC, illustrating the accessible terminal blocks for wiring and the communication port.
4. Specifiche
| Caratteristica | Descrizione |
|---|---|
| Numero di modello | FX1N-30MR |
| Volume di alimentazionetage | DC24V |
| Numero di ingressi digitali | 16 |
| Tipo di input | Digitale |
| Numero di uscite | 14 (Relè) |
| Tipo di uscita | Staffetta |
| Corrente di uscita | 5A |
| Protezione di spegnimento | Supportato |
| Ingresso analogico | 3AD 0-10V |
| Uscita analogica | 2DA 0-10V |
| Ingresso ad alta velocità | 2 Channels 3K |
| High Speed Output | NO |
| Comunicazione | RS232, RS485 |
| Orologio in tempo reale | Incorporato |
| Interruttore Esegui/Arresta | Incorporato |
| Capacità del programma | 8000 Steps EEPROM |
| Linguaggio di programmazione | Ladder Logic |
| Software di programmazione | GX Developer or GX Works2 |
| Interfaccia di programmazione | Computer |
| Temperatura di esercizio | Temperatura ambiente: da 0°C a +55°C |
| Dimensioni | 125 x 90 x 40 mm |
| Dimensione del foro | 117 x 82 mm |
| Materiale | Rame |
Diagramma delle dimensioni:

Figure 4.1: Detailed dimensions of the FX1N-30MR PLC for mounting and installation planning.
5. Installazione e cablaggio
Montaggio:
The FX1N-30MR PLC is designed for easy installation. It includes a shell and base for secure mounting. Use the provided hole dimensions (117 x 82mm) for precise placement.

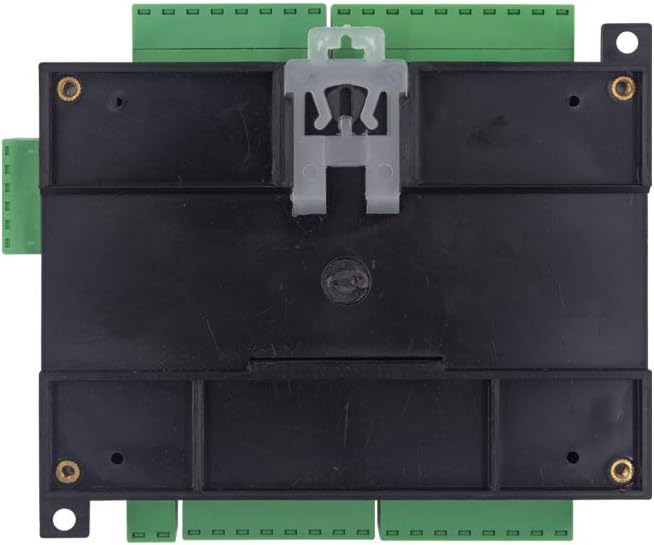

Figura 5.1: Posteriore view of the PLC, illustrating the mounting mechanism for panel or DIN rail installation.
Istruzioni di cablaggio:
All wiring should be performed with the power disconnected. Refer to the wiring diagram below for correct connections. Ensure all wires are properly stripped and securely fastened in the terminal blocks.
- Alimentazione elettrica: Connect DC24V to the designated power terminals.
- Digital Inputs (X0-X17): Connect your digital input devices (e.g., switches, sensors) to these terminals.
- Digital Outputs (Y0-Y15): Connect your relay-controlled devices (e.g., contactors, indicator lights) to these terminals. The outputs are relay type with a 5A current rating.
- Analog Inputs (AD0, AD1, AD2): Connect 0-10V analog signals to these terminals.
- Analog Outputs (DA1, DA2): These terminals provide 0-10V analog output signals.
- Communication Ports (RS232, RS485): Use these ports for connecting to a computer or other communication devices.

Figure 5.2: Comprehensive wiring diagram for the FX1N-30MR PLC.
6. Programmazione
The FX1N-30MR PLC is programmed using Ladder Logic. Programming is typically done via a computer connected to the PLC's RS232 or RS485 interface.
Requisiti software:
- Compatible programming software includes GX Developer or GX Works2.
Fasi di programmazione (generali):
- Install the appropriate programming software (GX Developer or GX Works2) on your computer.
- Connect your computer to the PLC using a compatible RS232 or RS485 cable.
- Configure the communication settings in the software to match the PLC's settings.
- Create your Ladder Logic program according to your application requirements.
- Download the program to the PLC's 8000-step EEPROM memory.
- Test the program thoroughly to ensure correct operation.
7. Funzionamento
Run/Stop Switch:
The PLC features a built-in Run/Stop switch. This switch allows you to manually control the operational state of the PLC program without needing to connect to a computer.
- RUN Position: The PLC executes the loaded program.
- STOP Position: The PLC halts program execution. This is useful for debugging or making changes.
Orologio in tempo reale:
The integrated real-time clock allows for time-based operations within your PLC program, such as scheduling events or logging data with timestamps.
8. Manutenzione
The Seeku FX1N-30MR PLC is designed for reliability and requires minimal maintenance. However, regular checks can extend its lifespan and ensure optimal performance:
- Keep the PLC clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Controllare periodicamente tutti i collegamenti elettrici per verificarne la tenuta e l'assenza di segni di corrosione.
- Ensure proper ventilation around the PLC to prevent overheating.
- Inspect for any physical damage to the casing o terminali.
9. Risoluzione Dei Problemi
If you encounter issues with your FX1N-30MR PLC, consider the following common troubleshooting steps:
- Nessun potere: Verify the DC24V power supply is connected correctly and providing the specified voltage. Check for blown fuses in the power circuit.
- Input non rispondenti: Check the wiring of the input devices. Ensure the input signals are within the specified voltage range. Verify the PLC is in RUN mode.
- Uscite non attivate: Check the wiring of the output devices. Ensure the output devices are receiving power. Verify the PLC program logic for the output. Check if the PLC is in RUN mode.
- Errori di comunicazione: Verify the communication cable is correctly connected. Check the communication settings (baud rate, data bits, parity, stop bits) in your programming software and ensure they match the PLC's settings.
- Program Download Failure: Ensure the PLC is in STOP mode before attempting to download a new program. Check communication settings.
If problems persist, consult the programming software documentation or seek professional assistance.
10. Garanzia e supporto
For specific warranty information, please refer to the product's purchase documentation or contact your vendor. For technical support, please reach out to the manufacturer or your authorized distributor.
