1. Introduzione e oltreview
Thank you for choosing the VOBAGA VOB-10 Mug Warmer. This device is designed to keep your beverages, such as coffee, tea, milk, or water, at your preferred warm temperature. Featuring three temperature settings and an automatic shut-off function, it ensures your drink stays warm for extended periods, whether you are at home or in the office.
Image: The VOBAGA Mug Warmer in pink, keeping a glass of tea warm. Surrounding icons illustrate its use for various beverages like coffee, hot chocolate, milk, and tea.
2. Informazioni sulla sicurezza
- Do not use vacuum-sealed or insulated cups, as these may prevent effective warming or cause overheating.
- For optimal performance, use thin-walled mugs with a flat or slightly concave bottom. Deep concave bottoms may reduce heating efficiency.
- The heating plate remains hot after the device is turned off. A flashing red light will indicate residual heat until the surface temperature drops below 97°F (36°C) to prevent accidental scalding.
- The warmer is constructed with heat-resistant and fire-resistant materials for safe operation.
- The spill-proof design helps prevent damage and simplifies cleaning.
- Ensure the power cord is not damaged and is properly plugged into a 110-120V outlet.
3. Caratteristiche del prodotto
- 3-Temperature Settings: Adjust your beverage temperature to 149°F (65°C), 131°F (55°C), or 104°F (40°C) by touching the power button.
- Spegnimento automatico: The warmer automatically turns off after 4 hours of continuous operation for safety and energy saving.
- Residual Temperature Reminder: After turning off, the power button light flashes red to indicate that the heating plate is still hot, ceasing when the temperature is safe to touch.
- Controllo tramite pulsante touch: A single touch button controls power and temperature settings for ease of use.
- Waterproof Heating Plate: The metal heating plate is designed to be spill-proof, making it easy to clean and preventing damage from accidental spills.
Image: A visual representation of the mug warmer's key features, including temperature control, automatic shut-off, touch interface, and waterproof design.
4. Impostazione
- Disimballare: Carefully remove the VOBAGA Mug Warmer from its packaging.
- Posizionamento: Place the warmer on a flat, stable, and heat-resistant surface, away from flammable materials.
- Collegamento elettrico: Plug the 60-inch UL-approved power cord into a standard 110-120V electrical outlet.
5. Istruzioni per l'uso
- Accensione: Place your mug with the beverage on the heating plate. Touch the power button once to turn on the warmer. The indicator light will illuminate.
- Regola la temperatura:
- Touch once (Red light): High temperature, approximately 149°F (65°C).
- Touch twice (Purple light): Medium temperature, approximately 131°F (55°C).
- Touch three times (Blue light): Low temperature, approximately 104°F (40°C).
- Spegnimento automatico: The warmer will automatically turn off after 4 hours of continuous operation. You can manually turn it off at any time by touching the power button until the light goes out.
- Promemoria calore residuo: After turning off, the power button light will flash red to warn that the heating plate is still hot. This light will stop flashing once the plate has cooled to a safe temperature (below 97°F / 36°C).
- Mug Compatibility: Use mugs made of tableware, stainless steel, ceramic, or glass with a flat or slightly concave bottom for best results. Avoid insulated or vacuum-sealed cups.

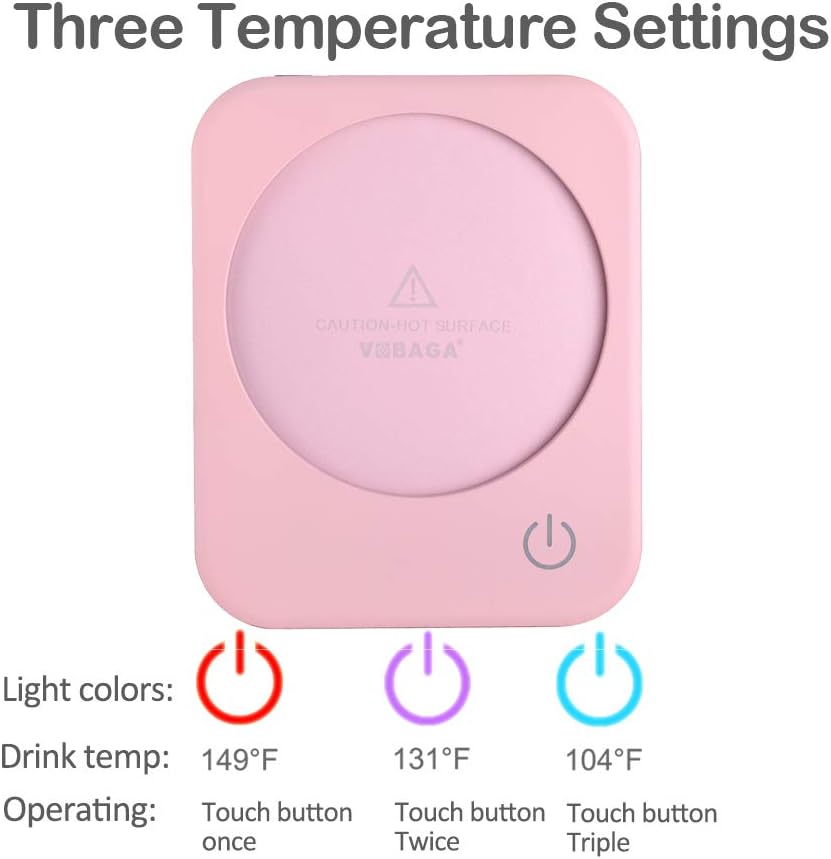

Image: A visual guide to the three temperature settings, showing the power button's light color for each temperature level.
6. Manutenzione
- Pulizia: Ensure the warmer is unplugged and completely cooled before cleaning. Wipe the heating plate and exterior with a damp cloth. The spill-proof design makes cleaning simple.
- Magazzinaggio: Quando non lo si utilizza, conservare lo scaldavivande in un luogo asciutto.
7. Risoluzione Dei Problemi
- Warmer Not Turning On: Check if the power cord is securely plugged into a working electrical outlet. Try a different outlet to rule out power supply issues.
- Beverage Not Warming: Ensure you are using a compatible mug (thin-walled, flat/slightly concave bottom, not insulated). Verify the correct temperature setting is selected.
- Flashing Blue Light (after turning off): This is the residual heat reminder. It indicates the plate is still hot and will stop flashing once cooled to a safe temperature. This is a normal safety feature.
- Malfunzionamento del dispositivo: If the device exhibits unusual behavior (e.g., flashing blue lights and not heating, as mentioned in some user experiences), try unplugging and re-plugging it. If the issue persists, contact VOBAGA customer support.
8. Specifiche
| Specificazione | Dettaglio |
|---|---|
| Numero di modello | VOB-10 |
| Marca | VOBAGA |
| Peso dell'articolo | 7 once (198.45 grammi) |
| Dimensioni del prodotto | 5.3 x 4.7 x 0.7 pollici |
| Materiale | Plastica |
| Volume nominaletage | 110-120 V |
| Potenza nominale | 20 Watt |
| Temperatura massima | 149°F (65°C) |
| Lunghezza del cavo | 60 pollici |
9. Garanzia e supporto
For any questions, concerns, or support needs regarding your VOBAGA VOB-10 Mug Warmer, please contact VOBAGA customer service. While specific warranty details are not provided in this manual, VOBAGA is committed to providing a good shopping experience and services. Please refer to your purchase documentation or the official VOBAGA websito per le informazioni più aggiornate sulla garanzia.
